PM 000515

New product


(Frequency FFVL possible 143.9875Mhz)

More details

Product Videos

92,00 € tax incl.

Data sheet

Frequency range VHF COM 136 - 174 mHz (Frequency FFVL possible 143.9875Mhz)
Power 1 Watt - 5 Watts ERP
Range Estimated from 5 to 5 km depending on ground configuration
Input voltage 7.4 Volts DC
Memories 128 channels programming 136 - 174 mHz following your assigned frequencies (must be programmed by a professional)
Channel spacing 12.5 kHz / 25 kHz
Bandwidth 12.5 kHz / 25 kHz
Step of increment 5 / 6.25 / 10 / 12.5 / 25 / 37.5 / 50 kHz
TONE BURST Yes : 1750 Hz
SQUELCH Yes : elimination of background noise
CTCSS / DCS (encoder/decoder) Yes : sub-audio code to activate repeater like selective tone
DTMF (encoder) Yes : tones selected to activate repeater, internet gateway and other items
VOX function Yes : this feature triggers your microphone sound (hands free)
TOT function Yes : time out timer
SCAN function Yes : automatic search of busy channels
TX/OFF function Yes : forbidding emission
REVERSE function Yes : the current channel RX frequency will be switched to TX frequency
ALARM function Yes : the transceiver will sound alarm beep, meanwhile, it start transmitting and send the alarm beep to companions or systems
APO function Yes : automatic power off (programmable)
DSP function Yes : digital signal processor
Various functions Vibrator + Keylock + Radio FM : 88-105 mHz
Structure ABS case and aluminum chassis injected
Display LCD display : red, orange, green
Level display Battery level indicator, battery voltage ...
Options Programming cable + software
Programmable by software Oui -- prix final selon programmation demandée par client --
Battery Li-ion 1200 mAh
Connection CRT K type
Antenna 17 cm / SMA-Female

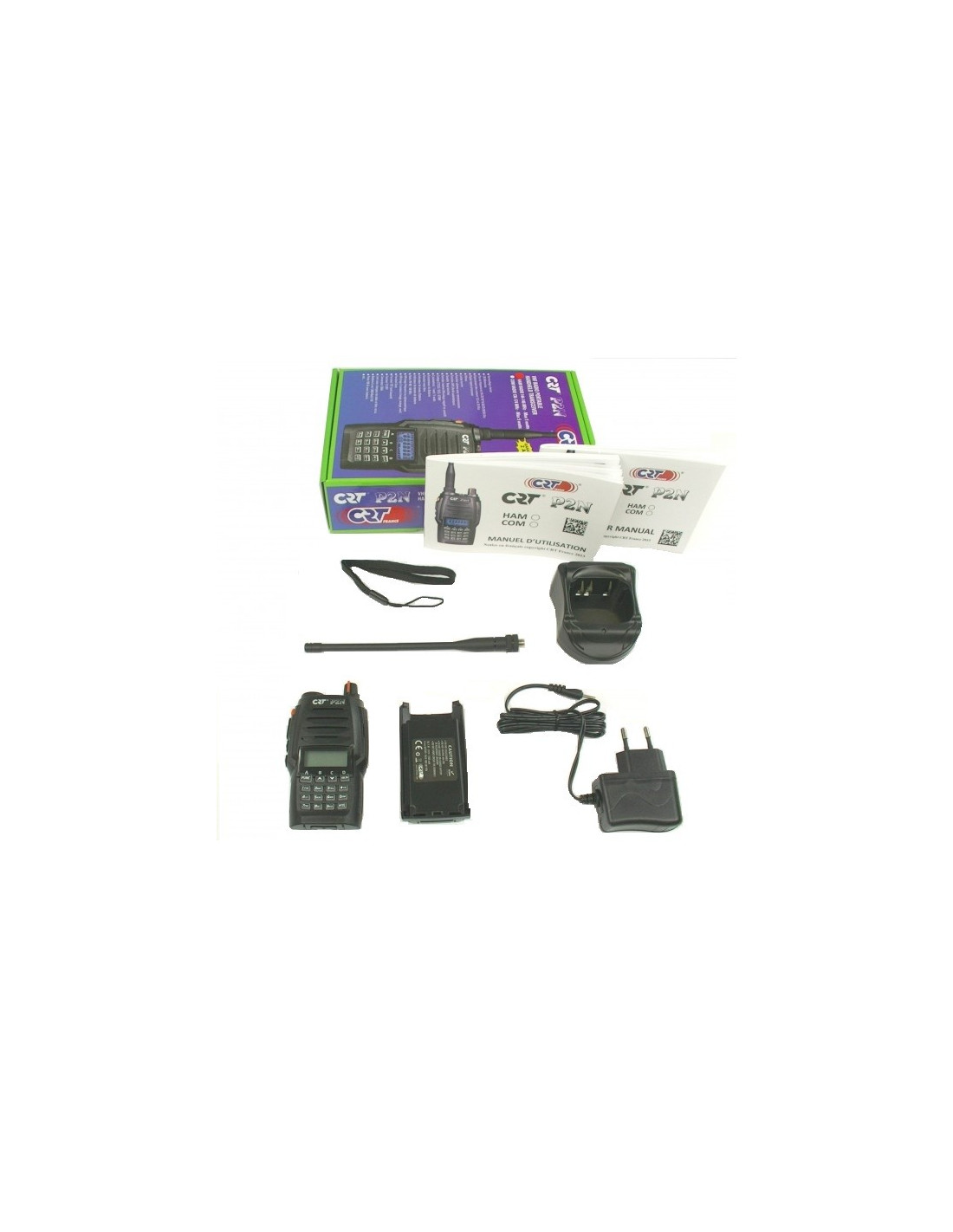

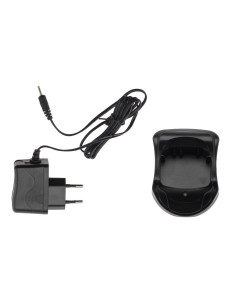

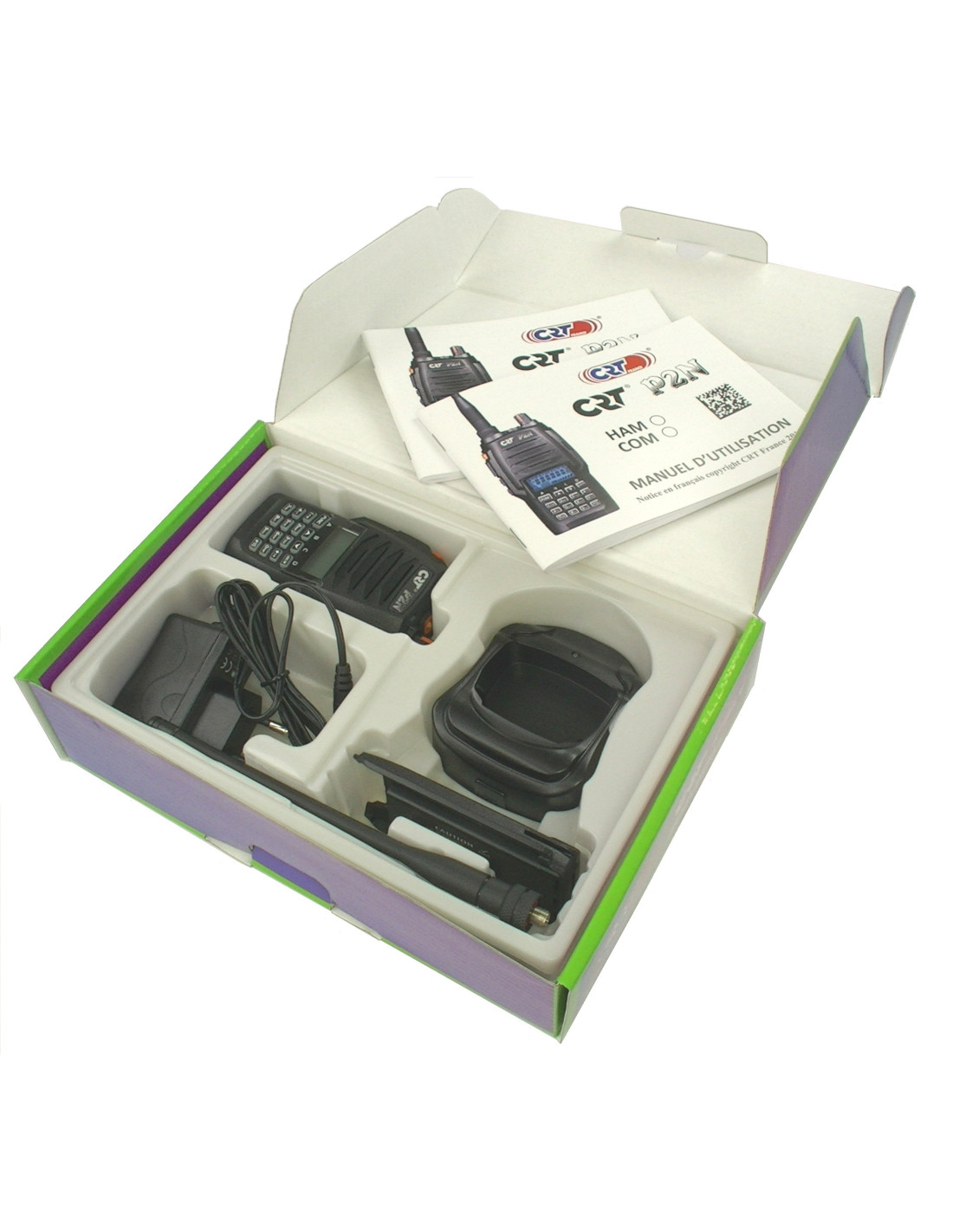

Deliver with Desktop charger, battery, antenna, strap and belt clip

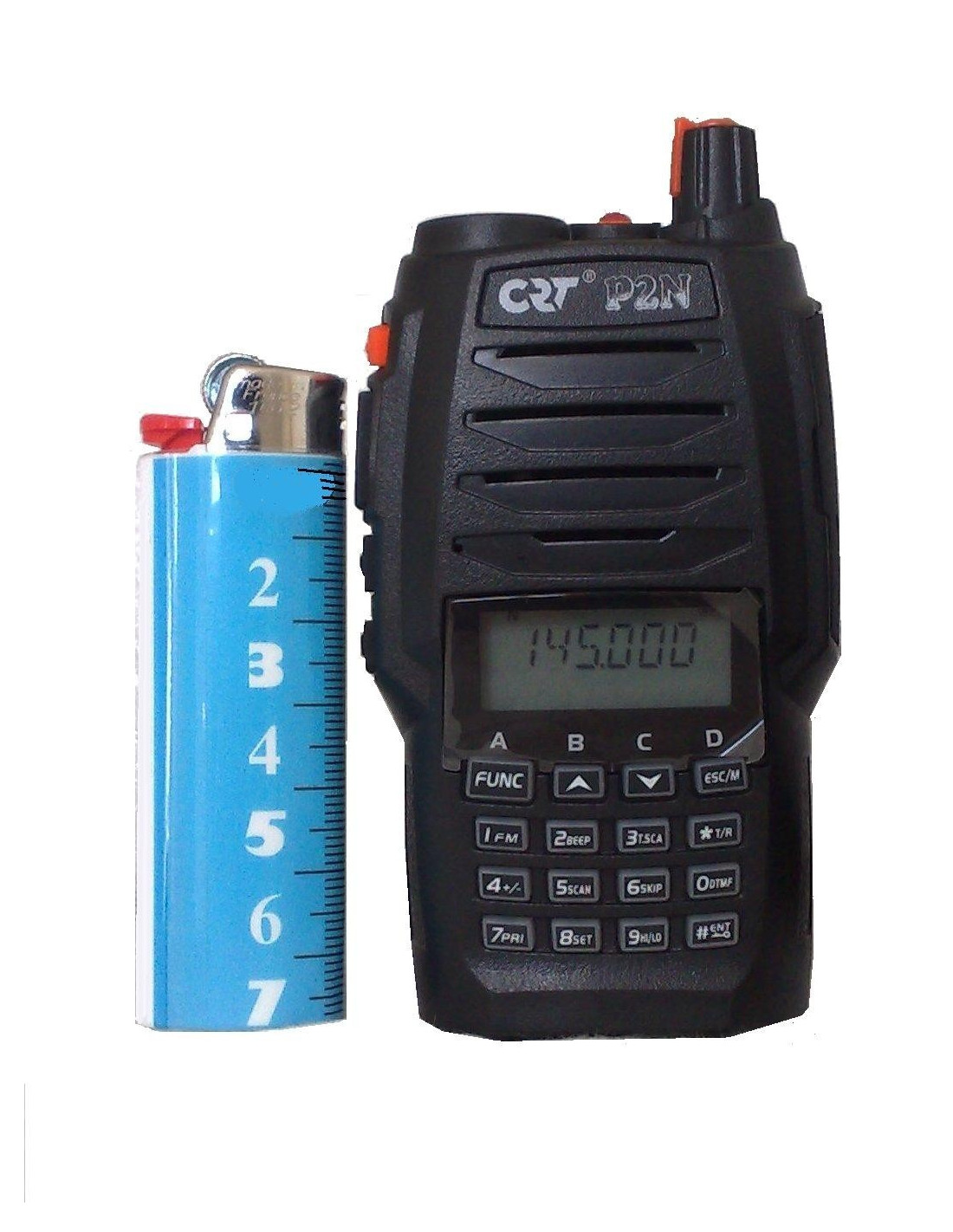

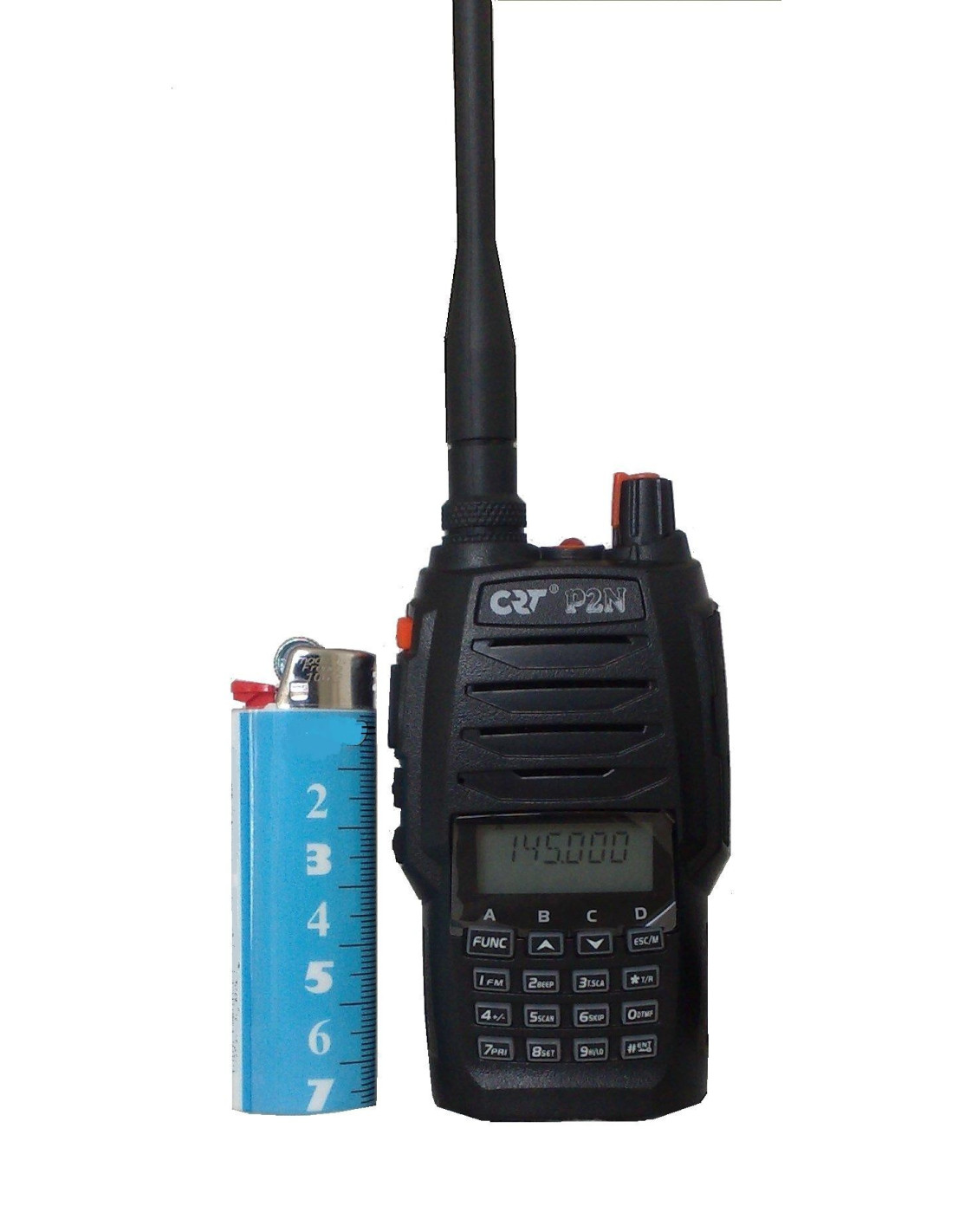

Size 100 x 56 x 29 mm (with battery, without antenna)
Weight 185 gr (with battry and antenna)
Guaranty 2 years
