Norm |
APPROVED VERSION FOR HUNTING IN BELGIUM |

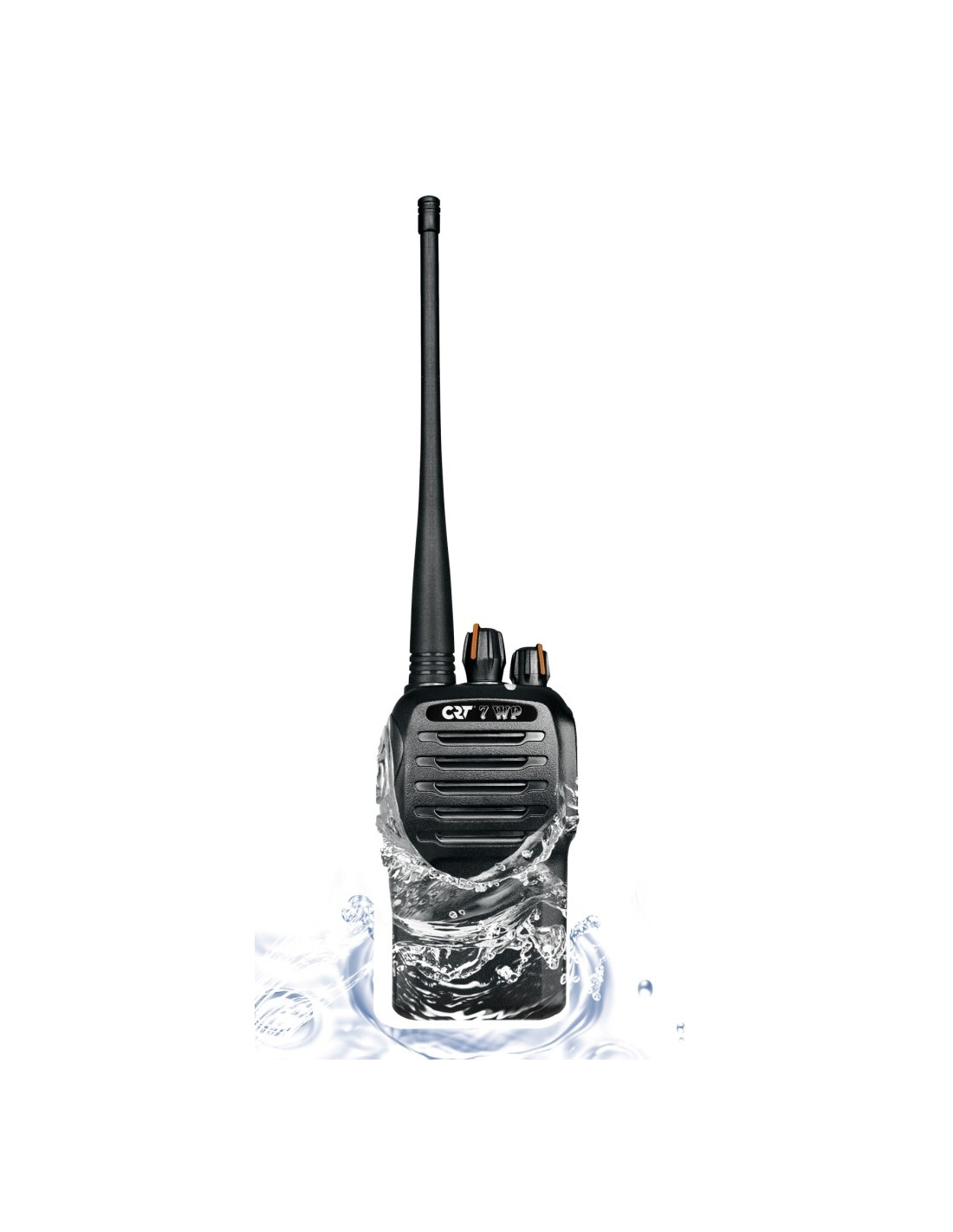

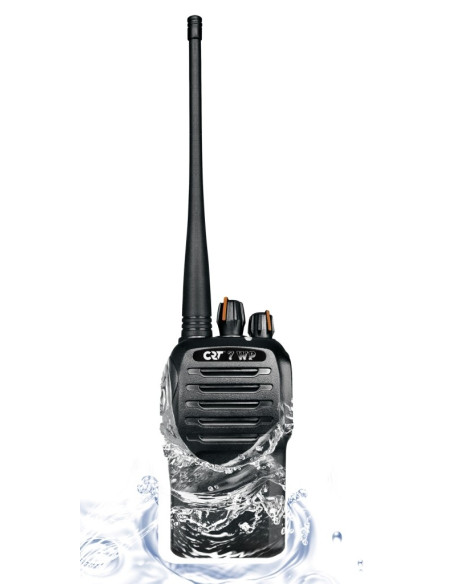

IP67 Waterproof |
Full protection to intrusion of solids and liquids; completely sealed (can be accidentally immersed for 30 min in a water 1m) Report n° TW1011029 |
Frequency range |
154.49375 Mhz à 154.60625 Mhz (see 8 frequencies footer) |
Power |
1 Watts / 2 Watts / 5 Watts ERP |
Range |
Estimated from 5 to 5 km depending on ground configuration |
Input voltage |
7.4 Volts DC |
Channels |
8 |
Channel spacing |
12.5 kHz |
Bandwidth |
12.5 kHz |
Step of increment |
12.5 kHz |
SCRAMBLER |
Yes : encryption method (speech privacy) |
SQUELCH |
Yes : elimination of background noise (squelch levels setup, squelch off/temporary squelch off) |
AUDIO OUTPUT |
1000 mW / 10% |
PTT / ID |
Yes : to program a sequence of different tones for each caller |
VOX function |
Yes : this feature triggers your microphone sound (hands free) |
TOT function |
Yes : time out timer |
CTCSS / DCS SCAN function |
50 CTCSS / 232 DCS : codage sub-audio permettant de déclencher le squelch d'une manière sélective |
SCAN function |
Yes : automatic search of busy channels |
COMPANDER function |
Yes : TX with a clear voice |
WHISPER function |
Yes : increased sensitivity of the microphone |
TX/OFF function |
Yes : forbidding emission |
BCLO function |
Yes : busy Channel Lock |
REVERSE function |
Yes : the current channel RX frequency will be switched to TX frequency |
TALK AROUND function |
Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repetear |
Various functions |
Priority scan setup + channel selector knob lockout + Battery Save (possible setting) + voice prompt (channel, level : squelch, battery capacity, power) + channel scan skip + temporary deletion of the interfering channel ect ... |
Bonus |
High strength metal frame Aluminum |
Structure |
ABS case and aluminum chassis injected |
Options |
Programming cable |
Programmable by software |
Oui -- prix final selon programmation demandée par client -- |
Battery |
Li-ion 1600 mAh * 7.4V (high capacity) |
Connection |
CRT K type |
Antenna |
15 cm / SMA-Female |

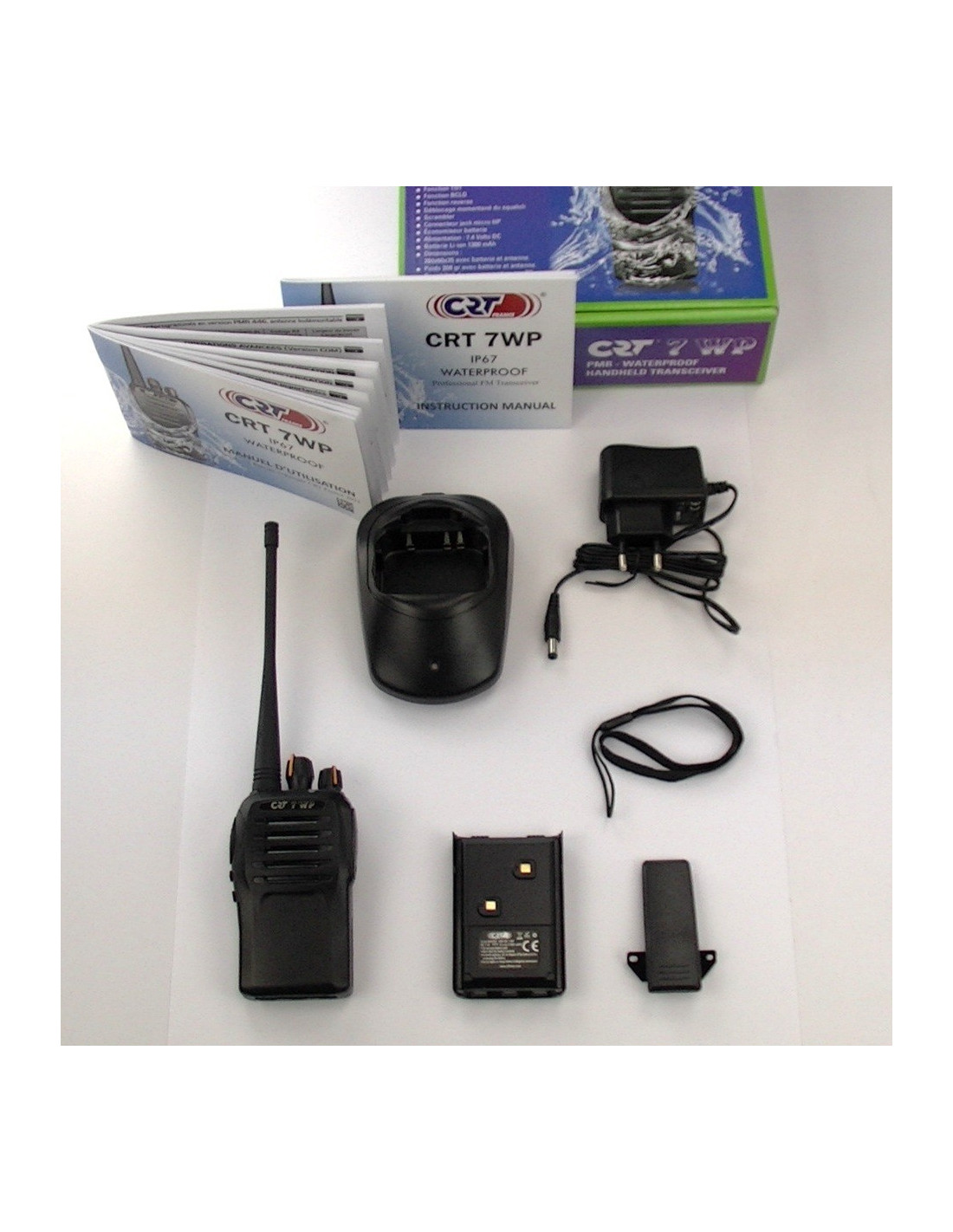

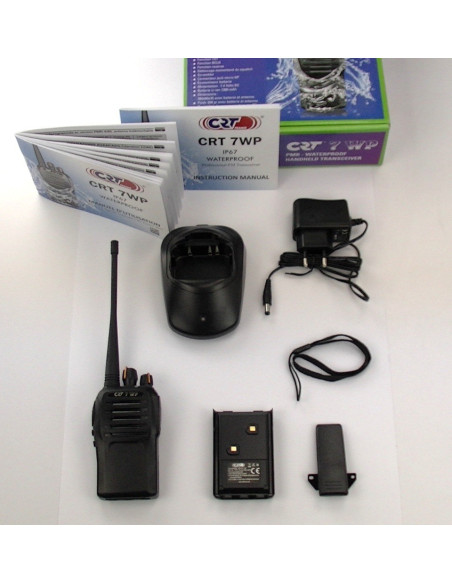

Deliver with |
Desktop charger, battery, antenna, strap for neck, belt clip |
Size |
260 x 60 x 35 mm (with antenna and battery) |
Weight |
208 gr (with antenna and battery) |
Guaranty |
2 years |
