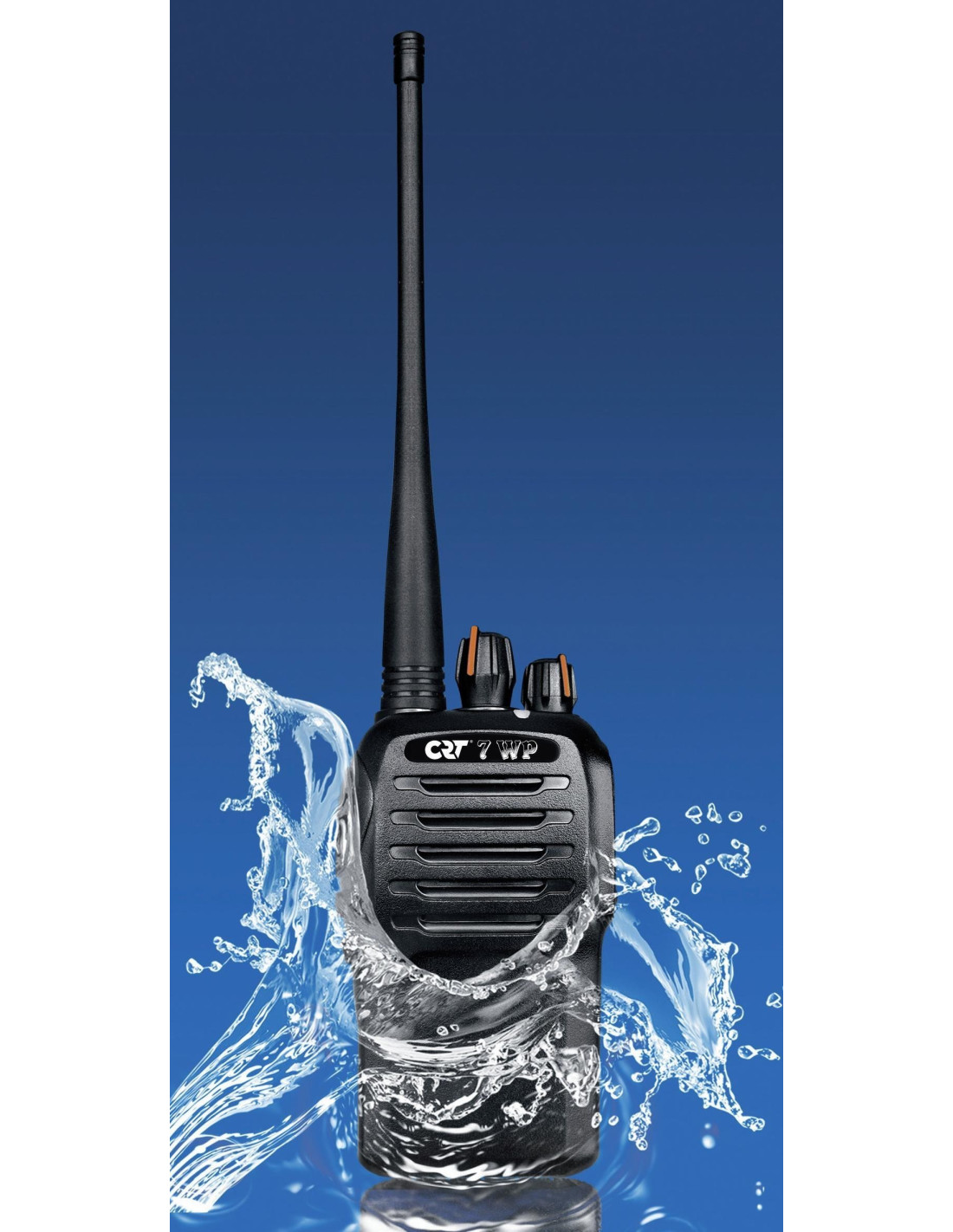

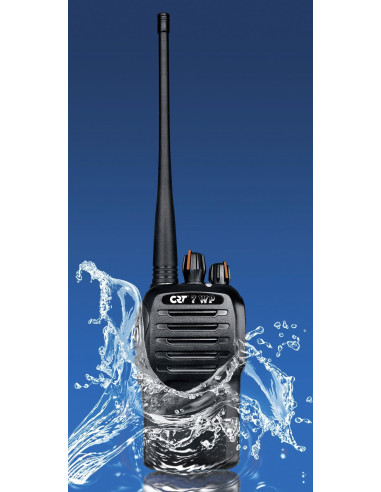

PM 000380

New product


IP67 Report n° TW1011029

More details

Product Videos


135,00 € tax incl.

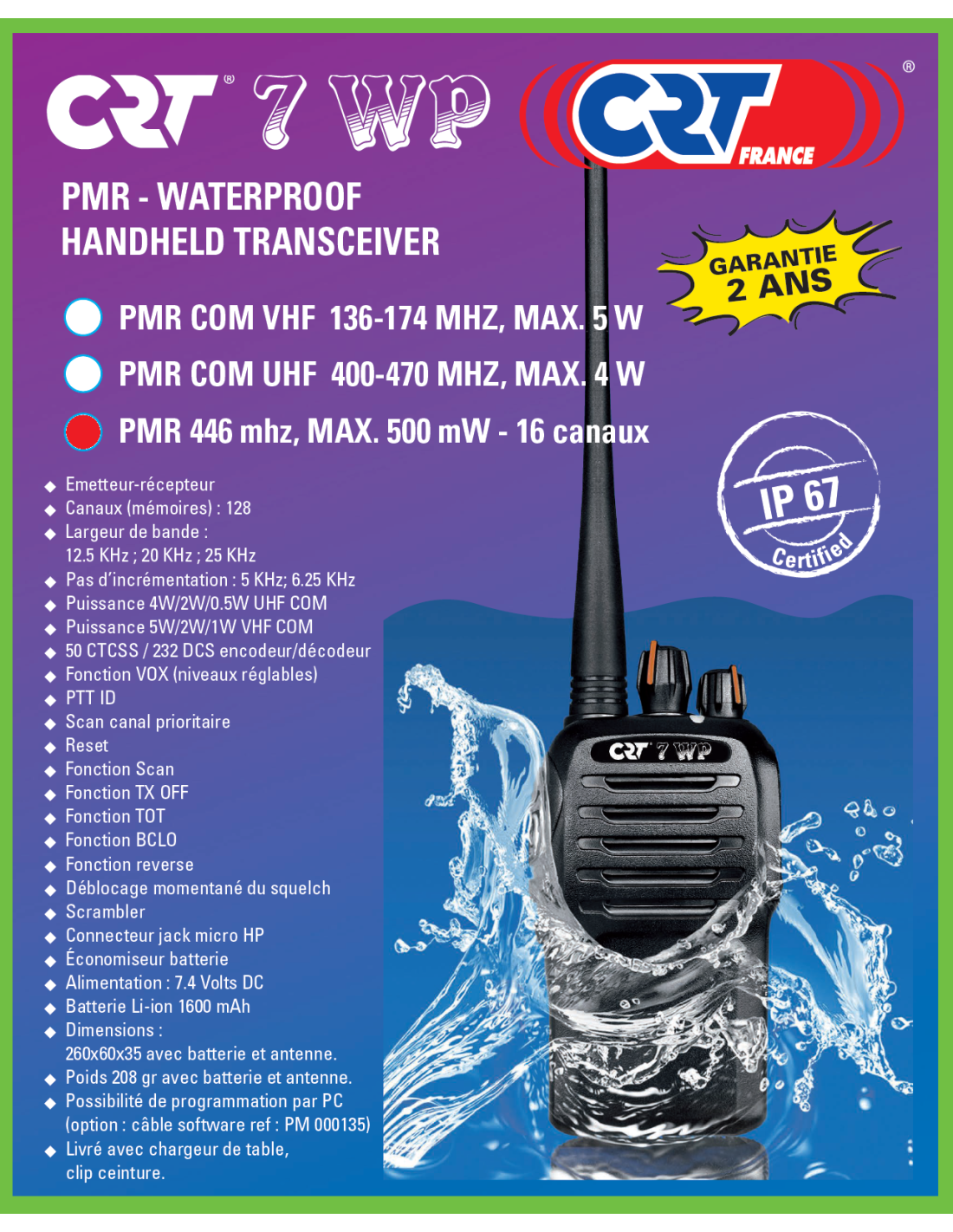

Data sheet

Norm PMR 446 free use
Face SAR measurement 0.315 W/KG
Body SAR measurement 0.882 W/KG

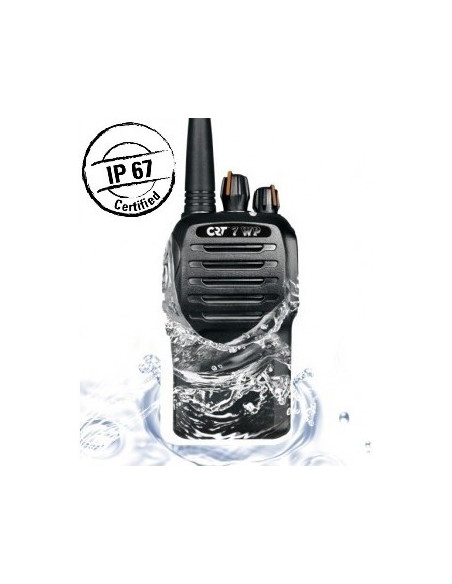

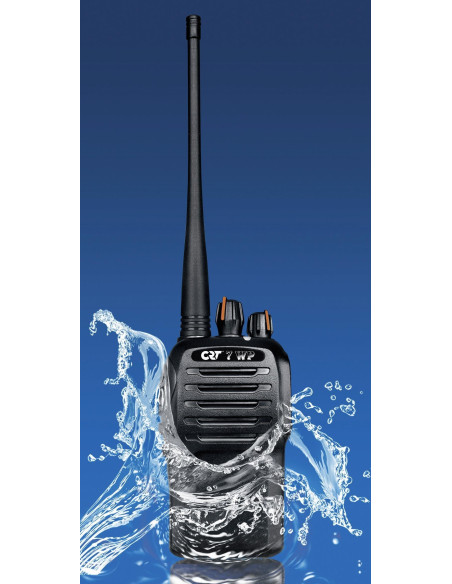

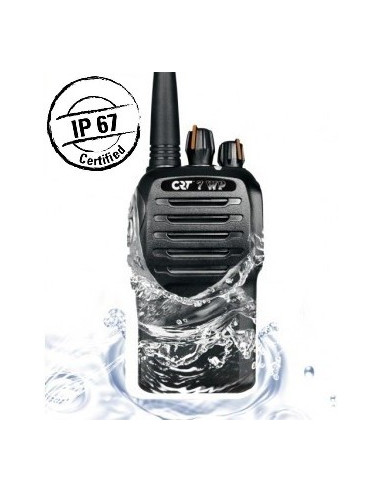

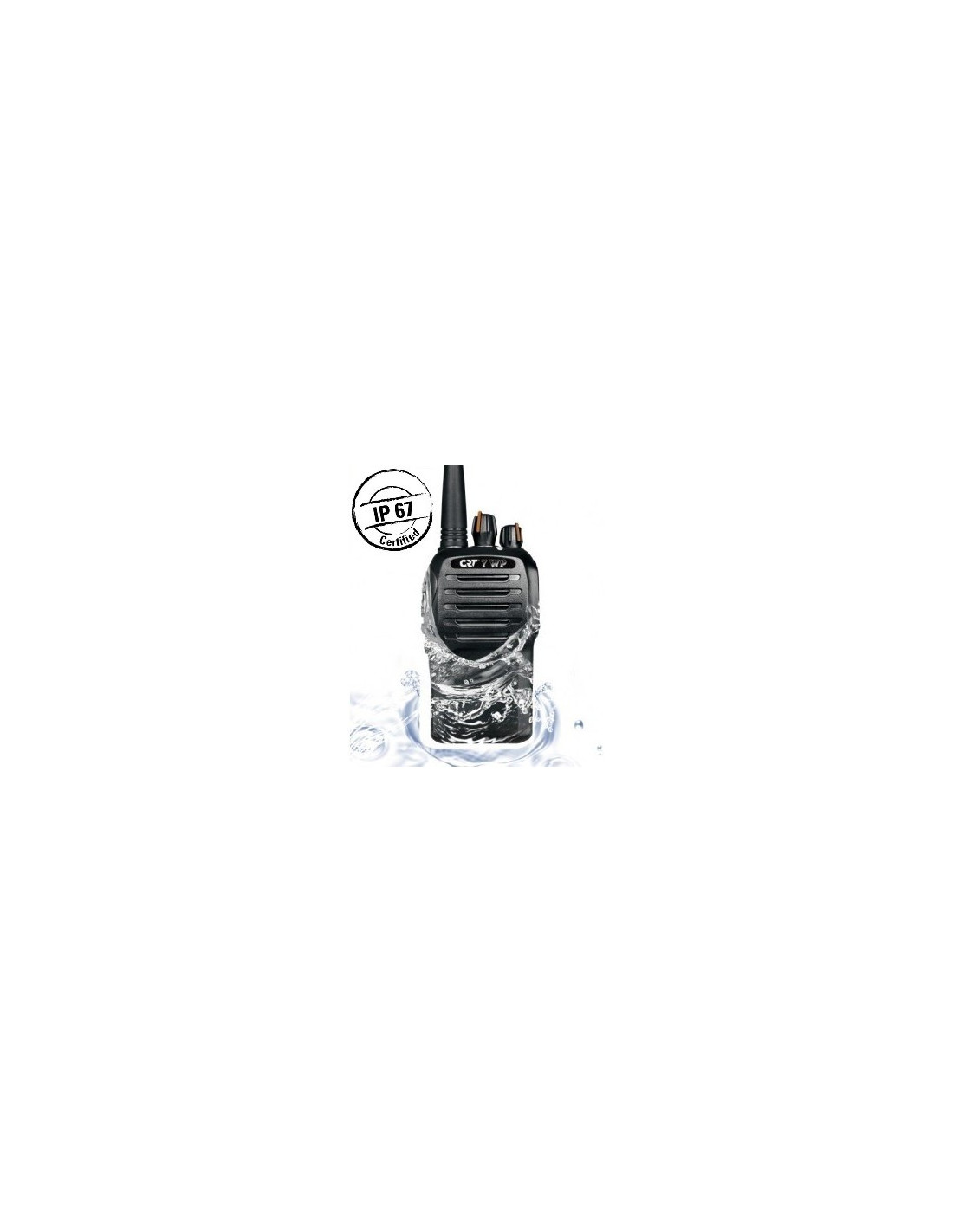

IP67 Waterproof Full protection to intrusion of solids and liquids; completely sealed (can be accidentally immersed for 30 min in a water 1m) Report n° TW1011029
Power 0.5 Watts ERP
Range Estimated from 5 to 5 km depending on ground configuration
Input voltage 7.4 Volts DC
Channels 16 channels + 16 channels preprogrammed CTCSS -- GROUP 1 / GROUP 2 --
Channel spacing 12.5 kHz
SCRAMBLER Yes : encryption method (speech privacy)
SQUELCH Yes : elimination of background noise (squelch levels setup, squelch off/temporary squelch off)
AUDIO OUTPUT 1000 mW / 10%
CTCSS / DCS (encoder/decoder) 38 CTCSS / 104 DCS : digital and analog code to activate repeater like selective tone
PTT / ID Yes : to program a sequence of different tones for each caller
VOX function Yes : this feature triggers your microphone sound (hands free)
TOT function Yes : time out timer
SCAN function Yes : automatic search of busy channels
COMPANDER function Yes : TX with a clear voice
WHISPER function Yes : increased sensitivity of the microphone
TX/OFF function Yes : forbidding emission
BCLO function Yes : busy Channel Lock
REVERSE function Yes : the current channel RX frequency will be switched to TX frequency
TALK AROUND function Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repetear
Various functions Priority scan setup + channel selector knob lockout + Battery Save (possible setting) + voice prompt (channel, level : squelch, battery capacity, power) + channel scan skip + temporary deletion of the interfering channel ect ...
Bonus High strength metal frame Aluminum
Structure ABS case and aluminum chassis injected

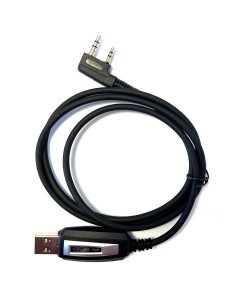

Options Programming cable
Programmable by software Yes

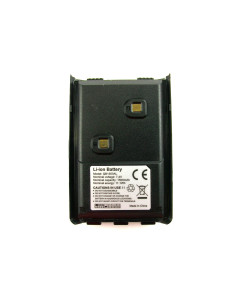

Battery Li-ion 1600 mAh * 7.4V (high capacity)
Connection CRT K type
Antenna 15 cm fixed / SMA-Female

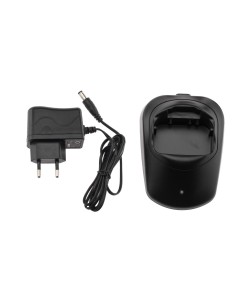

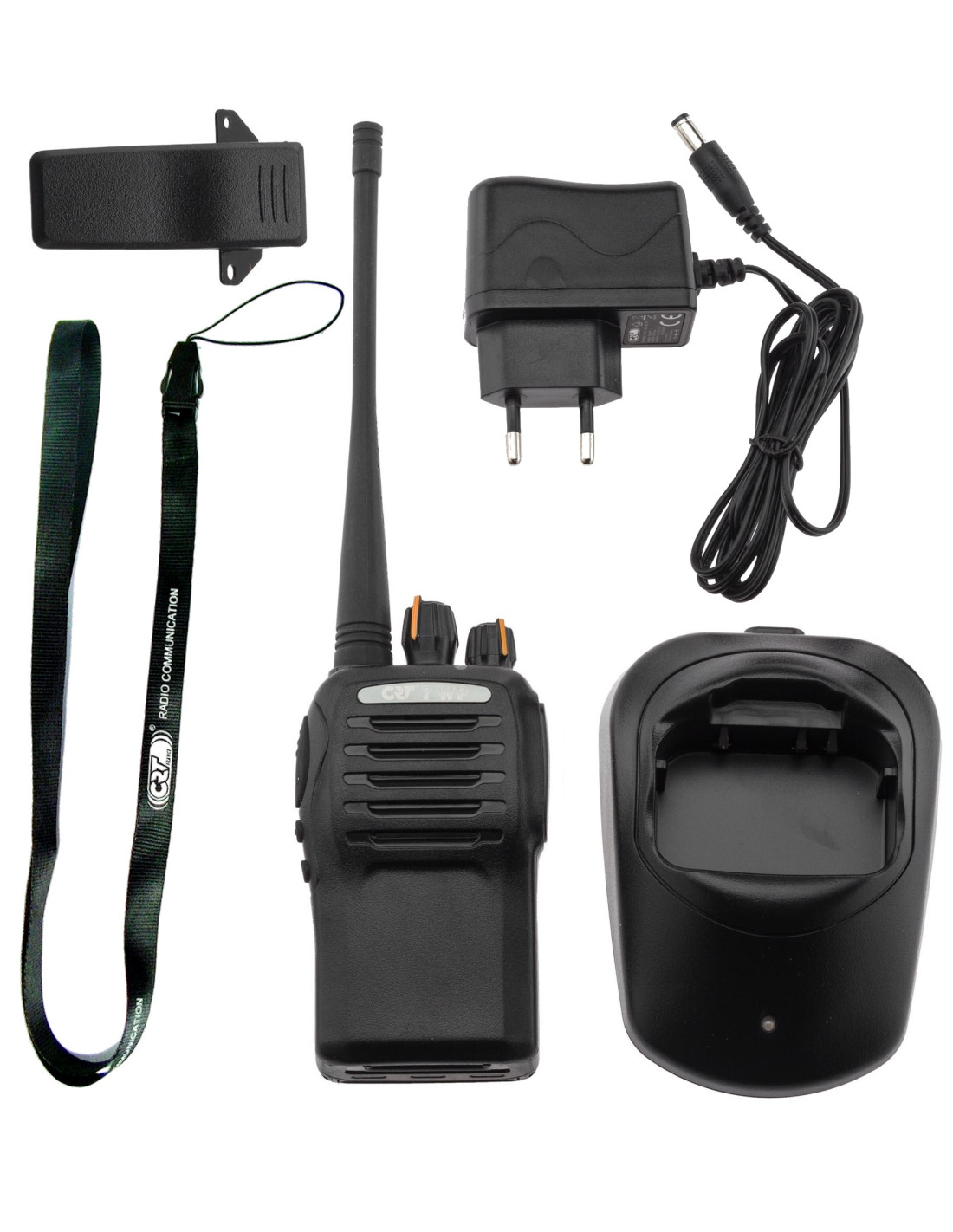

Deliver with Desktop charger, battery, antenna, strap for neck, belt clip
Size 260 x 60 x 35 mm (with antenna and battery)
Weight 208 gr (with antenna and battery)
Guaranty 2 years
