CRT 7WP PMR VHF COM

PM 000435

New product

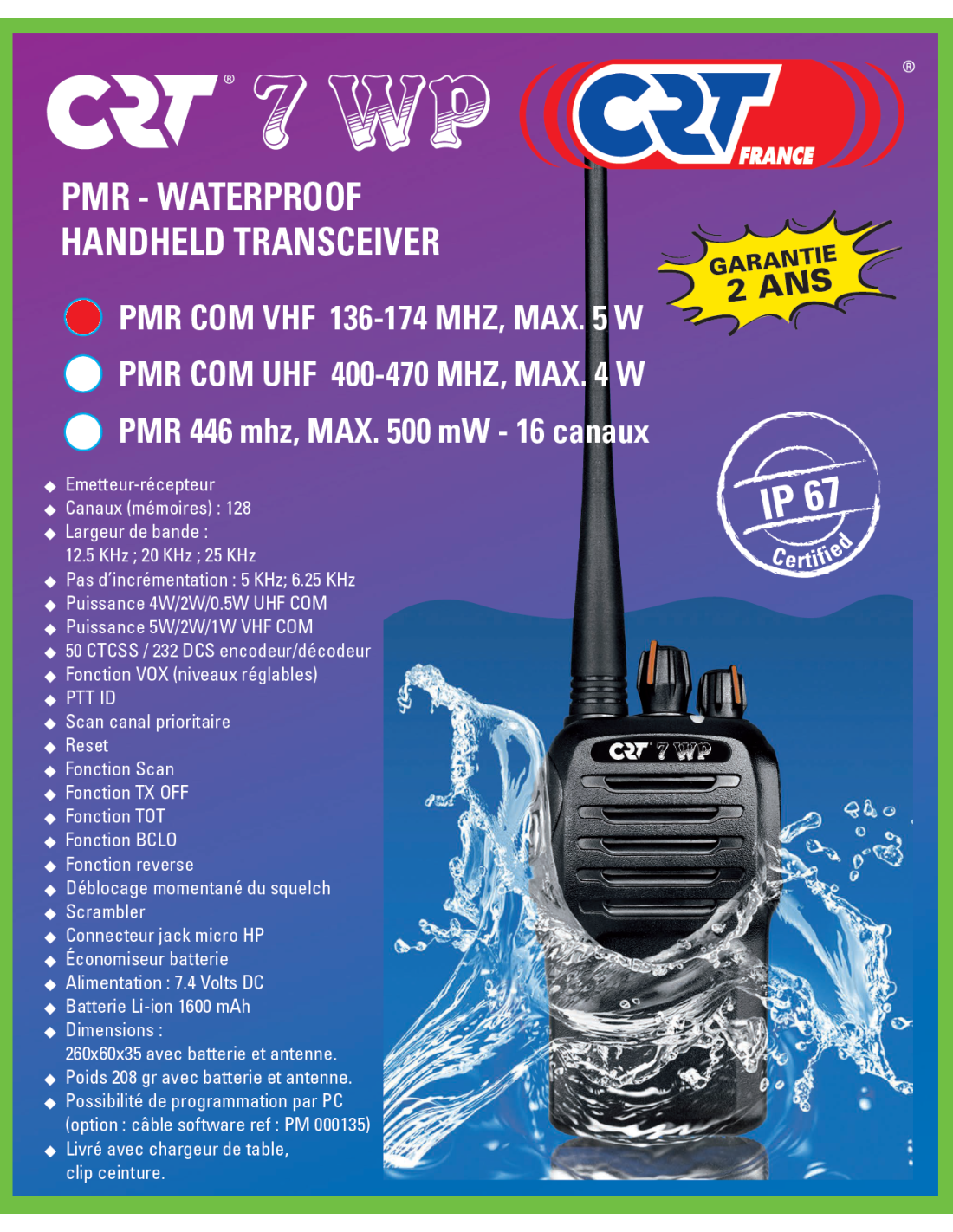

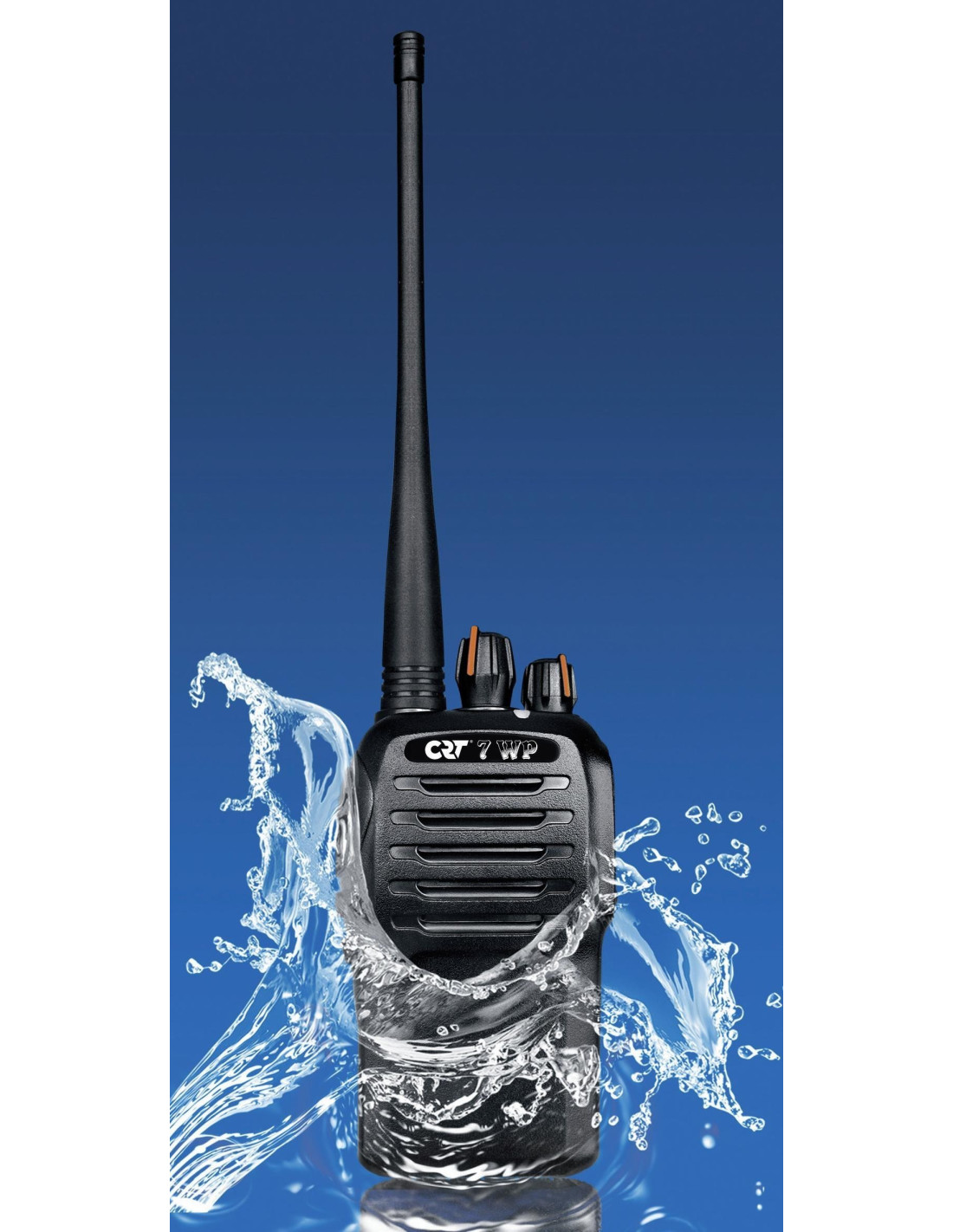

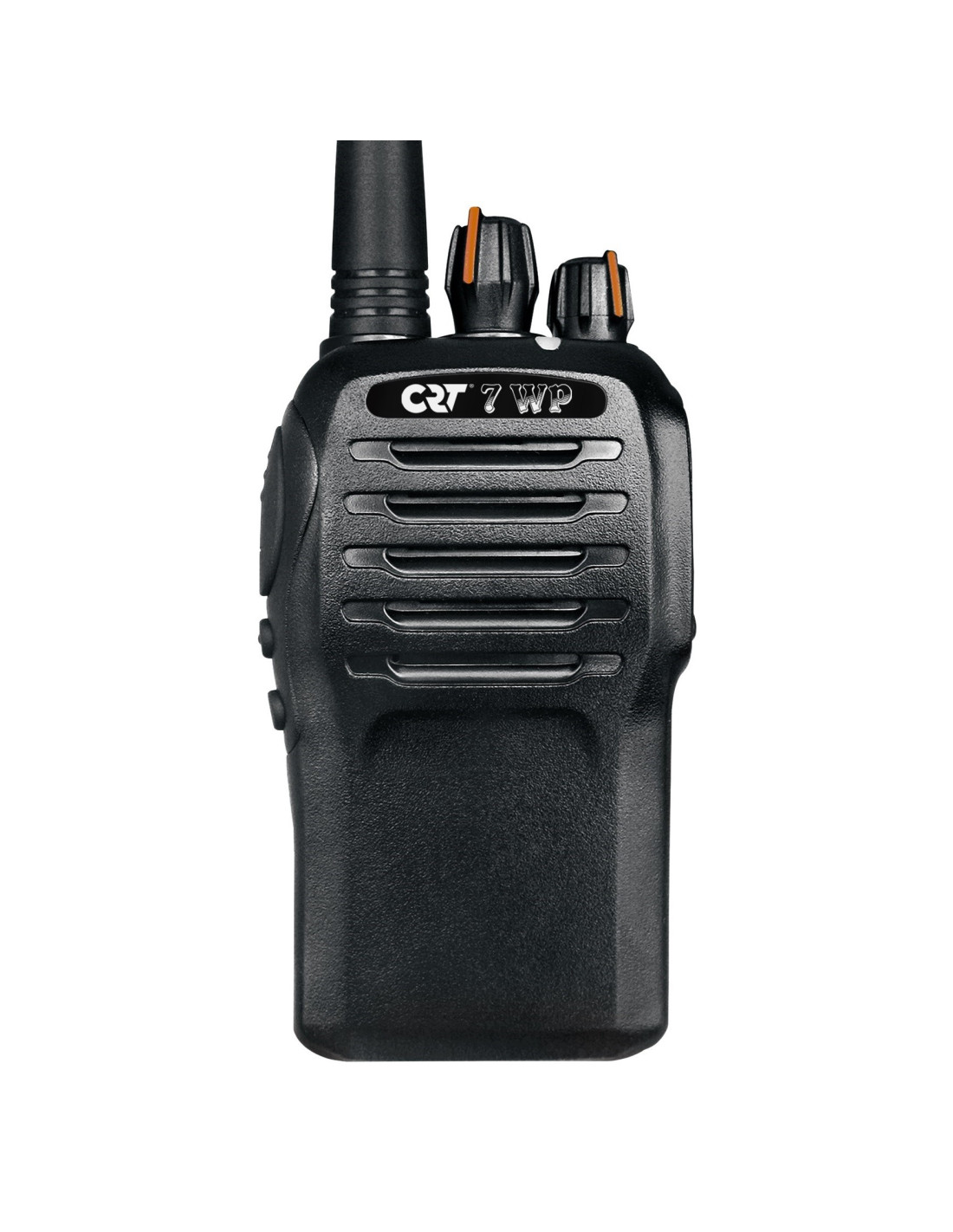

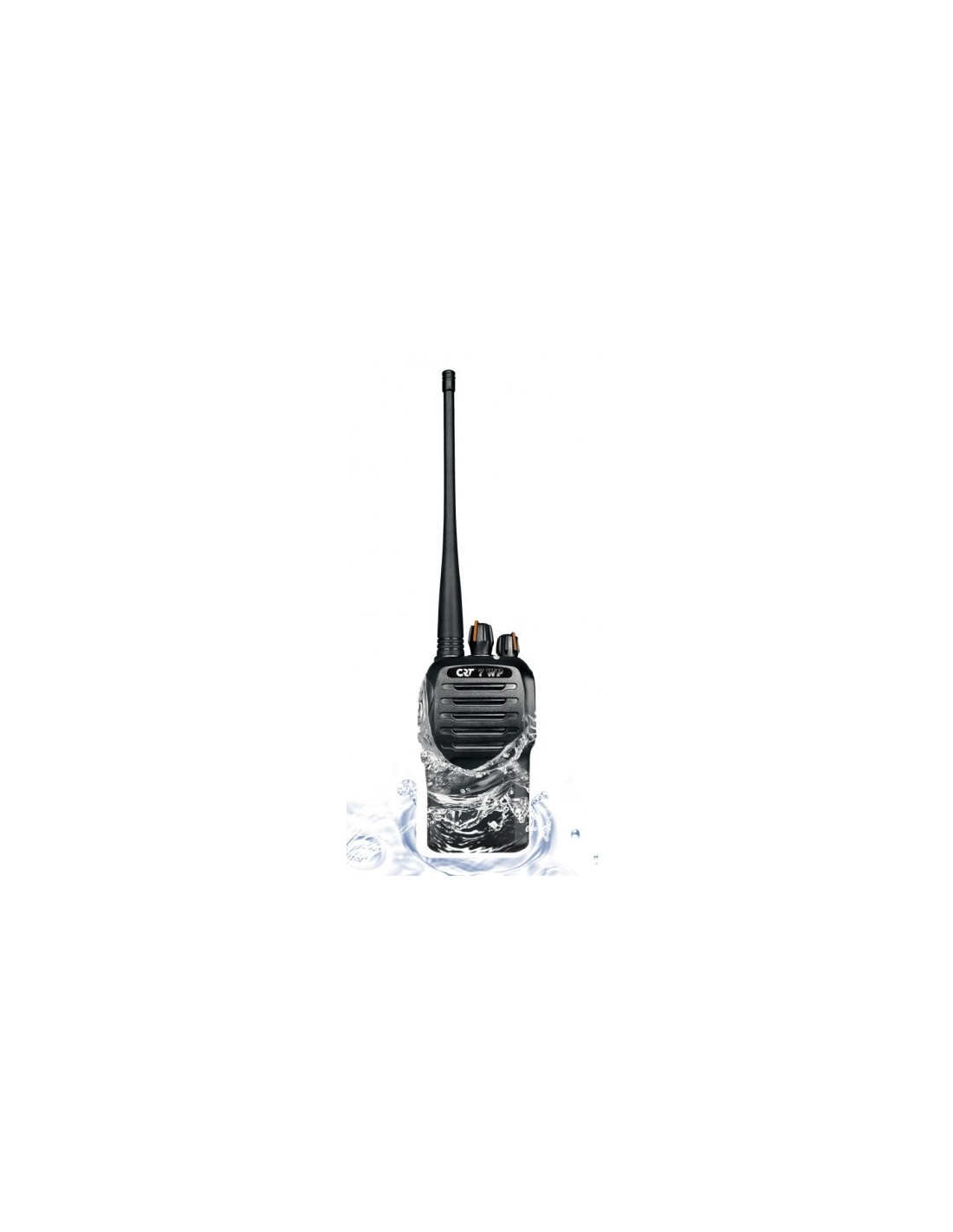

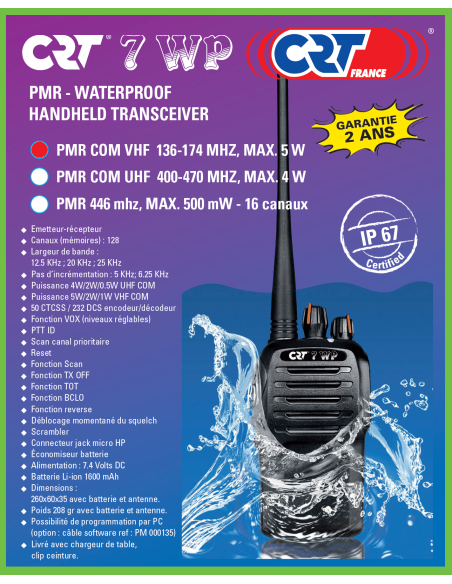

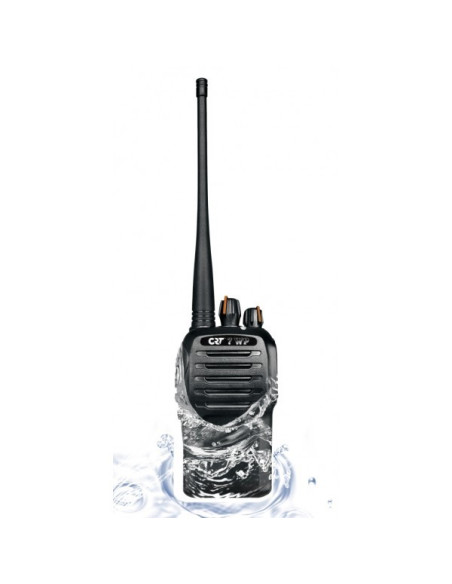

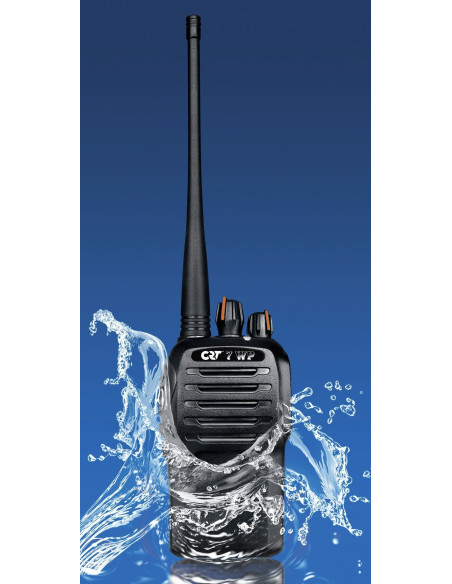

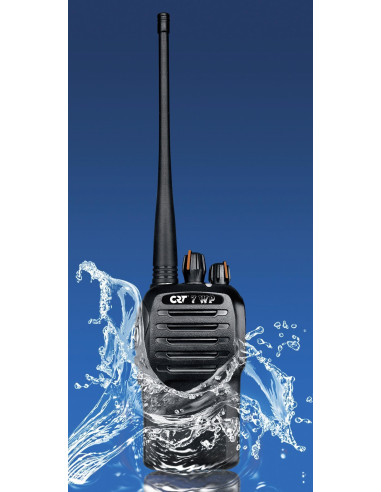

TALKY WALKY PMR VHF COM IP67

(Frequency FFVL possible 143.9875Mhz)

*PROFESSIONAL TALKY LEGAL*

IP67 Report n° TW1011029

2.15.0.0
2.15.0.0
2.15.0.0

More details

Product Videos

135,00 € tax incl.

Data sheet

Norm USE SUBJECT TO A PAY LICENSE (ARCEP)
IP67 Waterproof Full protection to intrusion of solids and liquids; completely sealed (can be accidentally immersed for 30 min in a water 1m) Report n° TW1011029
Frequency range VHF COM 136 - 174 mHz (Fréquences FFVL possible 143.9875Mhz)
Power 0.5 Watts / 1.5 Watts / 5 Watts ERP
Range Estimated from 5 to 5 km depending on ground configuration
Input voltage 7.4 Volts DC
Memories 128 channels programming 136 - 174 mHz following your assigned frequencies (must be programmed by a professional)
Channel spacing 12.5kHz / 20kHz / 25kHz
Bandwidth 12.5kHz(narrow band) / 20kHz(middle band) / 25kHz (wide band)
Step of increment 5kHz / 6.25kHz
SCRAMBLER Yes : encryption method (speech privacy)
SQUELCH Yes : elimination of background noise (squelch levels setup, squelch off/temporary squelch off)
AUDIO OUTPUT 1000 mW / 10%
CTCSS / DCS (encoder/decoder) 50 CTCSS / 232 DCS : sub-audio code to activate repeater like selective tone
PTT / ID Yes : to program a sequence of different tones for each caller
VOX function Yes : this feature triggers your microphone sound (hands free)
TOT function Yes : time out timer
SCAN function Yes : automatic search of busy channels
COMPANDER function Yes : TX with a clear voice
WHISPER function Yes : increased sensitivity of the microphone
TX/OFF function Yes : forbidding emission
BCLO function Yes : busy Channel Lock
REVERSE function Yes : the current channel RX frequency will be switched to TX frequency
TALK AROUND function Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repetear
Various functions Priority scan setup + channel selector knob lockout + Battery Save (possible setting) + voice prompt (channel, level : squelch, battery capacity, power) + channel scan skip + temporary deletion of the interfering channel ect ...
Bonus High strength metal frame Aluminum
Structure ABS case and aluminum chassis injected
Options Programming cable
Programmable by software Oui -- prix final selon programmation demandée par client --
Battery Li-ion 1600 mAh (high capacity)
Connection CRT K type
Antenna 15 cm / SMA-Female

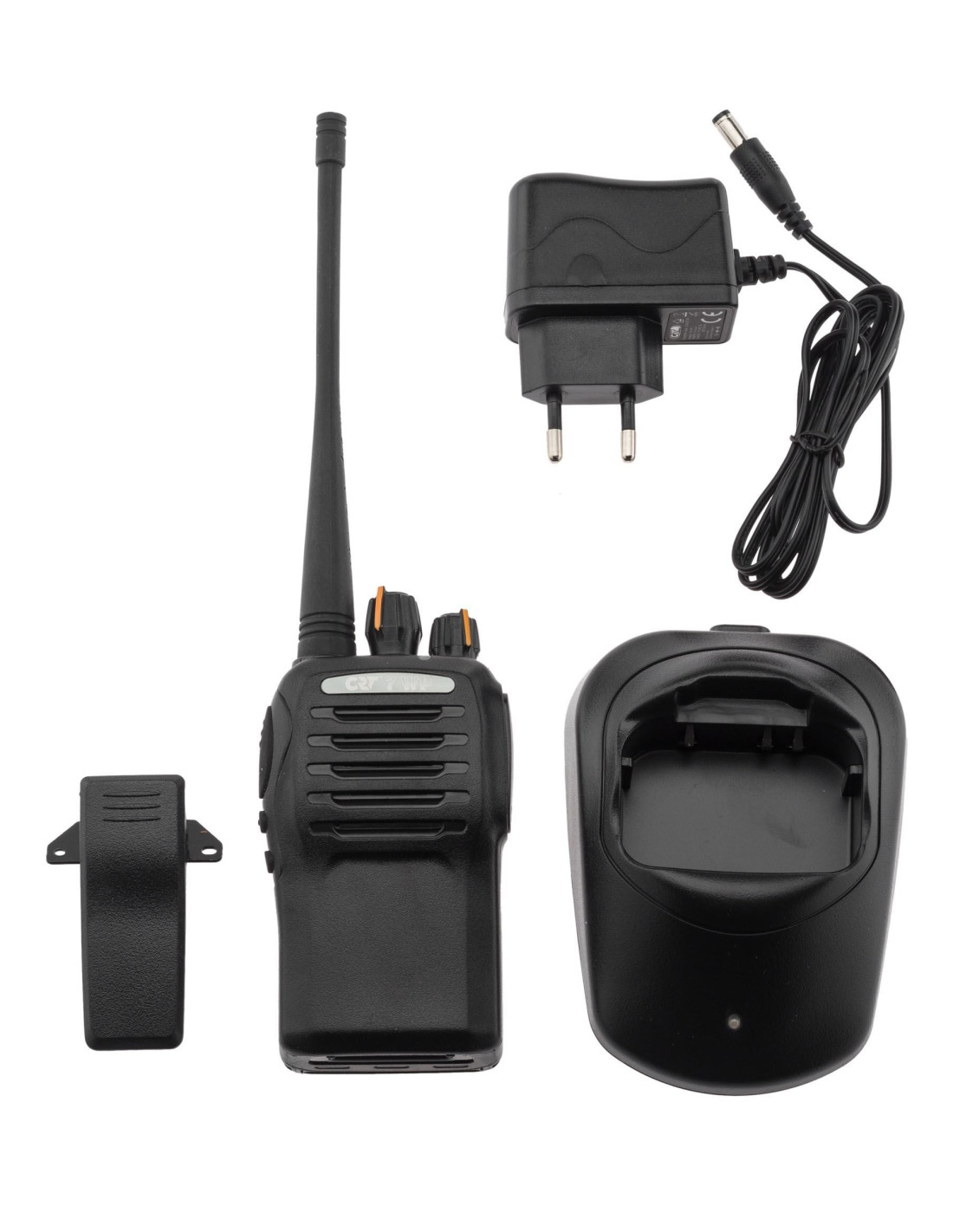

Deliver with Desktop charger, battery, antenna, strap for neck, belt clip
Size 260 x 60 x 35 mm (with antenna and battery)
Weight 208 gr (with antenna and battery)
Guaranty 2 years
