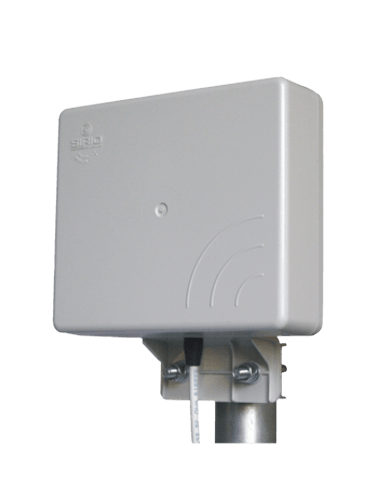

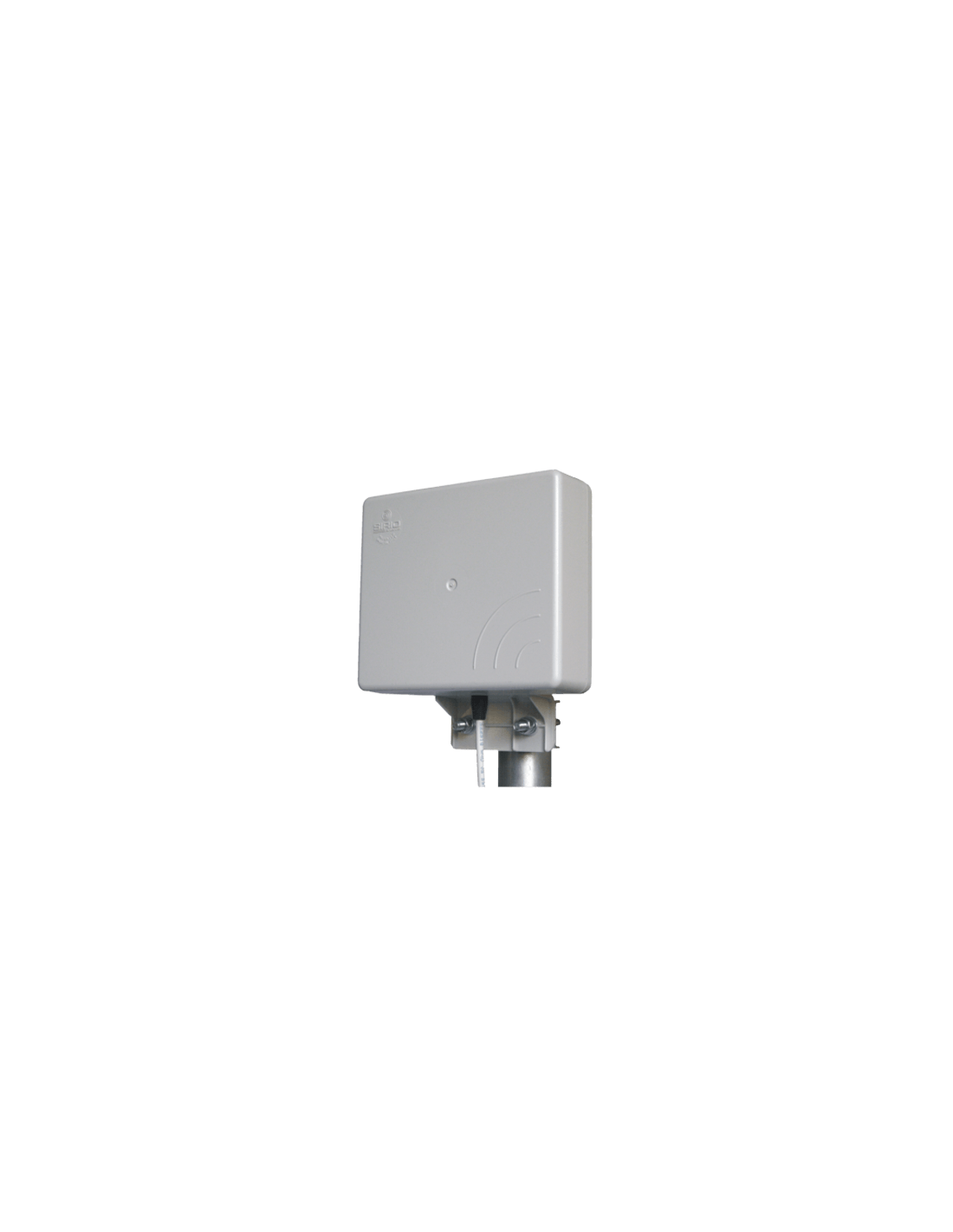

SMP 4G LTE/SMA-F SIRIO

VS 000825

New product

BASE ANTENNA WLAN-CELLULAIRE

790...960 MHz & 1700...2700 MHz /

GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM-868MHz /

154 x 134 x 46 mm

More details

67,00 € tax incl.

More info

Electrical Data:
Type: Mini panel
Radiation: Directional
Polarization: Linear vertical
Frequency range: 790-960 MHz & 1700-2700 MHz No tuning required
Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM-868MHz
Gain: LTE 800 & GSM: 6÷7 dBi @ 790-960 MHz
DCS: 9 dBi @ 1710-1880 MHz
UMTS: 9 dBi @ 1920-2170 MHz
LTE & WLAN: 8÷9 dBi @ 2300-2700 MHz
Max Power: LTE 800 & GSM: 30 Watts (CW) @ 790-960 MHZ
DCS: 15 Watts (CW) @ 1710-1880 MHz
UMTS: 10 Watts (CW) @ 1920-2170 MHz
LTE & WLAN: 10 Watts (CW) @ 2300-2700 MHz
Cable lenght / type: 30 cm (11.81 in) / Low loss
Connector: SMA-female
Mechanical Data:
Materials: Galvanized steel, Thermoplastic UV stabilized, PCB
Dimensions (approx): 154 x 134 x 46 mm / 0.51 x 0.44 x 0.15 ft
Weight (approx): 400 gr / 0.88 lb

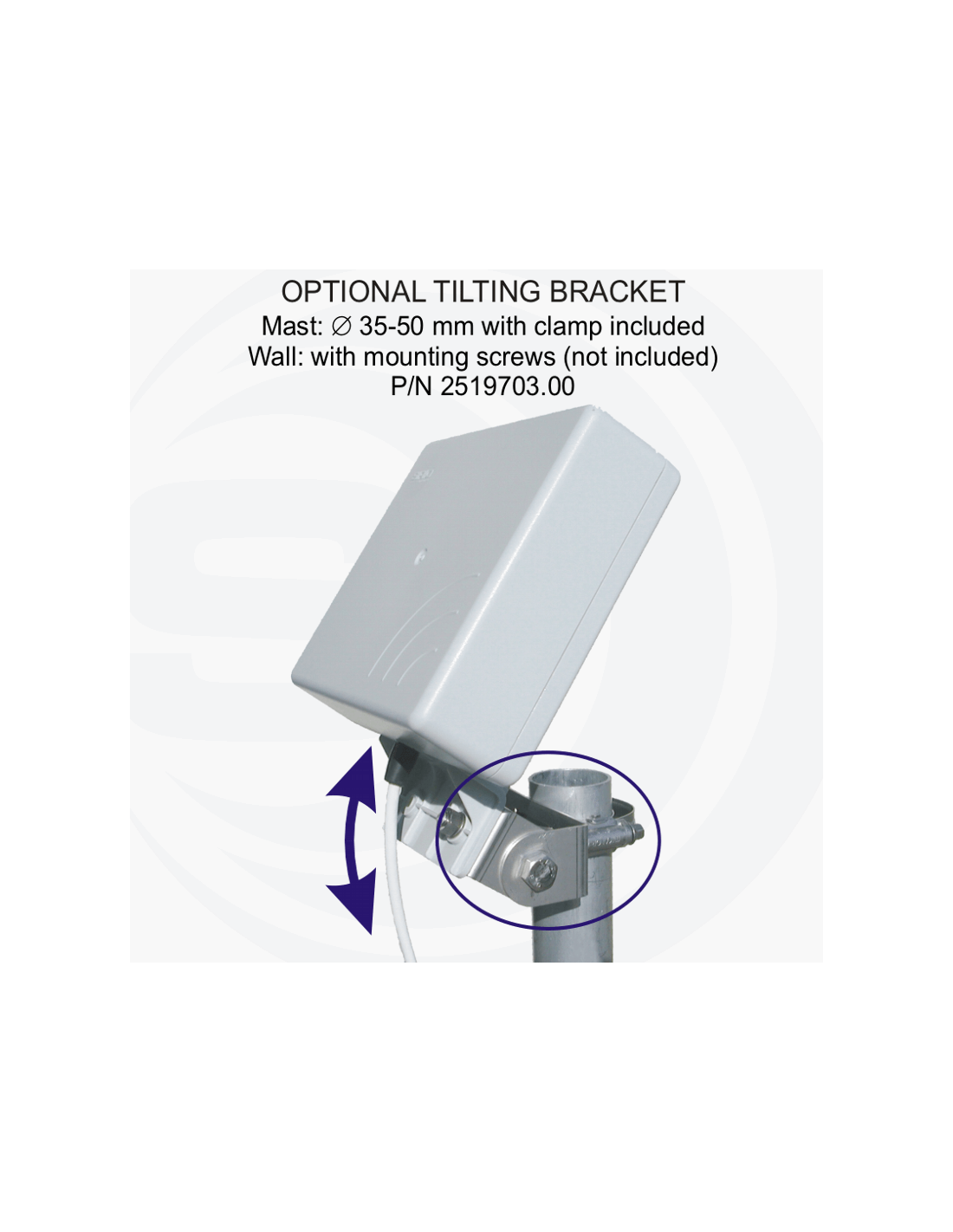

Mounting type: On-Mast, On-Wall
