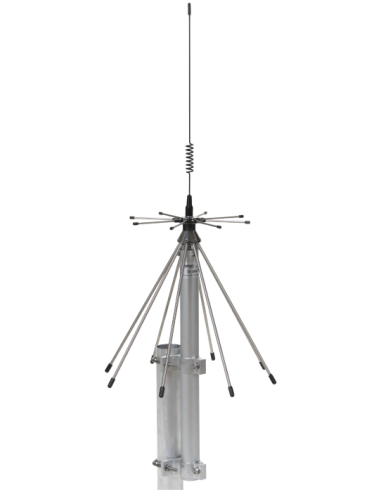

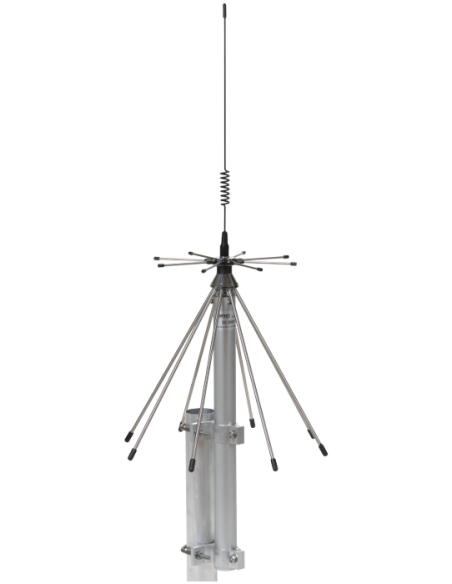

SD 3000 N SIRIO

VS 000002

New product

BASE ANTENNA WIDE BAND

RX band: 300-3000 MHz
TX band (@ SWR ≤2): 340-535, 545-960, 1180-1380, 1660-1910, 1980-3000 MHz

Discone /

725 mm

More details

85,00 € tax incl.

More info

Type: Discone
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: RX band: 300-3000 MHz
TX band (@ SWR ≤2): 340-535, 545-960, 1180-1380, 1660-1910, 1980-3000 MHz
Systems: 70cm-HAM, TETRA-350, CDMA-450, GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM-868MHz, ISM-915MHz, ISM-433MHz, WiFi-2.4GHz
Gain: 0 dBd – 2.15 dBi @ lowest frequency
Max Power: 200 Watts (CW) continuous

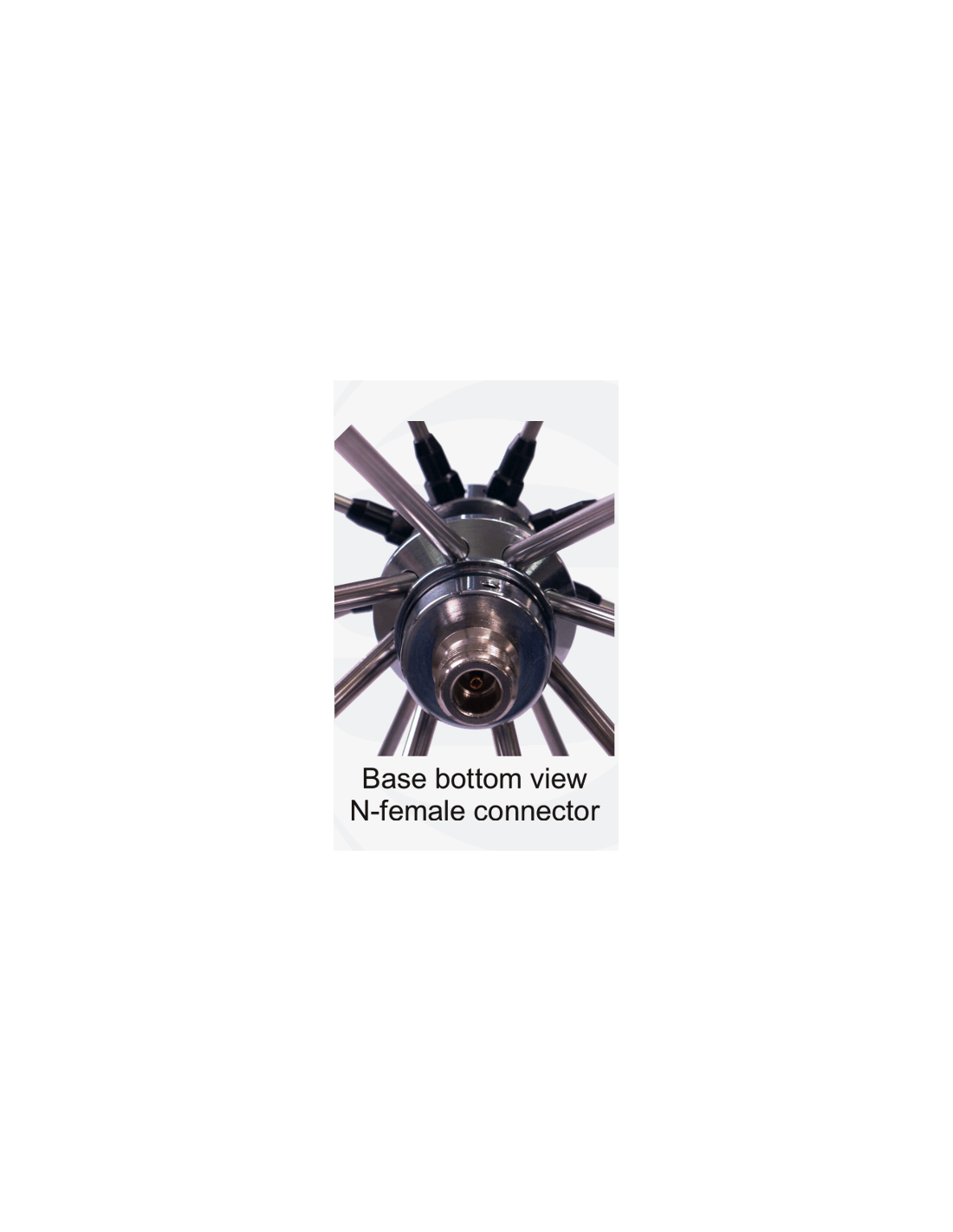

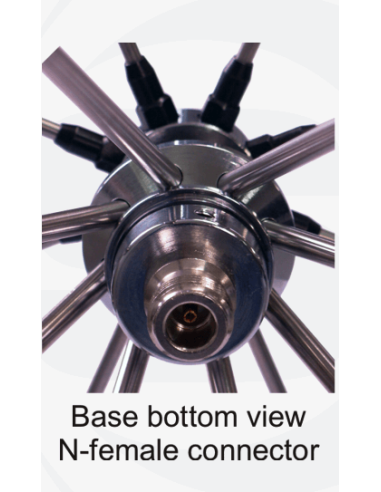

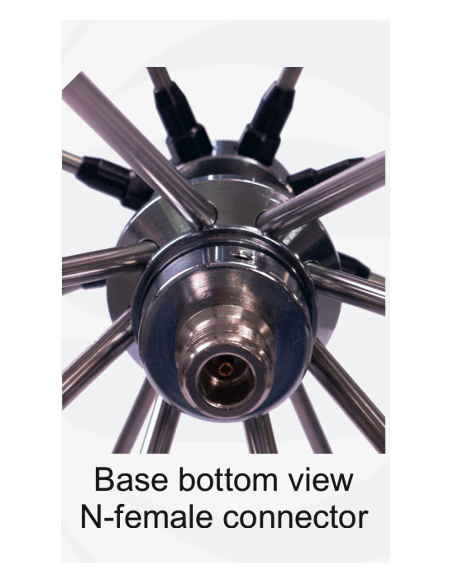

Connector:
N-female
Mechanical Data:
Materials: Chromed brass, Stainless steel, Nylon, Gold plated brass
Height (approx): 725 mm / 2.38 ft
Weight (approx): 830 gr / 1.83 lb
Mounting type: On-Mast
