CRT FP 00 BLACK

Reference: PM 000770

Condition: New product

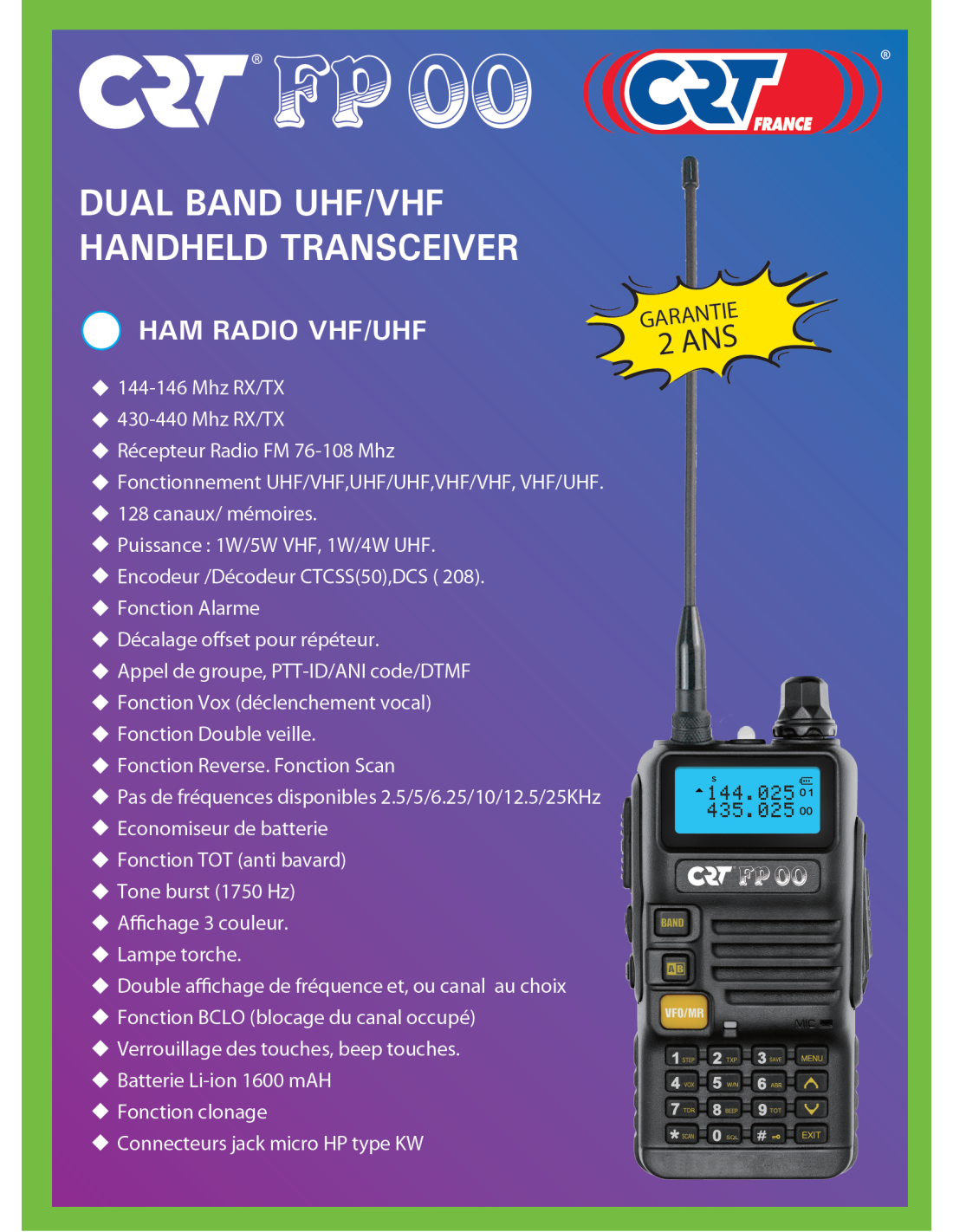

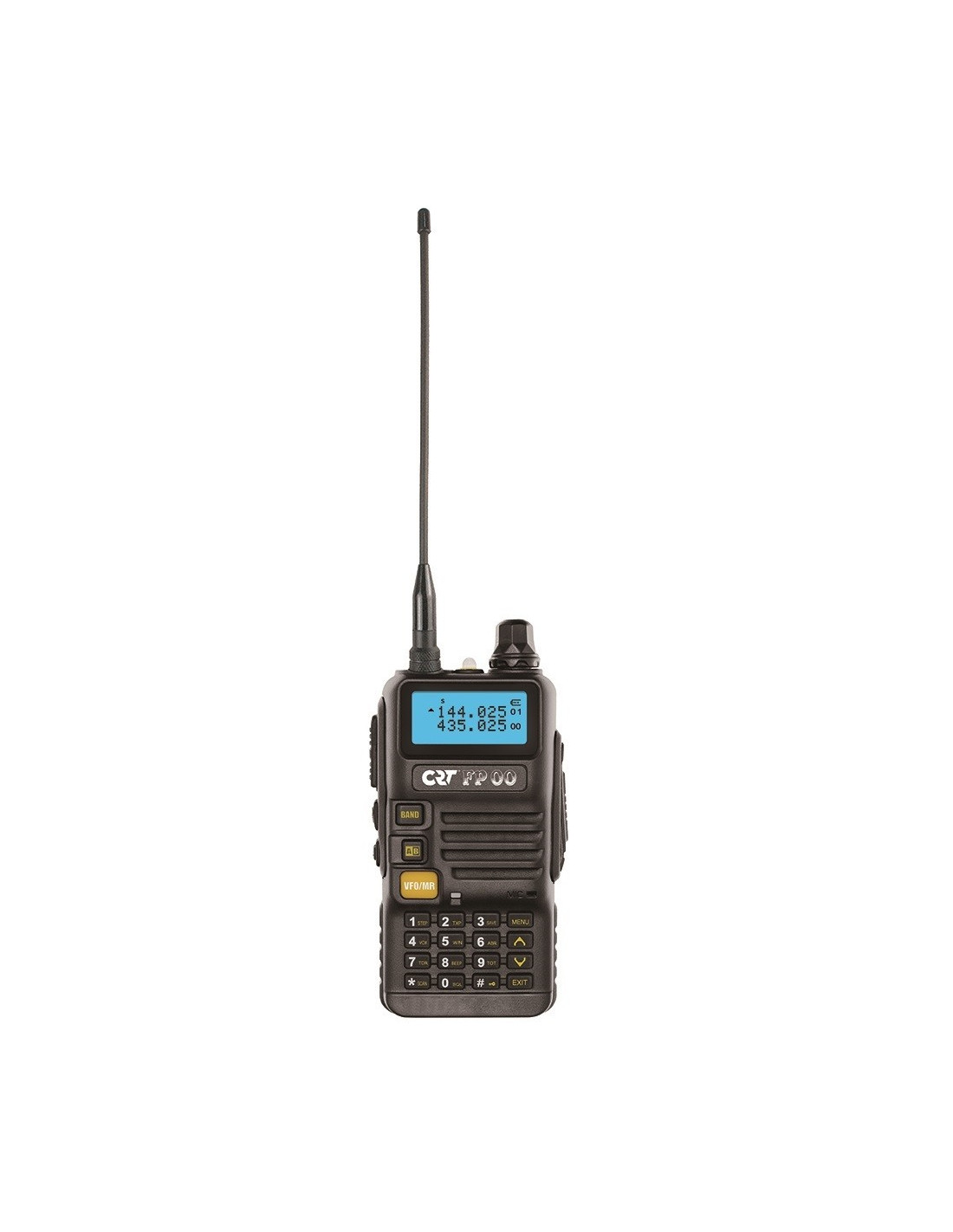

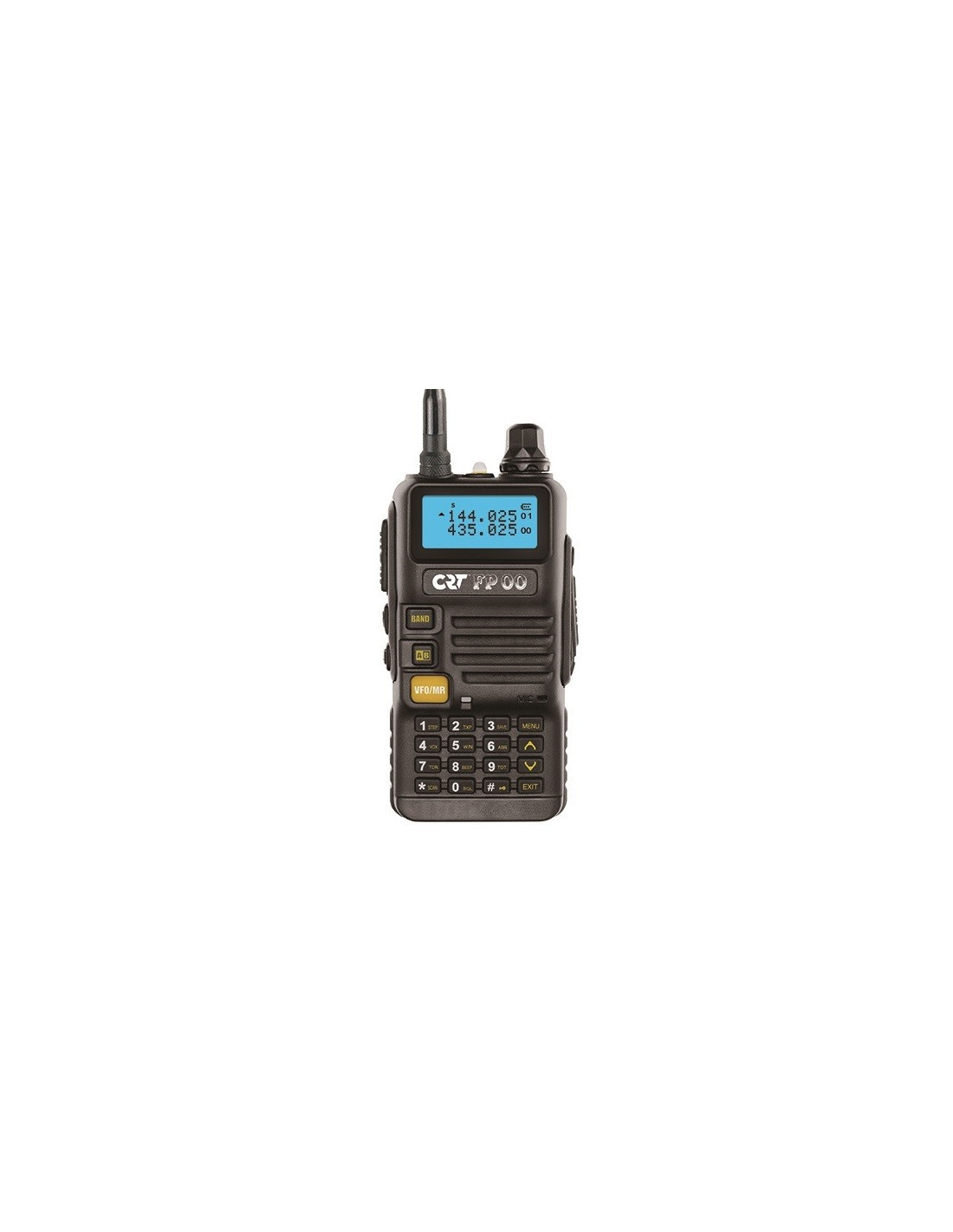

TALKY WALKY DUAL BAND

MULTICOLORS LCD DISPLAY BLUE

2.14.0.0

More details

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Data sheet

Norm	AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
Mode	VHF / UHF
Frequency range	RX/TX : 144-146 Mhz / 430-440 Mhz (EXPORT : 136-174 Mhz / 400-480 Mhz)
Power	VHF : 1W / 5Watts -- UHF : 1W / 4Watts ERP
Input voltage	7.2V DC ± 20%
Channels	128 channels / memories
Channel spacing	25 KHz wide band - 12.5 KHz narrow band
Step of increment	2.5 / 5 / 6.25 / 10 / 12.5 / 25 Khz
Working	UHF-VHF / UHF-UHF / VHF-VHF / VHF-UHF
TONE BURST	Yes (1750Hz)
CTCSS / DCS (encoder/decoder)	50 CTCSS / 208 DCS : sub-audio code to activate repeater like selective tone
DTMF (encoder)	Yes : tones selected to activate repeater, internet gateway and other items
PTT / ID	Yes : to program a sequence of different tones for each caller
ANY CODE	Yes : ID code + selective call
DOUBLE WATCH function	Yes
VOX function	Yes : this feature triggers your microphone sound (hands free)
TOT function	Yes : time out timer
SCAN function	Yes : automatic search of busy channels
BCLO function	Yes : busy Channel Lock
REVERSE function	Yes : the current channel RX frequency will be switched to TX frequency
ALARM function	Yes : the transceiver will sound alarm beep, meanwhile, it start transmitting and send the alarm beep to companions or systems
Receptor	Yes : FM radio RX 65Mhz to 108 Mhz
Various functions	Key lock + Beep key +Battery save + Flashlight
Display	LCD display : blue, green, purple or without color
Level display	Double display frequency and/or channel
Options	Programming cable + software
Programmable by software	Yes
Battery	Li-ion 1600 mAh * 7.2V
Connection	CRT type K
Antenna	hy gain / 20 cm / SMA-Female

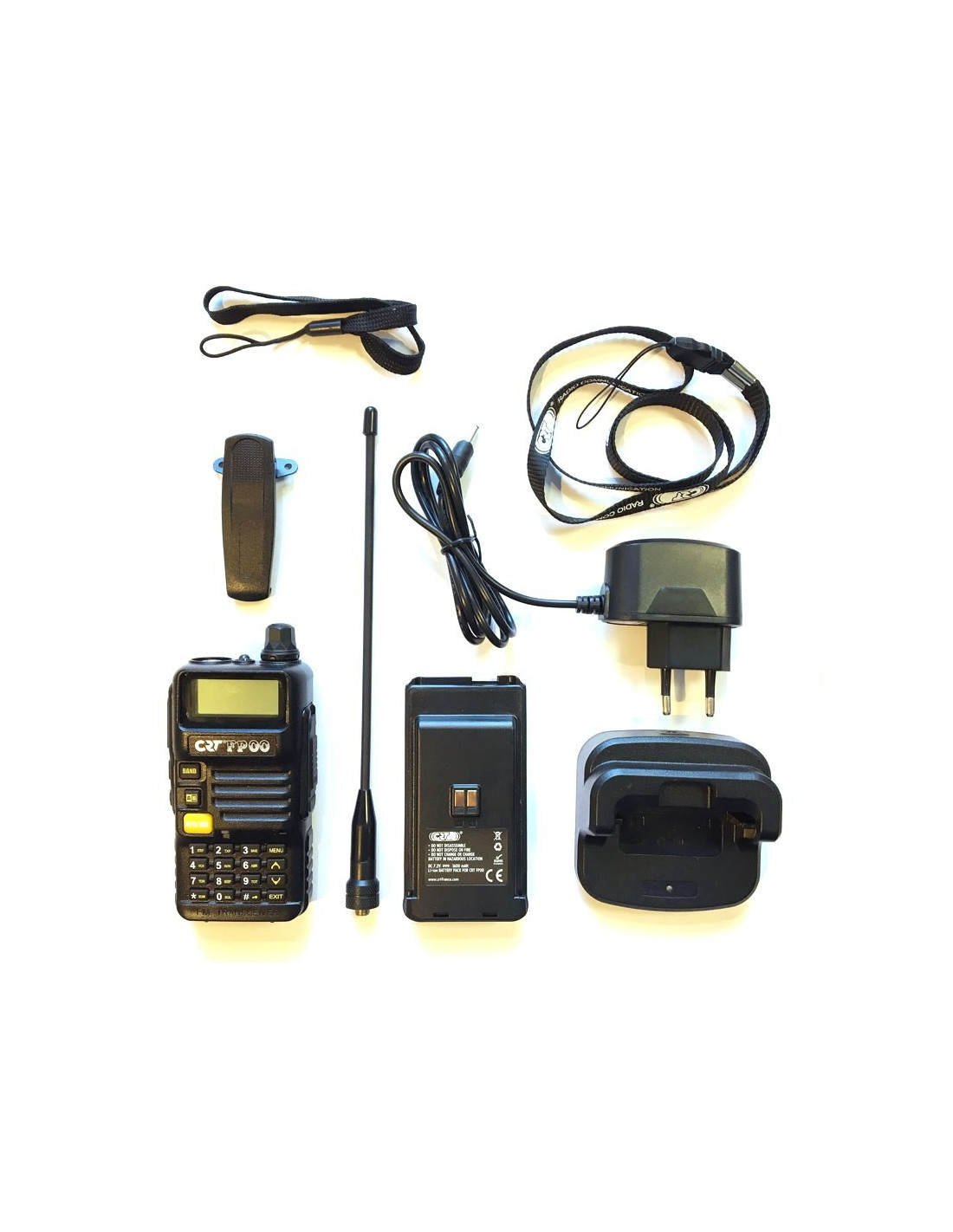

Deliver with	Desktop charger, battery, antenna, 1 strap for neck, 1 strap for hand and belt clip
Size	122 x 63x 36 mm
Weight	260 g
Guaranty	2 years
