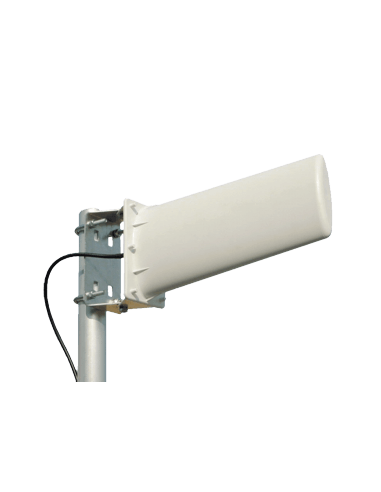

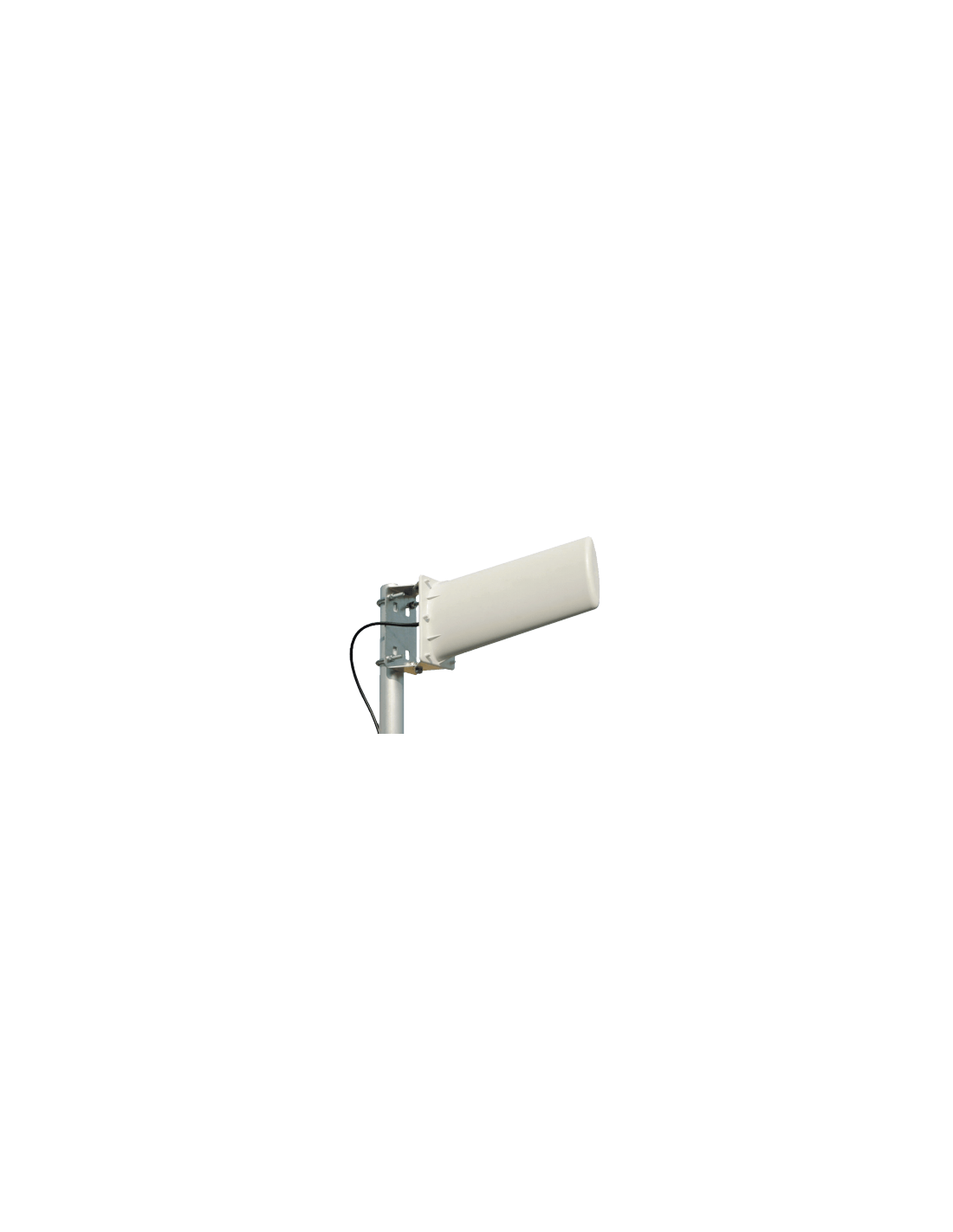

SPH-1.5÷6-17  SIRIO View larger

SPH-1.5÷6-17 SIRIO

VS 0002665

New product

BASE  ANTENNA

1.5-6 GHz @ SWR ≤ 1.8 /

Wide Band PCB /

345 x 135 x 73 mm

More details

This product is no longer in stock

50,00 € tax incl.

More info

Type: Wide Band PCB
Radiation: Directional
Polarization: Linear vertical
Frequency range: 1.5-6 GHz @ SWR ≤ 1.8 No tuning required
Systems: GSM-1800, 4G-LTE, WiFi-2.4GHz, WiFi-5GHz, WiMAX, DECT
Gain: 14.9 dBd - 17 dBi @ 6 GHz
Max Power: 15 Watts @ 1.5÷4 GHz
10 Watts @ 4÷6 GHz
Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector: SMA-female
Mechanical Data:
Materials: Aluminium, Stainless steel, Thermoplastic UV stabilized, PCB
Dimensions (approx): 345 x 135 x 73 mm / 1.13 x 0.44 x 0.24 ft
Weight (approx): 450 gr / 0.99 lb
Mounting type: On-Mast, On-Wall
