TX 000225

New product

  • 28-29.7 mHz
  • 12W AM/ 40W FM/ 35W SS

- LARGE LCD frequency display



- RX compander

- TX Noise Gate

- RX Noise Gate (NRC board included)

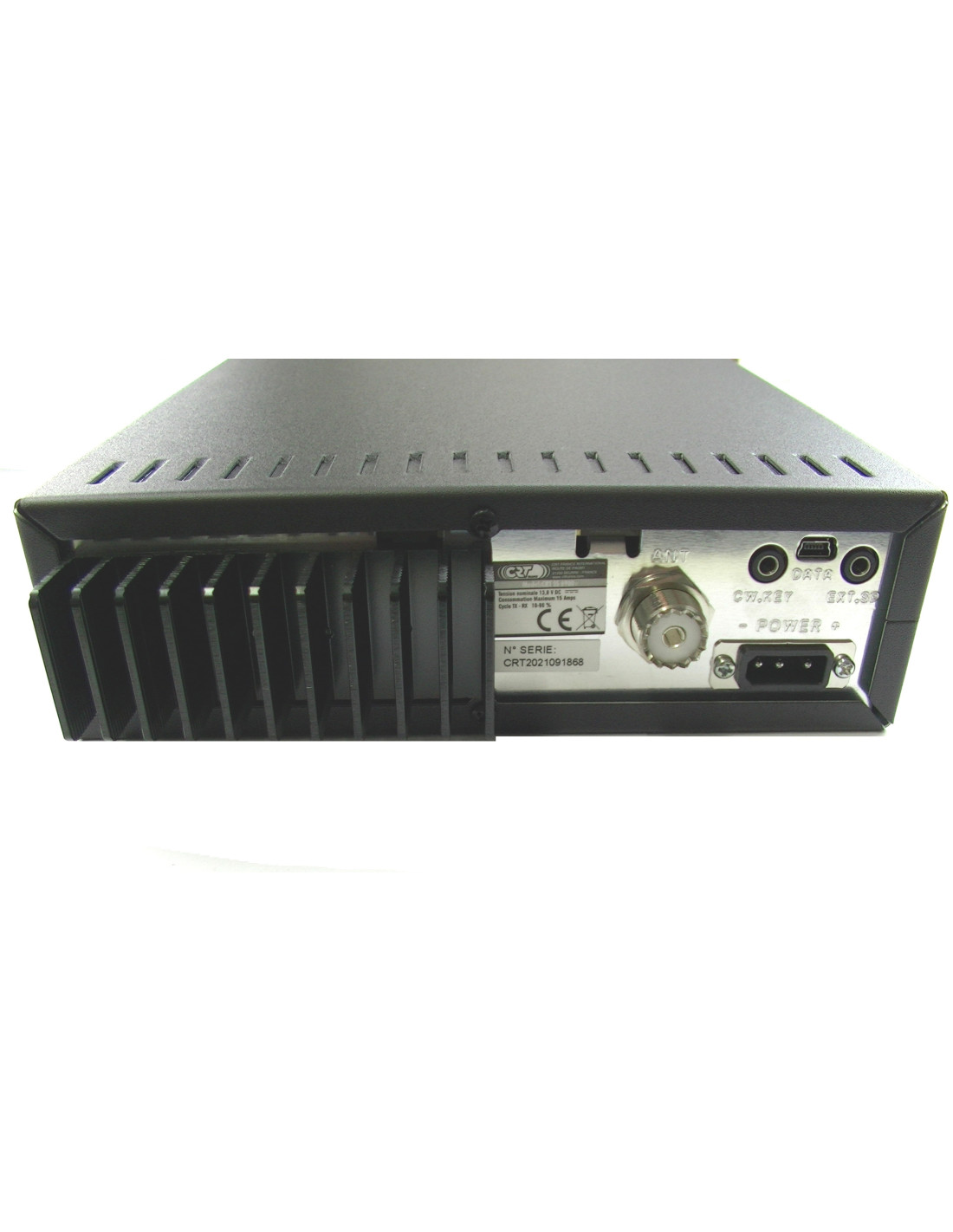

- Program cable connector on the backside of the radio

- Extra ventilation

- NEW : With step 5kHZ

More details

189,00 € tax incl.

Data sheet

Norm AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
Mode AM / FM / USB / LSB / CW / PA
Frequency range 28 - 29.7 mHz
Power 12 Watts AM / 40 Watts FM / 35 Watts BLU (adjust level power AM/FM/SSB)
Input voltage 13.8V DC
Step of increment 10Hz / 100Hz / 1kHz / 5kHz /10kHz
SWR METER Yes : protection with forbidding TX if TOS to high
CLARIFIER Yes : (multifunction) clarifies the voice in SSB
SQUELCH Yes : elimination of background noise (level adjustment in AM/FM/BLU)
ROGER BEEP Yes : TX beep end
RF GAIN Yes : adjust sensibility on RX
MICRO GAIN Yes : (via menu) adjusts the gain of increasing or decreasing the audio power
CTCSS / DCS (encoder/decoder) 38 CTCSS / 104 DCS : digital and analog code to activate repeater like selective tone
Filters NB/ANL Yes : noise filters
Filters NB/HI CUT Yes : noise filters
NRC filter function Yes : RX noise reduction - particularly effective in SSB
DOUBLE WATCH function Yes
VOX function Yes : this feature triggers your microphone sound (hands free)
TOT function Yes : time out timer
SCAN function Yes : automatic search of busy channels
COMPANDER function Yes : TX with a clear voice
RESET function Yes: in the event of a malfunction or incorrect handling, it is possible to restore the factory settings or reset the functions
Various functions Emergency call + Adjust echo (delay&repeat) + Keyboard lock + (+)10 Khz function + CW tone + Protection against to high input voltage&to unfavorable SWR + Squelch level protection + TX Noise Gate
Bonus Microphone type selection : electret or dynamic

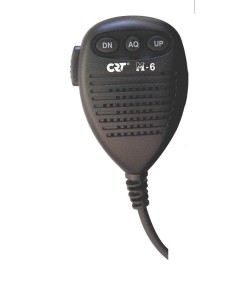

Mike Dynamic type - UP/DOWN selection + 4 pins plug in front pannel with automatic squelch
Display Display LCD and channel blue + Blue retro lighting
Level display Blue frequencies meter 7 digits + TX frequencies, SWR, power level …
Options Programming cable + software
Programmable by software Yes - Connector on the back of the radio without the need to open

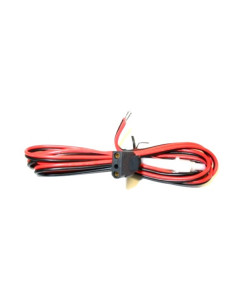

Includ Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English
Size 28 x 26 x 6 cm
Weight 1.85 kgs
Guaranty 2 years

More info


- VOX function

- CTCSS/DCS codes

- RX Compander

- TX Noise Gate

- RX Noise Gate (NRC board included)

- Microphone type selection : electret or dynamic

- Program cable connector on the backside of the radio

- Extra ventilation holes ont the top and bottom cover

- NEW : With step 5kHz

- possible Delivery to USA -
