TX 000990
New product
Warning: Last items in stock!
Availability date: 0000-00-00
Norm | AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory) |
Mode | AM / FM / USB / LSB |
Frequency range | 28 - 29.7 mHz |
Power | 30W with modulation AM / 50W FM / 60W SSB (adjustable on AM/FM/SSB) |
Input voltage | 13.8V DC |
Memories | 6 |
Step of increment | 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 mHz |
SWR METER | Yes : protection with forbidding TX if TOS to high |
CLARIFIER | Yes : clarifies the voice in SSB (range ± 1.5 KHz) |
SQUELCH | Automatic (ASQ) AM/FM |
ROGER BEEP | Yes : TX beep end (off / 1-5) |
CTCSS / DCS (encoder/decoder) | 38 CTCSS / 104 DCS : sub-audio code to activate repeater like selective tone (inclused original ) |
DTMF (encoder) | Yes : tones selected to activate repeater, internet gateway and other items (inclused original ) |
Filters NB/HI CUT | Yes : noise filters |
SPLIT function | Yes : allows to transmit and receive on two different frequencies in half duplex |
DOUBLE WATCH function | Yes |
TOT function | Yes : time out timer (off/adjustable up to 600 seconds) |
SCAN function | Yes : automatic search of free channels with search option (SCM : Scan Mode, SQ/Time) |
Various functions | Keypad lock + RESET + ECHO on/off + (+) 10kHz function + memory channel programmed + Public adress + Microphone Gain (1-36) + NOG function (monitor volume, 1-32) + FIN function (Fine Tune, RX only / TX only / Both). |
Protection | TSR (High SWR Protection, On/Off) + TDC (High Voltage Protection, On/Off) |

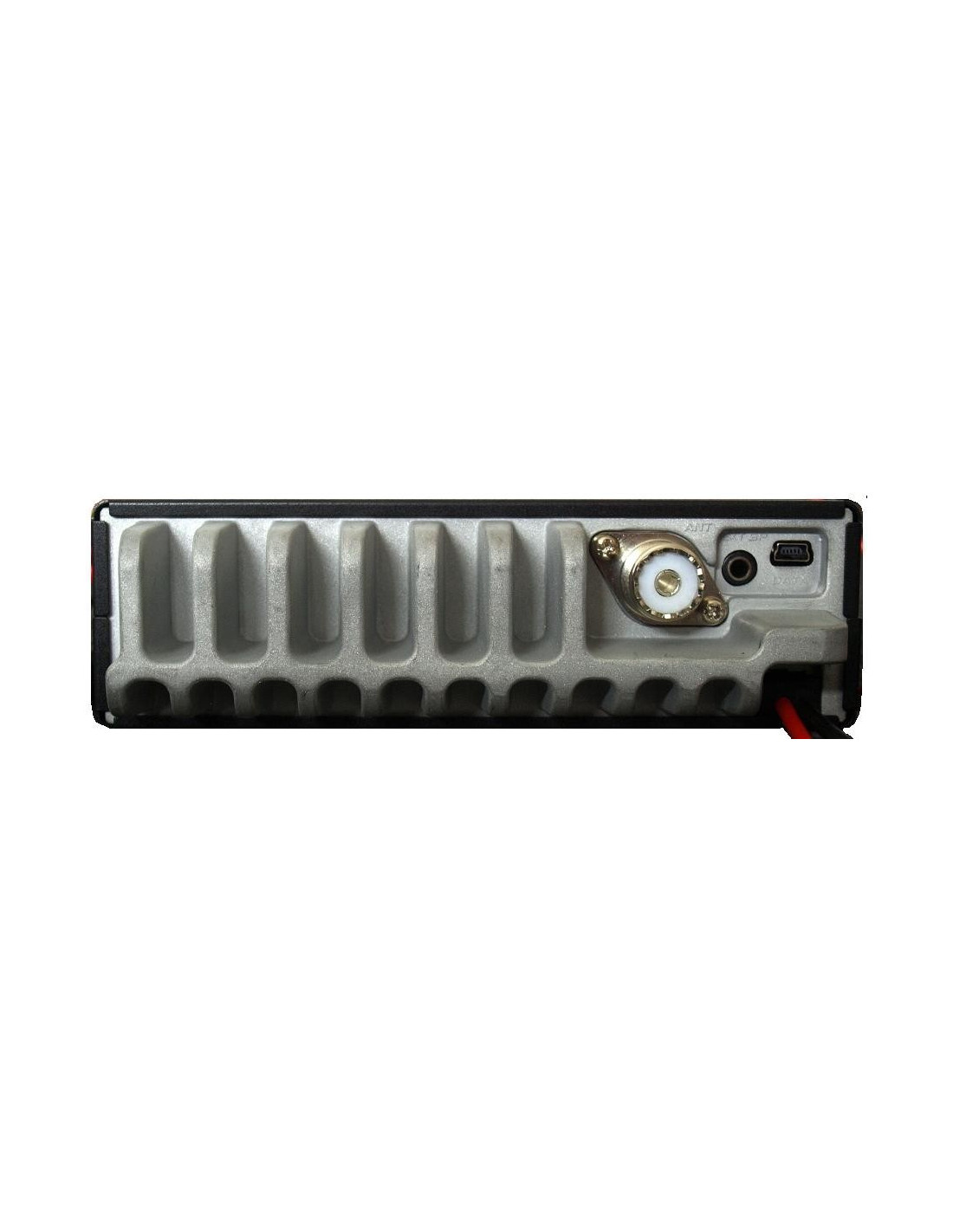

Bonus | Detachable power cord with plug + Jack plug for external loud speaker + mini USB on back side) |

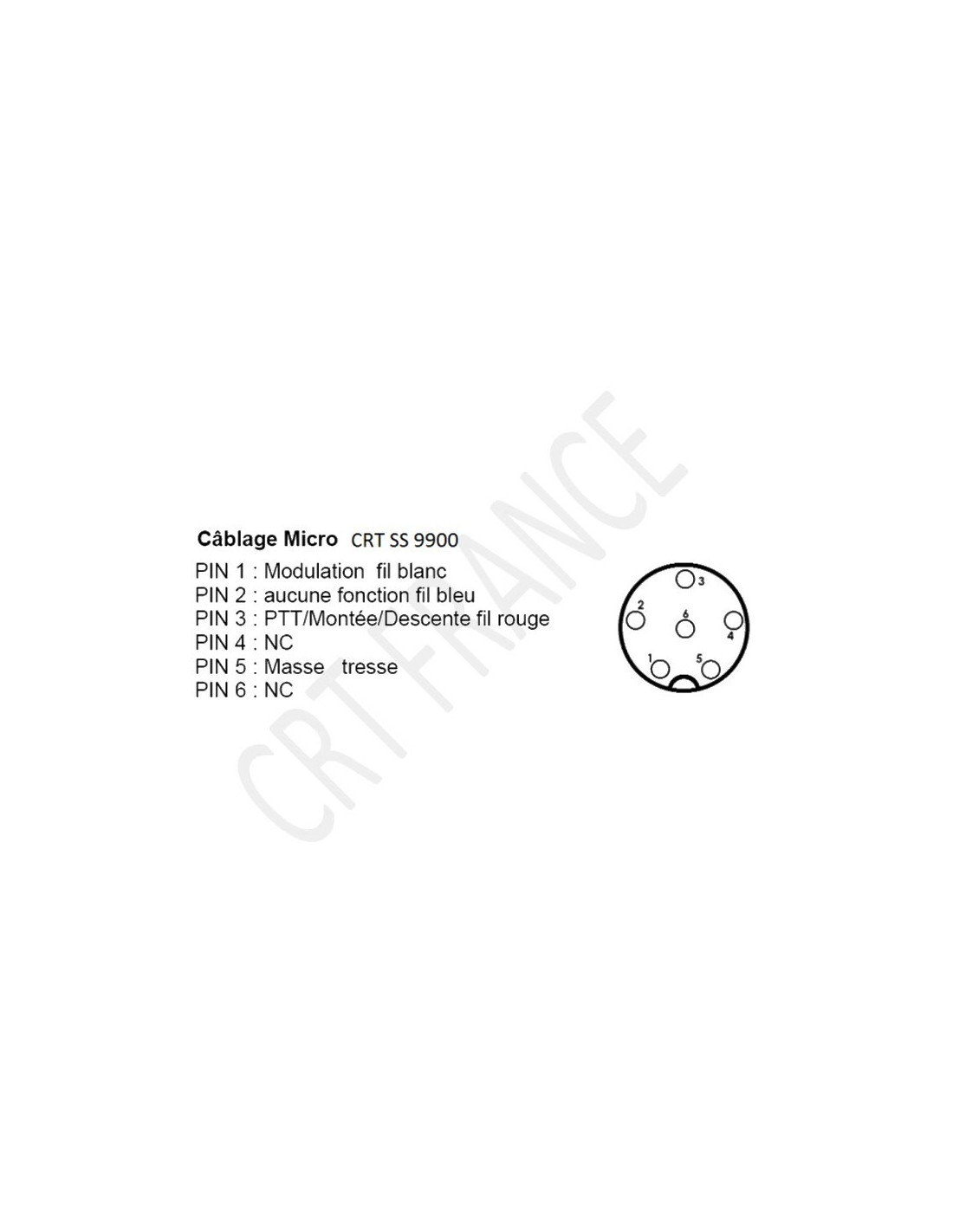

Mike | UP/DOWN selection + 6 pins plug in front pannel |

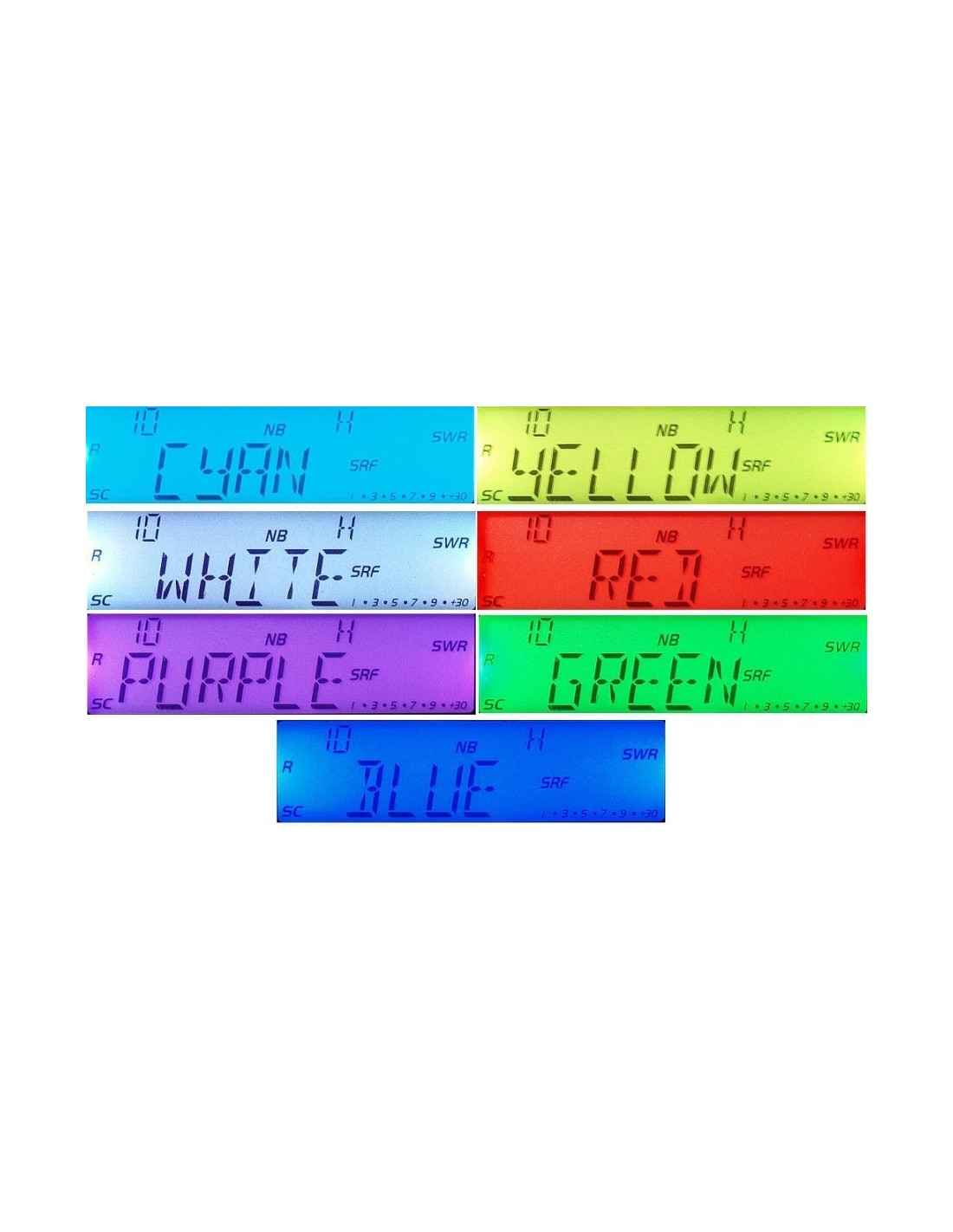

Display | LCD display : 7 colors |
Level display | - Power / Signal Strength / SWR indication + Numéric indication for SWR value + Power supply DC displaying |
Programmable by software | Yes |
Includ | Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English |
Size | 245 x 158 x 48 mm |
Weight | 1.5 kgs |
Guaranty | 2 years |
- Frequency shift (REP function)SPLIT adjustable from 100Hz to 5 MHz
- VFO in fréquency mode continu from 28.000 to 29.700 MHz (with step selected)
CTCSS/DCS INCLUDED
- possible delivery to USA -
