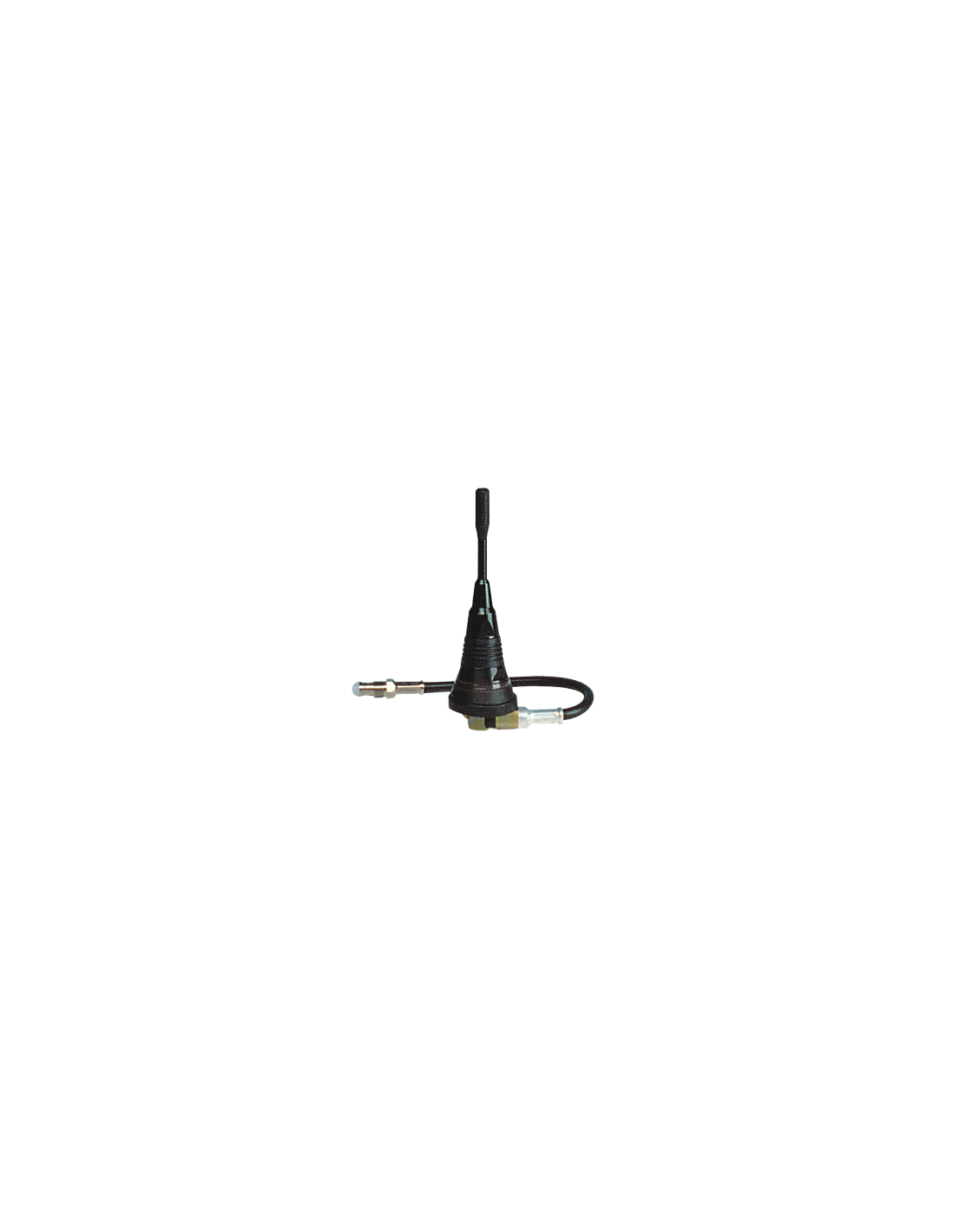

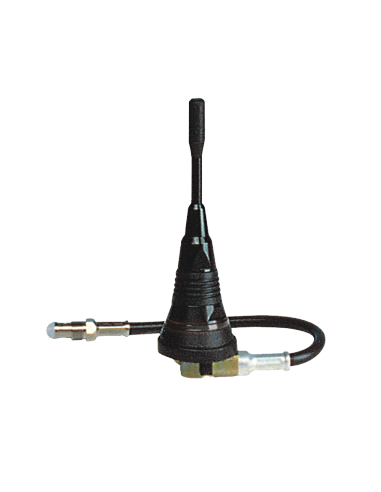

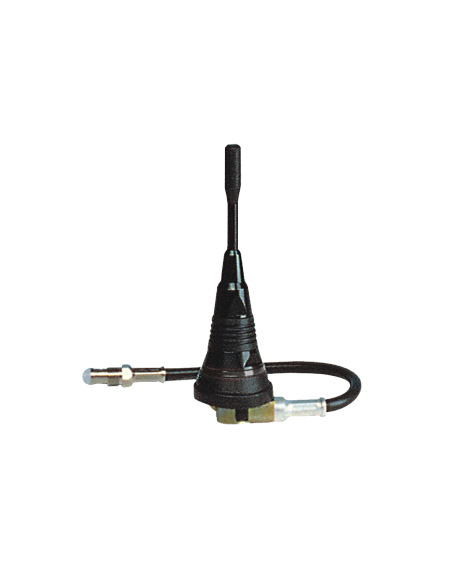

> >>>SKA 901 1/4 SIRIO
SKA 901 1/4 SIRIO View larger

SKA 901 1/4 SIRIO

VS 000227

New product

MOBILE ANTENNA

More details

13,50 € tax incl.

More info

Features:

- Mobile antenna, Mono-band
- Unity-gain, Omnidirectional
- Rigid whip, detachable for car-washes access
- Magnetic mount version available
- For AMPS, ISM, GSM 900 and TACS systems





Electrical Data
-
Type: 1/4 λ
-
Frequency range: 824-960 MHz for AMPS, ISM, GSM 900 and TACS systems
-
Impedance: 50Ω
-
Radiation (H-plane): 360° omnidirectional
-
Polarization: linear vertical
-
Gain: 0 dB ref. to a λ /4 whip
-
SWR in bandwidth: ≤ 1.8
-
Max Power (CW) @ 30°C: 30 Watts
-
Standard mount: "ML"
-
Cable Length / Type: 5 m / RG 58
-
Connector: FME-female

Mechanical Data
-
Materials: Stainless Steel 17/7 PH, Chromed Brass, Nylon
-
Height (approx.): 90 mm
-
Weight (approx.): 260 gr
-

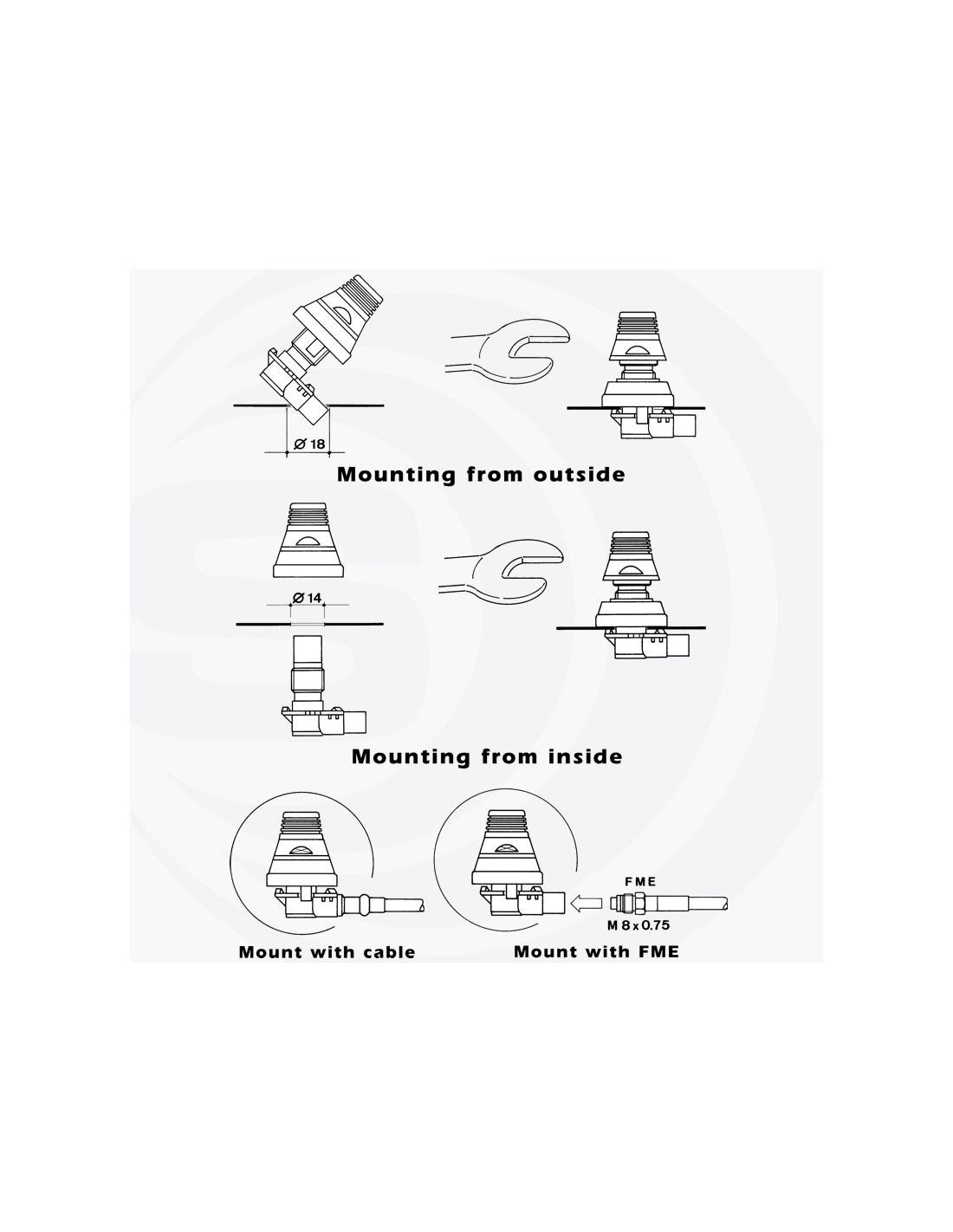

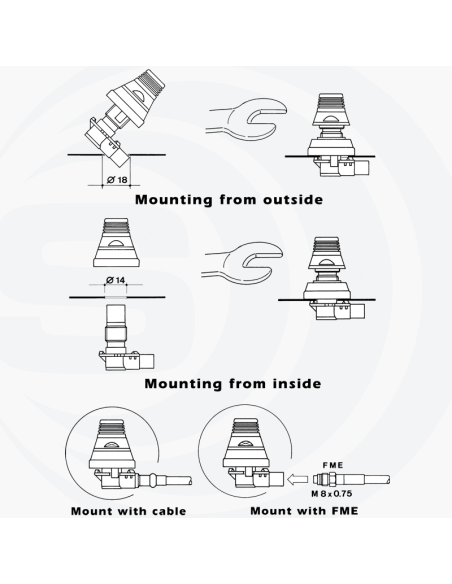

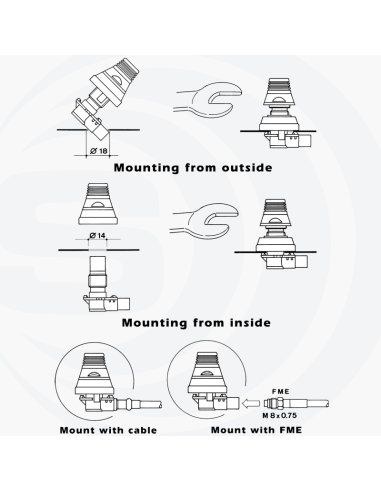

Mounting hole: Ø 14 or 18 mm
