MINI SNAKE 27 MAG SIRIO

Reference: VS 000032

Condition: New product

MOBILE ANTENNA /

26.5…27.4 MHz Tunable /

CB 27MHz /

650mm /

Tilting

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Features:

-	CB Mobile antenna

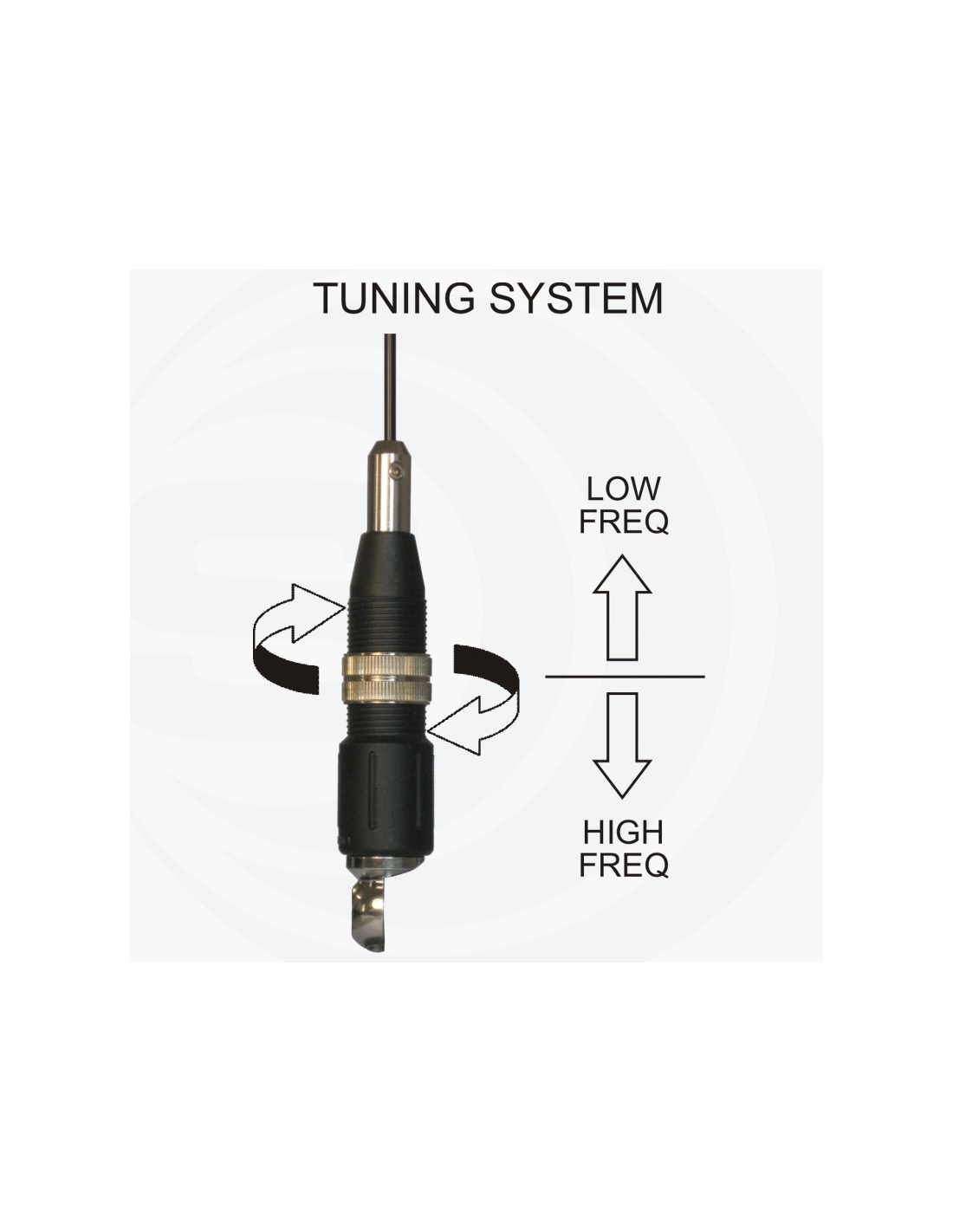

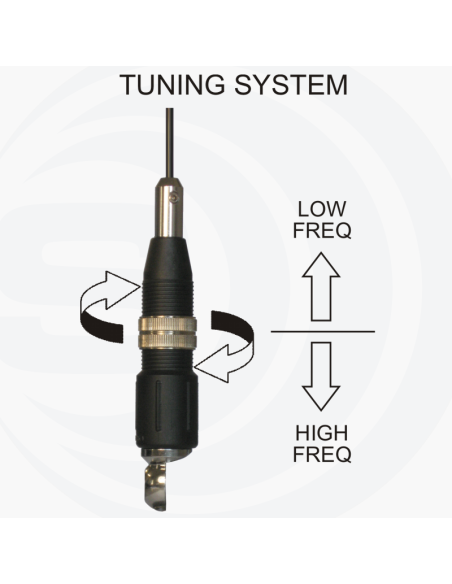

-	Tunable by screw or unscrew the metallic ring
-	17/7 PH tapered stainless steel whip
-	180° inclination and adjustable whip, detachable for car-wash
-	Wide range of optional mounting bases available
-	Suitable for magnetic mount

Electrical Data
-	Type: CB base loaded
-	Frequency range tunable: 26.5 - 27.4 MHz
-	Impedance: 50 Ω
-	Polarization: linear vertical
-	Bandwidth @ SWR ≤ 2: MINI SNAKE 27 MAG: ≥ 1000 KHz (90 channel)
-	SWR @ res. freq.: ≤ 1.2
-	Max. power: 10 Watts (CW) continuous, 40 Watts (CW) short time
-	Standard mount: MINI SNAKE 27 MAG: magnetic
-	Cable lenght / Type: MINI SNAKE 27 MAG: 3.6 m / RG 58 + PL

Mechanical Data
-	Materials: Brass, Copper, Nylon, Stainless Steel
-	Height (approx.): MINI SNAKE MAG: 650 mm
-	Weight (approx.): MINI SNAKE 27 MAG: 770 gr
-	Mounting hole: MAGNETIC

Download

PRODUCT MANUAL MINI SNAKE

Download (428.16k)
