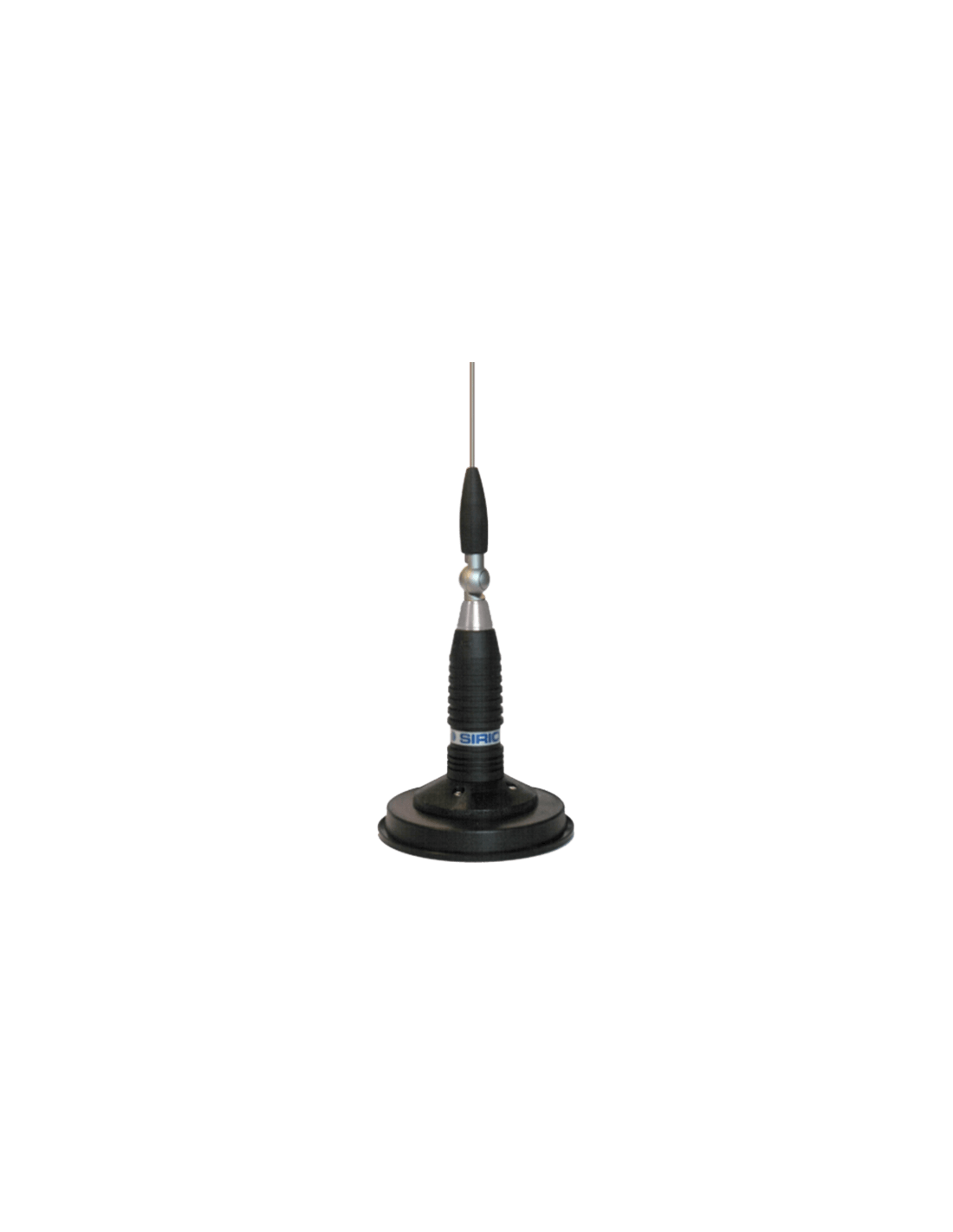

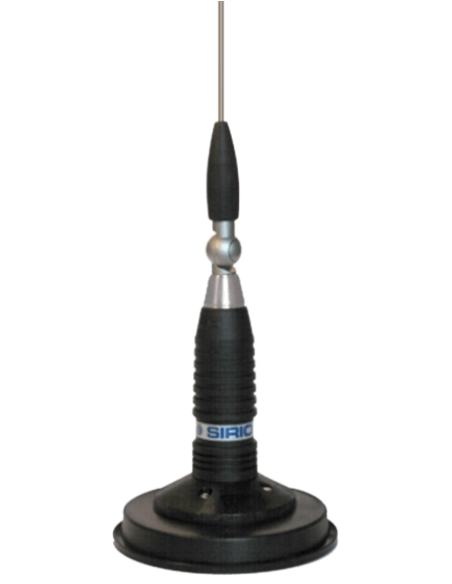

TITANIUM 3001 MAG SIRIO

VS 002030

New product

MAGNETIC MOBILE ANTENNA /

27…28.5 MHz Tunable /

CB 27MHz /

1485mm /

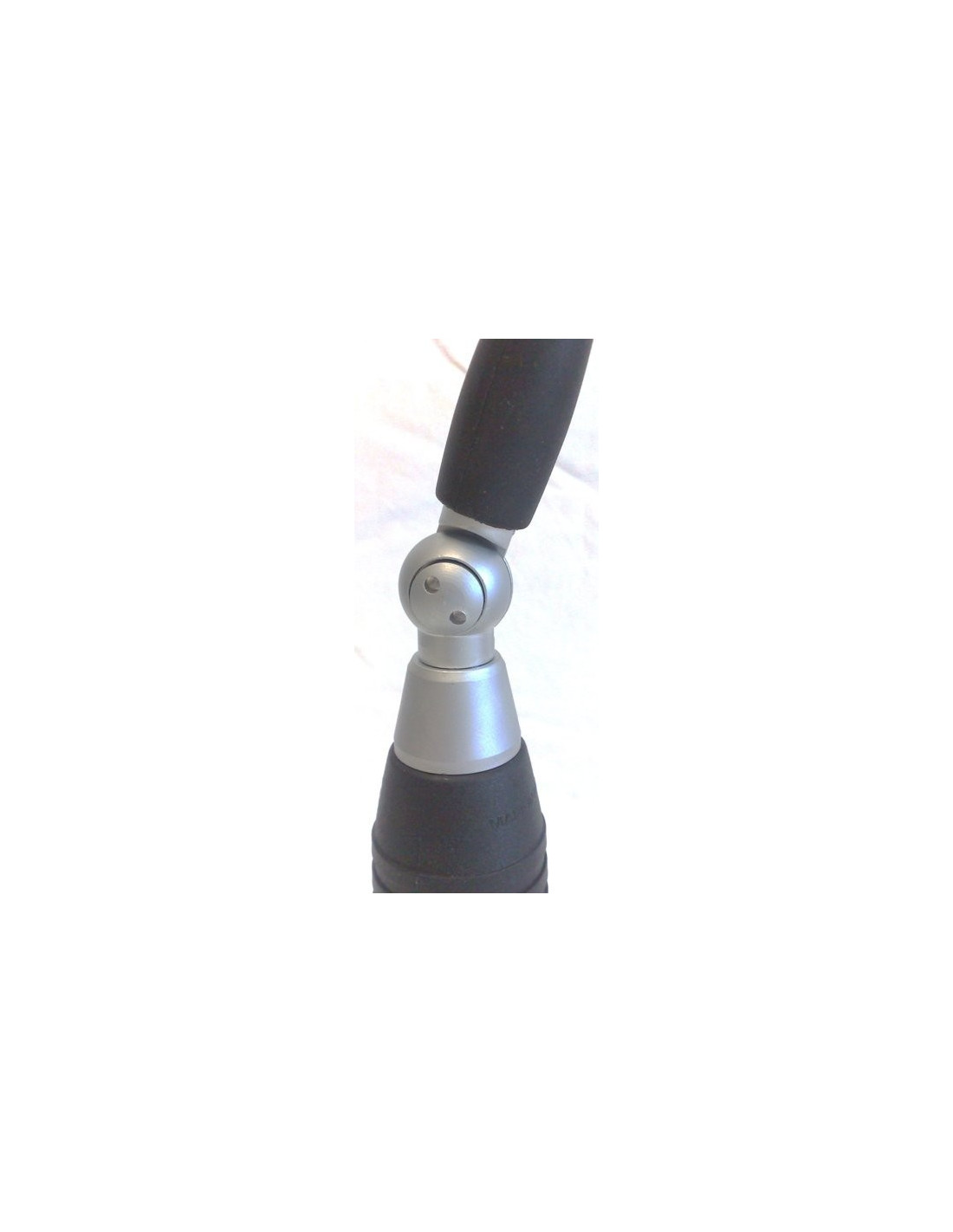

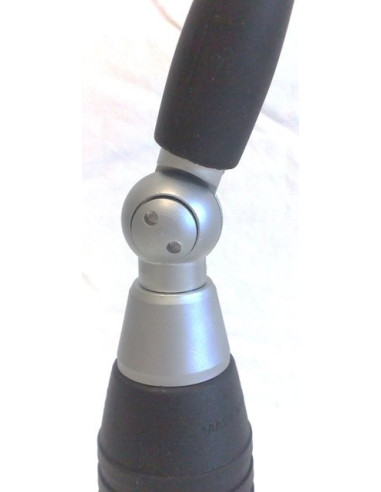

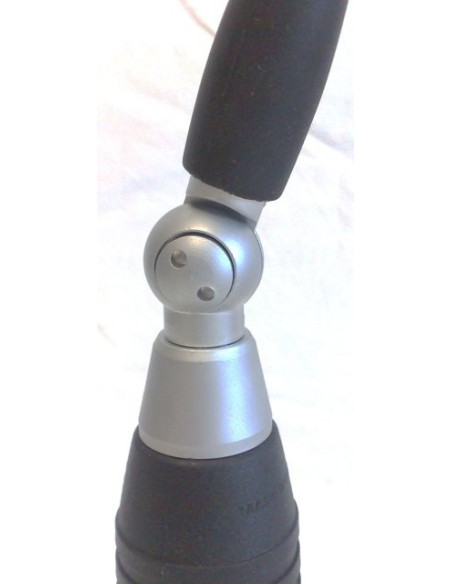

Tilting

More details

50,00 € tax incl.

More info

Features:
-
CB Mobile antennas
-
Tunable from 27 to 28.5 MHz
-
Protection from static discharges DC-Ground
-
17/7 PH tapered stainless steel whip
-
Suitable for magnetic mount


Electrical Data
-
Type: base loaded
-
Frequency range: 27 ... 28.5 MHz
-
Impedance: 50 Ω
-
Polarization: linear vertical
-
Bandwidth @ SWR ≤ 2: ≥ 1300 KHz (1115 channel)
-
SWR @ res. freq.: ≤ 1.4
-
Max. power: 300 Watts (CW) continuous, 900 Watts (CW) short time
-

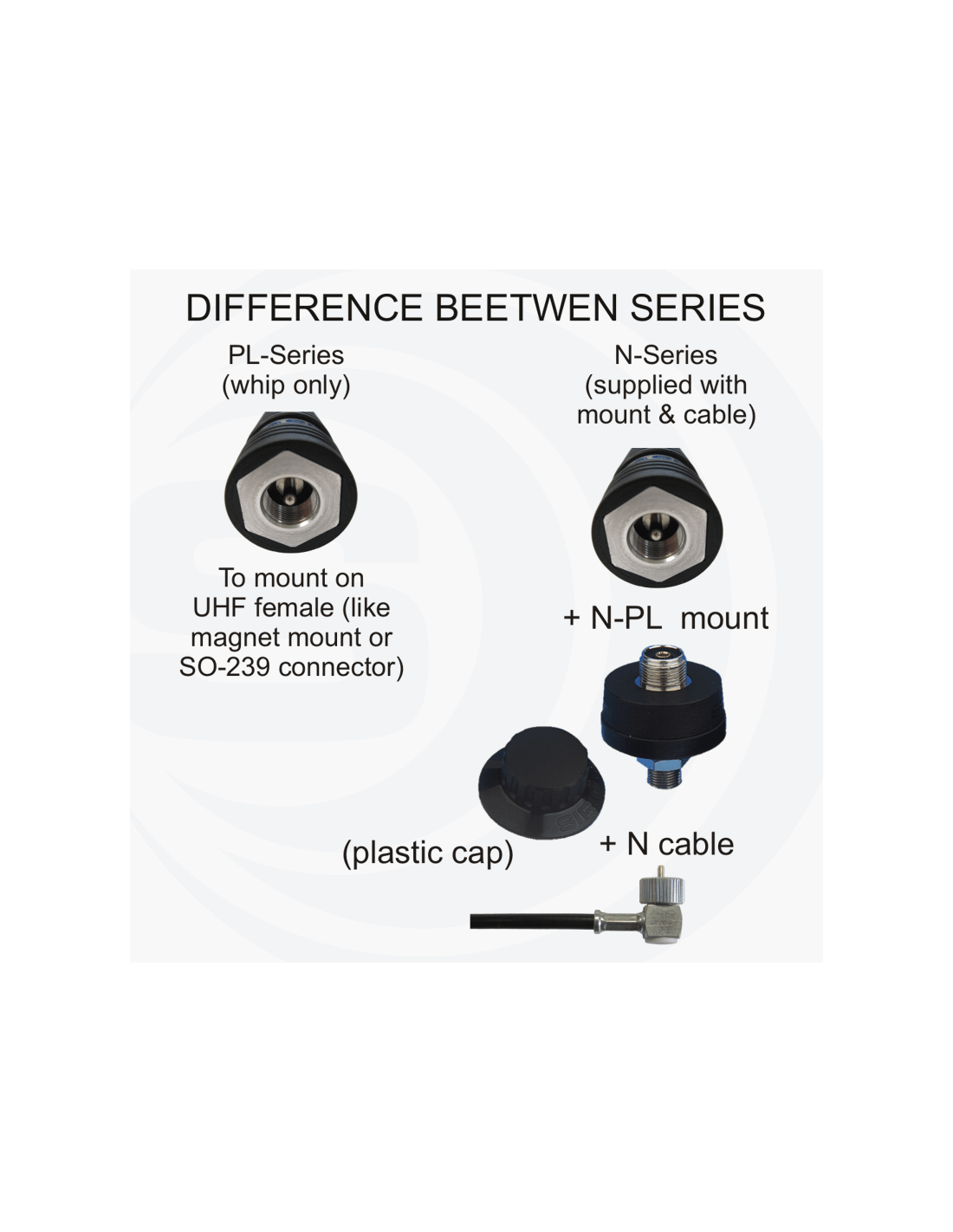

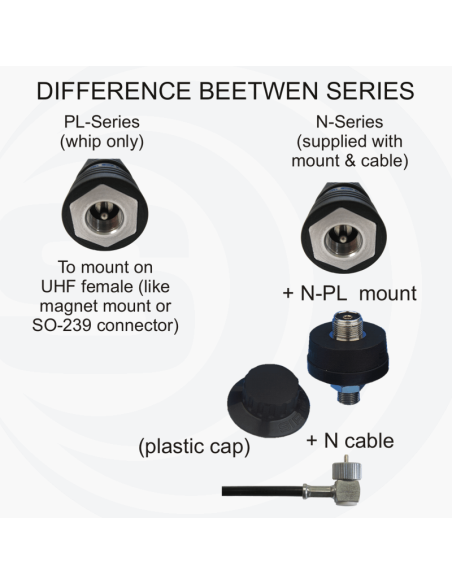

Mounting: PL version: UHF-male (PL 259) , hole Ø 12.5 mm MAG version: MAG 125 PL magnetic mount
-
Cable lenght / Type: PL version: not supplied N version: 4m / RG 58 MAG version: 3.6m / RG 58 / PL259


Mechanical Data
-
Materials: Brass, Copper, Nylon, Stainless Steel
-
Height (approx.): 1485 mm
-
Weight (approx.): 300 gr (radiator only)
