VS 002410
Type: | Multi Band Dipole Array |
Radiation: | Omnidirectional |
Polarization: | Linear vertical |
Frequency range: | 790-960 MHz & 1710-2700 MHz No tuning required |
Systems: | GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM-868MHz, ISM-915MHz, WiFi-2.4GHz, DECT |
Gain: | 5 dBi for GSM 900&1800 and LTE 800 6 dBi for UMTS 5÷6 dBi for WLAN and LTE |
Max Power: | 20 Watts for GSM 900 and LTE 800 10 Watts for GSM 1800 & UMTS 6 Watts for WLAN & LTE |
Cable lenght / type: |
|
Connector: | SMA-male, Other type on request |
Mechanical Data:
Materials: | Galvanized steel, Thermoplastic UV stabilized, PCB |

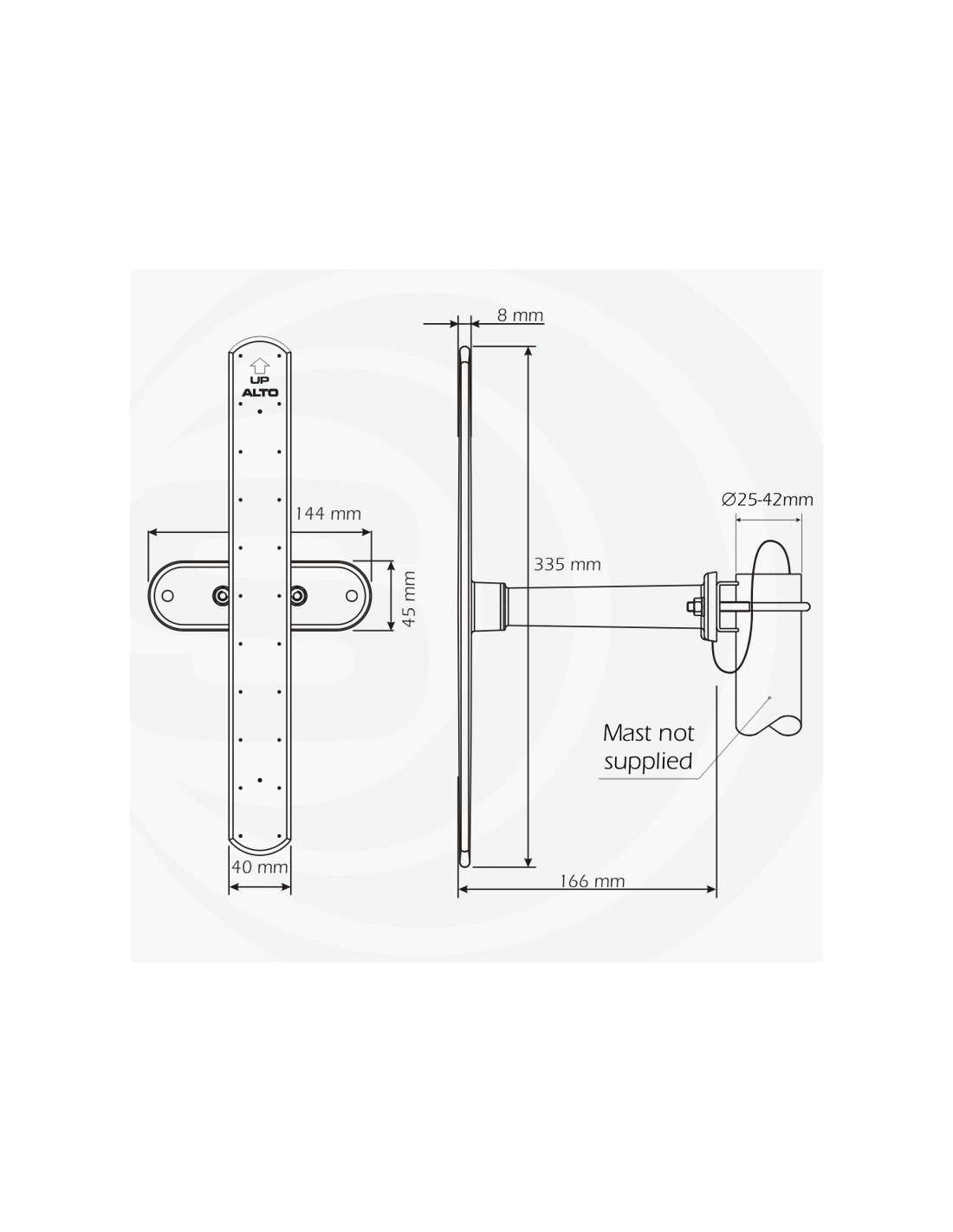

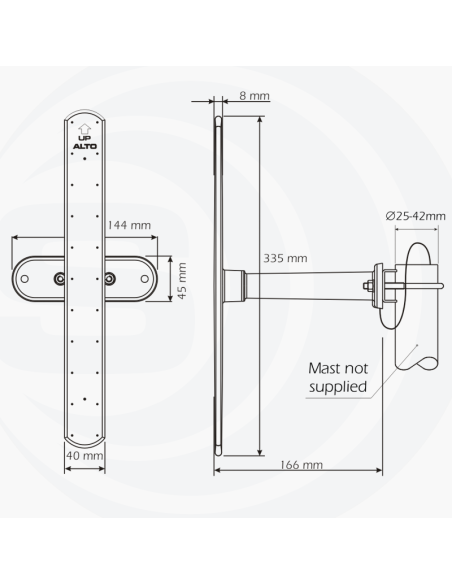

Dimensions (approx): | 335 x 166 x 144 mm / 1.1 x 0.54 x 0.47 ft |
Weight (approx): | 350 gr / 0.77 lb |

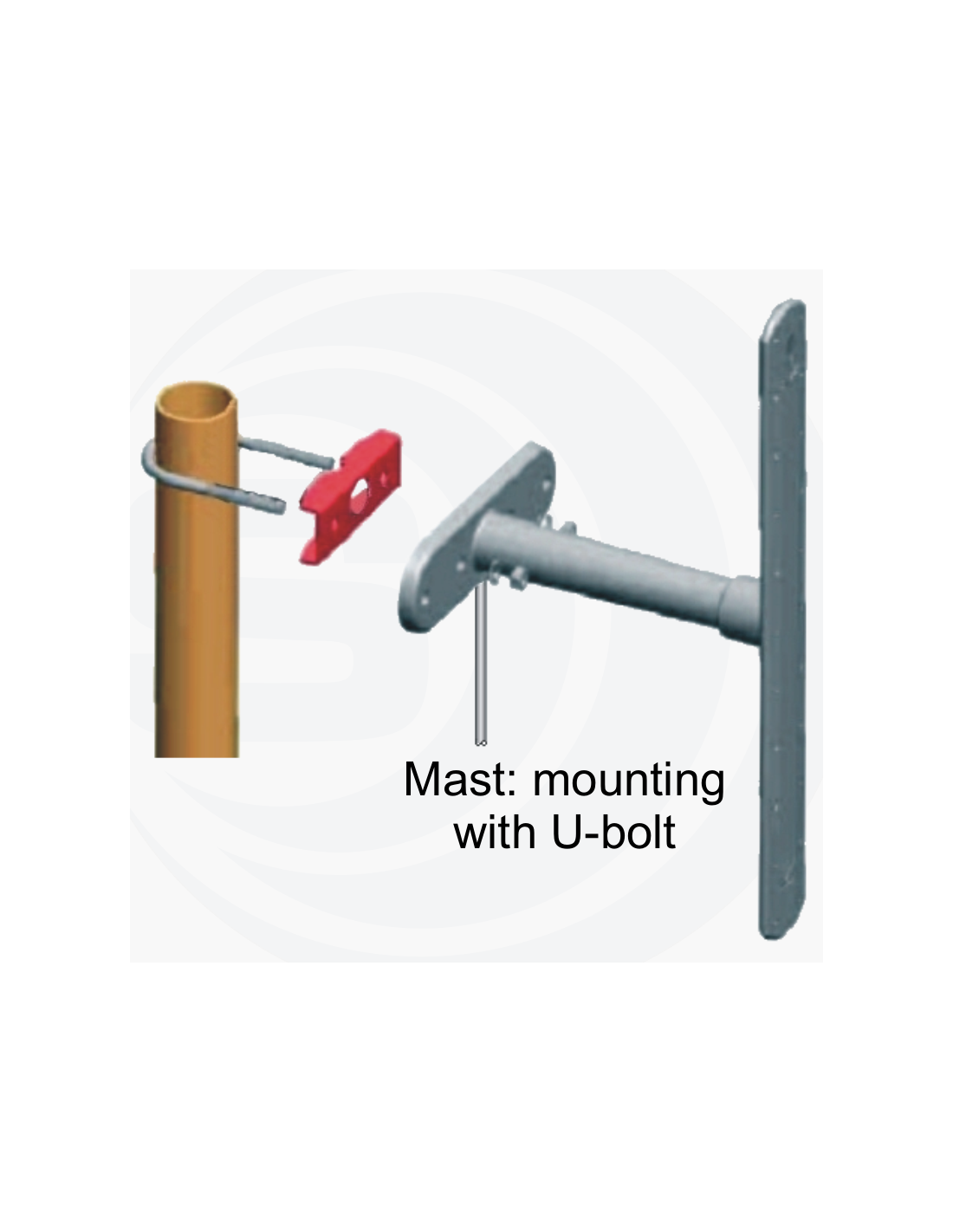

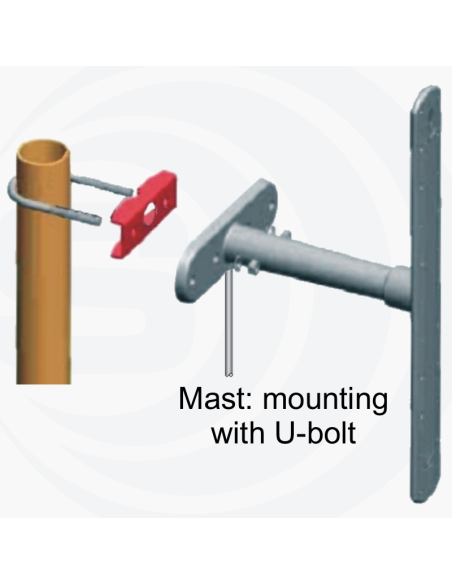

Mounting type: | On-Mast, On-Wall |
