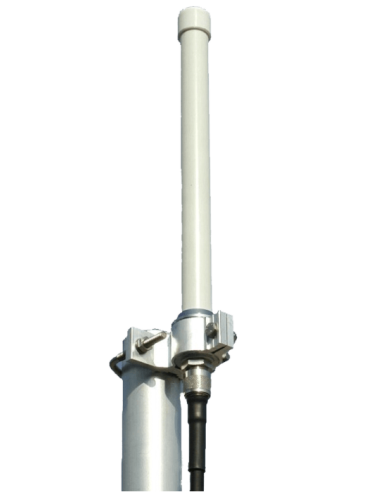

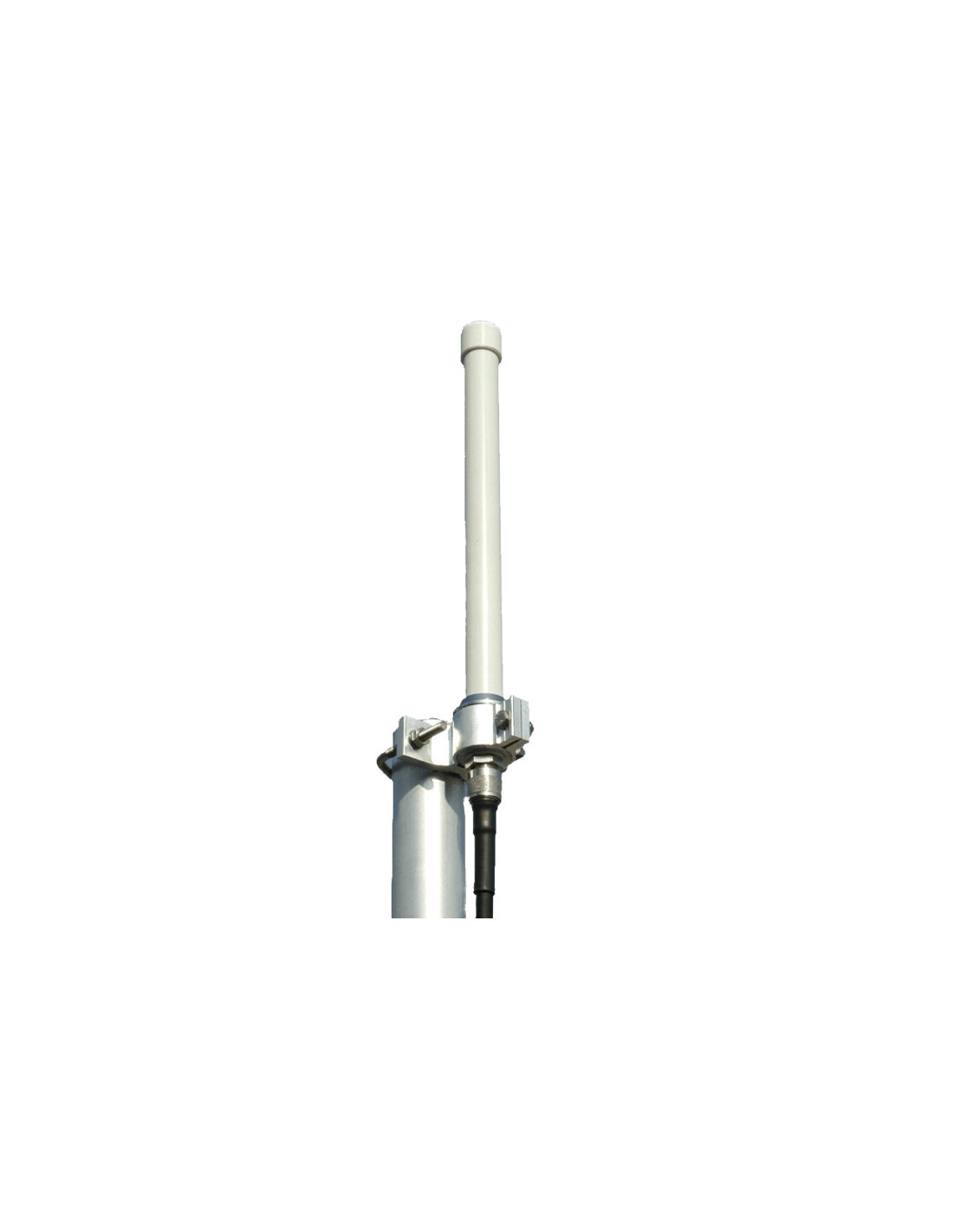

SCO-2.4-6 SIRIO

VS 001055

New product

BASE ANTENNA WLAN

2.3-2.5 GHz @ SWR ≤ 1.5 /

3×1/2 λ colinear /

325 mm

More details

40,00 € tax incl.

More info

Electrical Data:
Type: 3×1/2 λ colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 2.3-2.5 GHz @ SWR ≤ 1.5 No tuning required
Systems: WiFi-2.4GHz
Gain: 3.9 dBd – 6 dBi
Max Power: 20 W (CW)
Grounding protection: DC-Ground

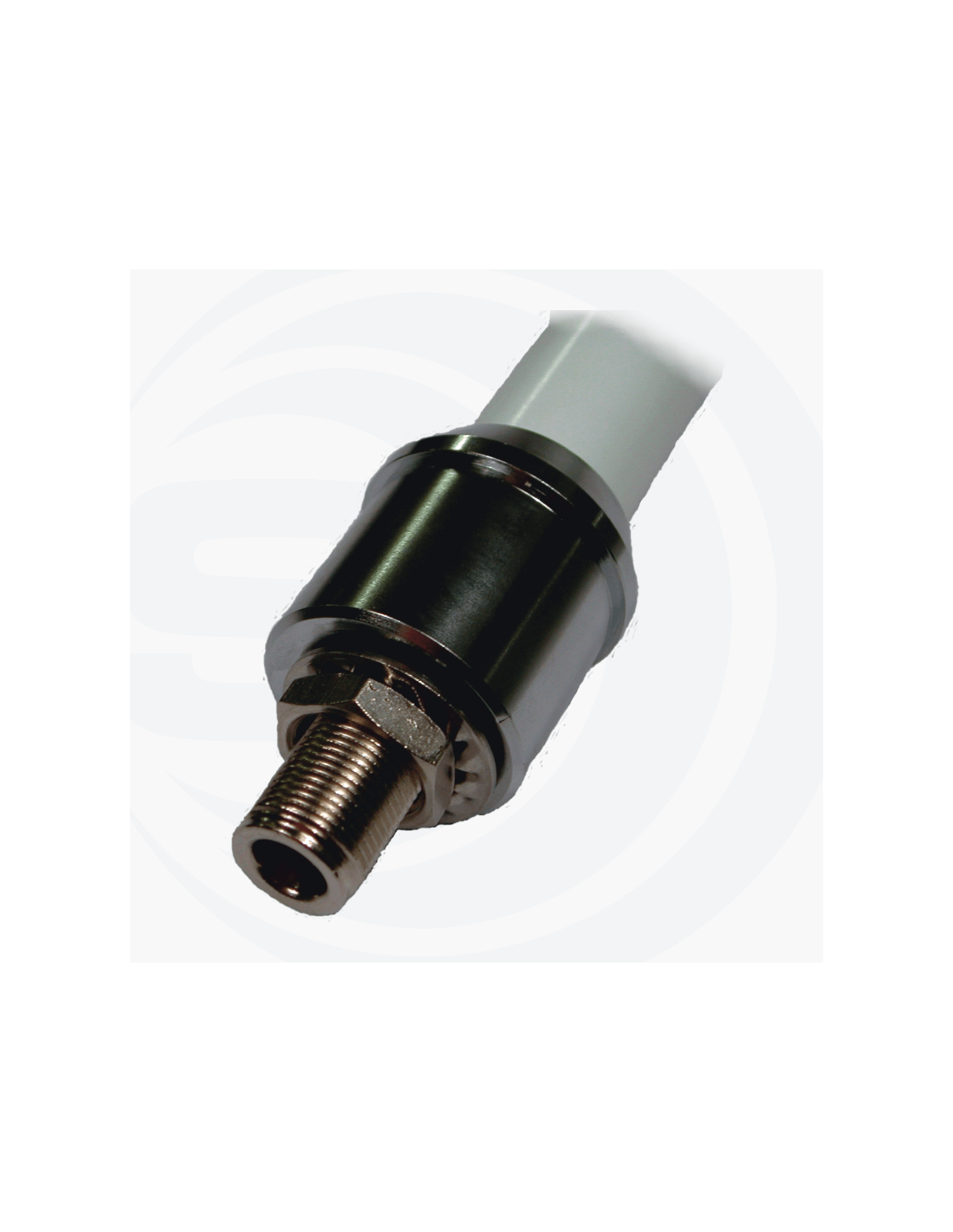

Connector: N-female
Mechanical Data:
Materials: Aluminium, Chromed brass, Fiberglass, PCB
Height (approx): 325 mm / 1.07 ft
Weight (approx): 350 gr / 0.77 lb

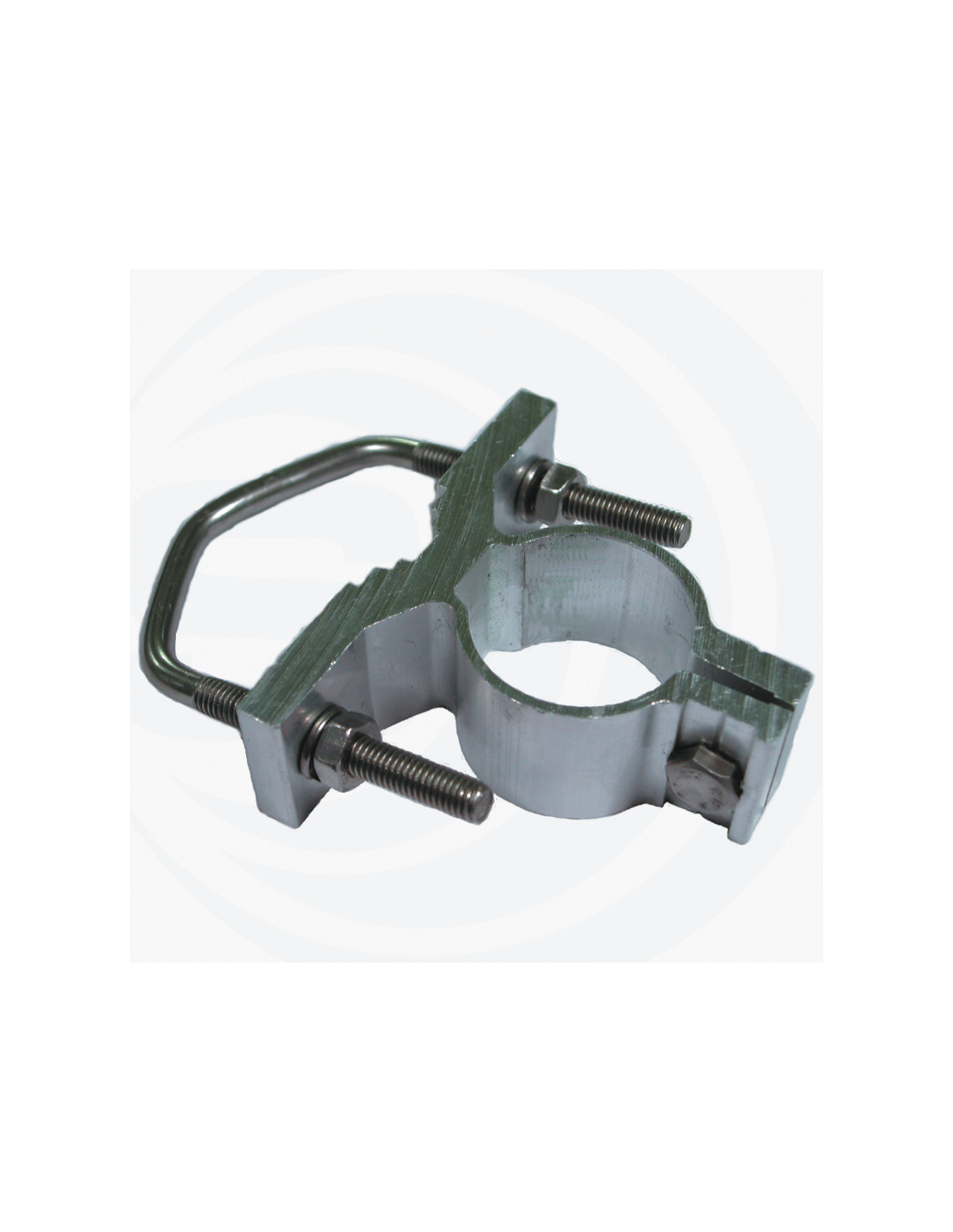

Mounting type: On-Mast
