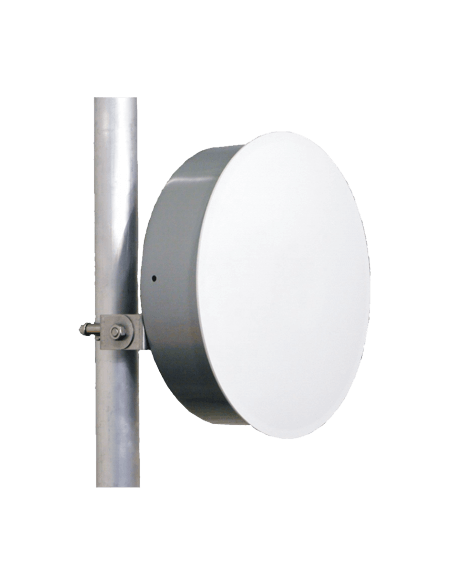

SDC-2.4-15 SIRIO

View larger

SDC-2.4-15 SIRIO

Reference: VS 002660

Condition: New product

BASE ANTENNA CAVITY BACKED

2.4-2.485 GHz /

Ø275 x 80 mm

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Type:	Cavity backed
Radiation:	Directional
Polarization:	Linear Vertical or Horizontal
Frequency range:	2.4-2.485 GHz No tuning required
Systems:	WiFi-2.4GHz
Gain:	12.9 dBd – 15 dBi
Max Power:	20 W (CW)
Grounding protection:	DC-Ground
Connector:	SMA-female

Mechanical Data:

Materials:	Aluminium, Brass, Stainless steel, Thermoplastic UV stabilized
Dimensions (approx):	Ø275 x 80 mm / Ø0.9 x 0.26 ft
Weight (approx):	720 gr / 1.59 lb
Mounting type:	On-Mast, On-Wall

Download

PRODUCT MANUAL SDC 2.4 15

Download (102.69k)
