Features:
| - |

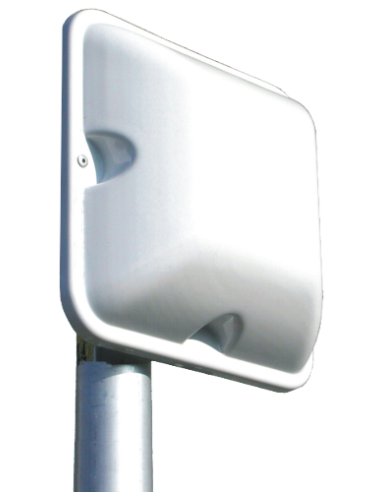

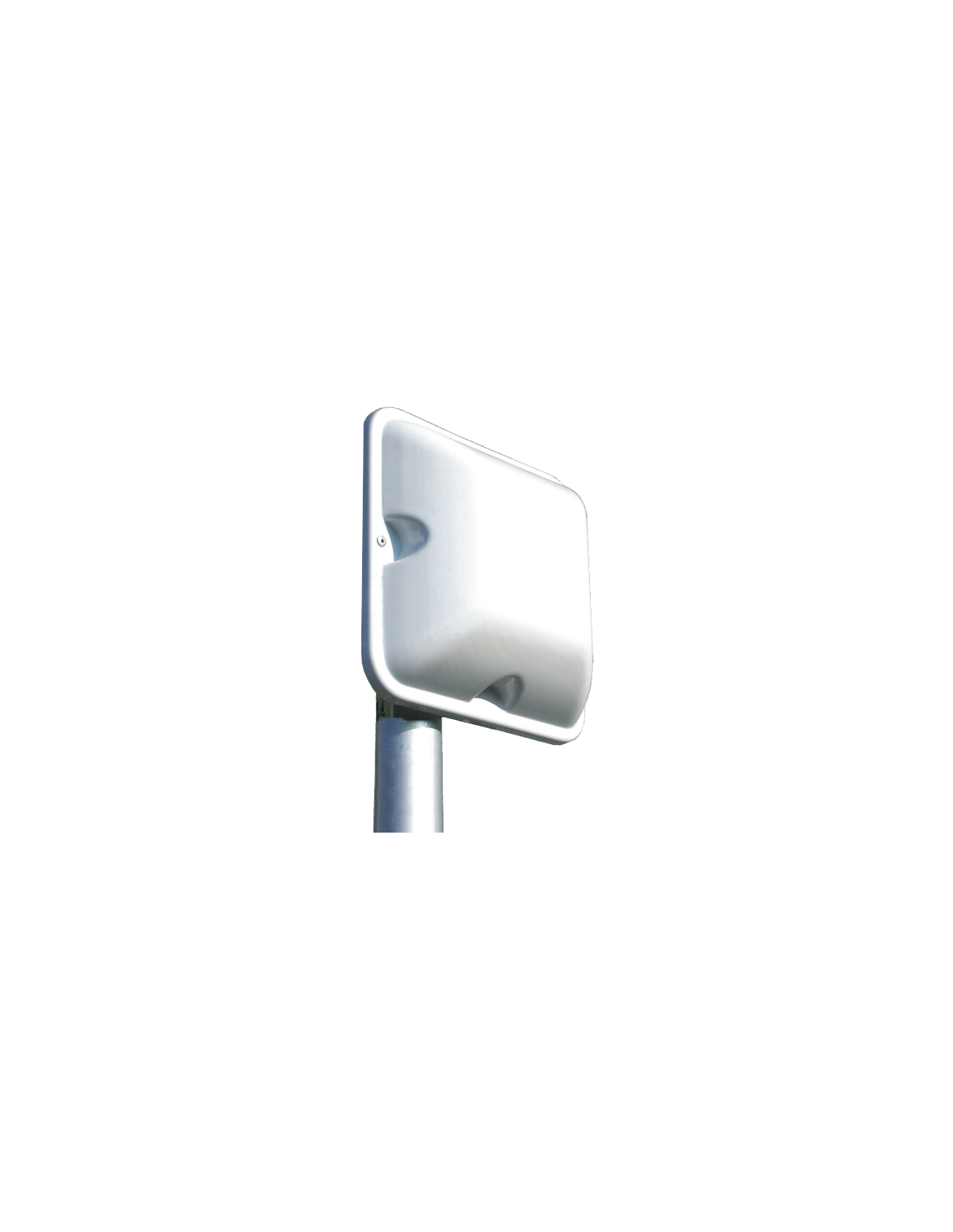

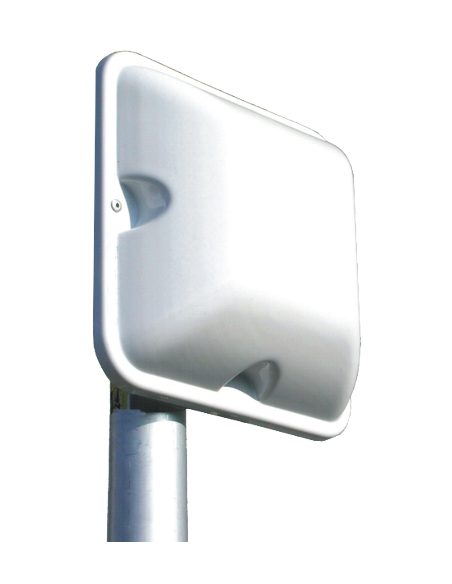

Base station antenna, Directional |
| - |
Wide-band, High-gain |
| - |
DC-ground protection |
| - |
High quality PCB radiator protected by ABS UV stabilized radome |
| - |
For DCS,PCS,DECT,UMTS and WLAN systems |
| Eectrical Data |
| - |
Type: Planar reflector |
| - |
Frequency range: 1700-2500 MHz for DCS,PCS,DECT,UMTS and WLAN systems |
| - |
Impedance: 50Ω |
| - |
Radiation (H-plane): beamwidth @ -3 dB = 54° @ 2045 MHz |
| - |
Radiation (E-plane): beamwidth @ -3 dB = 53° @ 2045 MHz |
| - |
Radiation angle: 0° |
| - |
Front to back ratio: ≥ 20 dB |
| - |
Polarization: linear vertical |
| - |
Gain: 7.9 dBd - 10 dBi |
| - |
SWR in bandwidth:
≤ 1.5 from 1.7 to 2.17 GHz
≤ 2.0 from 2.17 to 2.5 GHz |
| - |
Max. power (CW) @ 30°C: 20 Watts |
| - |
Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short |
| - |
Cable lenght / type: 30 cm / RG 58 C/U |
| - |
Connector: SMA-male |
| |
|
| Mechanical Data |
| - |
Materials: PCB, Aluminium, ABS |
| - |
Radome material: white ABS UV stabilized |
| - |
Wind load / resistance: 60 N @ 150 Km/h / 180 Km/h |
| - |
Wind surface: 0.03 m² |
| - |
Dimensions (approx.): 170 x 170 x 50 mm without bracket |
| - |
Weight (approx.): 650 gr |
| - |
Operating temperature: -20° C to +80° C |
| - |

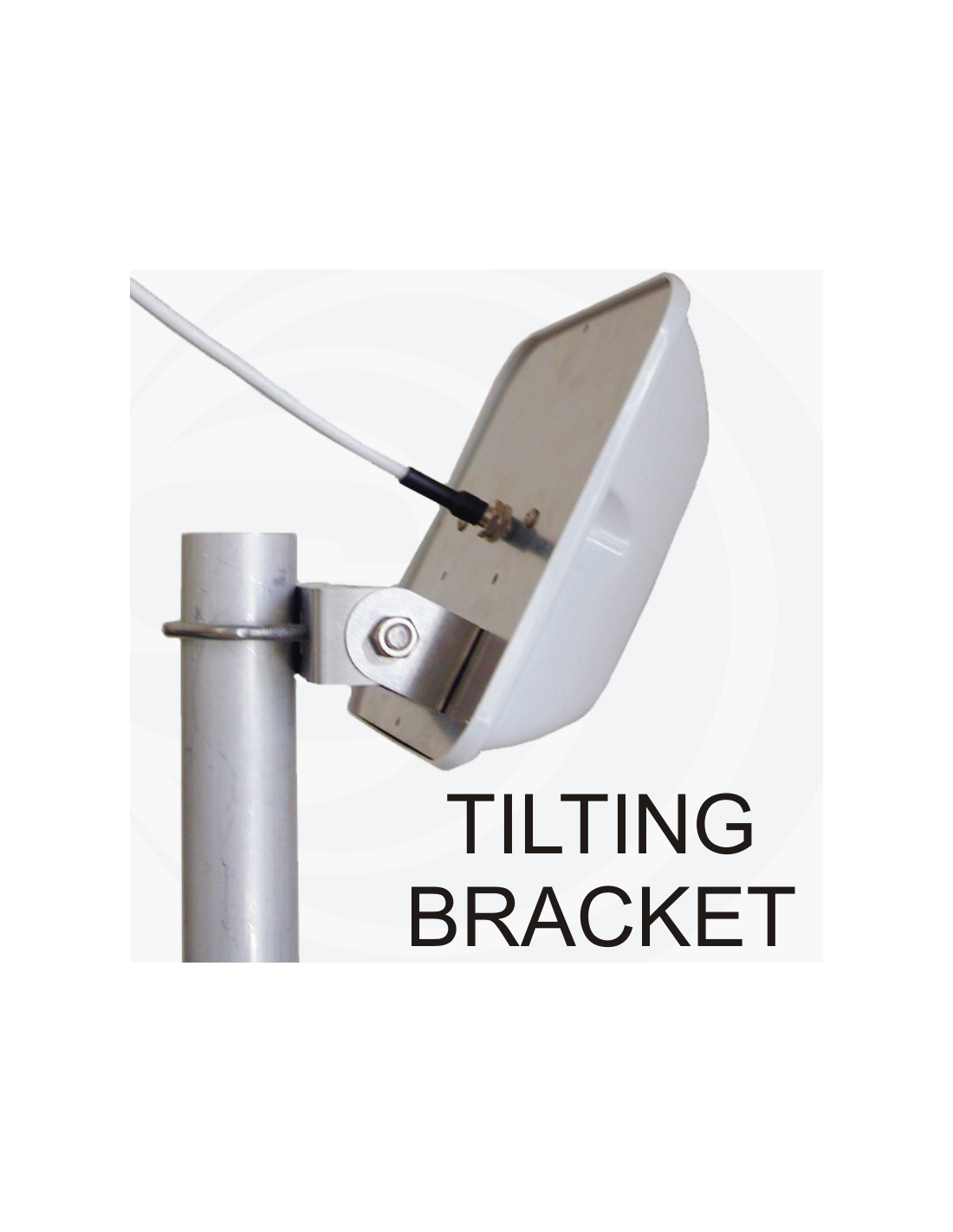

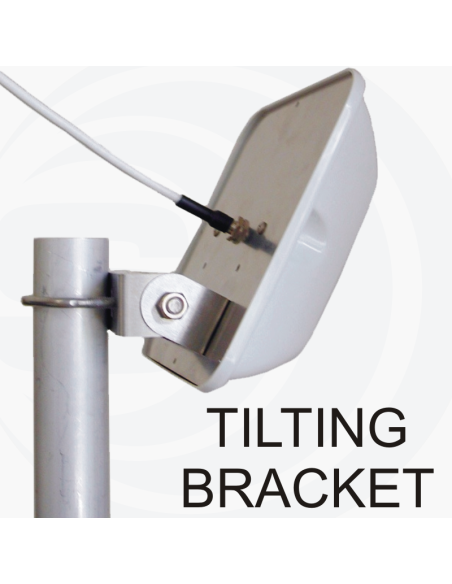

Mounting mast:
mast: Ø 25-42 mm with U-bolt
clamp: Ø 25-70 mm (optional)
wall: with mounting screws (not oncluded) |
|
|
