CRT 4 CF V2

PM 000530

New product

- AVAILABLE IN APRIL CRT 4CF V2 -

TALKY WALKY DUAL BAND

TRUE SIMULTANEOUS DOUBLE RECEIVER

NEW FUNCTIONS :

  • SQUELCH LEVEL CONTROL AM/FM
  • NEW STEP OF INCREMENT : +8.33K in AM (in Airband mode)
  • KNOB ROTATOR CHANNEL LOCKING and KEYBORD

More details

Product Videos

  design
  description

129,00 € tax incl.

Data sheet

Norm AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
Mode VHF / UHF : DOUBLE RECEIVER
Frequency range RX/TX : 144-146 Mhz / 430-440 Mhz
Power 6 Watts VHF / 5 Watts UHF ERP
Memories 199 channels
Channel spacing 12.5 kHz - 25 kHz
Bandwidth 12.5K / 25K
Step of increment 2.5K / 5K / 6.25K / 10K / 12.5K / 20K / 25K / 30K / 50K / ( + 8.33K AM in Airband mode)
Working V/V ; V/U ; U/U ; U/V
CROSS BAND REPETER Yes
FULL DUPLEX Yes (with earphone)
TONE BURST Yes 1750Hz/ 2100Hz/ 1450Hz/ 1000Hz
SQUELCH Yes : elimination of background noise, squelch level control AM/FM
CTCSS / DCS (encoder/decoder) 51 CTCSS / 1024 DCS : sub-audio code to activate repeater like selective tone
DTMF (encoder) Yes : tones selected to activate repeater, internet gateway and other items / 2TONS / 5TONS / MSK
VOX function Yes : this feature triggers your microphone sound (hands free)
TOT function Yes : time out timer
CTCSS / DCS SCAN function Yes : code search by SCAN
SCAN function Yes : automatic search of busy channels
REVERSE function Yes : the current channel RX frequency will be switched to TX frequency
TALK AROUND function Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repetear
ALARM function Yes : the transceiver will sound alarm beep, meanwhile, it start transmitting and send the alarm beep to companions or systems
APO function Yes : automatic power off (programmable)
Various functions SPEED SCAN function + stopwatch function + double display + dual receiving + keypad lock + knob rotator channel locking + frequency and channel mode + working modes : UU/UV/VU/VV + TX power HI/LO
Display LCD display : blue, orange, purple
Level display Single band switching + frequency/channel or name channel
Options Programming cable
Programmable by software Yes
Battery Li-ion 2200 mAh * 7.4V
Connection CRT K type
Antenna 18 cm / SMA-Female

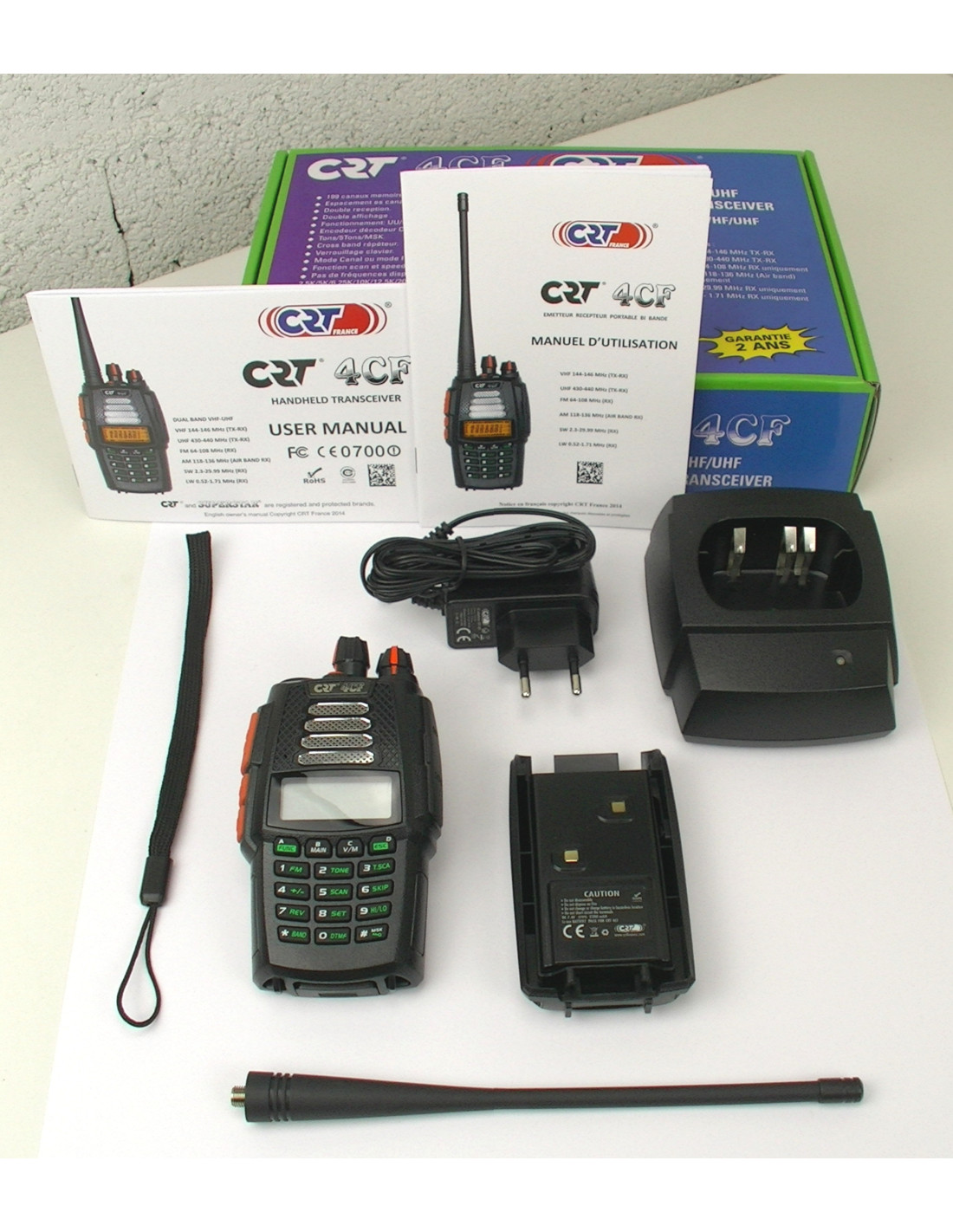

Deliver with Desktop charger, battery, antenna, strap and belt clip
Size 112 x 61 x 35 mm
Weight 285 gr
Guaranty 2 years

More info

Frequencies :


VHF 144‐146 MHz (TX‐RX)
UHF 430‐440 MHz (TX‐RX)
FM 64‐108 MHz (RX)
AM 118‐136 MHz (AIR BAND RX)
HF 2.3‐29.99 MHz (RX)
LW 0.52‐1.71 MHz (RX)

New Functions :

  • SQUELCH LEVEL CONTROL AM/FM
  • NEW STEP OF INCREMENT : +8.33K in AM (in Airband mode)
  • KNOB ROTATOR CHANNEL LOCKING and KEYBORD
