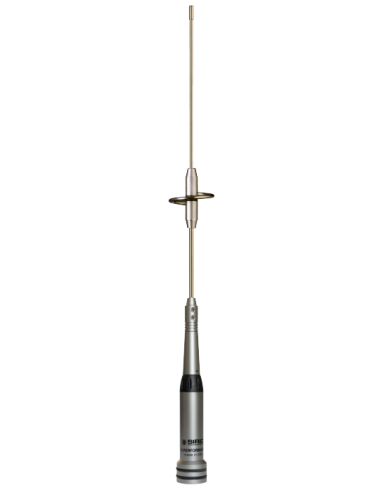

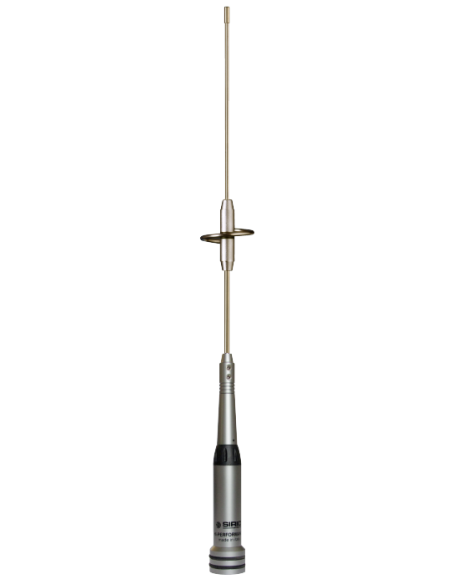

DUALBAND MOBILE ANTENNA
VHF: 142-150 MHz 1/4λ /
UHF: 432-457 MHz 5/8λ /
Version for USA ham band (146 & 445 MHz) /
445 mm
| Type: | VHF: 1/4 λ UHF: 5/8 λ |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | VHF: 142-150 MHz UHF: 432-457 MHz |
| Systems: | 2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA |
| Gain: | VHF: 0 dB ref. to a λ/4 whip UHF: 2 dB ref. to a λ/4 whip |
| Max Power: | VHF: 150 W (CW) UHF: 100 W (CW) |
| Grounding protection: | DC-Ground |

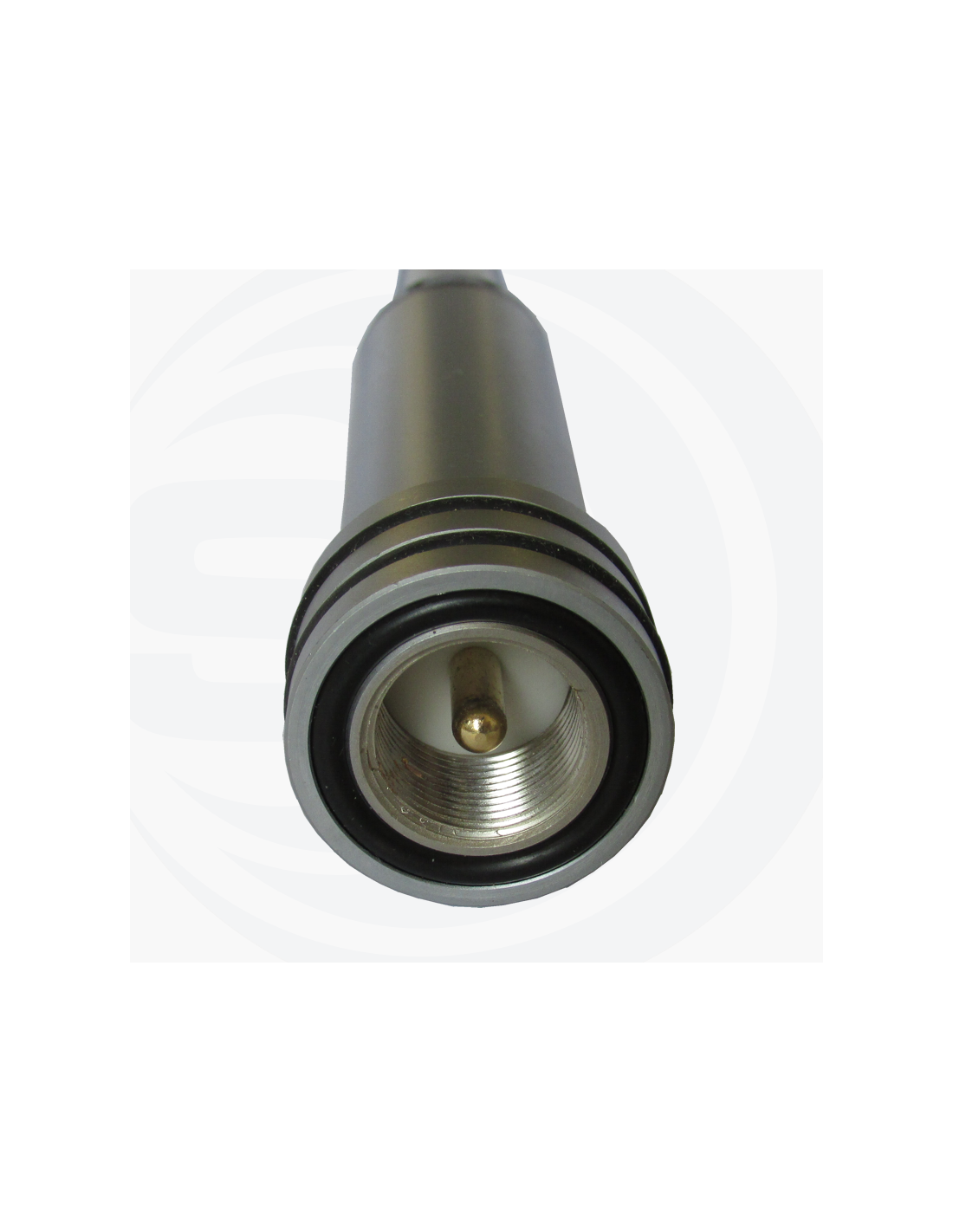

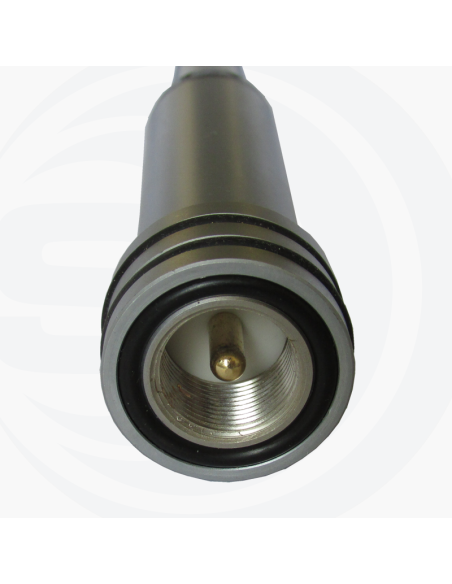

| Connector: | UHF-male (PL-259) |
| Materials: | Chromed brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): | 445 mm / 1.46 ft |
| Weight (approx): | 270 gr / 0.6 lb |
