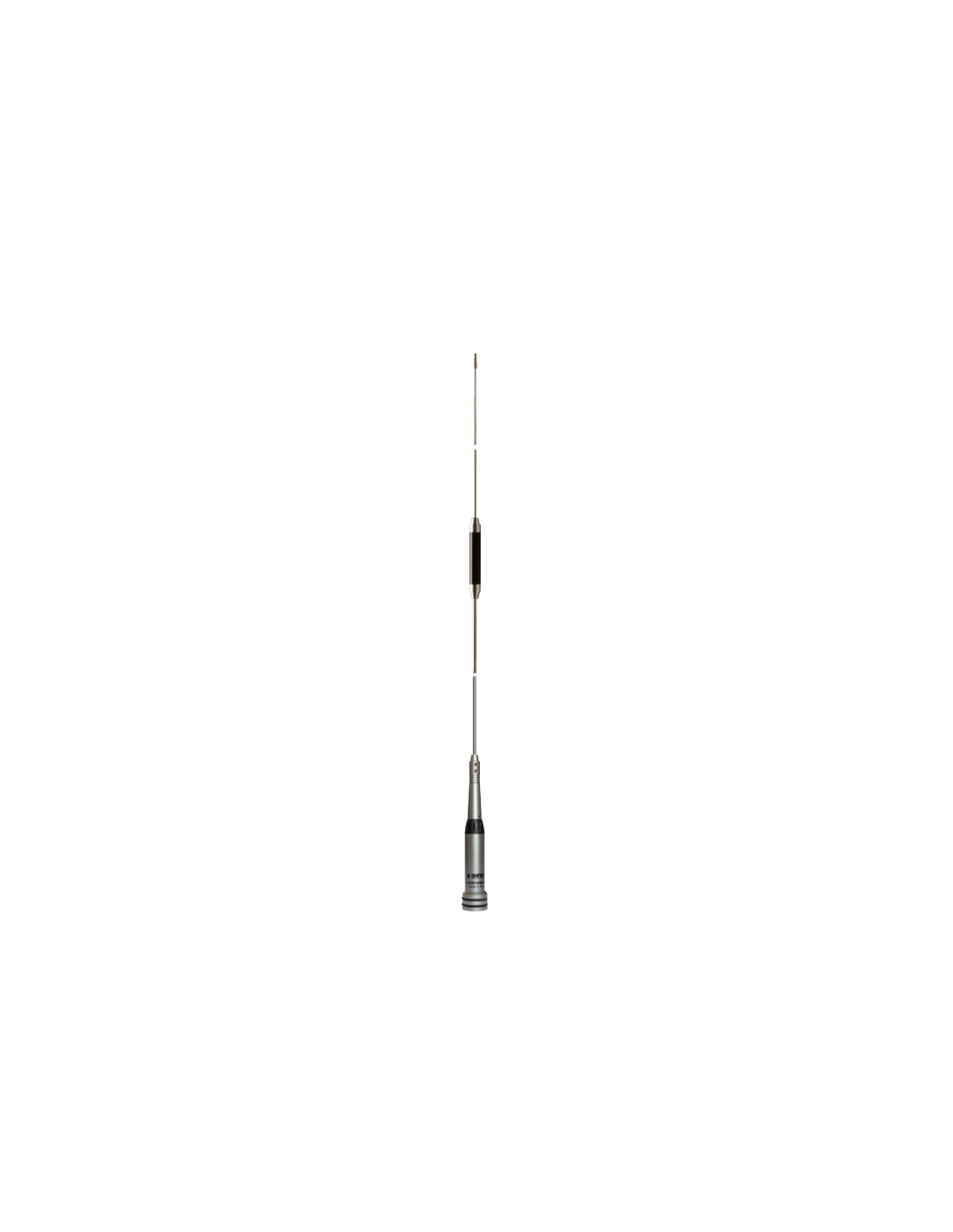

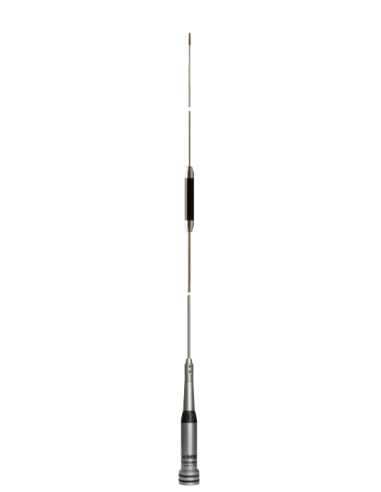

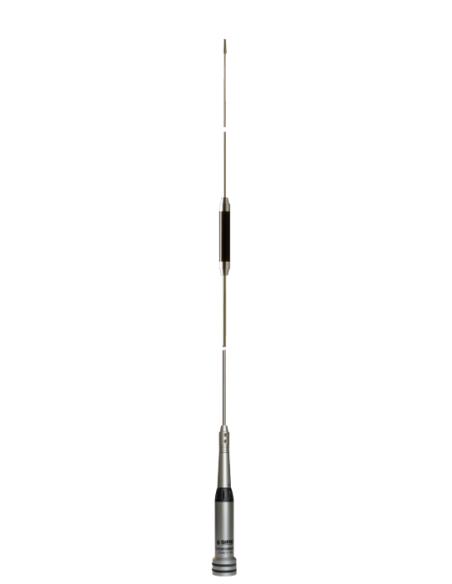

DUALBAND MOBILE ANTENNA
VHF: 142-148MHz 1/2λ /
UHF: 430-440MHz 2x 5/8λ Colinear /
1000 mm
| Type: | VHF: 1/2 λ UHF: 2 x 5/8 λ Colinear |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | VHF: 142-148 MHz UHF: 430-440 MHz |
| Systems: | 2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA |
| Gain: | VHF 0.6 dB UHF 4.6 dB ref. to a λ/4 whip |
| Max Power: | VHF: 150 W (CW) UHF: 100 W (CW) |
| Grounding protection: | DC-Ground |

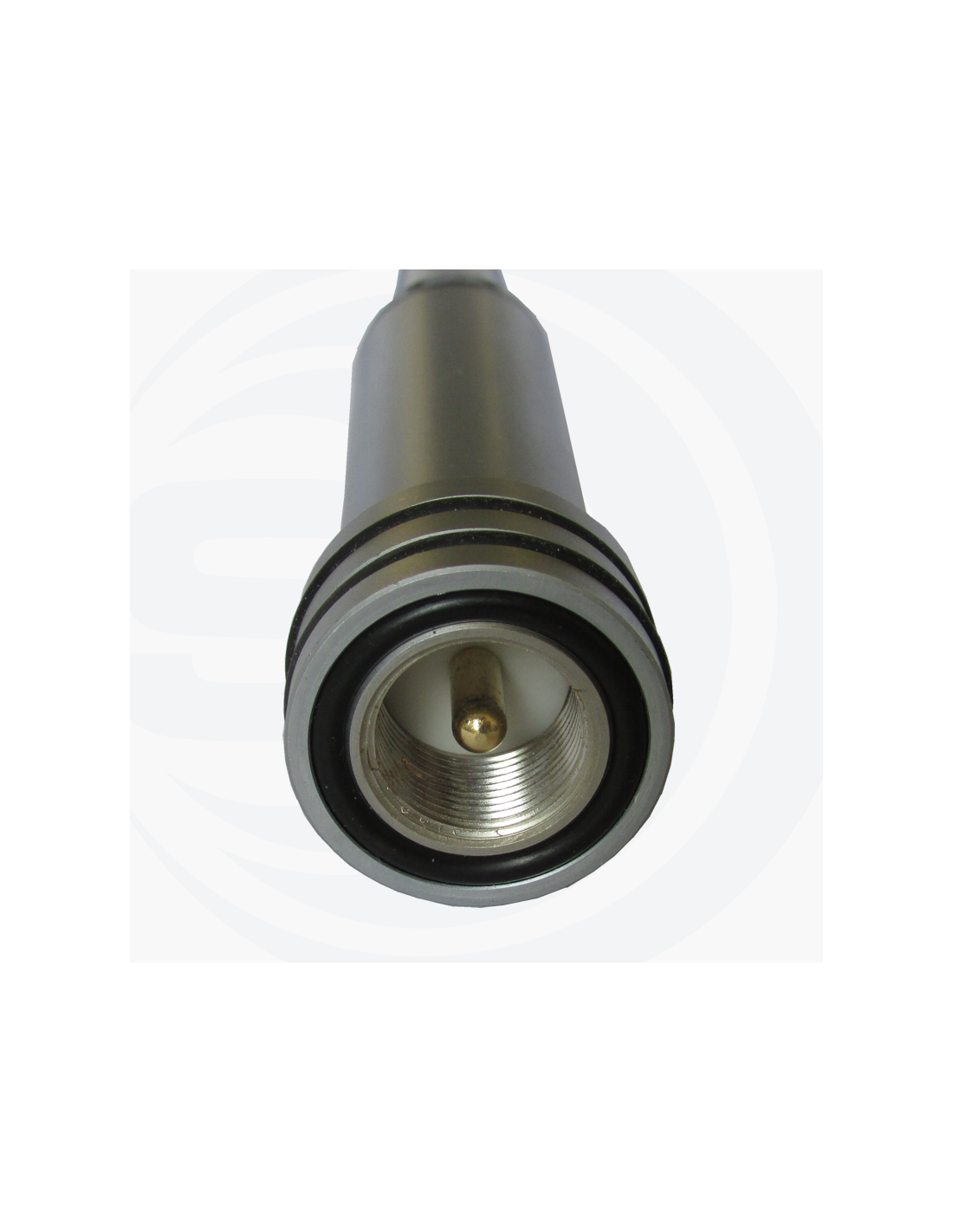

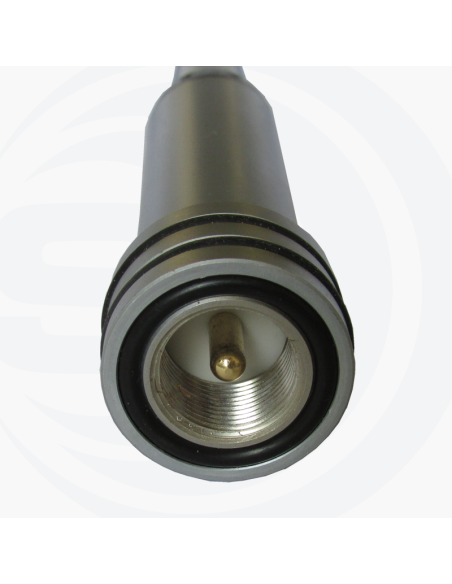

| Connector: | UHF-male (PL-259) |
| Materials: | Brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
|
| Weight (approx): |
|
Ground plane independent.
