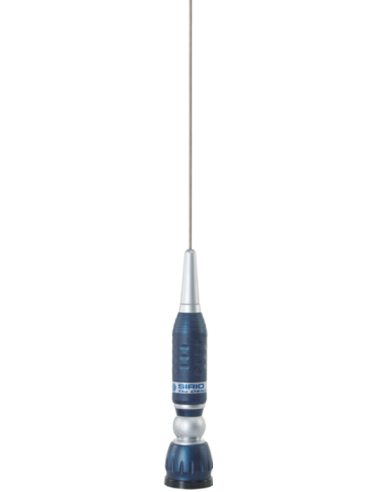

TURBO VHF DB 45/135 PL 45-60/135-175 SIRIO

Reference: VS 002180

Condition: New product

MOBILE ANTENNA

This product is no longer in stock

Notify me when available

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Features:

-	Mobile antenna, Dual-band, Omnidirectional
-	6m band Unity-gain, 2m band Low-gain
-	Tunable by whip cutting
-	Protection from static discharges DC-Ground
-	17/7 PH tapered stainless steel whip
-	90° inclination and adjustable whip, detachable for car-washes access
-	Magnetic mount version available
-	UPDATE: new glazed chromed surface, blue plastic parts

Electrical Data
-	Type: 1/4 λ for 45...60 MHz band 5/8 λ for 135...175 MHz band
-	Frequency range: tunable 45...60MHz & 135...175 MHz
-	Impedance: 50Ω
-	Radiation (H-plane): 360° omnidirectional
-	Polarization: linear vertical
-	Gain: 0 dB ref. to a λ /4 whip for 45...60MHz band 2 dB ref. to a λ /4 whip for 135...175MHz band
-	Bandwidth @ SWR ≤ 1.5: ≥ 2.1 MHz @ 45MHz, ≥ 3.4 MHz @ 135 MHz
-	SWR @ res. freq.: ≤ 1.2 both bands
-	Max Power (CW) @ 30°C: 150 Watts

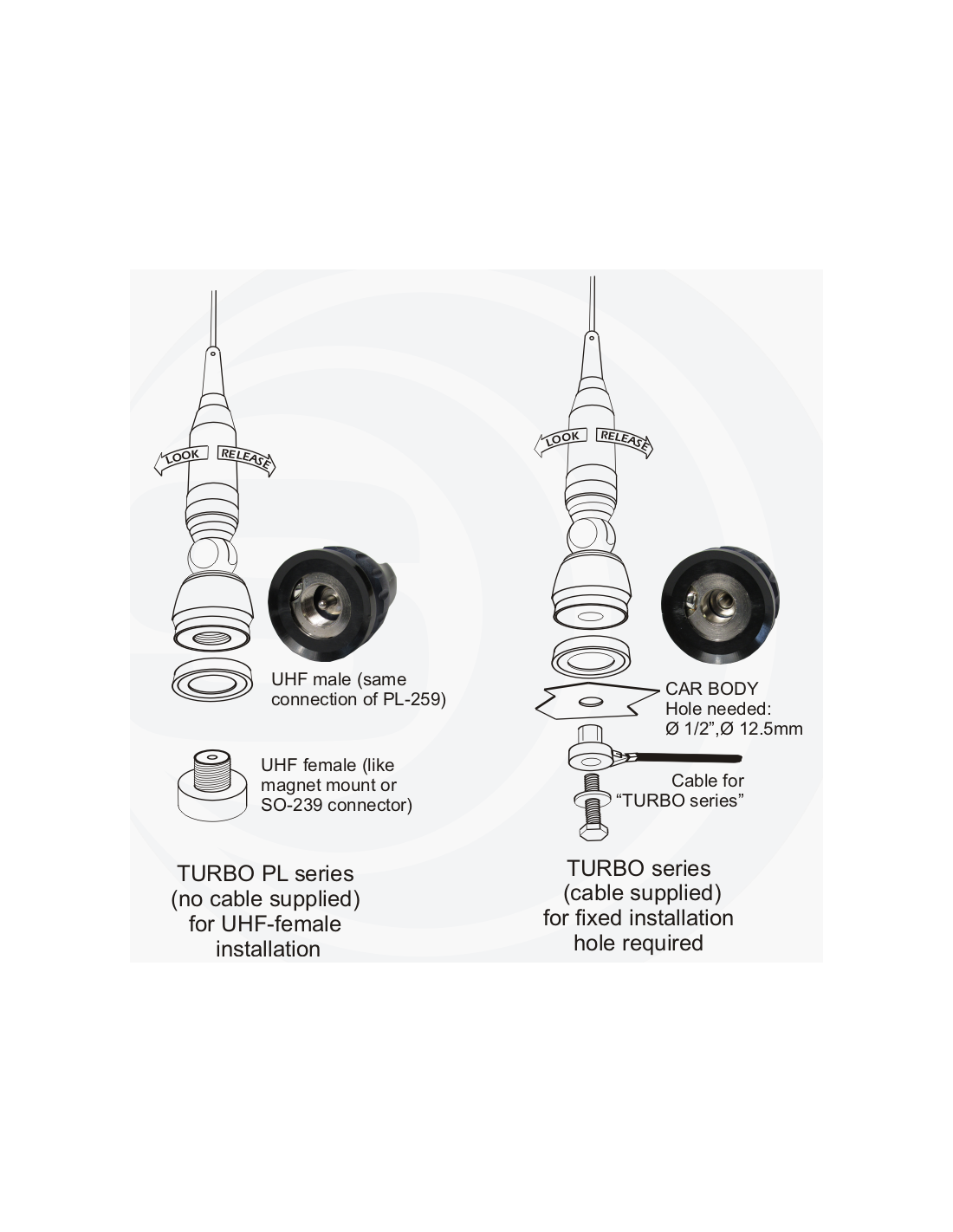

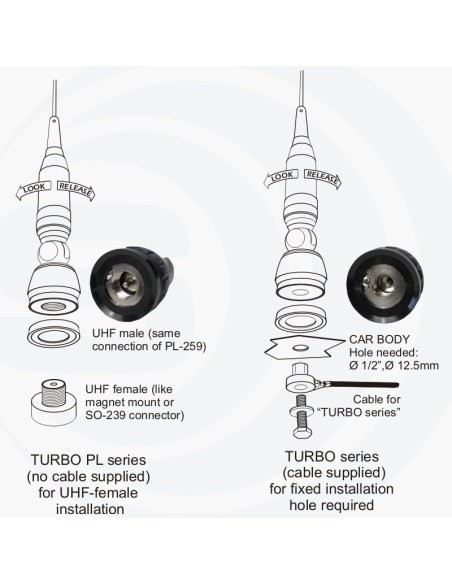

-	Mounting: TURBO VHF PL: UHF-male (PL 259)
-	Cable Length / Type: TURBO VHF PL: not supplied

Mechanical Data
-	Materials: Stainless Steel 17/7 PH, Brass, Nylon
-	Height (approx.): 1505 mm
-	Weight (approx.): 540 gr
