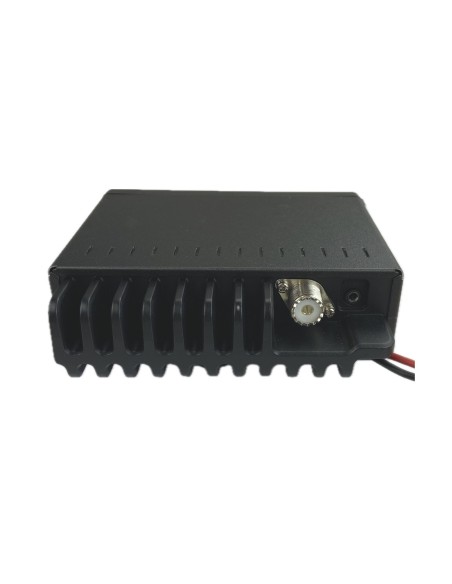

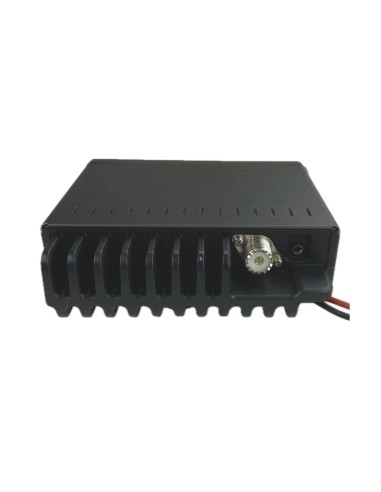

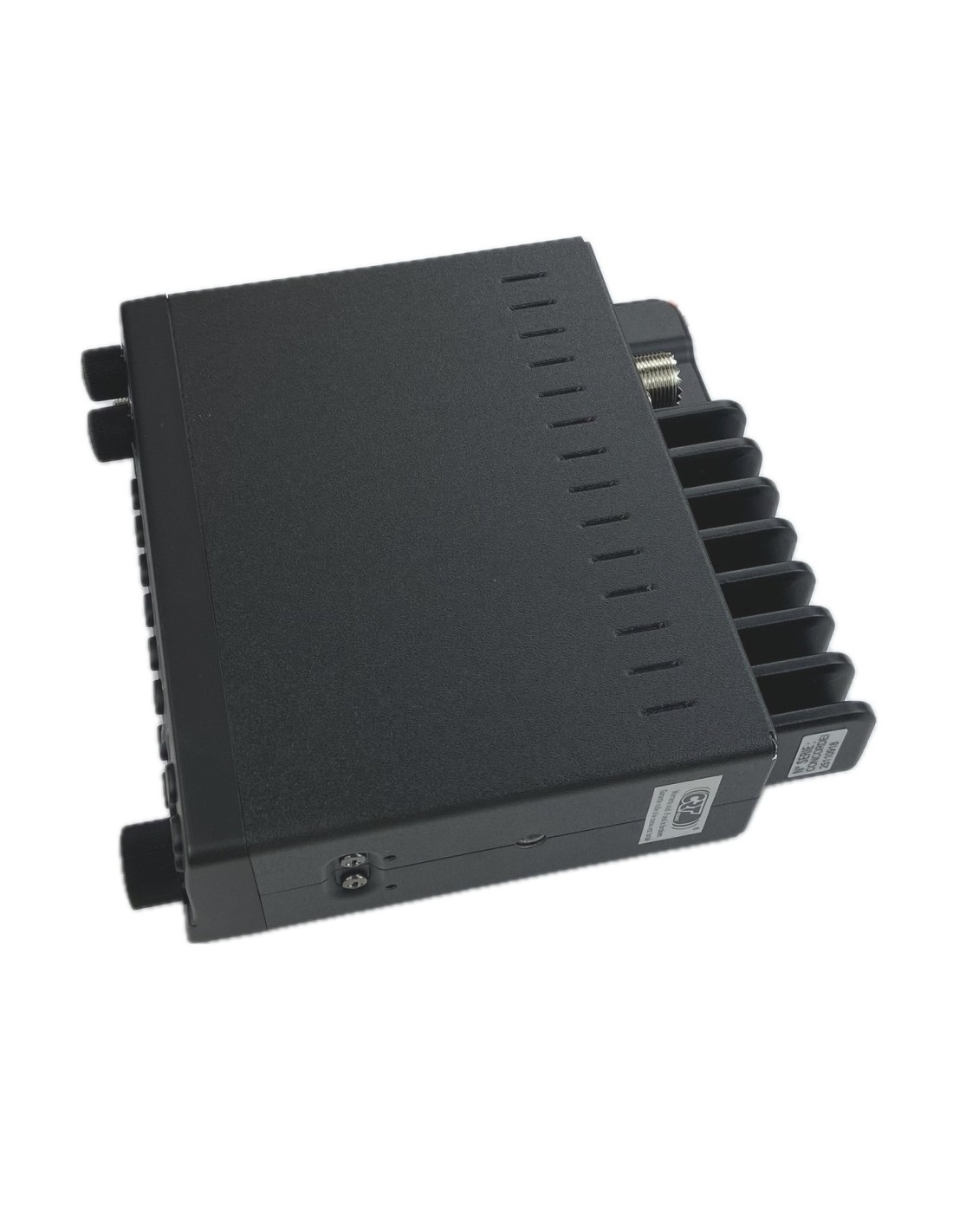

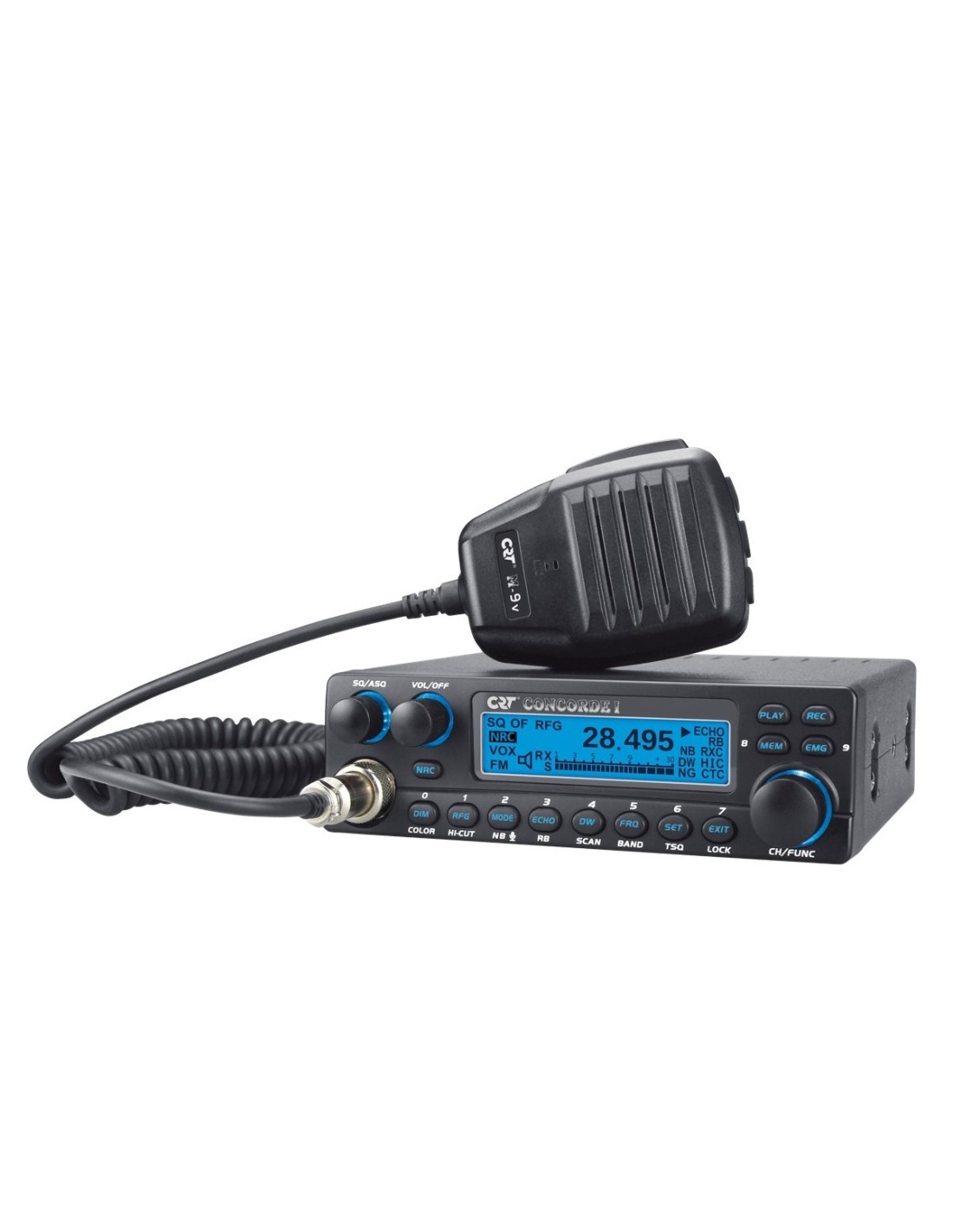

CRT CONCORDE I
-
- AM/FM
- 28-29.7 mHz
- AM : 4W (PEP 12W) / 20W (PEP 60W)
- FM : 4W / 20W / 50W
- NRC RX/TX adjustable - VOX - CTCSS/DCS
- FREQUENCY DISPLAY
- LARGE LCD DISPLAY AND BACKLIT KEYS 7 COLORS :
*** AVAILABLE ***
- Reference
- TX 000950
- Norm
- AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
- Mode
- AM / FM
- Frequency range
- 28 - 29.7 mHz
- Power
- adjustable AM : 4W (PEP 12W) / 20W (PEP 60W) and FM : 4W / 20W / 50W
- Input voltage
- 13.8V DC
- Frequency Band
- A/B/C/D/E/F/G/H/I + VFO
- Channels
- 40 channels (programmable) in each band
- Memories
- 99
- Step of increment
- 1KHz / 5KHz / 10KHz / 100KHz / 1MHz
- S-METER
- Yes
- SWR METER
- Yes : protection with forbidding TX if TOS to high
- SQUELCH
- Manual or Automatic (ASQ)
- ROGER BEEP
- Yes : TX beep end (off / 1-6)
- RF GAIN
- Yes : adjust sensibility on RX
- MICRO GAIN
- Yes : 9 levels adjustable
- CTCSS / DCS (encoder/decoder)
- 38 CTCSS / 104 DCS : sub-audio code to activate repeater like selective tone
- Filters NB/HI CUT
- Yes : noise filters
- NRC filter function
- Yes : RX/TX noise reduction -adjustable 5 levels-
- SPLIT/RELAY function
- Yes : allows to transmit and receive on two different frequencies in half duplex
- DOUBLE WATCH function
- Yes
- VOX function
- Yes : this feature triggers your microphone sound (hands free)
- TOT function
- Yes : time out timer
- SCAN function
- Yes : automatic search of busy channels
- COMPANDER function
- Yes : TX with a clear voice
- RESET function
- Yes: in the event of a malfunction or incorrect handling, it is possible to restore the factory settings or reset the functions
- Function DIMMER
- Yes : to adjust dimmer/brightness of front panel - 6levels -
- Various functions
- ECHO on/off (32niveaux) + BEEP (on/off) + Key Lock + Selection FM deviation 4K (Default 2)
- Bonus
- REC function (recording) + CLOCK SETTINGS (date and time) + ALARM SETTINGS (a programmed alarm) + backlit keys
- Mike
- Electret type + UP/DOWN selection + 6 pins plug in front panel -Microphone type selection : electret or dynamic
- Display
- BIG DISPLAYING FREQUENCY and/or channel + BRIGHT function (backlight brightness) + function CONTRAST (LCD contrast adjustable) + 7 colors available
- Deliver with
- Bracket, hardware kits, fixed microphone, product manual in French and English
- Size
- 169(L) x 159(L) x 48(H)
- Weight
- 1,02kg
