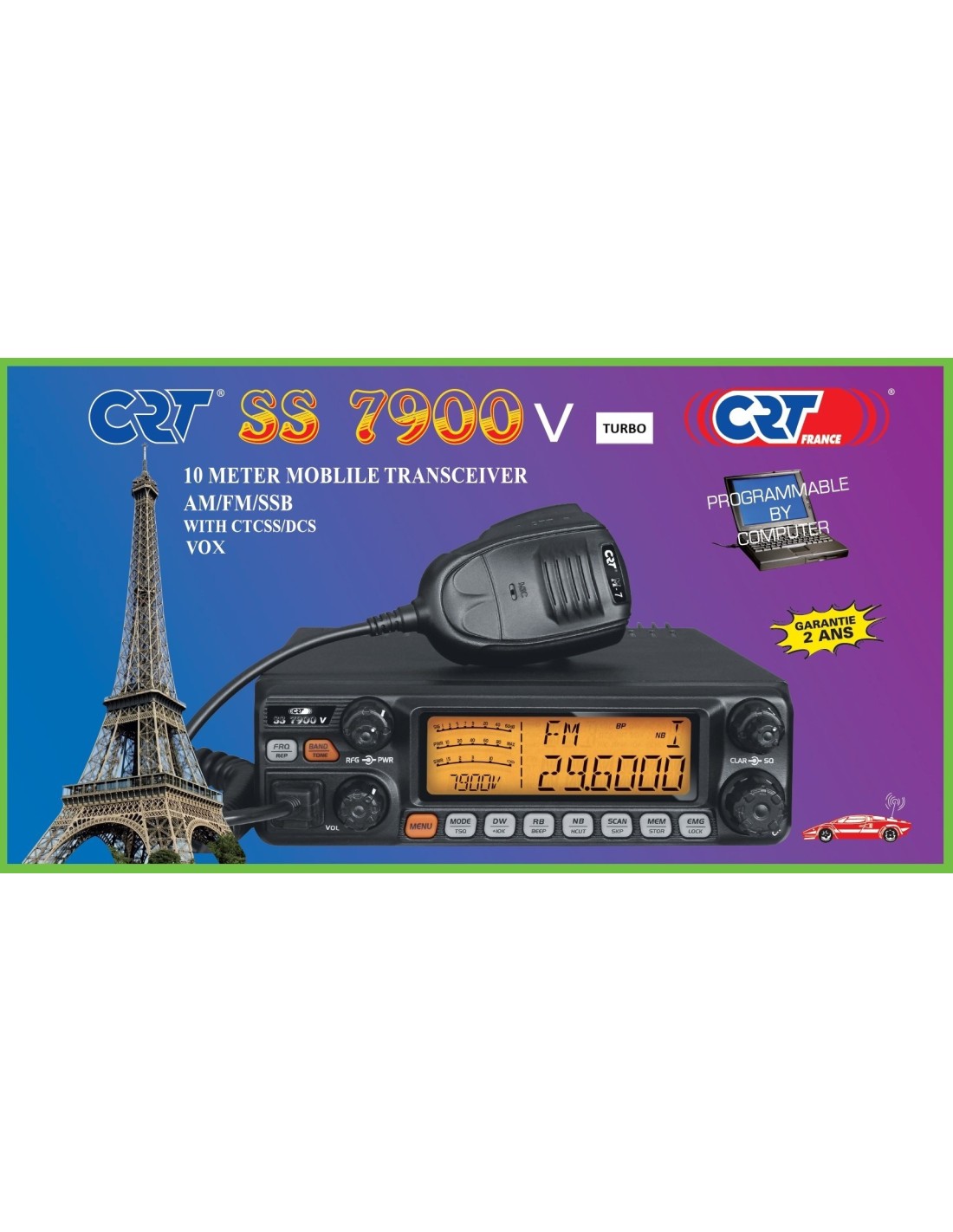

TX 000795

New product

  • AM / FM / LSB / USB
  • 28-29.7 MHz
  • 30W with modulation AM / 50W FM / 60W SSB
  • Big display LCD
  • NRC filter : RX/TX adjsutable
  • VOX function
  • Max Power
  • NEW : with step 5kHz

More details

This product is no longer in stock

260,00 € tax incl.

Data sheet

Norm AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
Mode AM / FM / LSB / USB
Frequency range 28 - 29.7 mHz
Power 30W with modulation AM / 50W FM / 60W SSB (réglable AM/FM/SSB)
Input voltage 13.8V DC
Memories 6
Step of increment 100Hz / 1kHz / 5kHz / 10kHz / 100kHz / 1mHz
CLARIFIER Yes : (multifunction) clarifies the voice in SSB (frequency display -500 +500)
RELAY MOD / OFFSET Yes : allows to enter a relay with two different frequency
ROGER BEEP Yes : TX beep end
RF GAIN Yes : adjust sensibility on RX
CTCSS / DCS (encoder/decoder) 38 CTCSS / 104 DCS : sub-audio code to activate repeater like selective tone
Filters NB/HI CUT Yes : noise filters
NRC filter function Yes : RX/TX noise reduction -adjustable 5 levels- particularly effective in SSB
DOUBLE WATCH function Yes
VOX function Yes : this feature triggers your microphone sound (hands free)
TOT function Yes : time out timer
SCAN function Yes : automatic search of busy channels
RESET function Yes: in the event of a malfunction or incorrect handling, it is possible to restore the factory settings or reset the functions
Various functions Emergency Channel + (+) 10kHz function / ECHO / MONITORING + OFFSET function + SWR protection + Beep function keys + Keypad lock
Bonus Clarifier frequency display - Oversized radiators to dissipate heat - Microphone type selection : electret or dynamic
Mike dynamic type - UP/DOWN selection (plug in front pannel)
Display BIG LCD display
Level display Displaying frequency or channel + Viewing the modulation mode + Indicator signal reception and transmission + SWR level indicator
Options Programming cable + software
Programmable by software Yes
Includ Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English
Size 200 (l) x 280 (L) x 60 (H) mm
Weight 1.5 kgs
Guaranty 2 years

More info

- possible delivery to USA -
