CRT ELECTRO UV - V3 WITH VOX

PM 000825

New product

  • UHF-VHF DUAL BAND MOBILE TRANSCEIVER
  • RX/TX : 144-146 MHz -- 430-440 MHz
  • 3 power levels : 5W / 10W / 20W
  • VOX function
AVAILABLE
2.14.0.0

More details

99,00 € tax incl.

Data sheet

Norm AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
Mode FM ( Wide/Narrow ) RX : 87.5-108MHz
Frequency range RX/TX : 144-146 MHz / 430-440 MHz
Power LOW : 5W / MIDDLE : 10W / HIGHT : 20W
Input voltage 13,8V DC
Memories 500 channels
Channel spacing 12.5 / 25 KHz
Step of increment 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 KHz
Working UU / UV / VU / VV
RELAY MOD / OFFSET / SPLIT Yes : allows to enter a relay with two different frequency
TONE BURST Yes : 1000Hz / 1450Hz / 1750Hz / 2100Hz
SCRAMBLER Yes (1 to 11)
CTCSS / DCS (encoder/decoder) 52 CTCSS / 1024 DCS : sub-audio code to activate repeater like selective tone
DTMF (encoder) Yes : tones selected to activate repeater, internet gateway and other items - 2TONS - 5 TONS
VOX function Yes : this feature triggers your microphone sound (hands free)
TOT function Yes : time out timer
SCAN function Yes : automatic search of busy channels
COMPANDER function Yes : TX with a clear voice
TX/OFF function Yes : forbidding emission
REVERSE function Yes : the current channel RX frequency will be switched to TX frequency
TALK AROUND function Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repetear
Various functions Noise Reduction, Key Bip, SQUELCH mode, LCD brightness, Channel display, REPEATER, DTMF transmit time

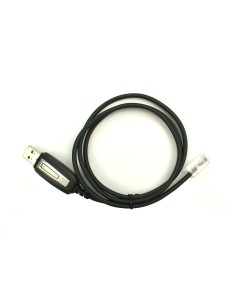

Options Programming cable + software
Programmable by software Yes
Includ Power cable with cigarette lighter plug + fixing bracket + screws + microphone holder + manual in French&English
Size 124x101x36
Weight 0.45 kg
Guaranty 2 years
