SCM 918-2 SIRIO

Reference: VS 002255

Condition: New product

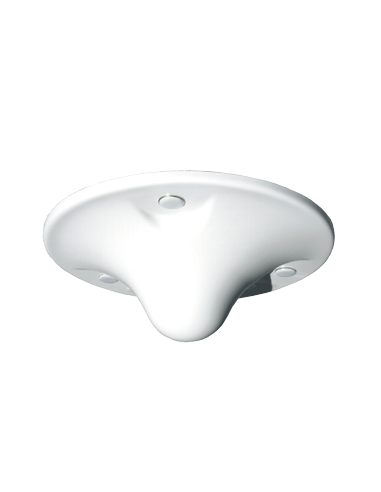

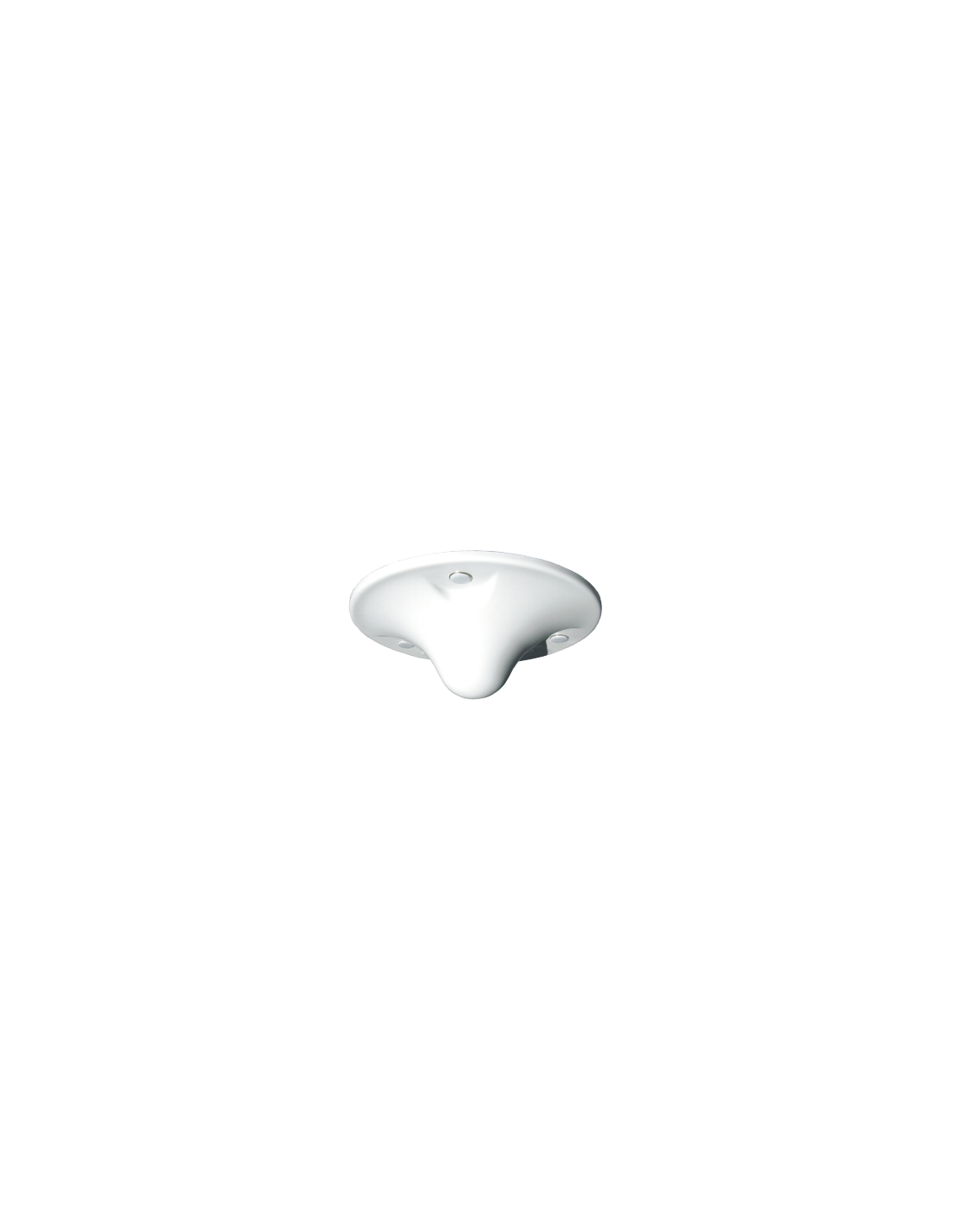

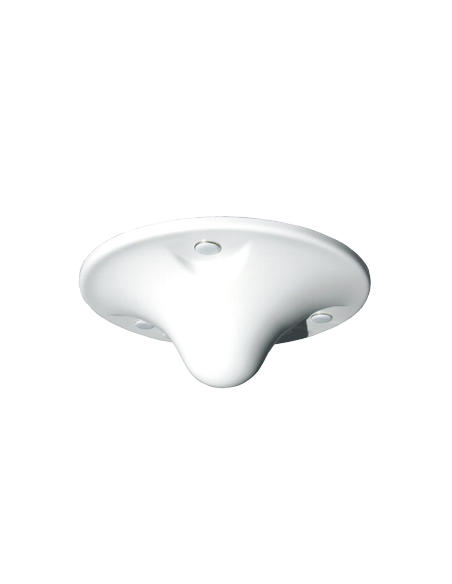

BASE ANTENNA

876-960 MHz & 1.71-2.17 GHz /

1/4 λ /

71 x Ø207 mm

More details

Features:

-	Indoor Base Station antenna, Multi-band
-	Unity-gain, Omnidirectional
-	Paintable High Impact Polystirol Radome
-	For TACS, GSM 900 & 1800, DECT and UMTS systems

Electrical Data
-	Type: 1/4λ at both bands
-	Frequency range: 876-960 MHz for E-GSM 900 system 1.71-2.17 GHz for GSM 1800, DECT, DCS 1900 and UMTS systems
-	Impedance: 50Ω
-	Radiation (H-plane): 360° omnidirectional
-	Radiation (E-plane): beamwidth @ -3 dB = 66° @ 918 MHz, 55° @ 1.8/1.92/2 GHz,
-	Radiation angle: -20° @ 918 MHz, -45° @ 1.8/1.92/2 GHz
-	Polarization: linear vertical
-	Gain: 0dBd - 2.15 dBi
-	SWR in bandwidth: ≤ 1.6 @ 876-940 MHz ≤ 1.8 @ 940-960 MHz ≤ 1.6 @ 1.71-2.17 GHz
-	Max. power (CW) @ 30°C: 50 Watts
-	Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
-	Connector: N-male

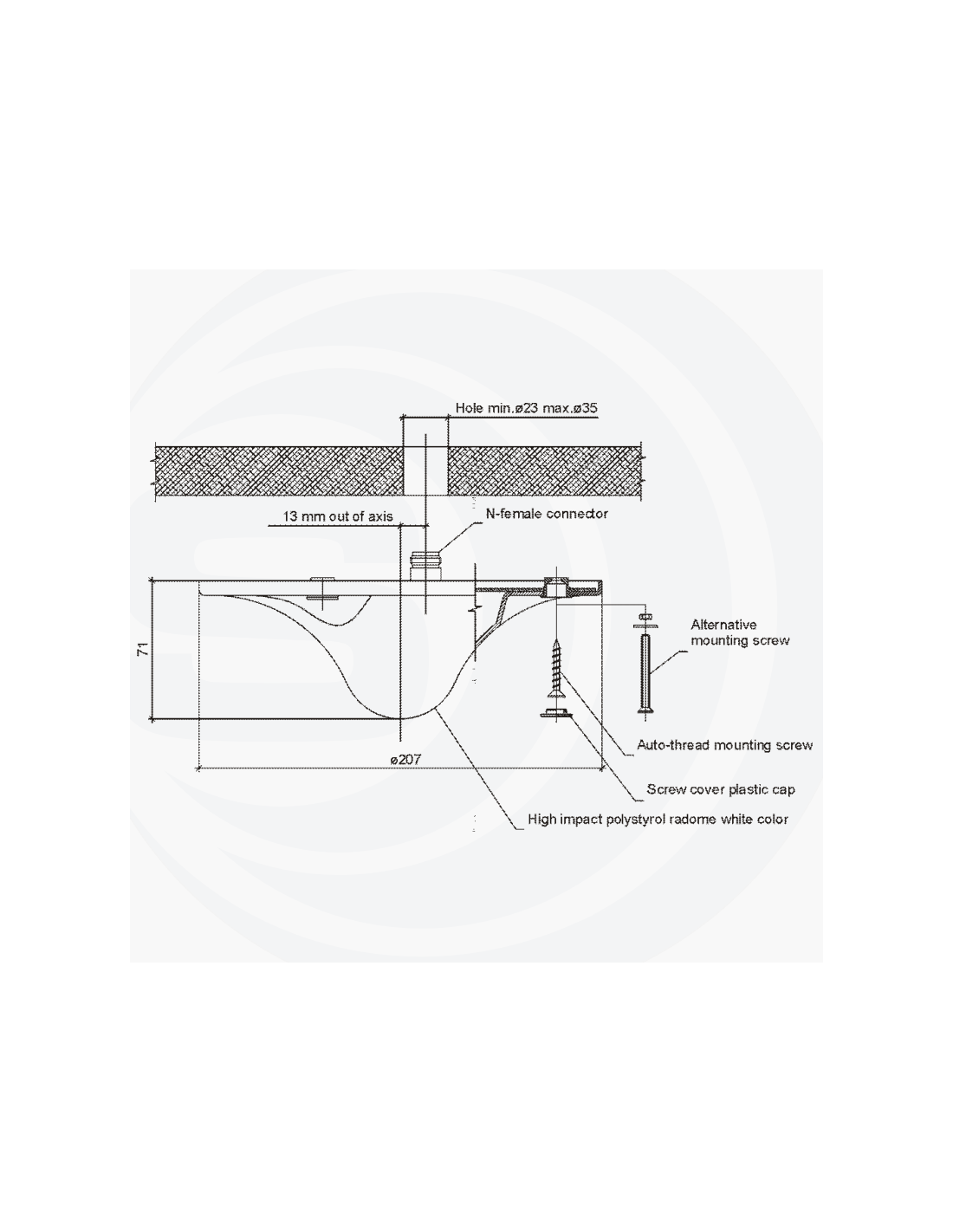

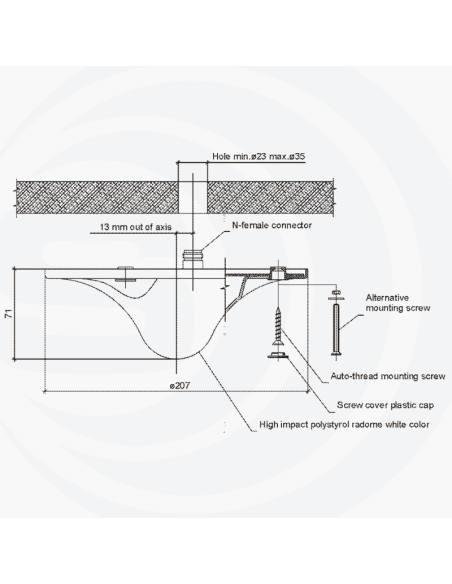

Mechanical Data
-	Materials: Aluminium, Brass
-	Radome materials: High impact polystirol
-	Radoem color: White (paintable)
-	Diameter: 207 mm
-	Height (approx.): 71 mm (without connector)
-	Weight (approx.): 340 gr
-	Mounting: On Ceiling (screw supplied)
