WD 380-N SIRIO

VS 000995

New product

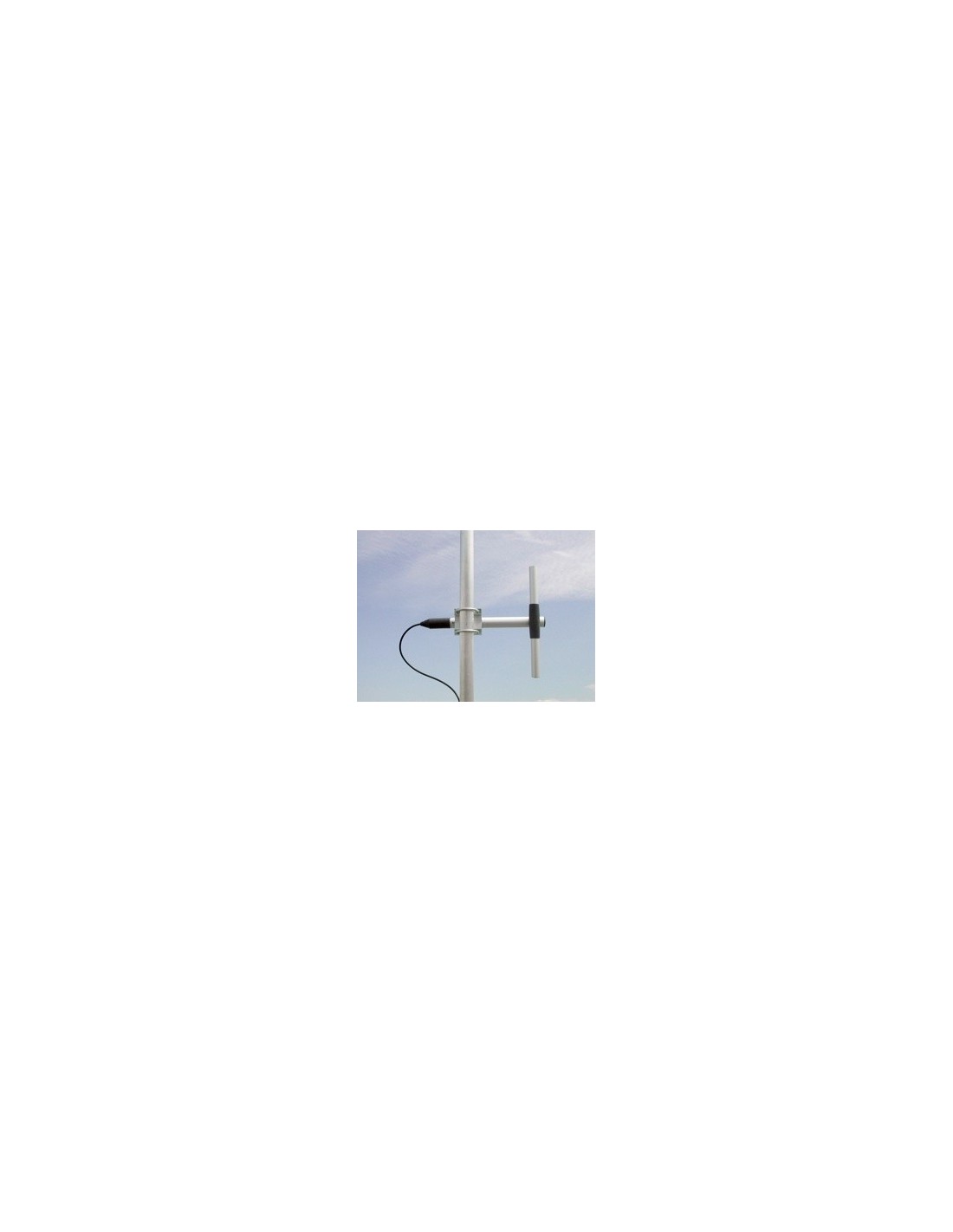

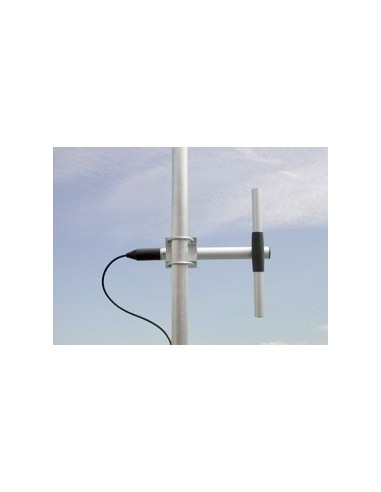

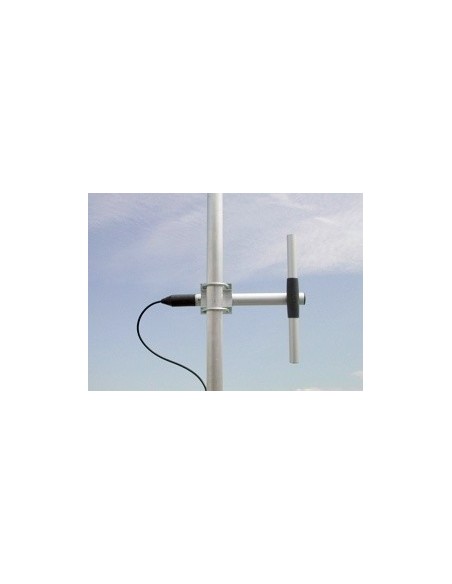

BASE ANTENNA UHF

380-470 MHz @ SWR ≤1.5 /

1/2 λ /

380 x 340 mm

More details

Warning: Last items in stock!

88,00 € tax incl.

More info

Type: 1/2 λ

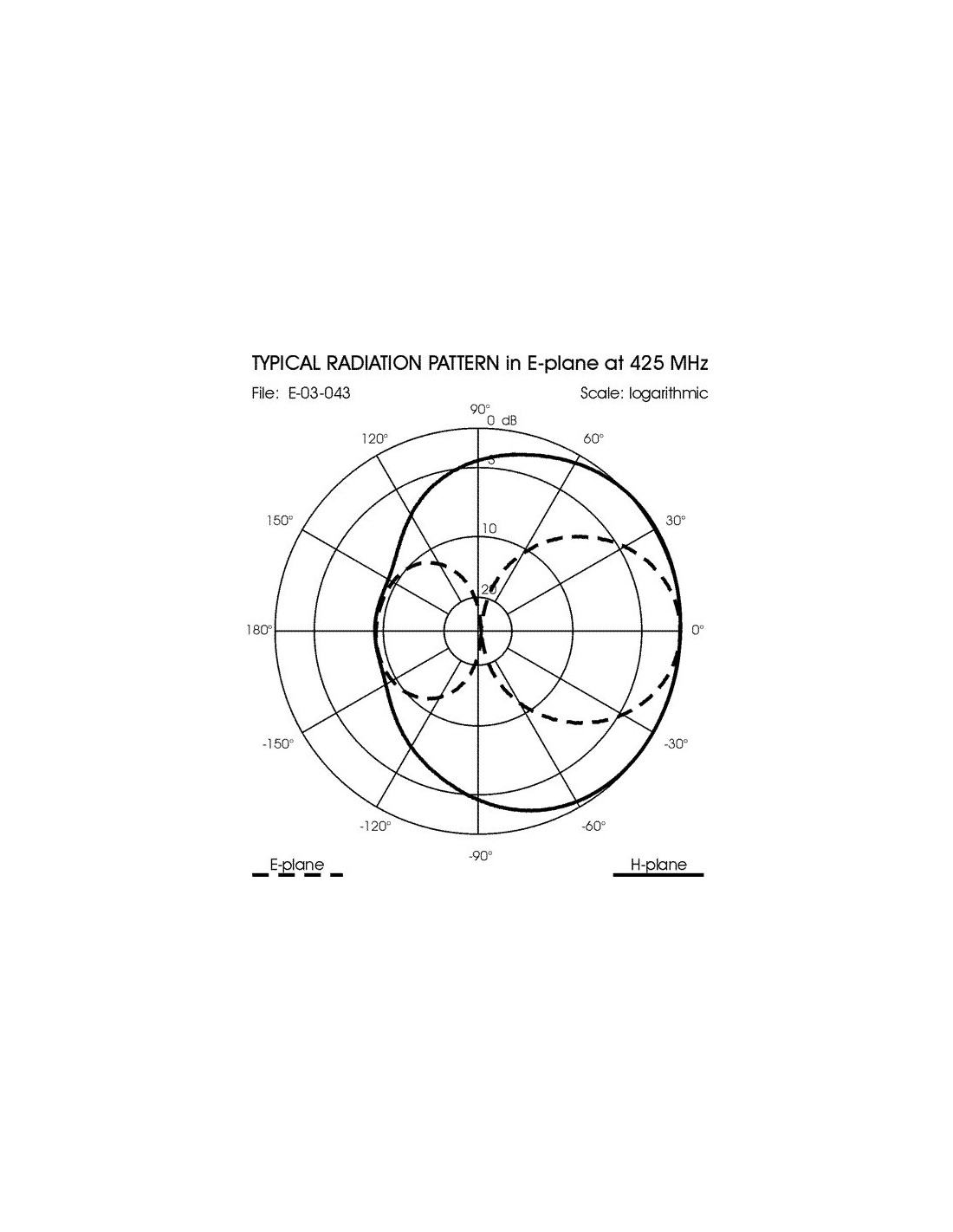

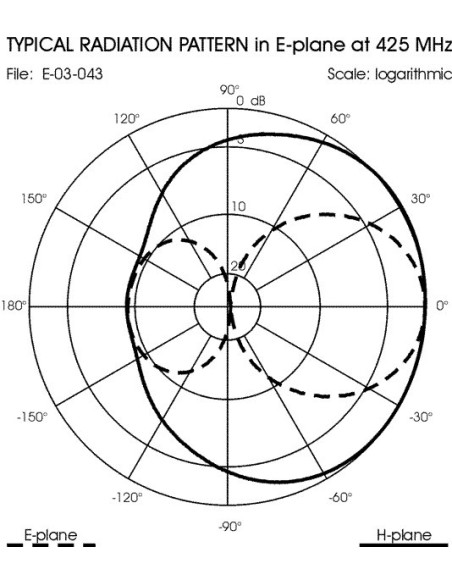

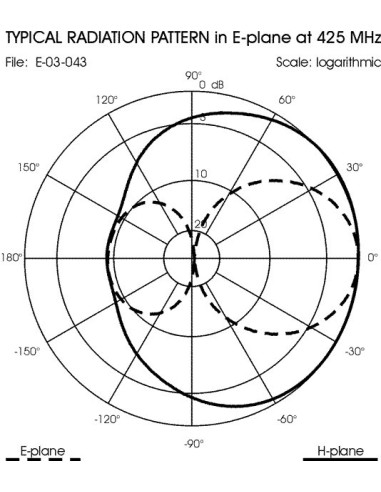

Radiation: Directional
Polarization: Linear vertical

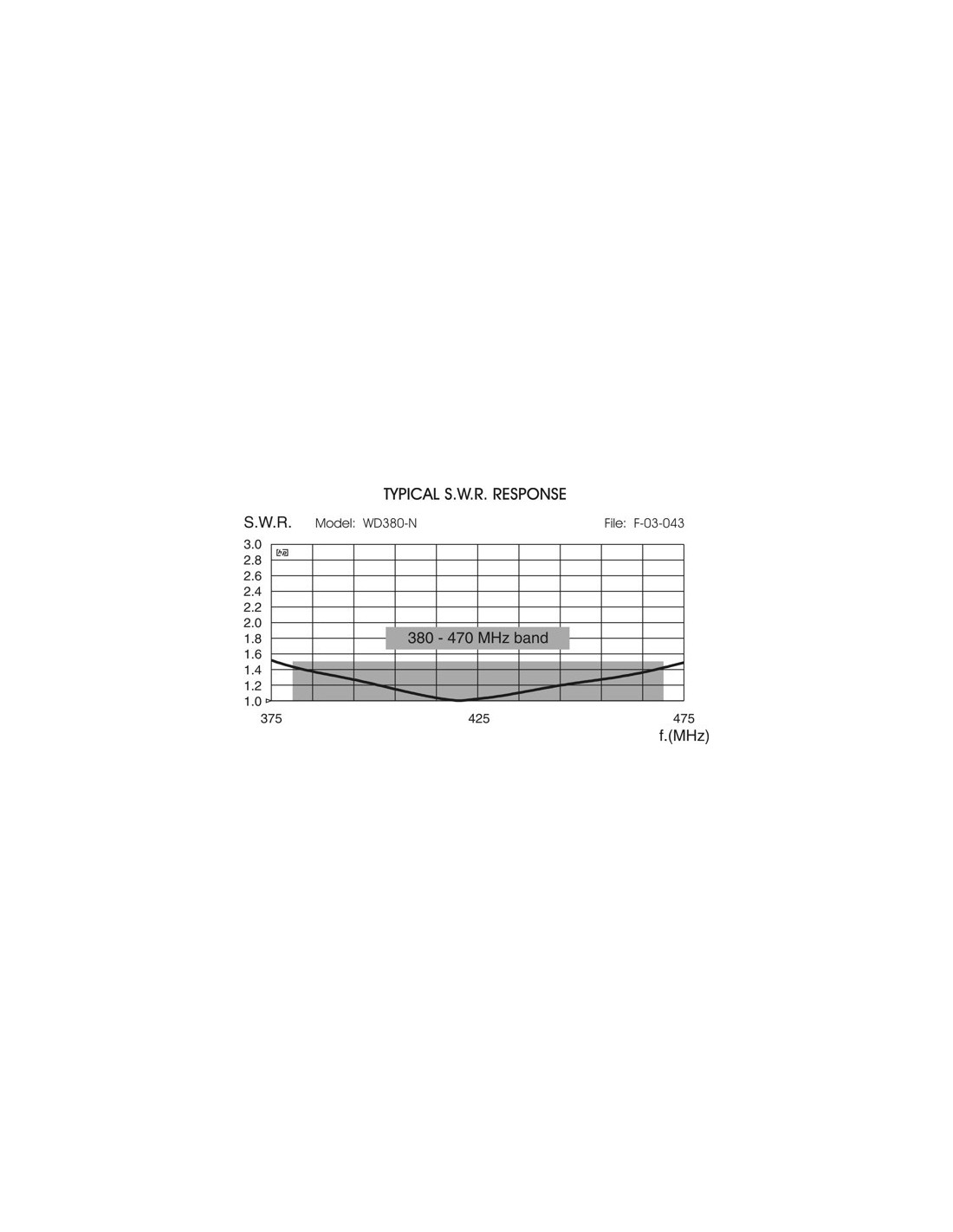

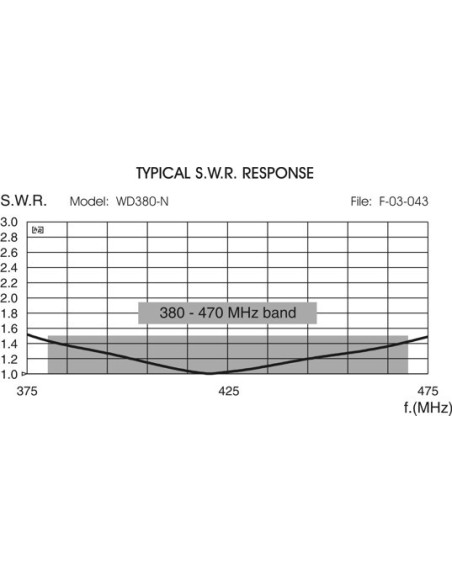

Frequency range: 380-470 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM-433MHz
Gain: 2.35 dBd – 4.5 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx): 380 x 340 mm / 1.25 x 1.12 ft
Weight (approx): 950 gr / 2.09 lb
Mounting type: On-Mast
