HGO 433-868 SIRIO

VS 002260

New product



BASE ANTENNA  /

433 Mhz & 868 Mhz /

Multi Band Dipole /

335 x 166 x 144 mm

More details

67,00 € tax incl.

More info

Electrical Data:
Type: Multi Band Dipole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 415-465 MHz & 815-890 MHz No tuning required
Systems: ISM-868MHz, ISM-433MHz
Gain: 2 dBi for 433 MHz band
4 dBi for 868 MHz band
Max Power: 20 W (CW)
Cable lenght / type:
50 cm (19.69 in) / Low loss
Connector: SMA-male
Mechanical Data:
Materials: Galvanized steel, Thermoplastic UV stabilized, PCB

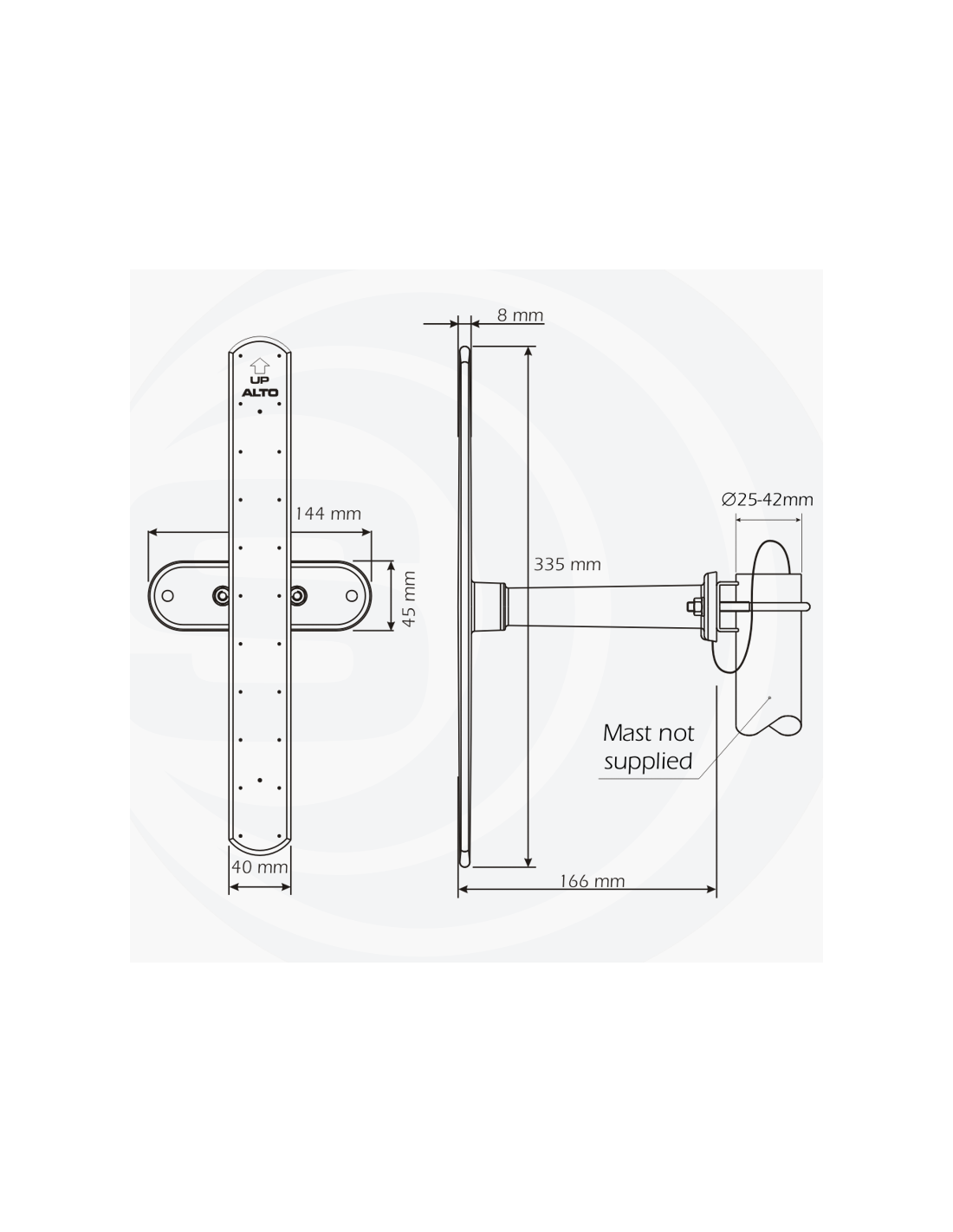

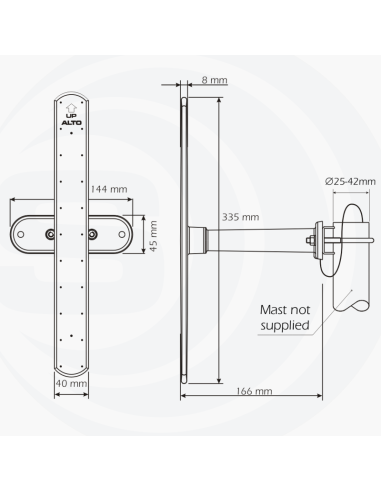

Dimensions (approx): 335 x 166 x 144 mm / 1.1 x 0.54 x 0.47 ft
Weight (approx): 350 gr / 0.77 lb

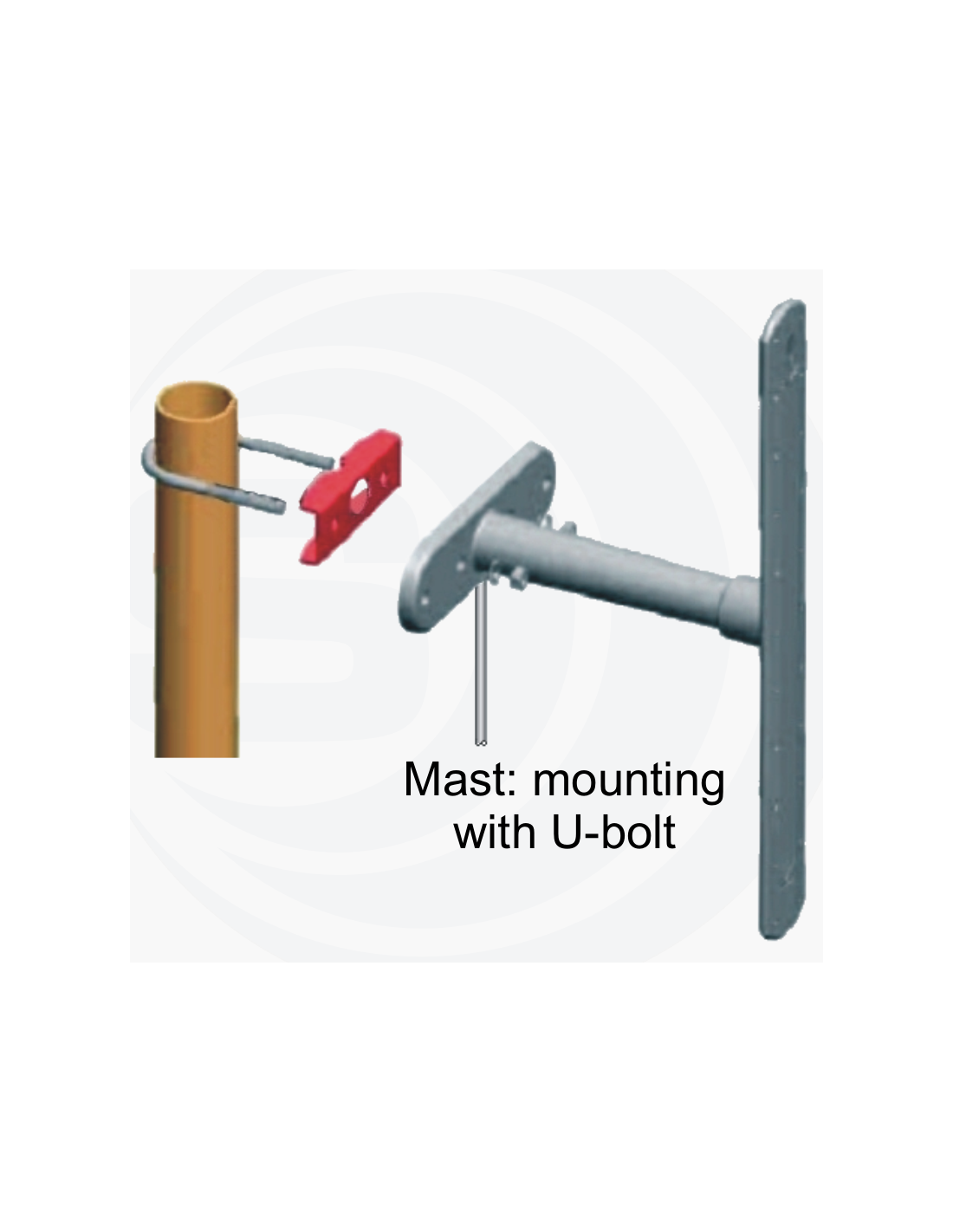

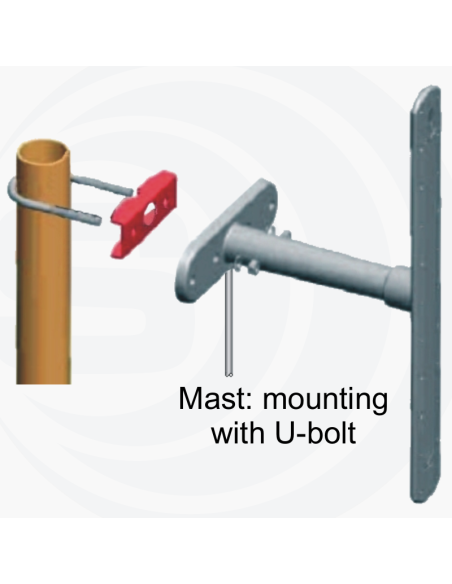

Mounting type: On-Mast, On-Wall
