> >>>WY 380-6N SIRIO
WY 380-6N 380/440 MHZ SIRIO View larger
Previous Next

WY 380-6N SIRIO

VS 000780

New product

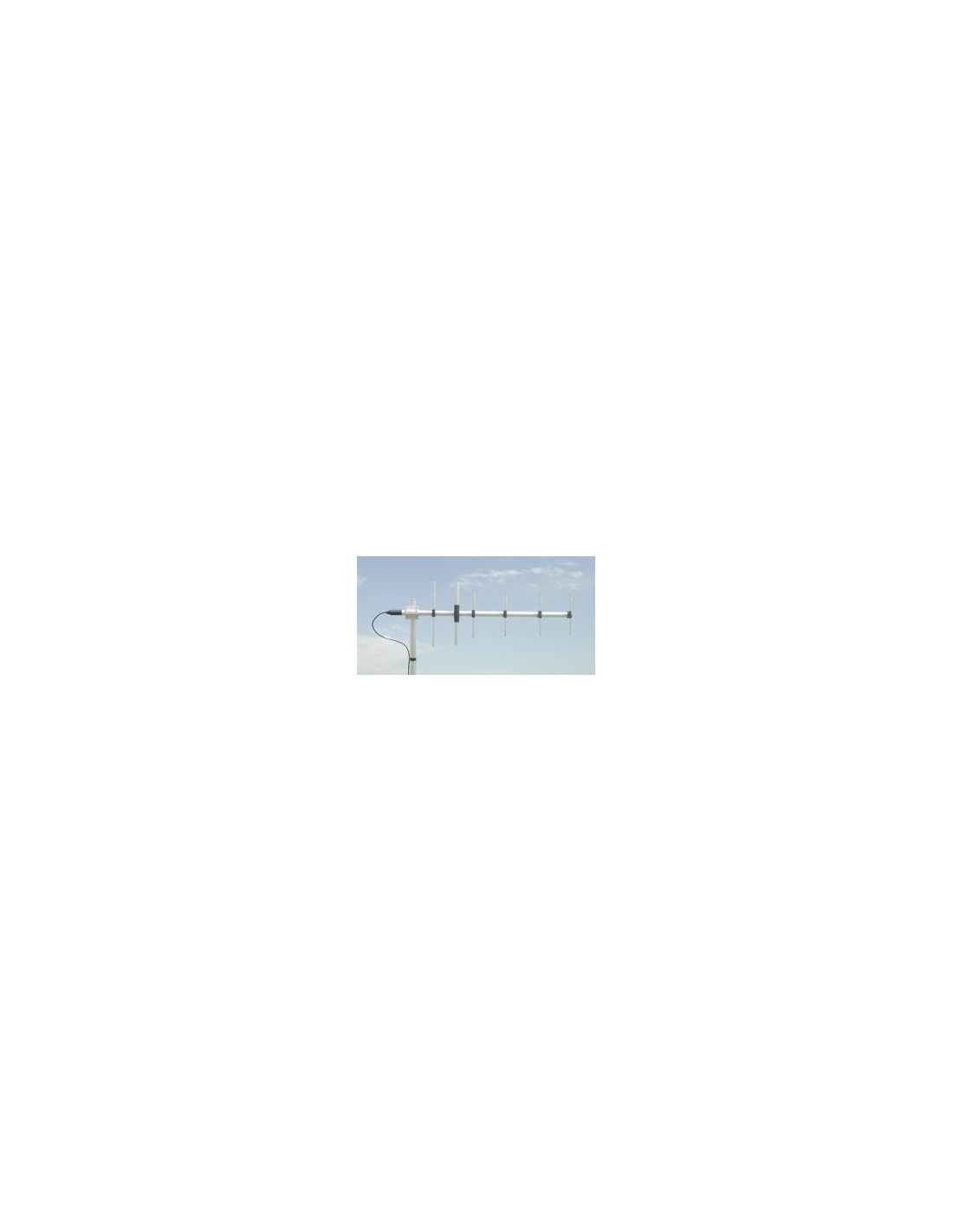

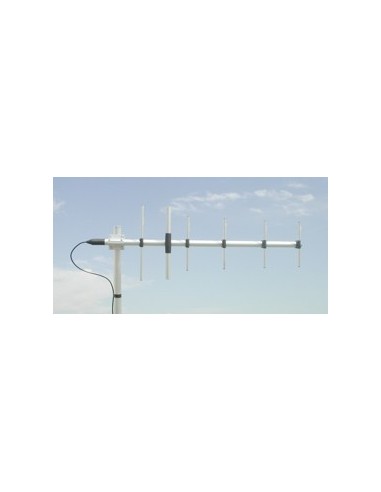

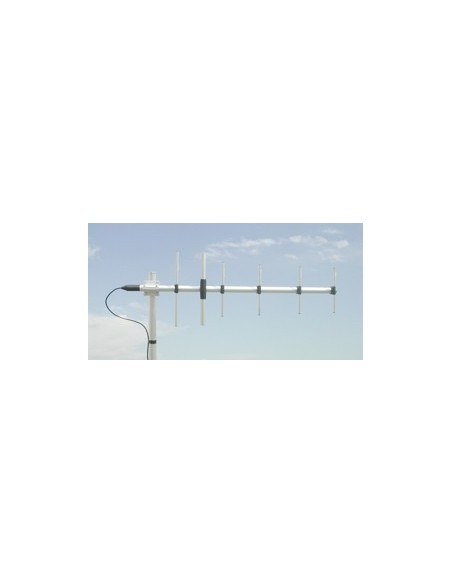

DIRECTIONAL BASE ANTENNA

6 elements Yagi /

380-440 MHz /

8.85 dBd – 11 dBi /

1180 x 400 mm

More details

138,00 € tax incl.

More info

Electrical Data:
Type: 6 elements Yagi
Radiation: Directional
Polarization: Linear Horizontal
Frequency range:
380-440 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM-433MHz
Gain: 8.85 dBd – 11 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground

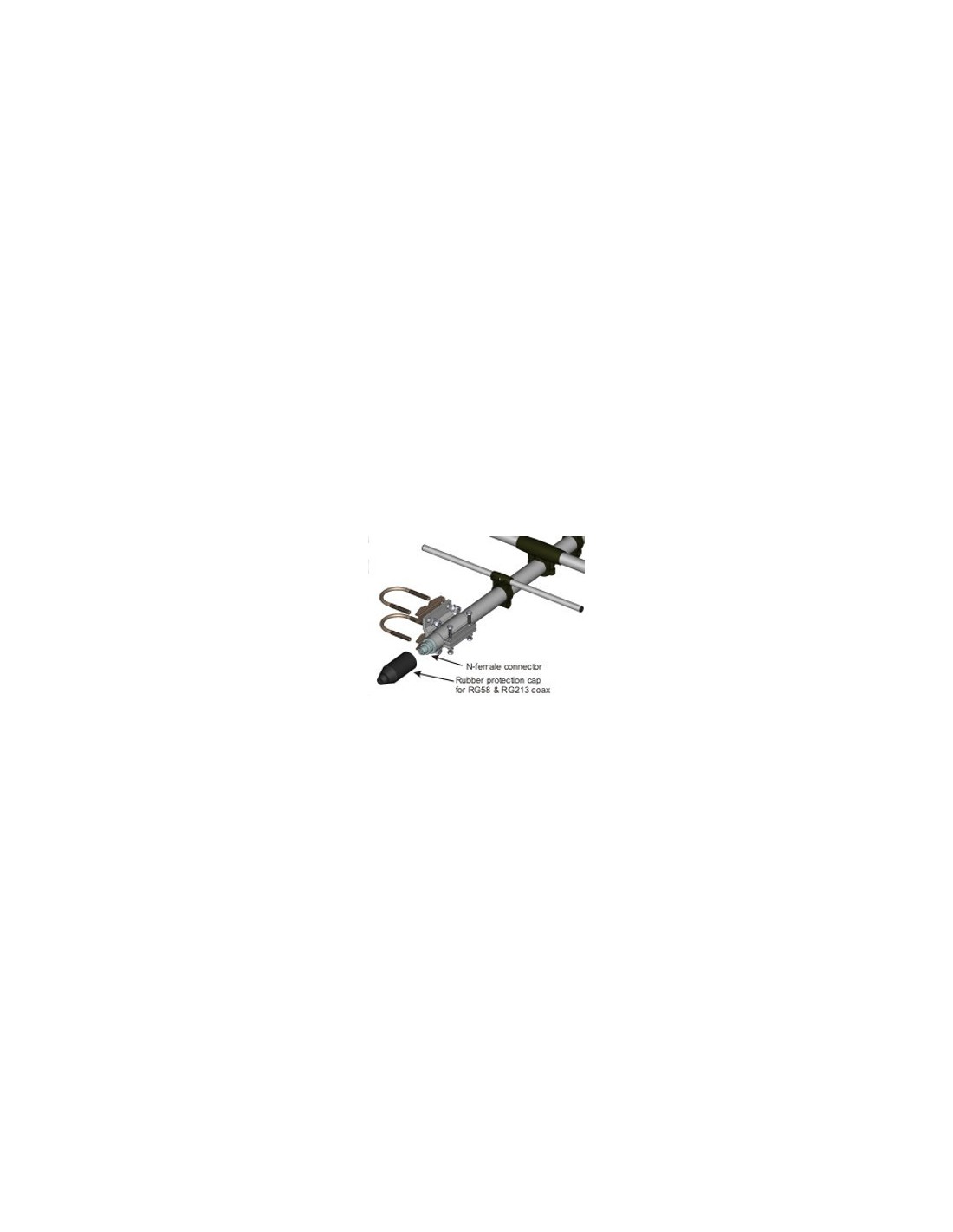

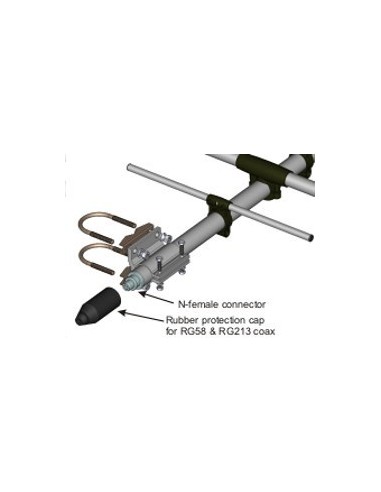

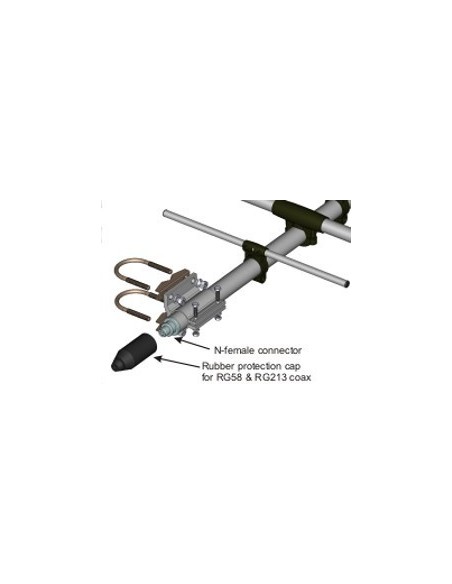

Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
1180 x 400 mm / 3.87 x 1.31 ft
Weight (approx):
1540 gr / 3.4 lb
Mounting type: On-Mast

Related Products

Download

PRODUCT MANUAL WY 380-6N

Download (1.19M)
