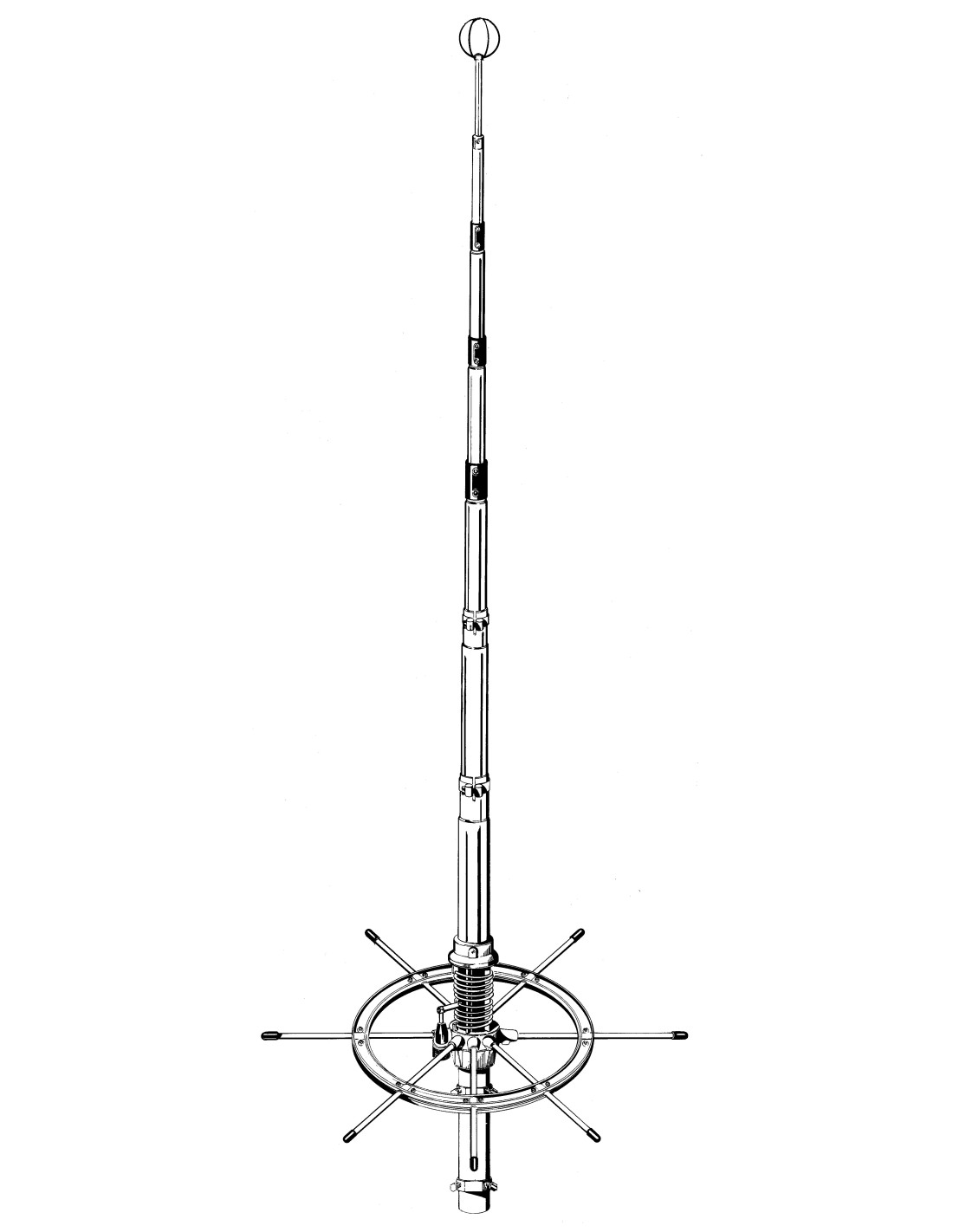

Type : |

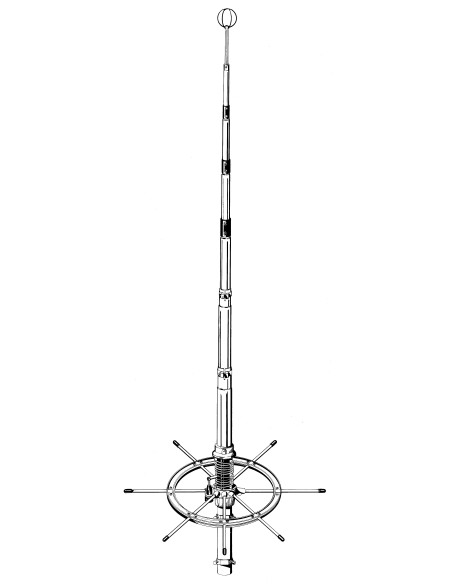

5/8 λ Ground Plane |
|
Fréquences : |
26...28 MHz Tunable (see table) |
|
Impédance : |
50 W |
|
Radiation (H-plane) : |
360° omnidirectional |
|
Polarization : |
Linear Vertical |
|
Gain : |
1.5 dBd, 3.65 dBi |
|
Bande passante @ SWR £2 : |
³ 2000 KHz (180 channels) |
|
SWR @ res. freq. : |
£ 1.1 |
|
Max Power : |
1000 Watts (CW) continuous 3000 Watts (CW) short time |
|
Feed system/ position : |
Transformer DC-ground / base |
|
Connector : |
UHF-female |
|
Materials : |
Aluminium, Steel, Copper, Nylon |
|
Wind Load/ Resistance : |
264 N @ 150Km/h / 130 Km/h |
|
Length (approx.) : |
6700 mm |
|
Weigth (approx.) : |
6000 gr |
|

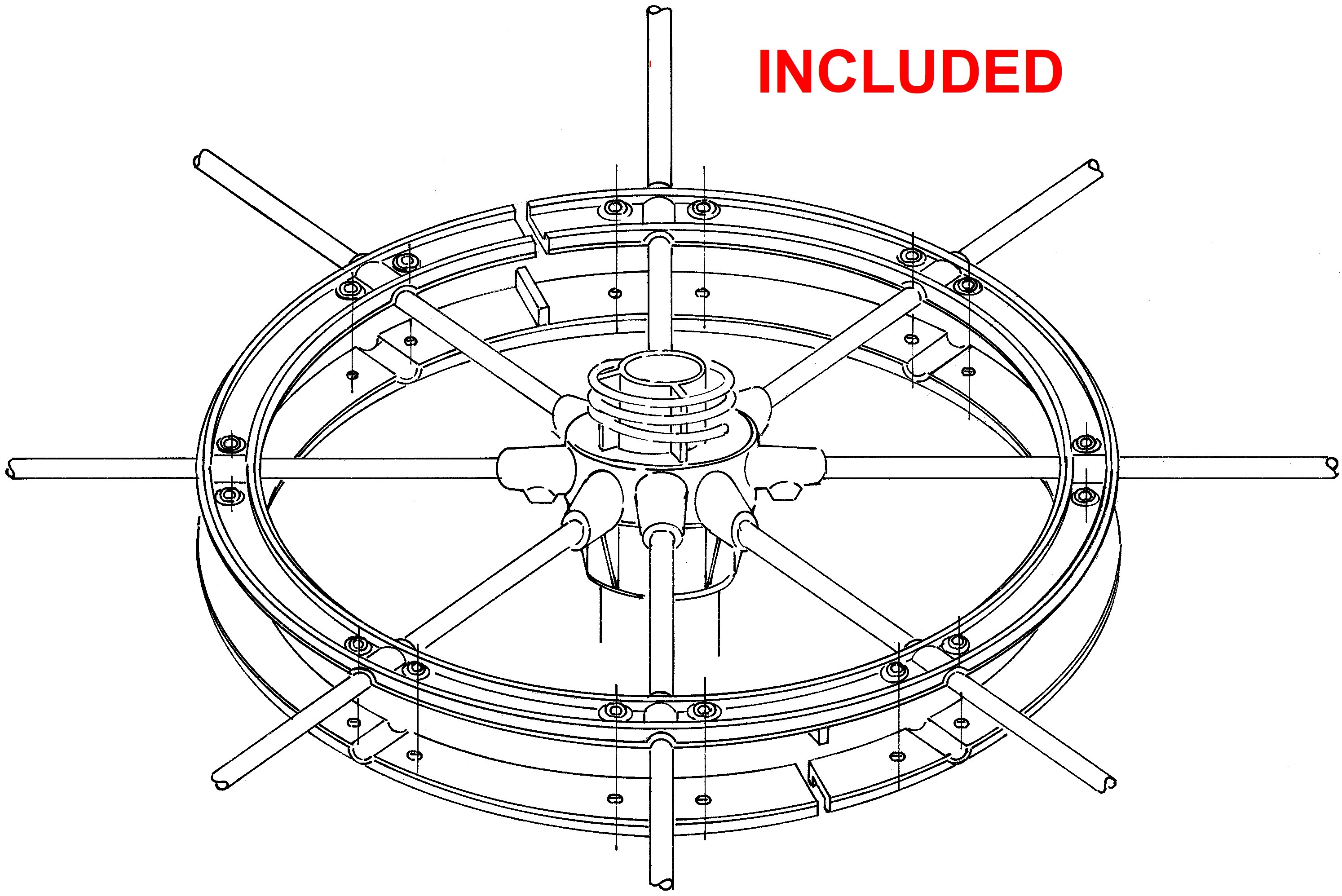

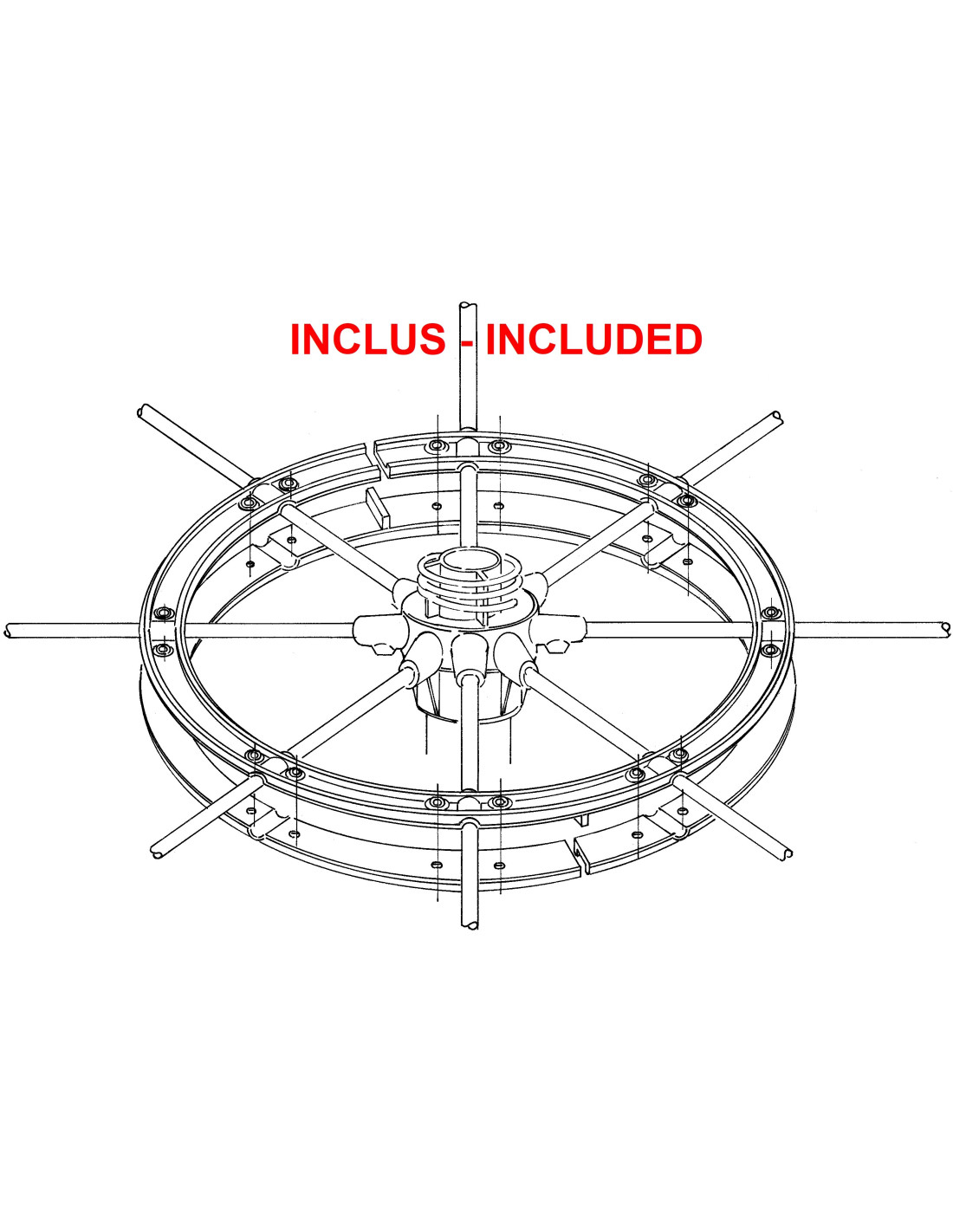

Radial lenght : |
1400 mm |
|

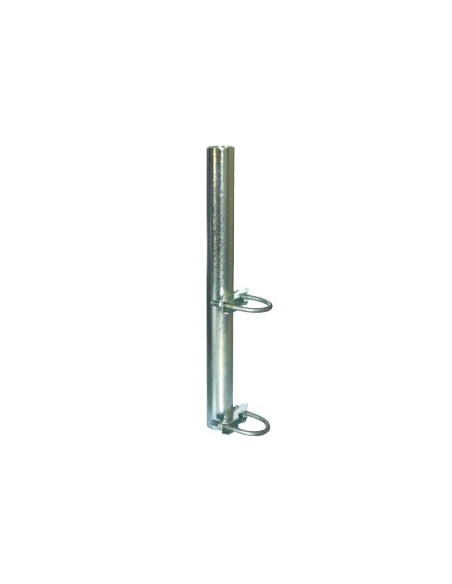

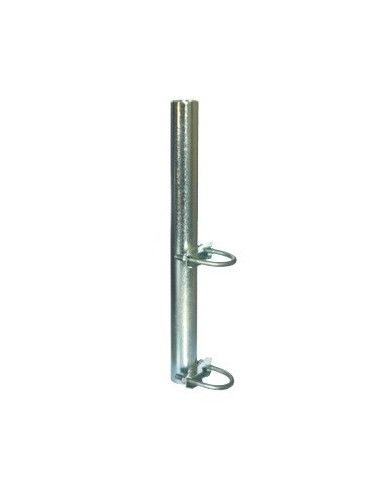

Mounting Mast : |
Æ 35-39 mm |

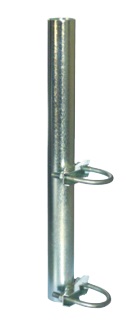

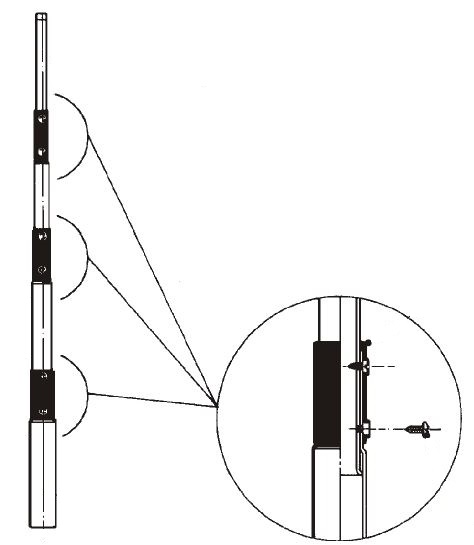

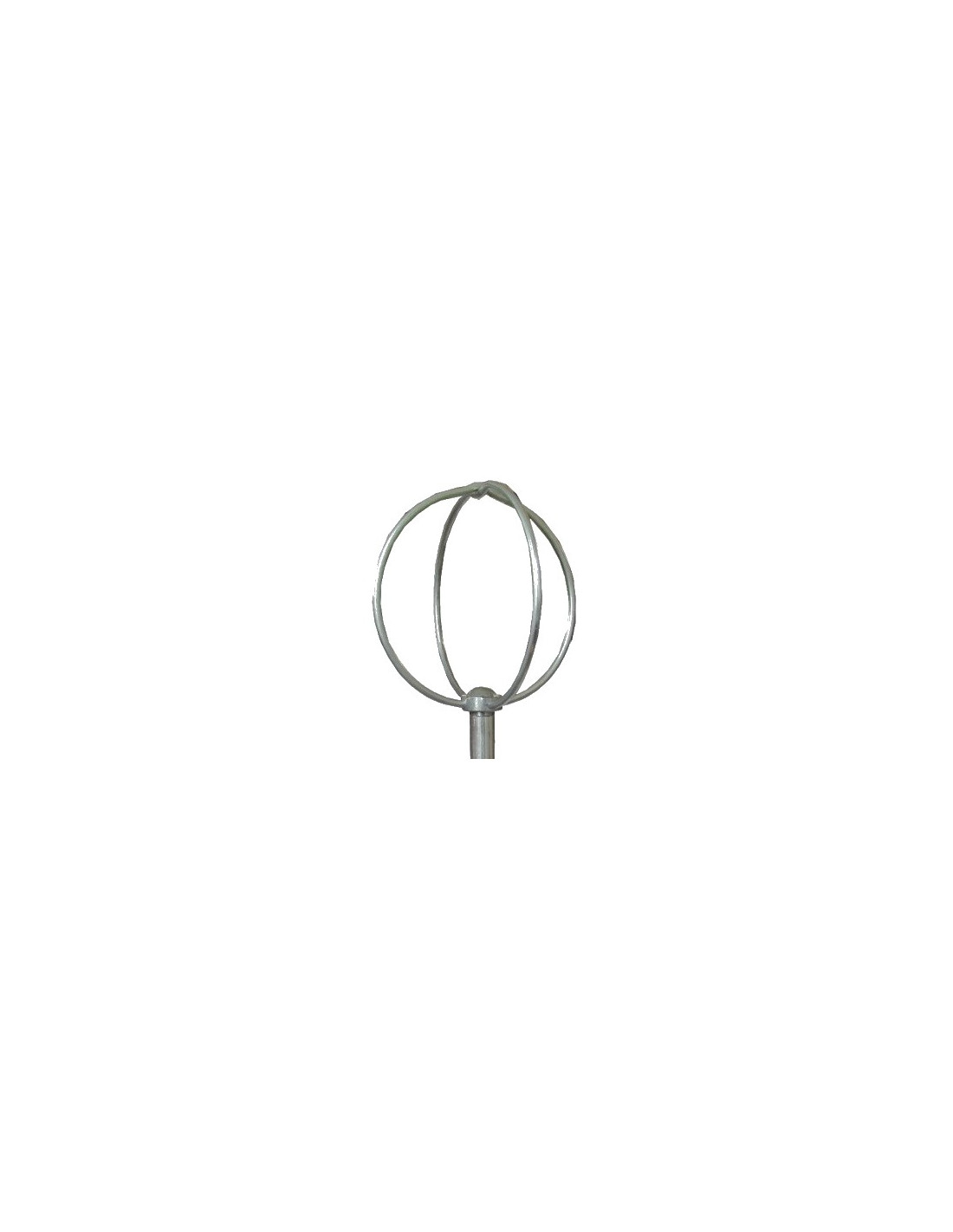

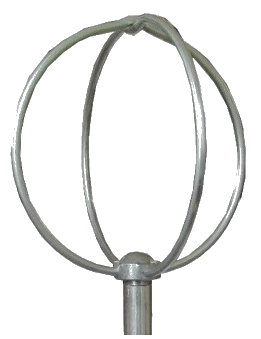

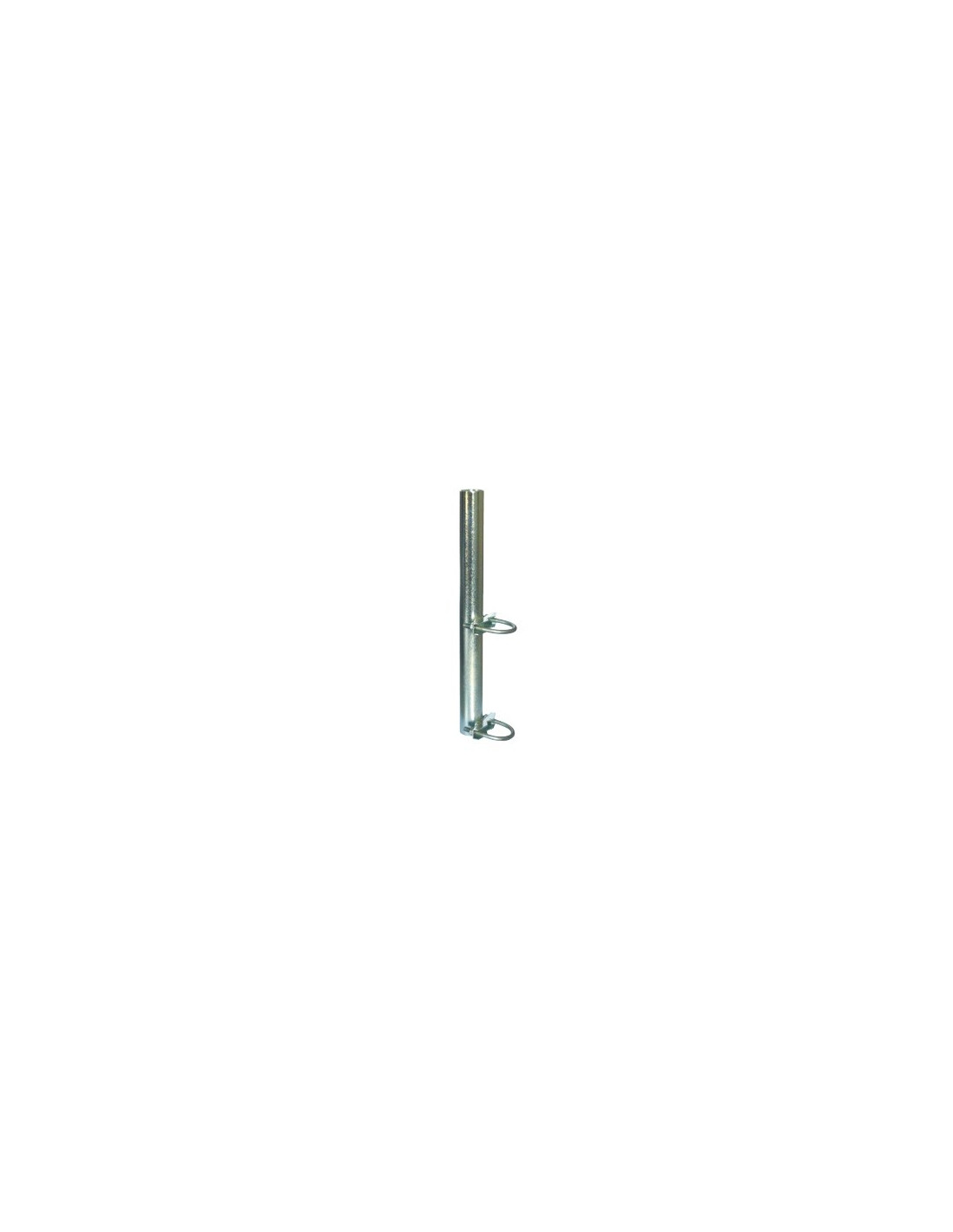

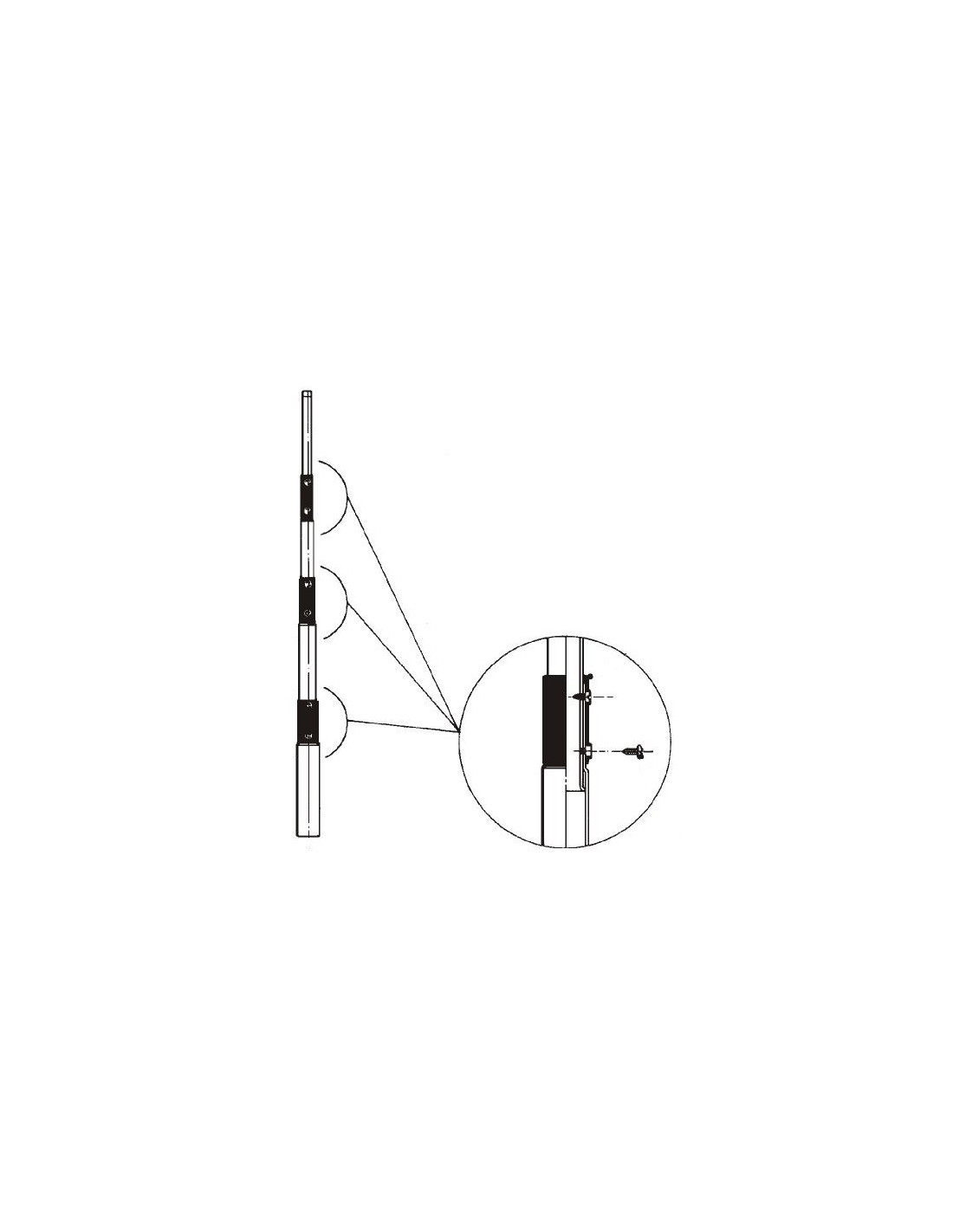

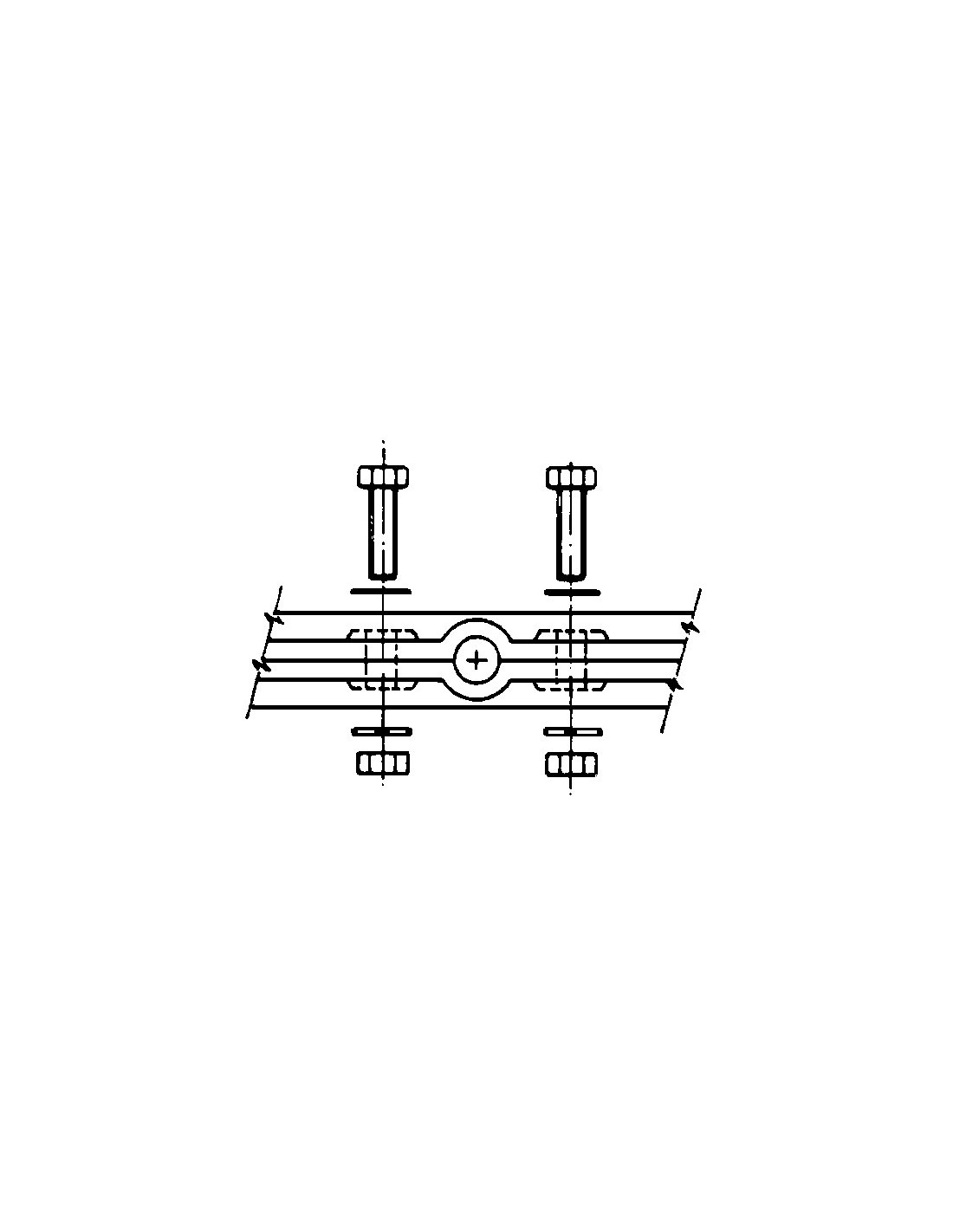

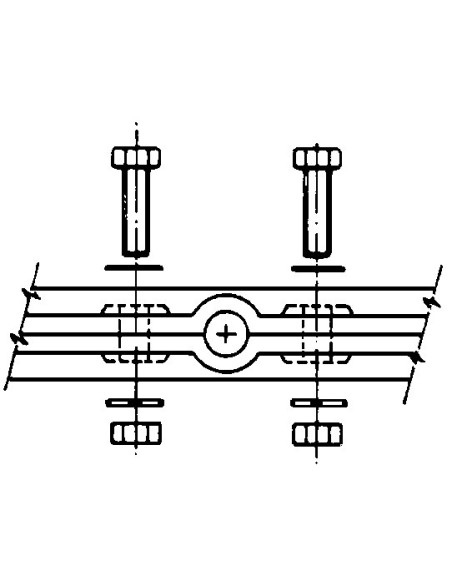

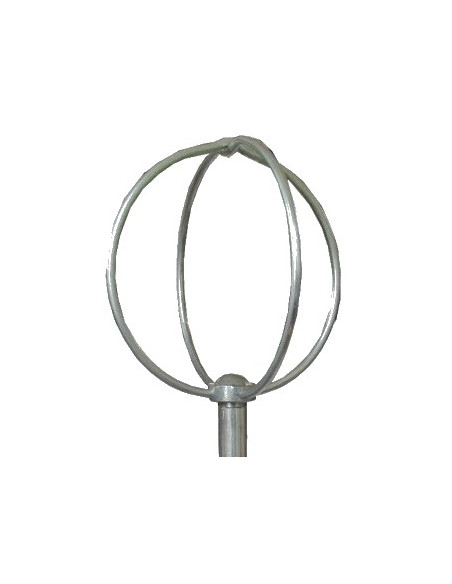

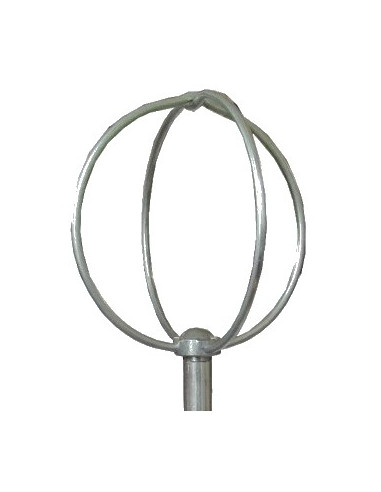

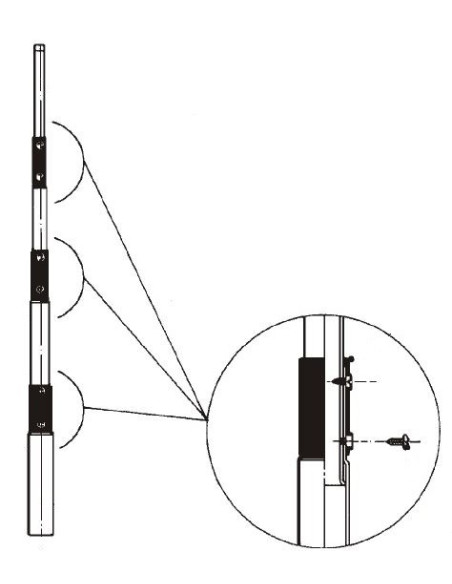

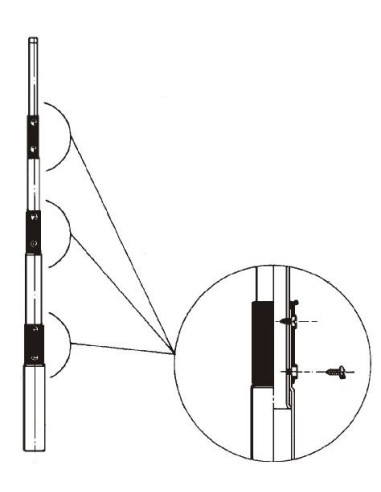

Delivered with 1 Anti-Vibration Nylon ring + Antistatic cage on the top whip + 1 FT2 with screws/Bag supplied + plastic sleeves for Aluminium tubes
+
+
+
