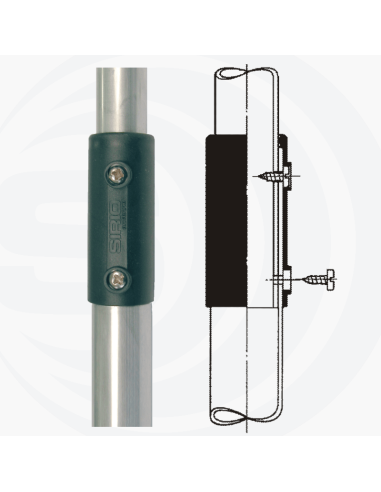

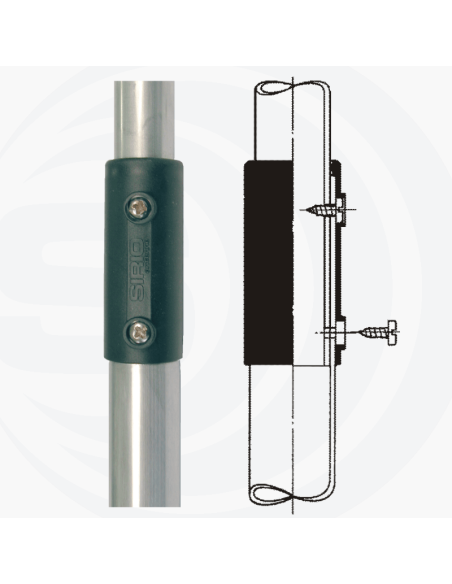

SY 27-4 SIRIO
VS 000213
New product
BASE ANTENNA CB
4 ELEMENTS YAGI /
26.5...30 MHz Tunable /
11 dBd, 13.15 dBi /
5846 x 4030 x 100 mm
2.15.0.0
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info

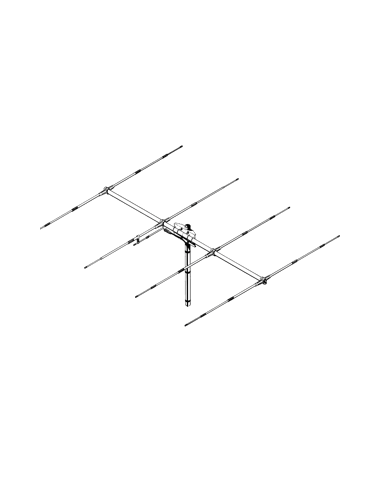

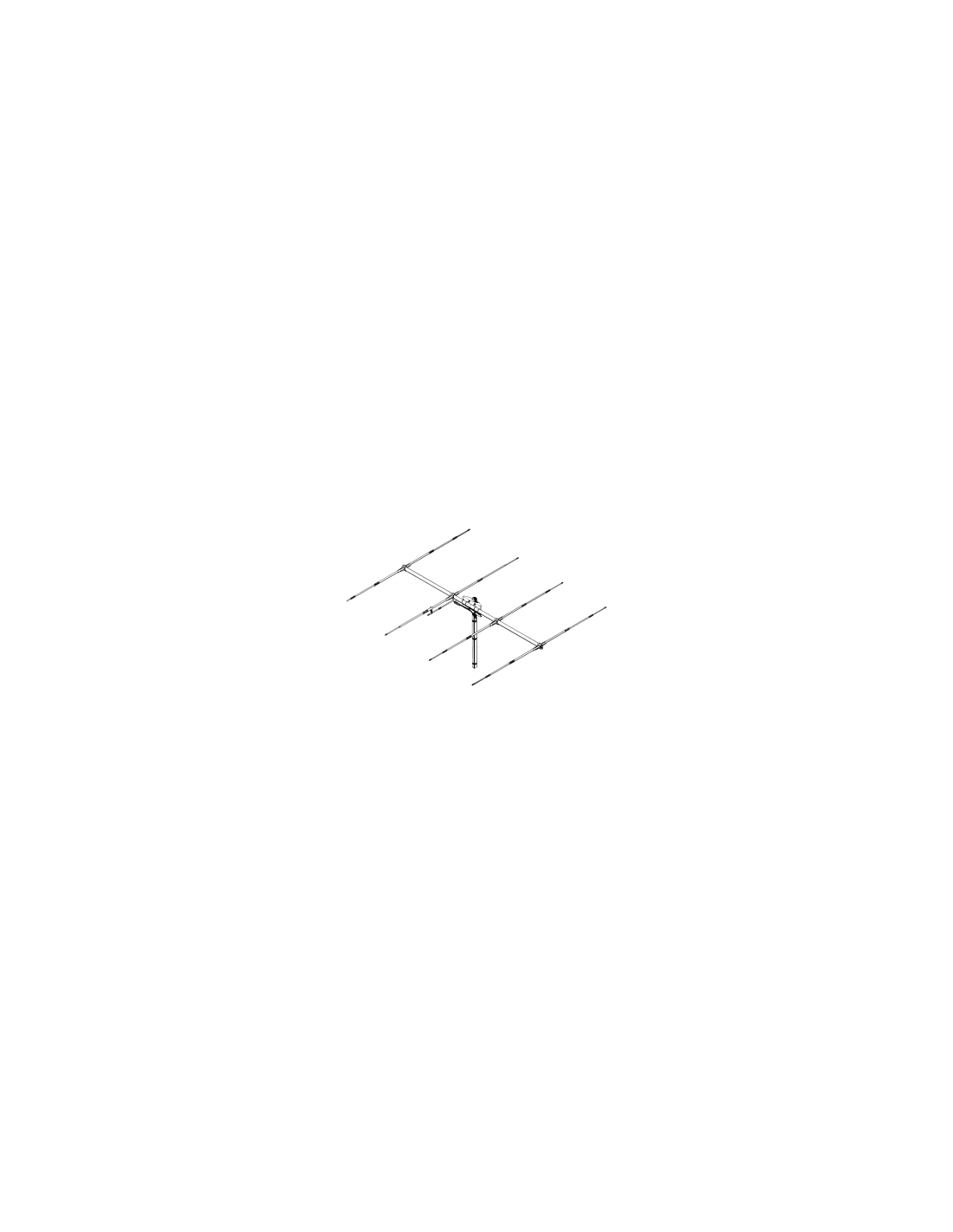

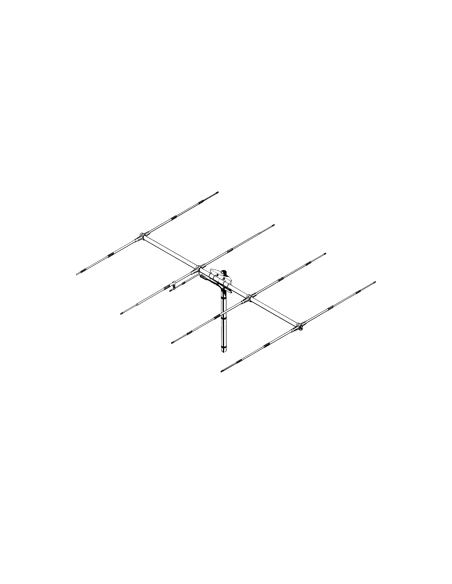

| Type: | 4 elements Yagi |
| Radiation: | Directional |
| Polarization: | Linear Horizontal |
| Frequency range: | 26.5 ... 30 MHz Tunable |
| Systems: | 10m-HAM |
| Gain: | 11 dBd, 13.15 dBi |
| Bandwidth: | ≥ 850KHz @ SWR ≤ 2 |
| Max Power: | 1000 Watts (CW) continuous 3000 Watts (CW) short time |
| Grounding protection: | All metal parts are DC-grounded, the inner conductor is coupled capacitively |
| Connector: | UHF-female (SO-239) |
Mechanical Data:
| Materials: | Aluminium, Galvanized steel, Zamak |
| Dimensions (approx): | 5846 x 4030 x 100 mm / 19.18 x 13.22 x 0.33 ft |
| Weight (approx): | 6100 gr / 13.45 lb |

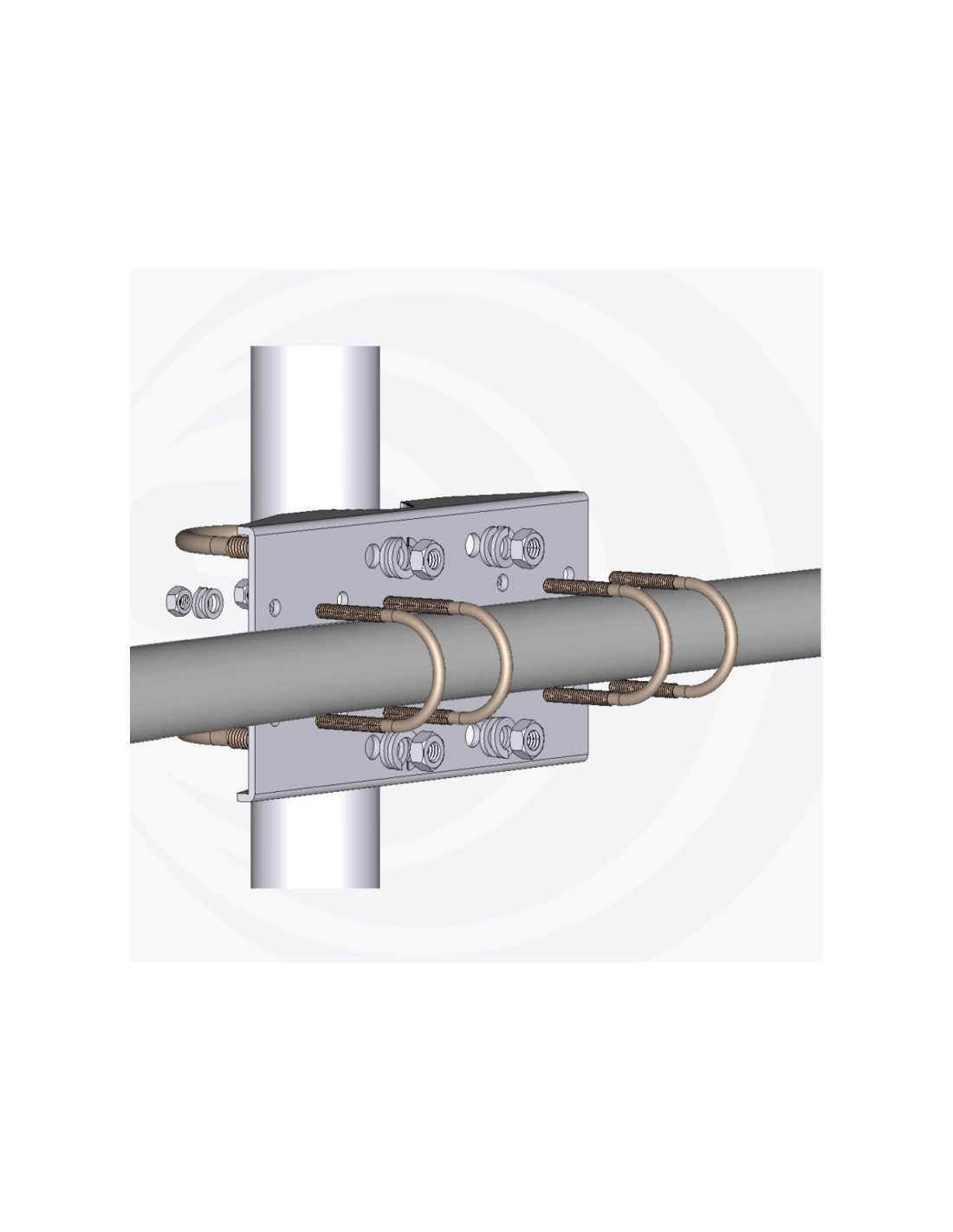

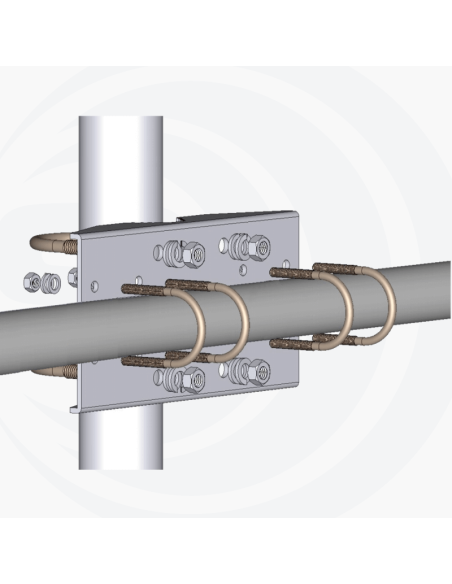

| Mounting type: | On-Mast |
