CABLE RF 400 UF

CC 001710

New product

RF 400 ULTRA FLEX LOW LOSS DOUBLE SCREENED 50 OHM CABLE / 11mm

More details

3,50 € tax incl.

More info

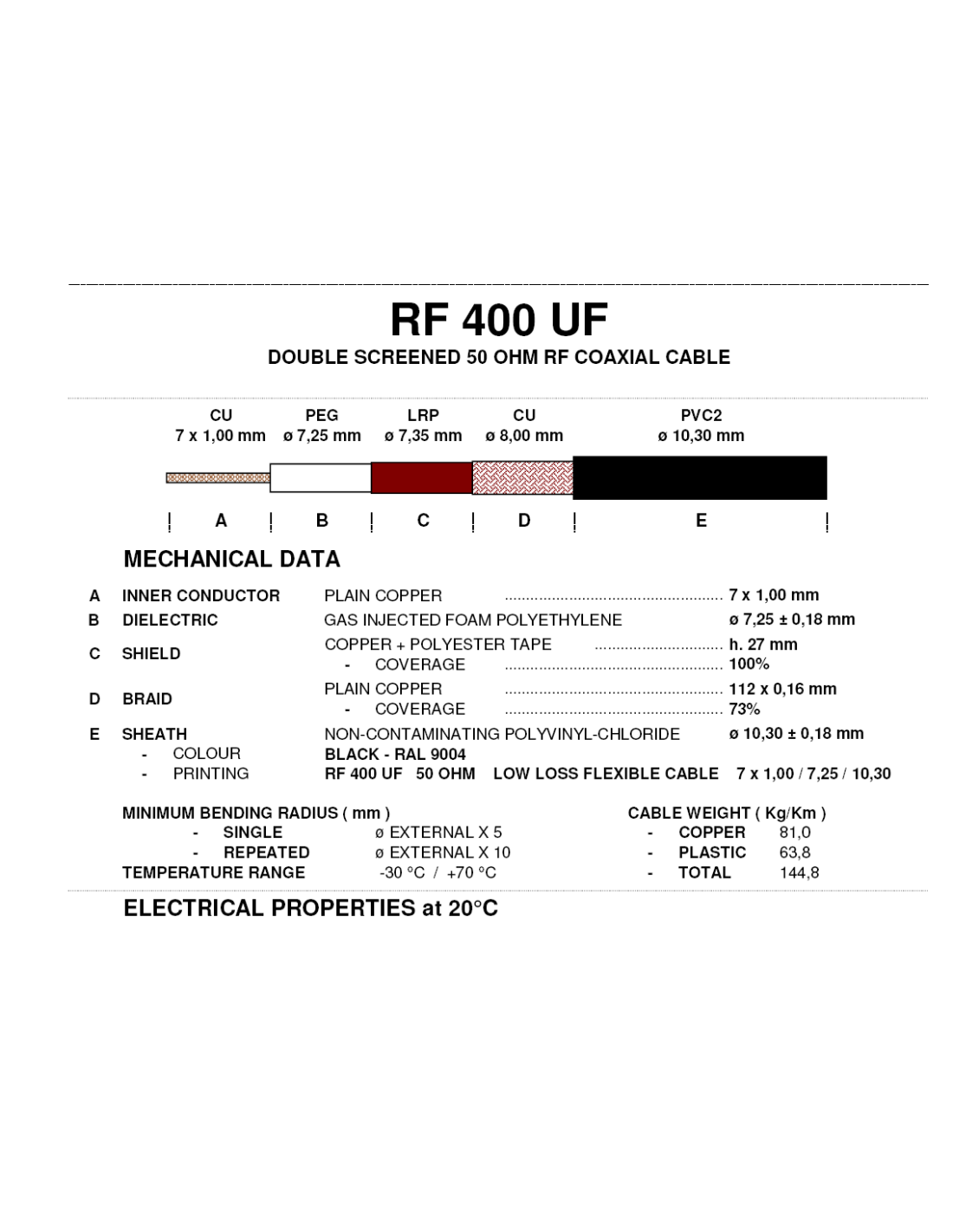

  • RF 400 ULTRA FLEX LOW LOSS DOUBLE SCREENED 50 OHM CABLE
  • INNER CONDUCTOR PLAIN COPPER ……………………………
  • DIELECTRIC GAS INJECTED FOAM POLYETHYLENE ....
  • COPPER + POLYESTER TAPE ………………………
  • SHEATH NON-CONTAMINATING POLYVINYL-CHLORIDE
  •  COLOUR BLACK -
  • TEMPERATURE RANGE -30 °C / +70 °C

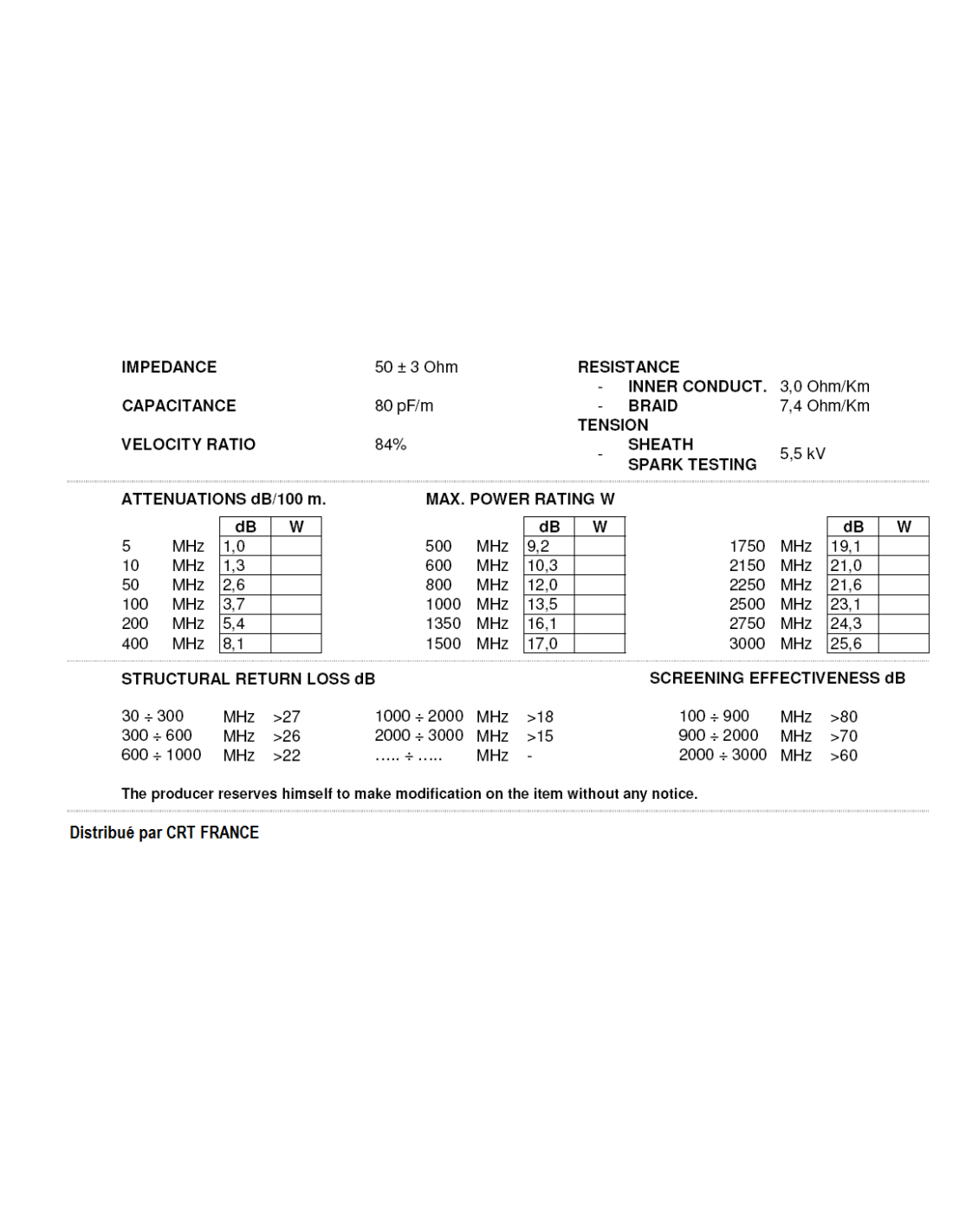

  • ELECTRICAL PROPERTIES at 20°C
  • IMPEDANCE 50 ± 3 Ohm RESISTANCE- INNER CONDUCT. 3,0 Ohm/Km
  • CAPACITANCE 80 pF/m - BRAID 7,4 Ohm/Km
  • VELOCITY RATIO 84%
  • SHEATH NON-CONTAMINATING POLYINYL-CHLORIDE
  • ATTENUATIONS dB/100 m. MAX. POWER RATING W
  • dB W dB W dB W
  • 5 MHz :1,0                    500 MHz: 9,2          1750 MHz: 19,1
  • 10 MHz: 1,3                  600 MHz: 10,3         2150 MHz: 21,0
  • 50 MHz: 2,6                  800 MHz: 12,0         2250 MHz: 21,6
  • 100 MHz: 3,7               1000 MHz: 13,5         2500 MHz: 23,1
  • 200 MHz: 5,4               1350 MHz: 16,1         2750 MHz: 24,3
  • 400 MHz: 8,1               1500 MHz: 17,0         3000 MHz: 25,6

PRICE BY METER
