Features:
| - |
CB & 10m Mobile antennas |
| - |
Tunable from 27 to 28.5 MHz |
| - |
Protection from static discharges DC-Ground |
| - |
TURBO 1000: 17/7 PH tapered stainless steel whip |
| - |
90° inclination and adjustable whip, detachable for car-wash |
| - |
Suitable for magnetic mount |
| - |
Glazed chromed surface, blue plastic parts |
Electrical Data:
| Type: |
Base loaded |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
27…28.5 MHz Tunable |
| Systems: |
CB 27MHz, 10m-HAM |
| Bandwidth: |
- ≥ 660KHz @ SWR ≤ 2
|
| Max Power: |
200 Watts (CW) continuous
1000 Watts (CW) short time |
| Grounding protection: |
DC-Ground |
| Cable lenght / type: |
- Not supplied
|

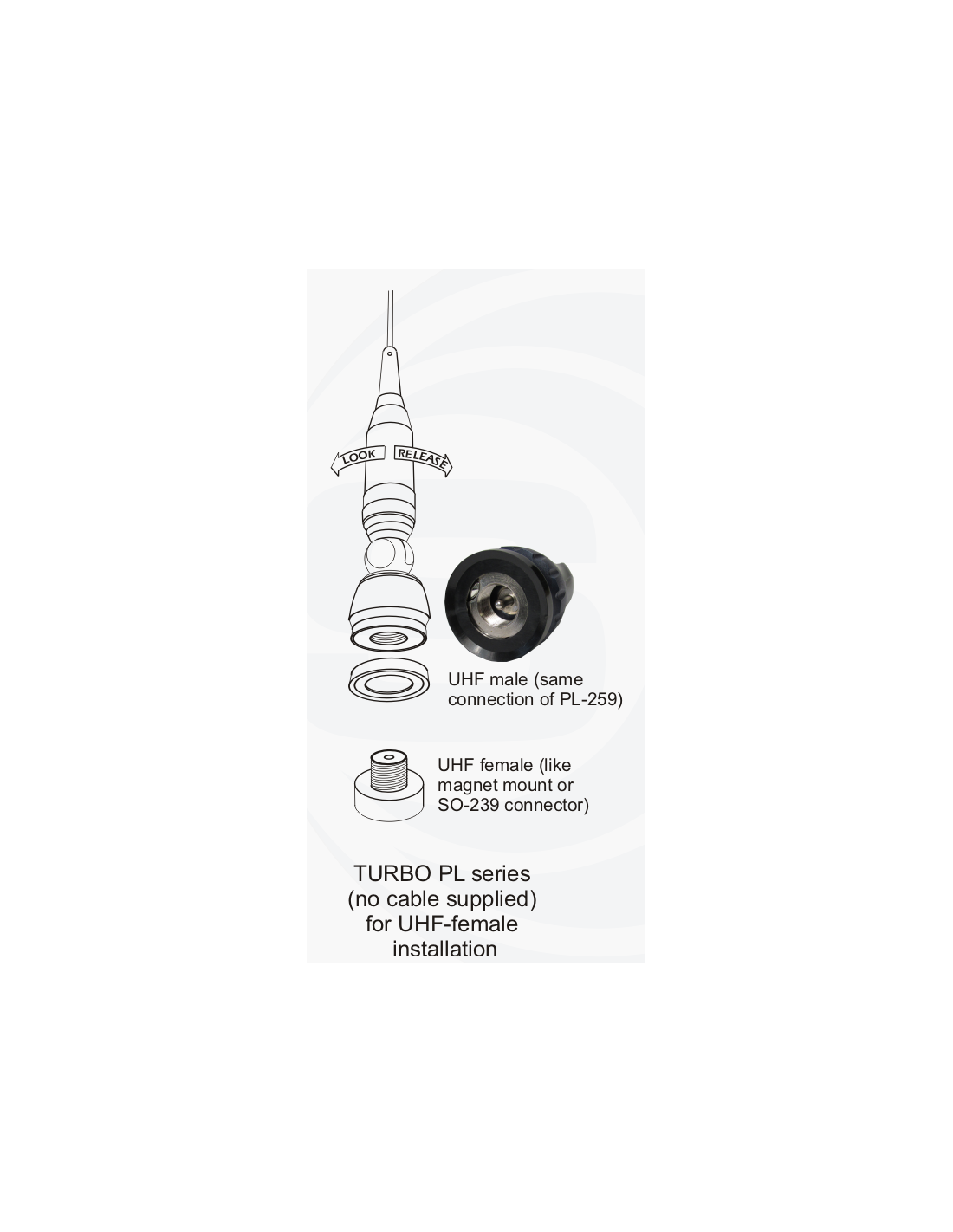

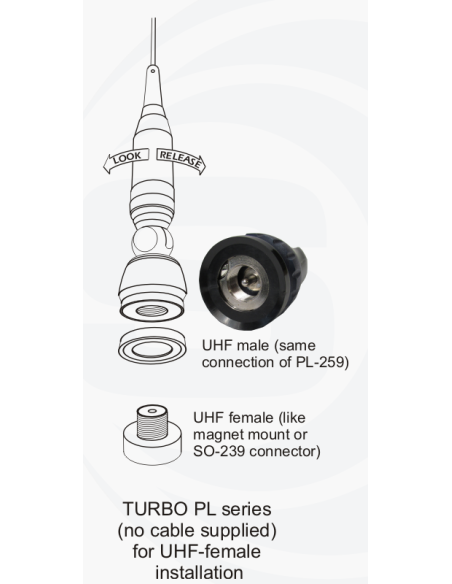

| Connector: |
- UHF-male (PL-259)
|
Mechanical Data:
| Materials: |
Copper, Brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
- 1150 mm / 3.77 ft
|
| Weight (approx): |
580 gr / 1.28 lb |
| Mounting type: |
- On-Connector
|
