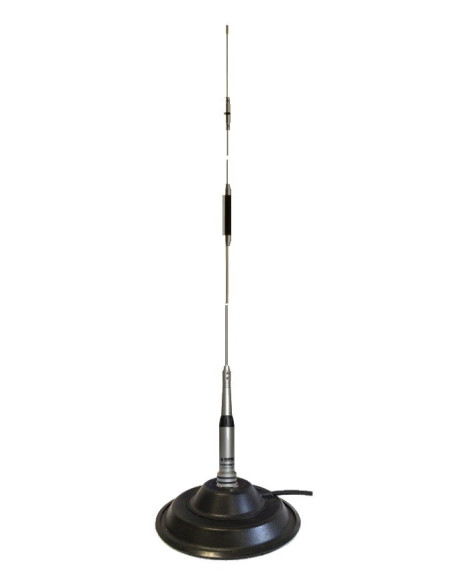

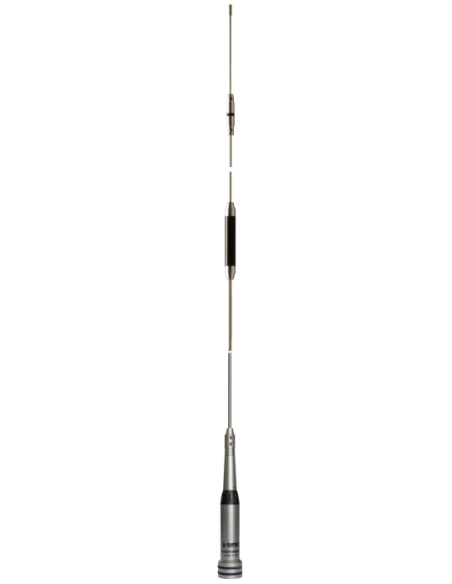

HP 2070 H MAG SIRIO

VS 000548 + AN 001680

New product

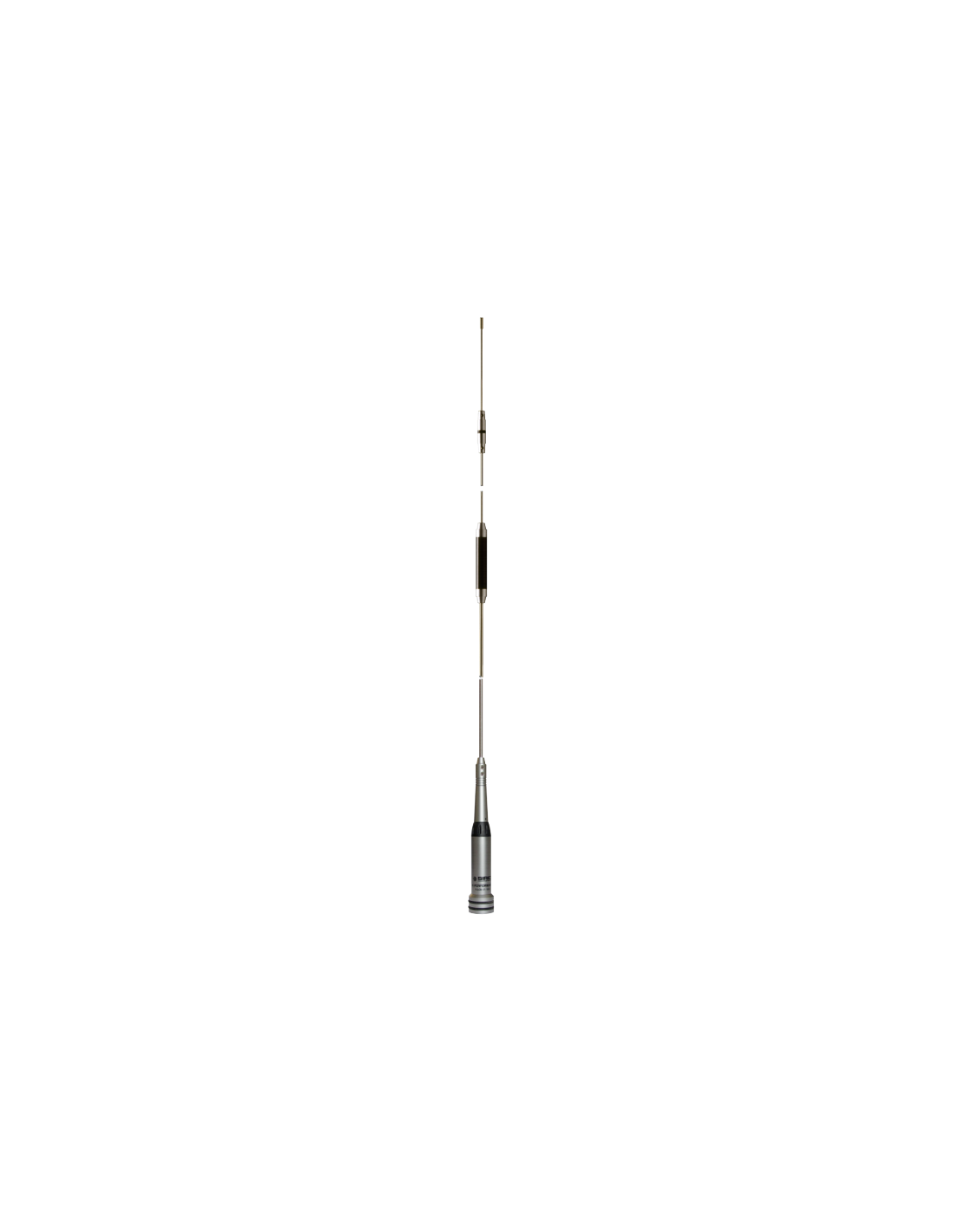

DUALBAND MOBILE ANTENNA

VHF: 142-148MHz 1/2λ /

UHF: 430-440MHz 2x 5/8λ Colinear /

1080 mm

More details

77,00 € tax incl.

More info

Type: VHF: 1/2 λ
UHF: 2 x 5/8 λ Colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: VHF: 142-148 MHz
UHF: 430-440 MHz
Systems: 2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA
Gain: VHF 0.7 dB UHF 4.4 dB ref. to a λ/4 whip
Max Power: VHF: 150 W (CW)
UHF: 100 W (CW)
Grounding protection: DC-Ground

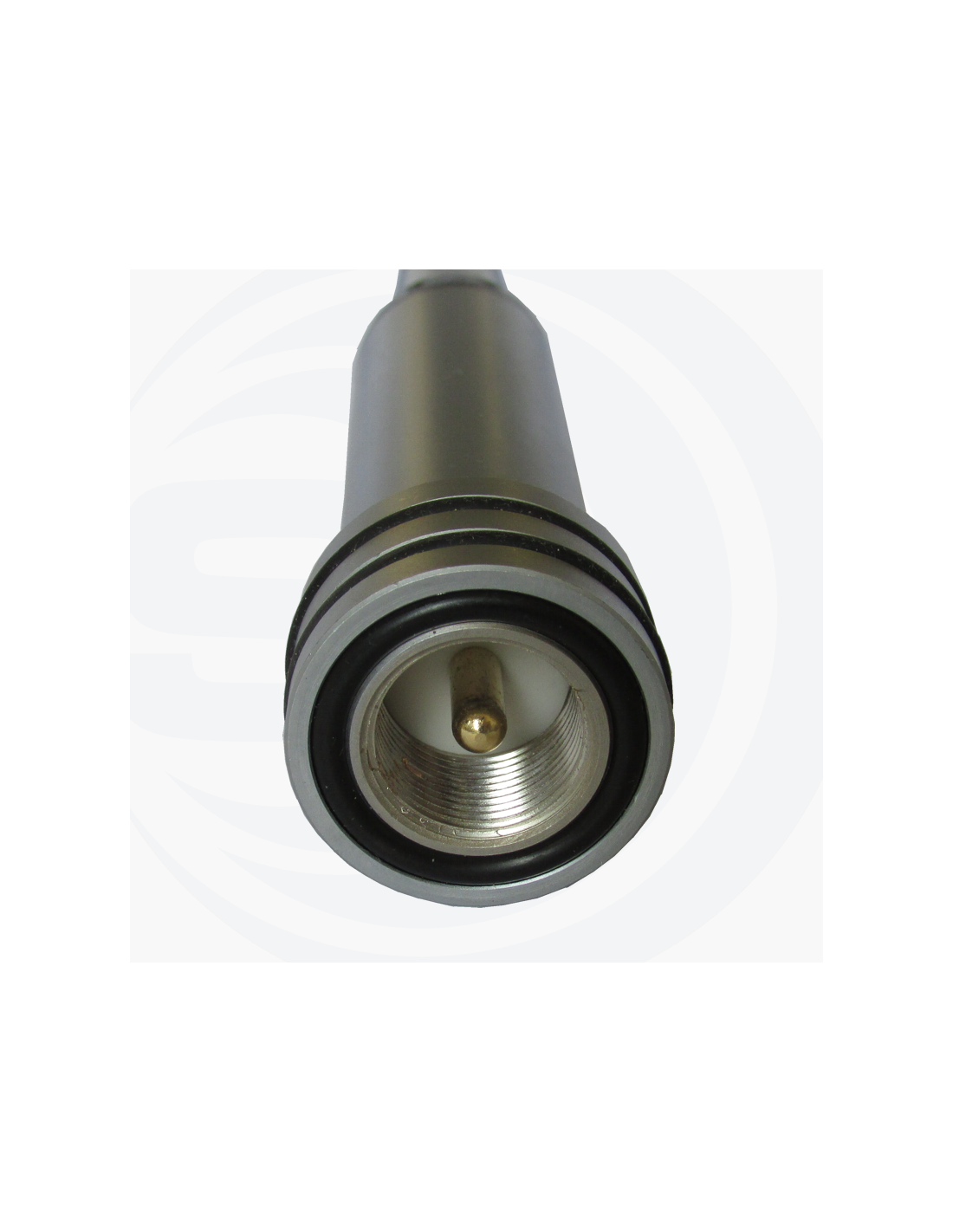

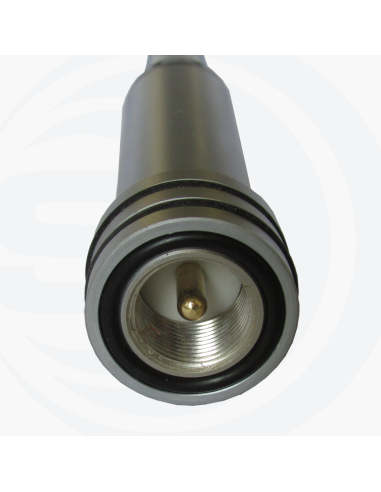

Connector: UHF-male (PL-259)

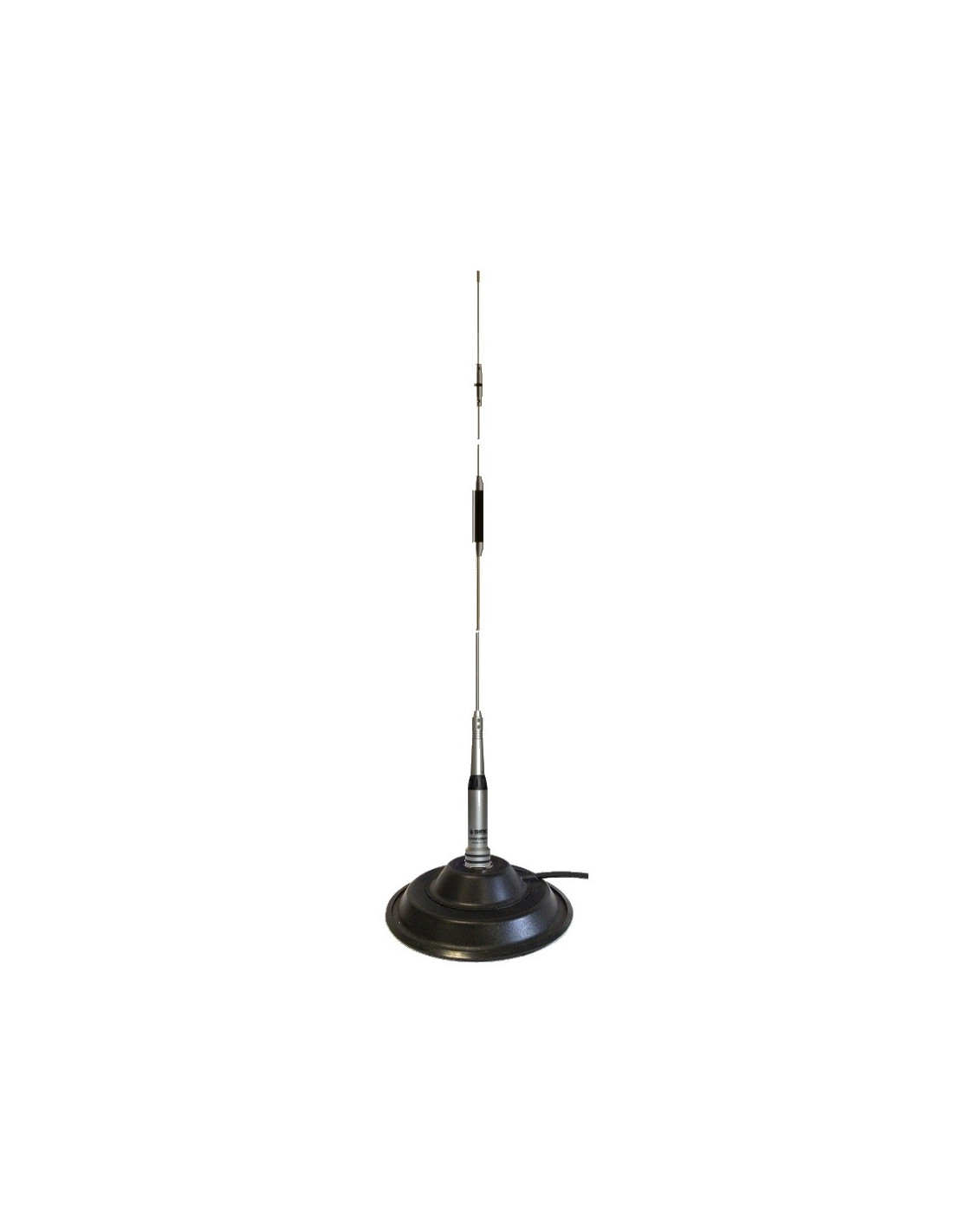

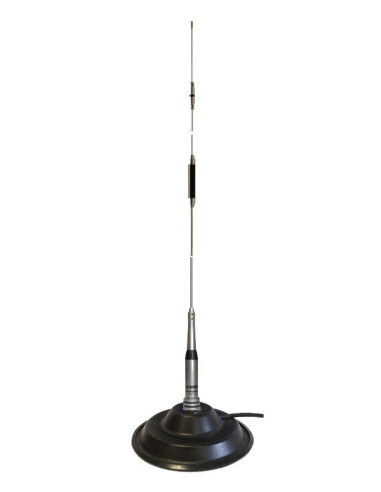

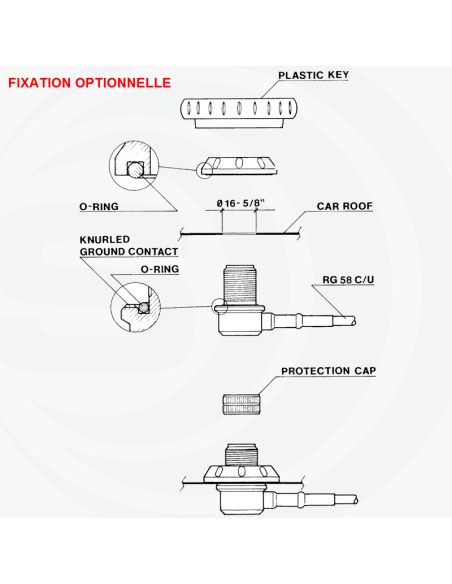

 Magnetic mount: BM 145mm / cable 3.80 with PL
Mechanical Data:
Materials: Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
1080 mm / 3.54 ft
Weight (approx):
330 gr / 0.73 lb
