HP 2070 R MAG SIRIO

VS 000460 + AN 001680

New product

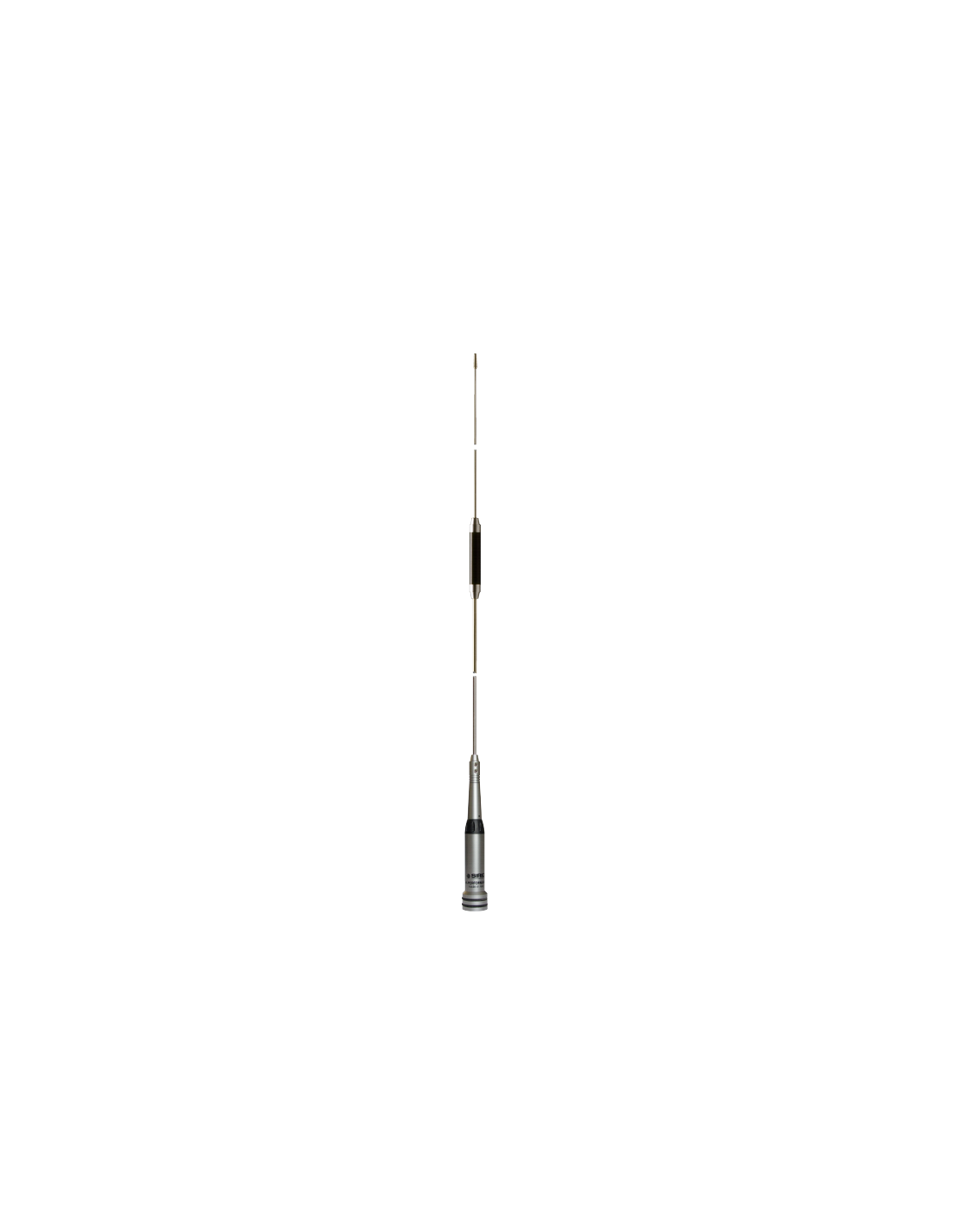

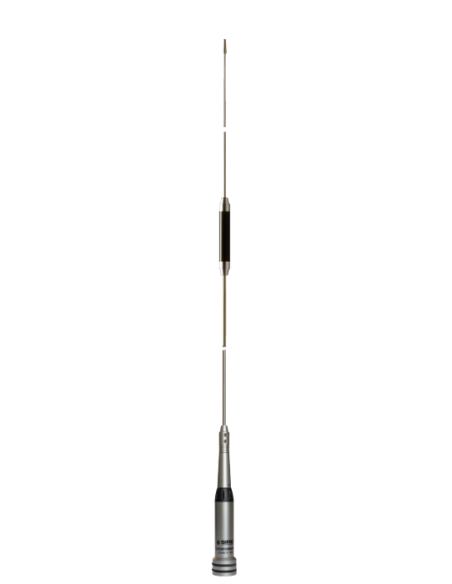

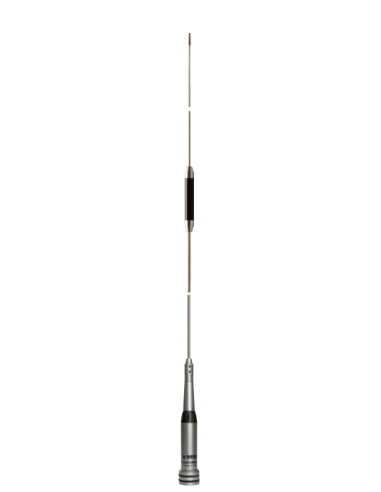

DUALBAND MOBILE ANTENNA

VHF: 142-148MHz 1/2λ /

UHF: 430-440MHz 2x 5/8λ Colinear /

1000 mm

More details

78,00 € tax incl.

More info

Type: VHF: 1/2 λ
UHF: 2 x 5/8 λ Colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: VHF: 142-148 MHz
UHF: 430-440 MHz
Systems: 2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA
Gain:  VHF 0.6 dB UHF 4.6 dB ref. to a λ/4 whip
Max Power: VHF: 150 W (CW)
UHF: 100 W (CW)
Grounding protection: DC-Ground

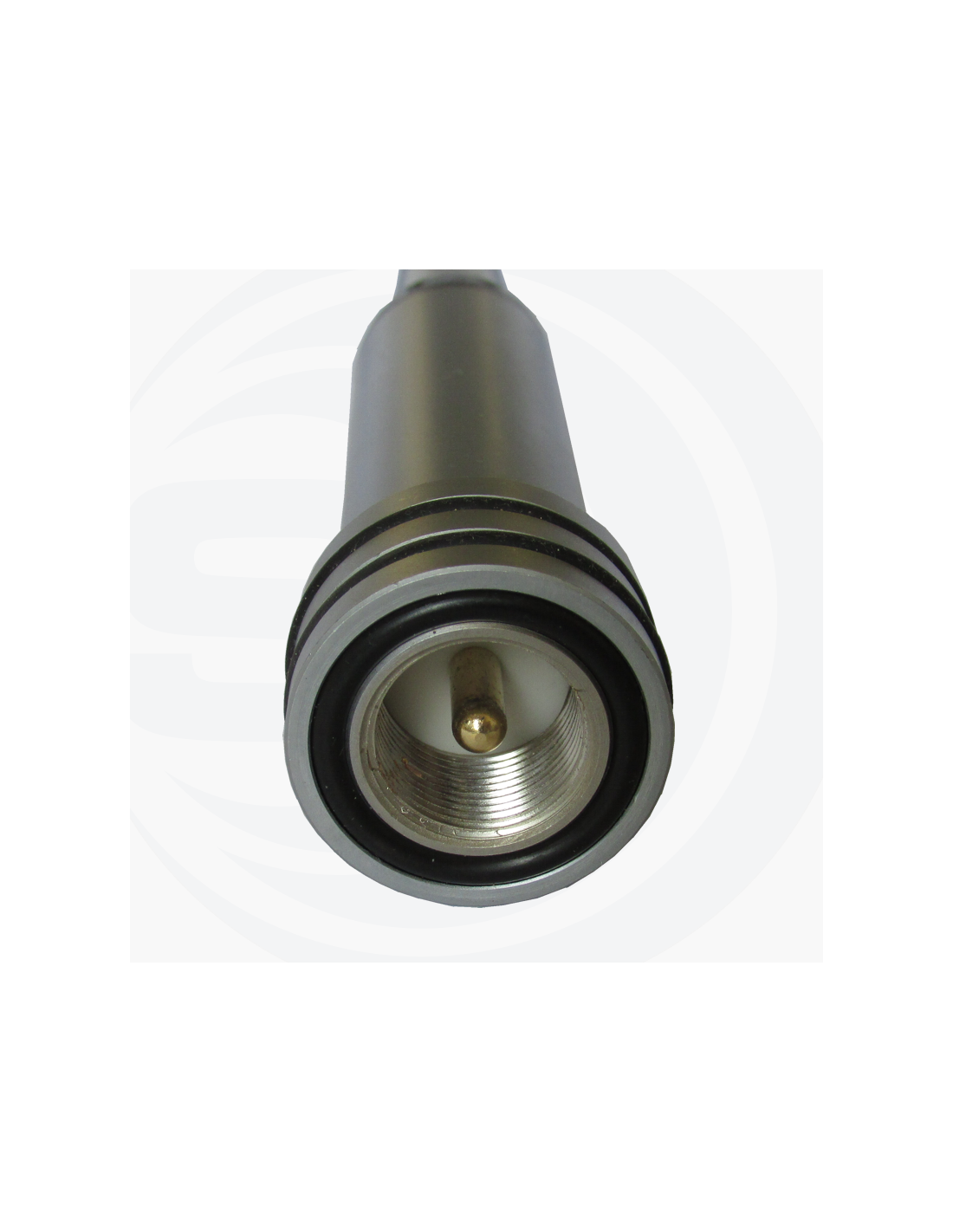

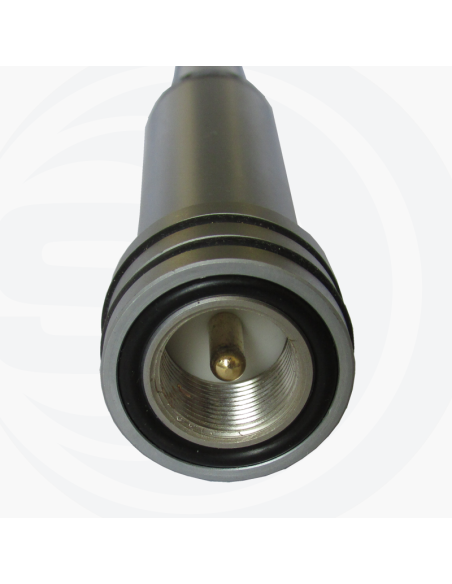

Connector: UHF-male (PL-259)

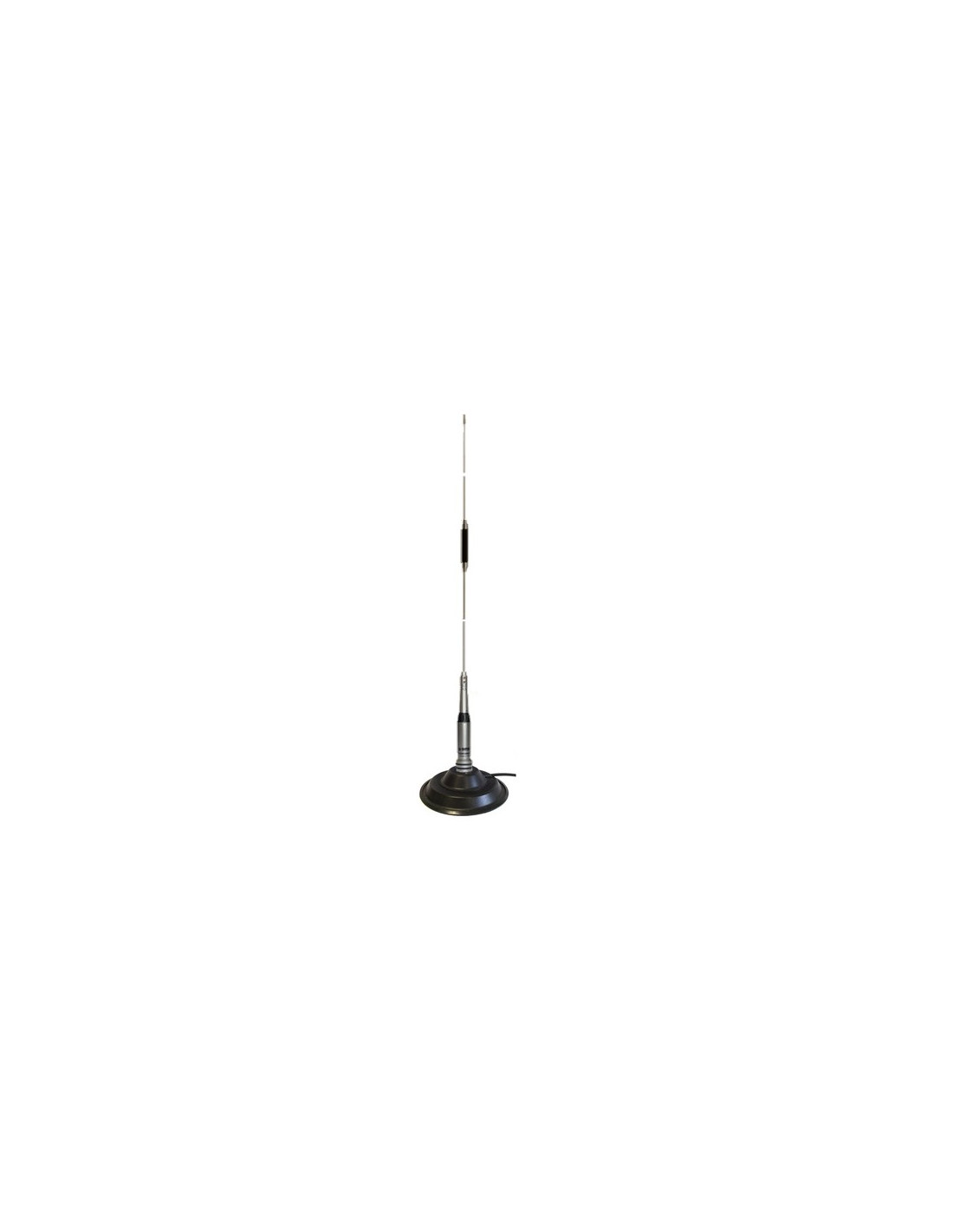

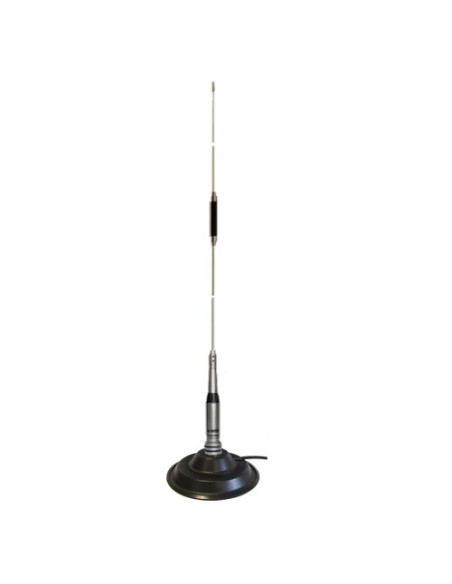

 Magnetic mount: BM 145mm with 3.80m of cable with PL
Mechanical Data:
Materials: Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
1000 mm / 3.28 ft
Weight (approx):
300 gr / 0.66 lb

Ground plane independent.
