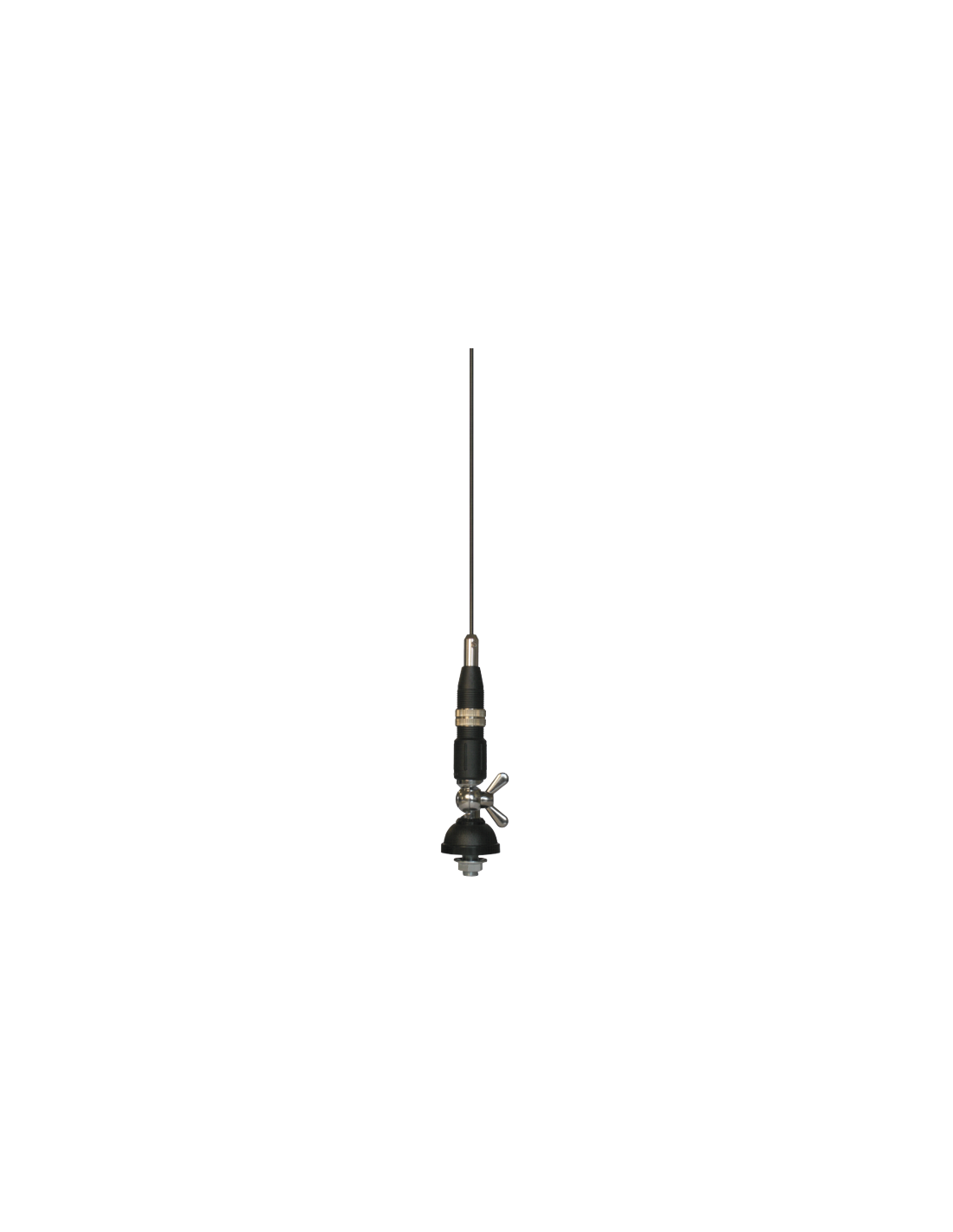

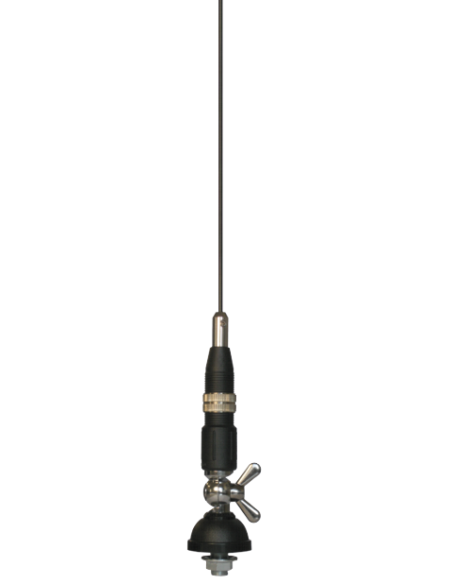

MINI SNAKE 27 SIRIO

VS 000022

New product

MOBILE CB ANTENNA

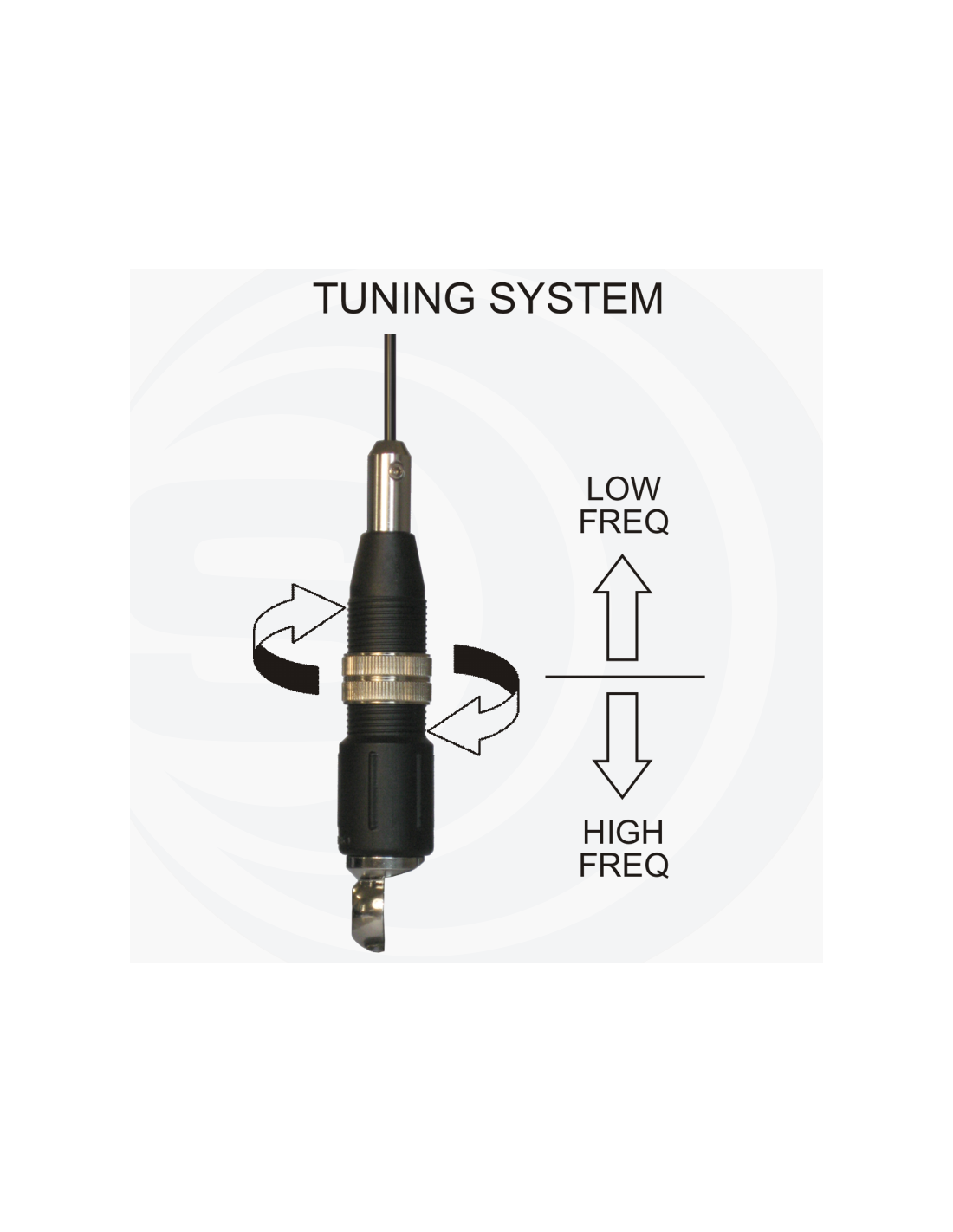

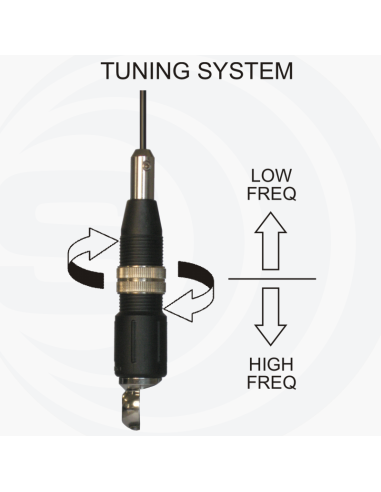

26.5 … 27.4 MHz Tunable /

650 mm

More details

37,00 € tax incl.

More info

Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 26.5 … 27.4 MHz Tunable
Systems: CB 27MHz
Bandwidth:
≥ 1MHz @ SWR ≤ 2
Max Power: 10 Watts (CW) continuous
40 Watts (CW) short time
Cable lenght / type:
4 m (13.12 ft) / RG58 + FME
Connector:
Adaptator FME/PL
Mechanical Data:
Materials: Copper, Brass, Stainless steel, Nylon
Height (approx):
650 mm / 2.13 ft
Weight (approx):
350 gr / 0.77 lb

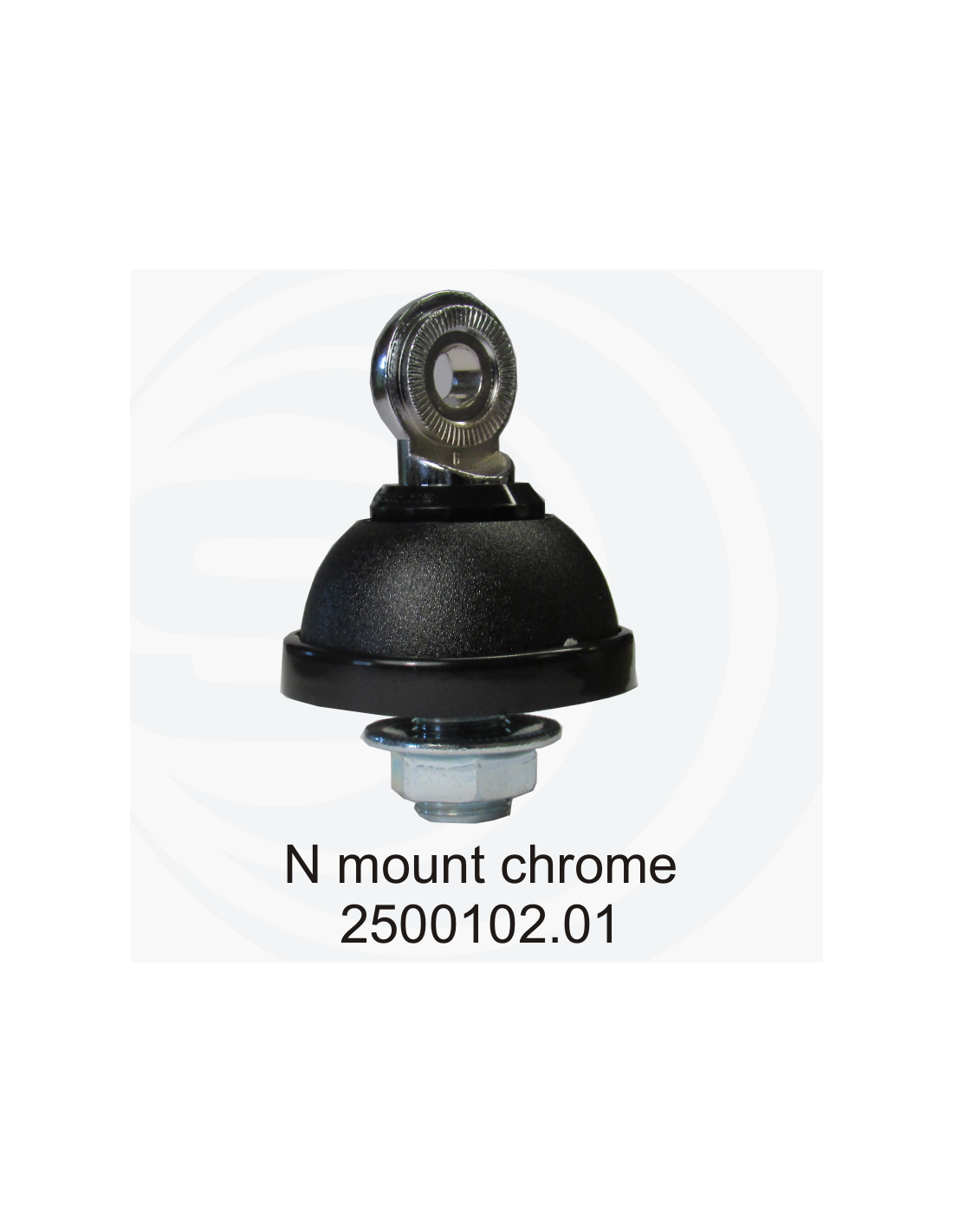

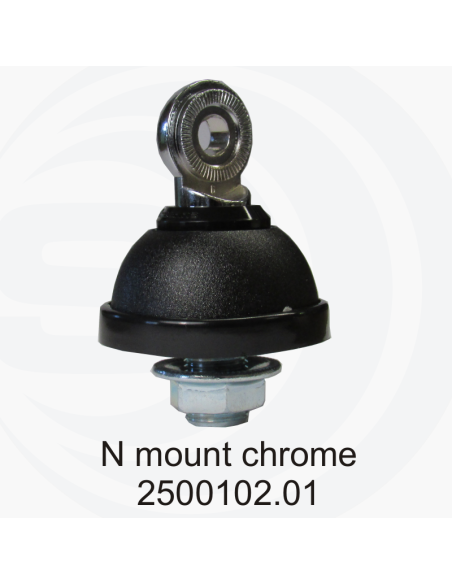

Mounting type:
Thru-Hole
