LPA 380 SIRIO

VS 002090

New product

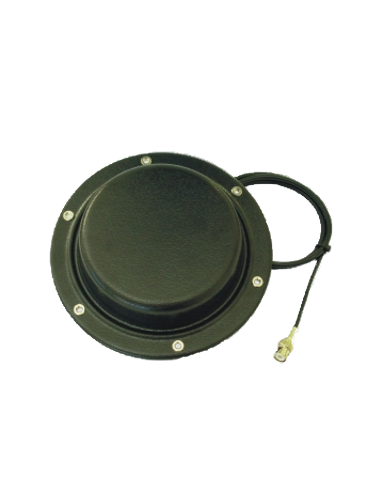

MOBILE ANTENNA

380...430 MHz Tunable /

Low profile dipole /

36 x Ø183 mm

More details

65,00 € tax incl.

More info

Type: Low profile dipole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
380 … 430 MHz Tunable
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM-433MHz
Gain: 2 dBi (0 dB ref. to a λ/4 whip)
Bandwidth:
≥ 9.5MHz @ SWR ≤ 2
Max Power: 100 W (CW)
Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
Cable lenght / type: 1 m (3.28 ft) / RG58
Connector: BNC-male
Mechanical Data:
Materials: Aluminium, Brass, Thermoplastic UV stabilized

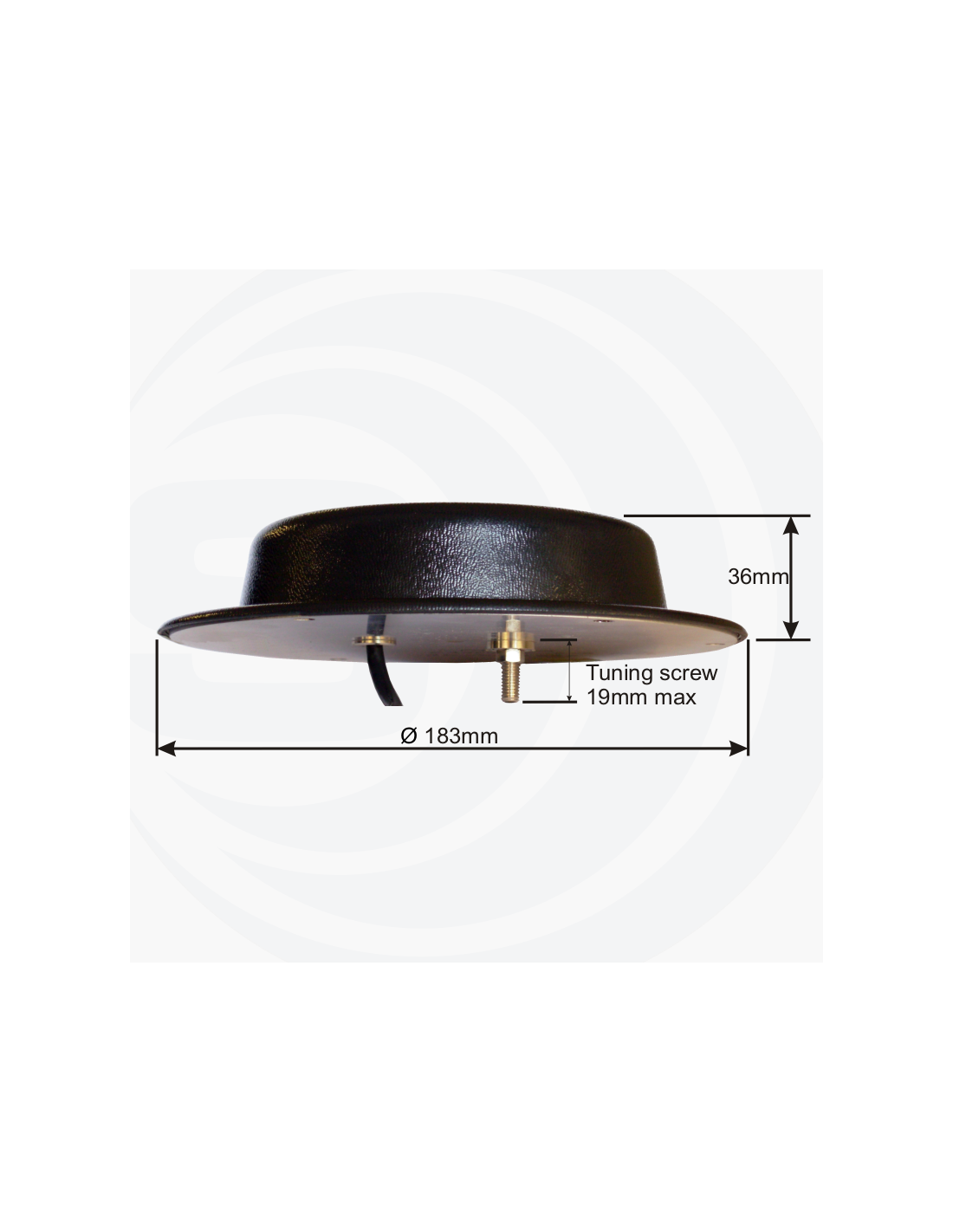

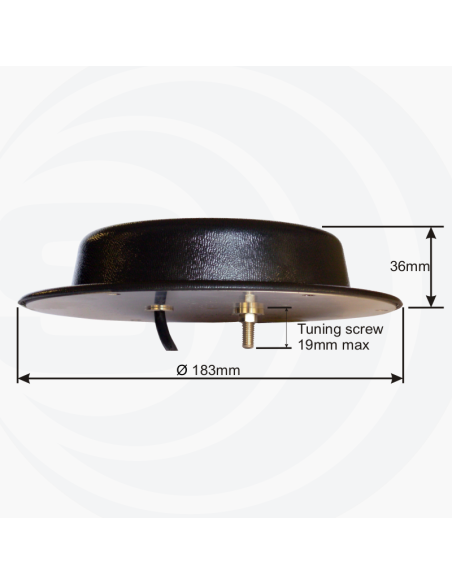

Dimensions (approx): 36 x Ø183 mm / 0.12 x Ø0.6 ft
Weight (approx): 400 gr / 0.88 lb

Download
