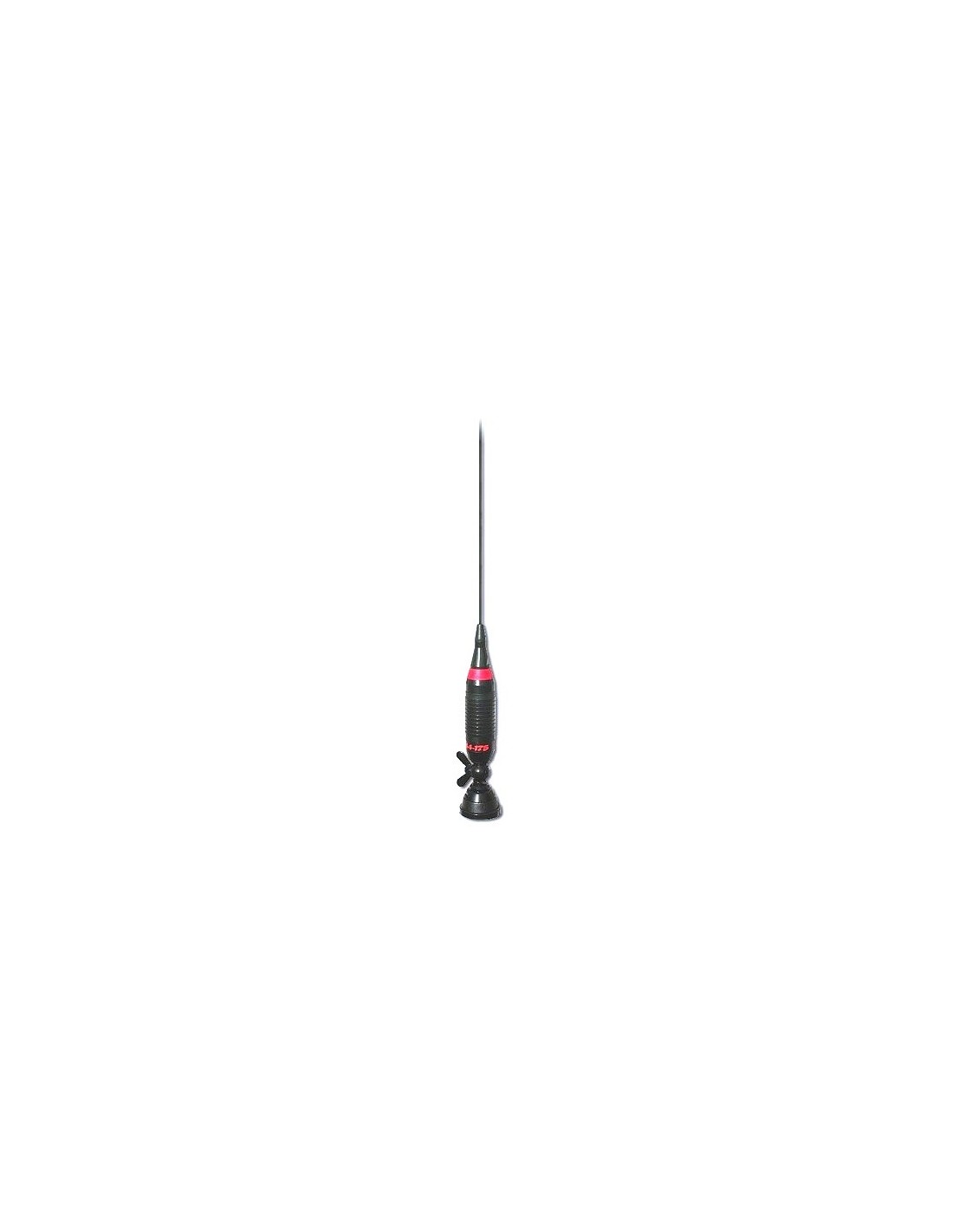

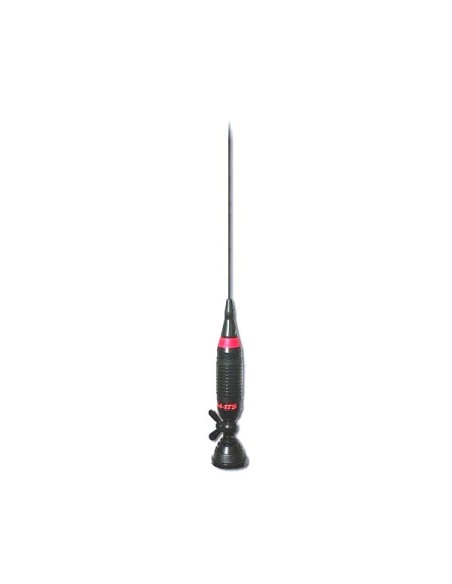

SKA 47-135 SL + FME SIRIO
SKA 47-135 SL + FME SIRIO

SKA 47-135 SL + FME SIRIO

MOBILE ANTENNA

47-63 MHz & 135-175 Mhz /

Mounting SL /

LOW 1/4λ - HIGH 5/8λ /

1505 mm

€35.00 Tax included



Features:

- Mobile antenna, Dual-band, Omnidirectional
- 6m band Unity-gain, 2m band Low-gain
- Tunable by whip cutting
- Protection from static discharges DC-Ground
- 17/7 PH tapered stainless steel whip
- 90° inclination and adjustable whip, detachable for car-washes access
- Magnetic mount version available
-





Electrical Data
-
Type:   1/4 λ base loaded for 6m band
  5/8 λ for 2m band
-
Frequency range: tunable 47...63MHz & 135...175 MHz
-
Impedance: 50Ω
-
Radiation (H-plane): 360° omnidirectional
-
Polarization: linear vertical
-
Gain:   0 dB ref. to a λ /4 whip for 45...60MHz band   2 dB ref. to a λ /4 whip for 135...175MHz band
-
Bandwidth @ SWR ≤ 1.5: ≥ 2.5 MHz @ 47MHz, ≥ 3 MHz @ 135 MHz
-
SWR @ res. freq.: ≤ 1.2 both bands
-
Max Power (CW) @ 30°C: 100 Watts
-
Mounting: SL
-
Cable Length / Type: : 5 m / RG 58 + FME

Mechanical Data
- Materials: Stainless Steel 17/7 PH, Brass, Nylon
- Height (approx.): 1505 mm
- Weight (approx.): 540 gr
