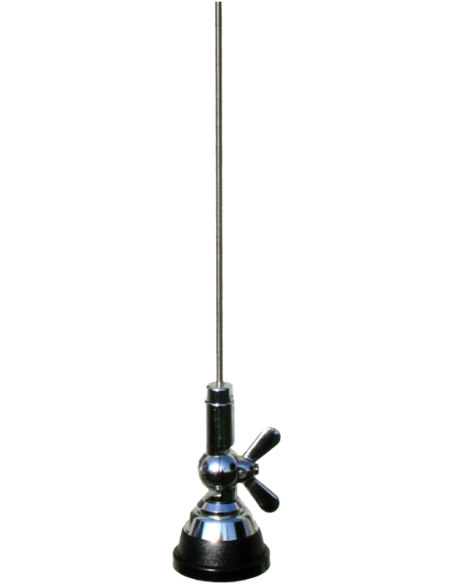

SMA 108-550 SL SIRIO

VS 000948

New product

MOBILE ANTENNA

108…550 MHz Tunable /

Mounting SL /

1/4λ /

720 mm

More details

26,00 € tax incl.

More info

Type: 1/4 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
108 … 550 MHz Tunable
Systems: 2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, CDMA-450, LTE-450, FM, ISM-169MHz, VHF-260MHz
Gain: 0 dB ref. to a λ/4 whip
Max Power: 100 W (CW)
Cable lenght / type: 5 m (16.4 ft) / RG58
Connector: Not supplied
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
720 mm / 2.36 ft
Weight (approx): 400 gr / 0.88 lb

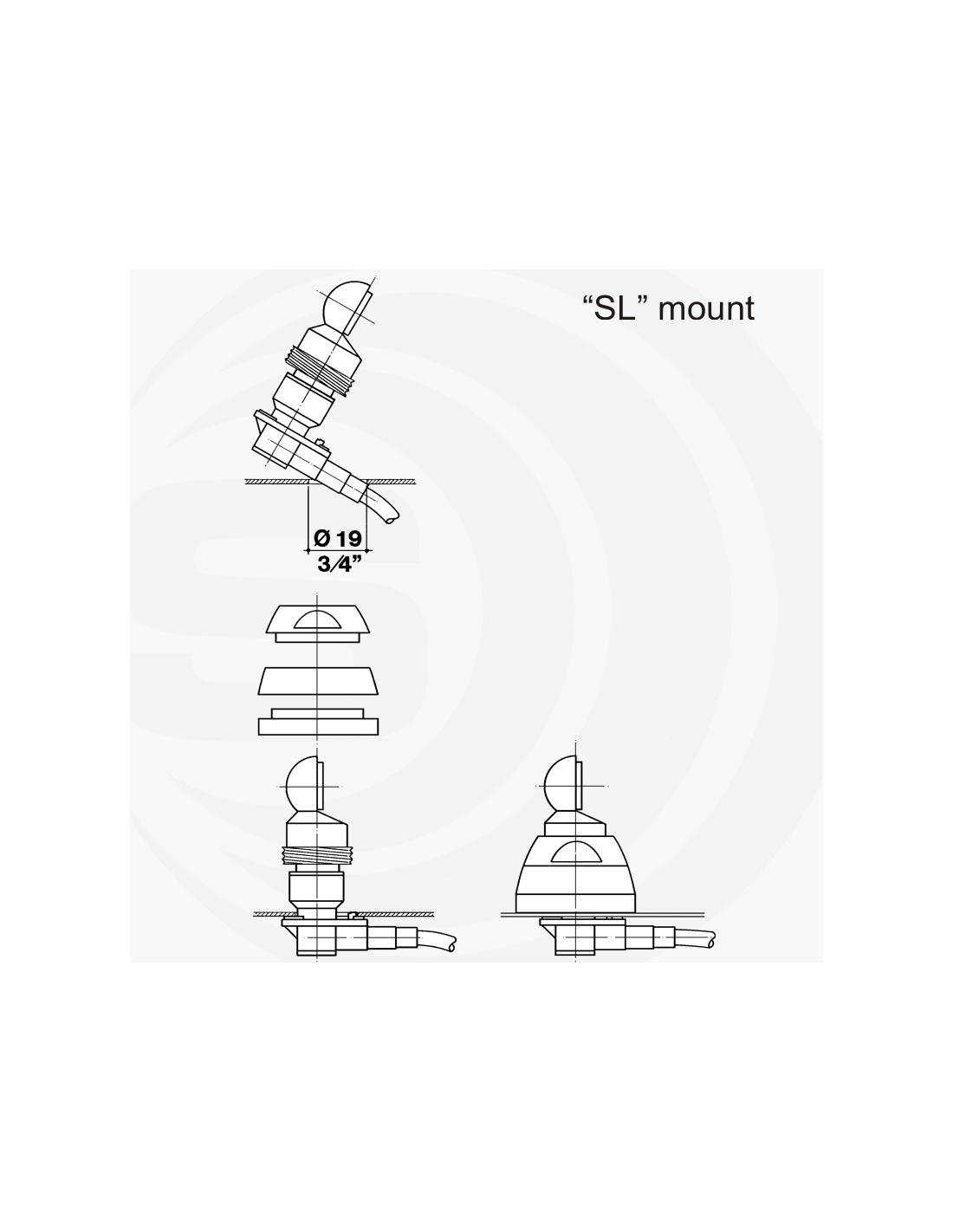

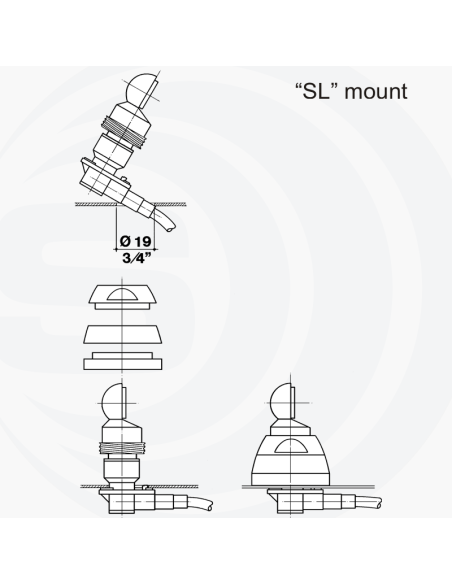

Mounting type: Thru-Hole mounting SL
