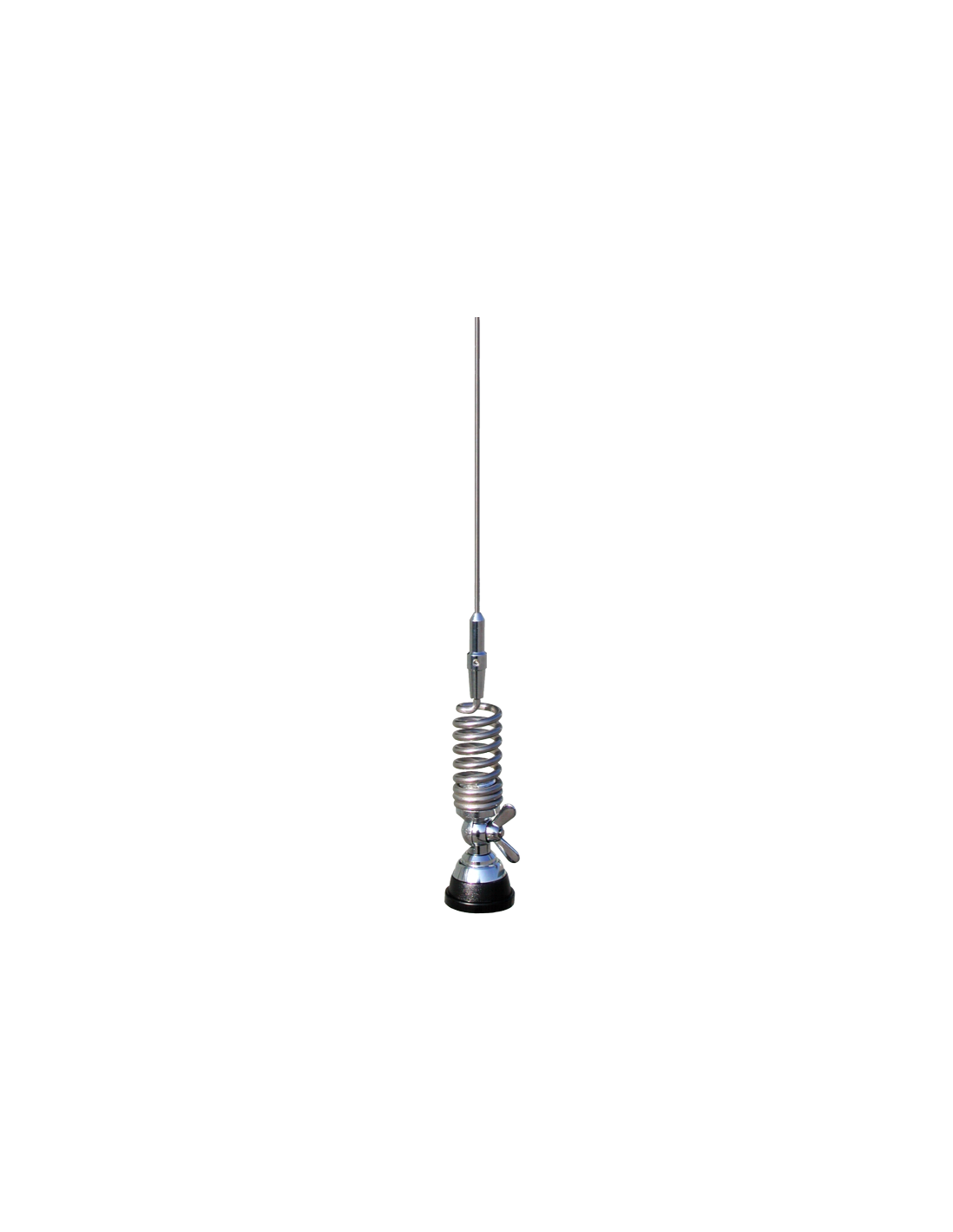

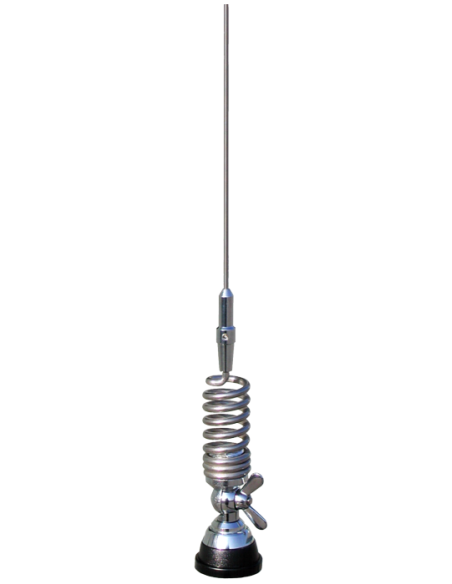

SMA 47-135 S + FME SIRIO

VS 000930

New product

MOBILE ANTENNA

46.5…61.5 MHz & 135…175 MHz Tunable /

Mounting S /

LOW 1/4λ - HIGH 5/8λ /

1505 mm

More details

47,00 € tax incl.

More info

Type: LOW-VHF: 1/4 λ  HIGH-VHF: 5/8 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
46.5 … 61.5 MHz & 135 … 175 MHz Tunable
Systems: 6m-HAM, 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: LOW-VHF: 0 dB ref. to a λ/4 whip
HIGH-VHF: 2 dB ref. to a λ/4 whip
Max Power: 100 W (CW)
Cable lenght / type: 5 m (16.4 ft) / RG58 + FME
Connector: Not supplied
Mechanical Data:
Materials: Chromed brass, Stainless steel, Stainless Steel 17/7 PH, Fiberglass, Nylon
Height (approx):
1505 mm / 4.94 ft
Weight (approx): 550 gr / 1.21 lb

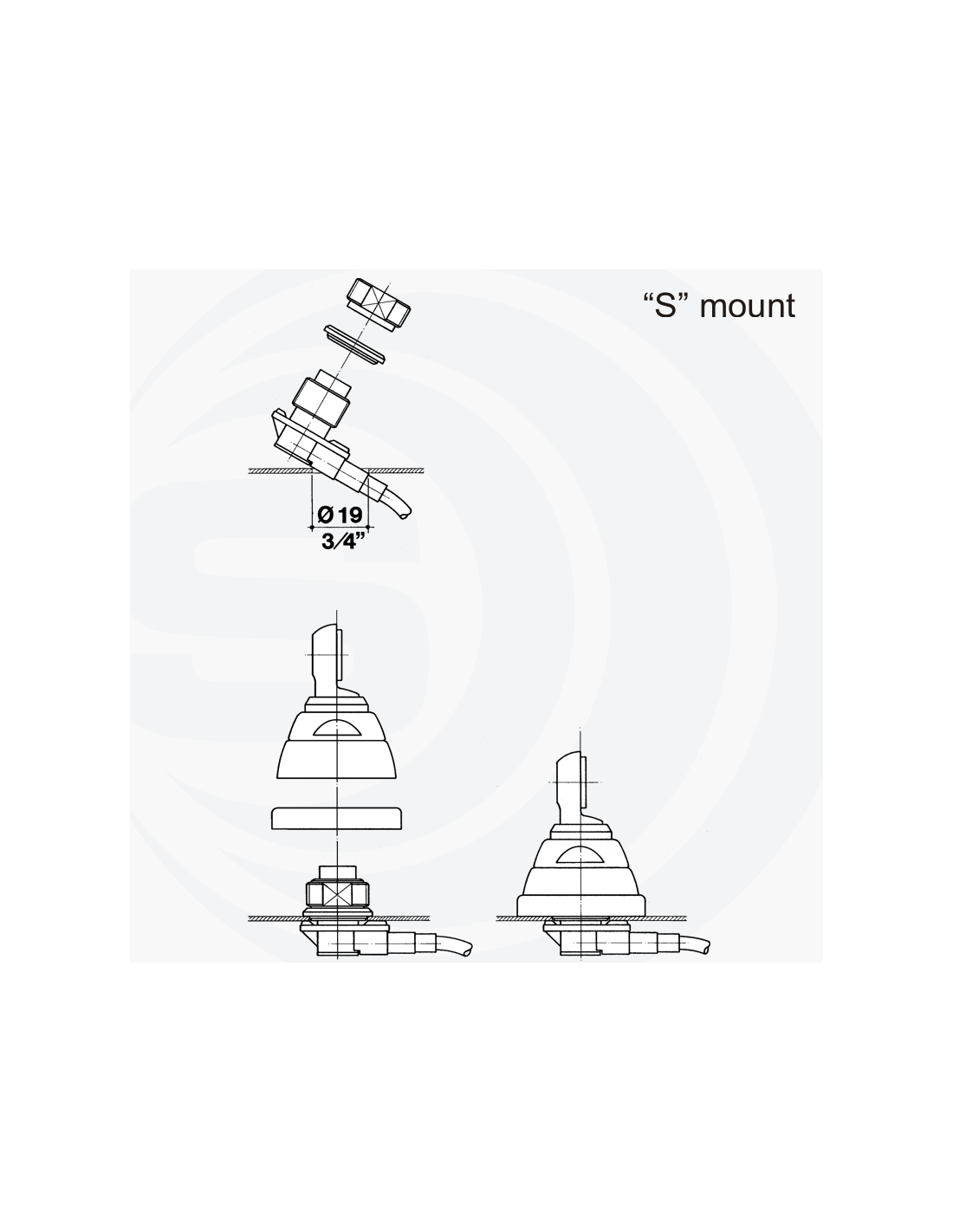

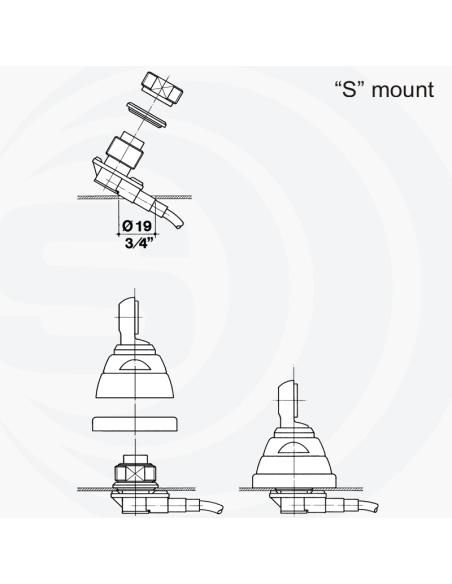

Mounting type: Thru-Hole - S type
