SMA 47-135 SL + FME SIRIO

Reference: VS 000935

Condition: New product

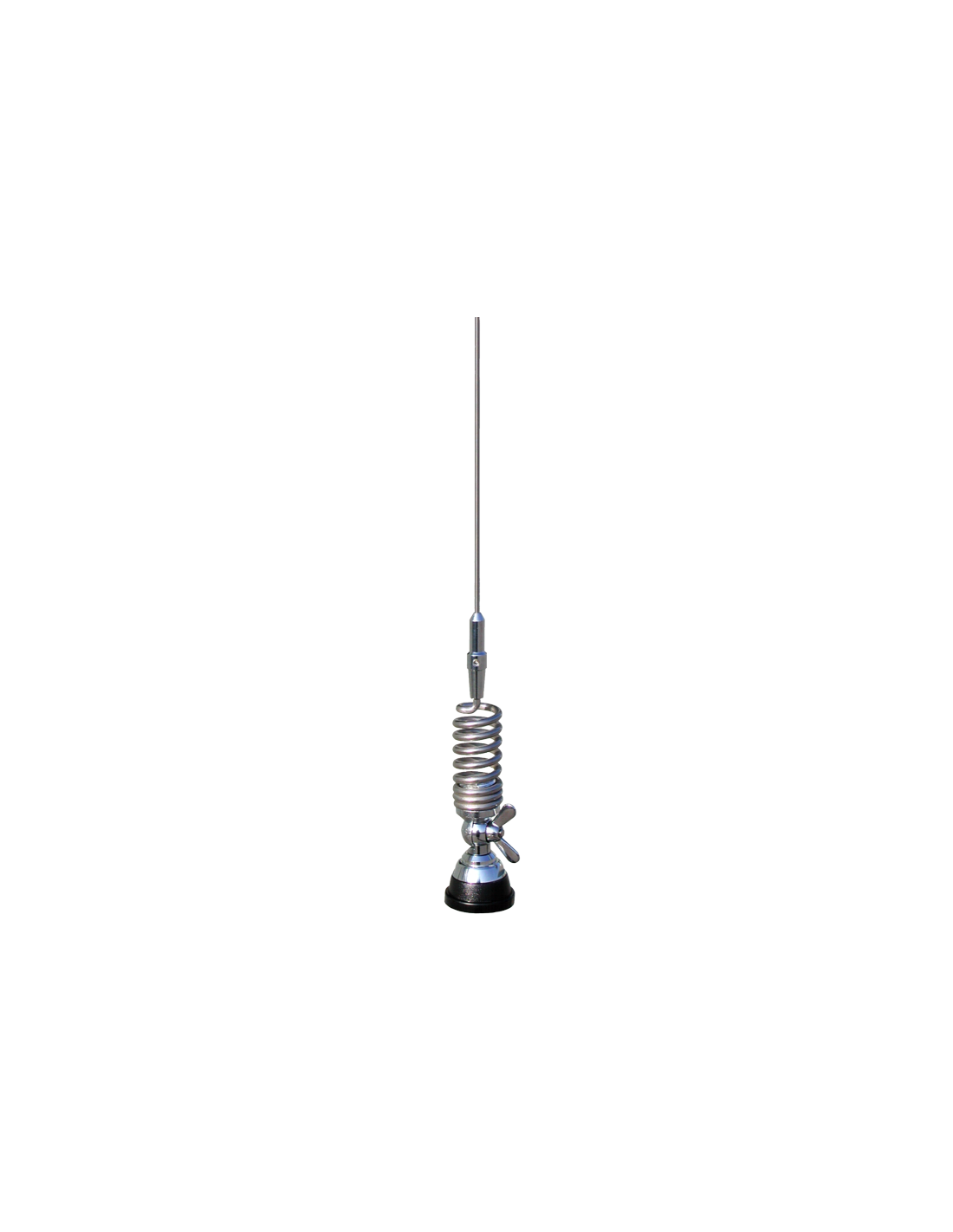

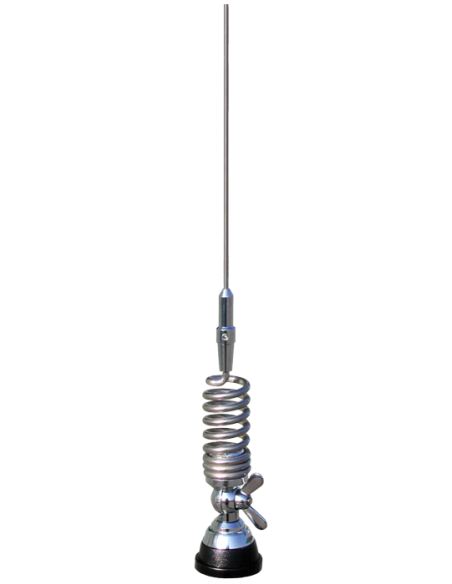

MOBILE ANTENNA

46.5…61.5 MHz & 135…175 MHz Tunable /

Mounting SL /

LOW 1/4λ - HIGH 5/8λ /

1505 mm

More details

Type:	LOW-VHF: 1/4 λ HIGH-VHF: 5/8 λ
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	46.5 … 61.5 MHz & 135 … 175 MHz Tunable
Systems:	6m-HAM, 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain:	LOW-VHF: 0 dB ref. to a λ/4 whip HIGH-VHF: 2 dB ref. to a λ/4 whip
Max Power:	100 W (CW)
Cable lenght / type:	5 m (16.4 ft) / RG58 + FME
Connector:	Not supplied

Mechanical Data:

Materials:	Chromed brass, Stainless steel, Stainless Steel 17/7 PH, Fiberglass, Nylon
Height (approx):	1505 mm / 4.94 ft
Weight (approx):	550 gr / 1.21 lb

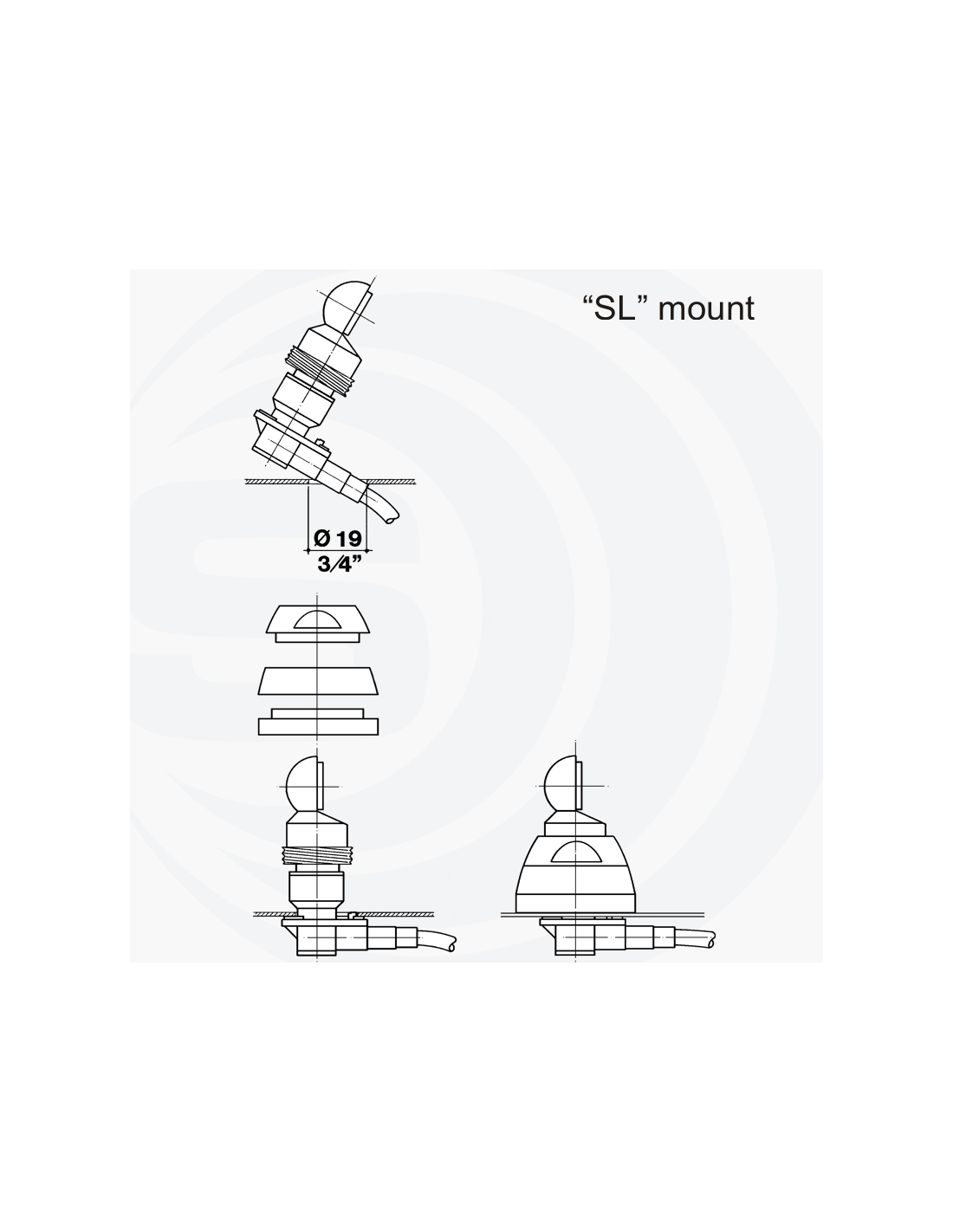

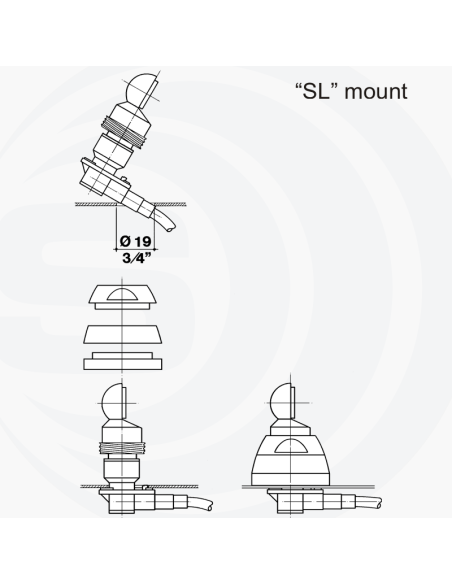

Mounting type:	Thru-Hole - SL mount
