> >>>>SKB 108-960 + FME SIRIO
SKB 108-960 + FME SIRIO View larger

SKB 108-960 + FME SIRIO

VS 000822

New product

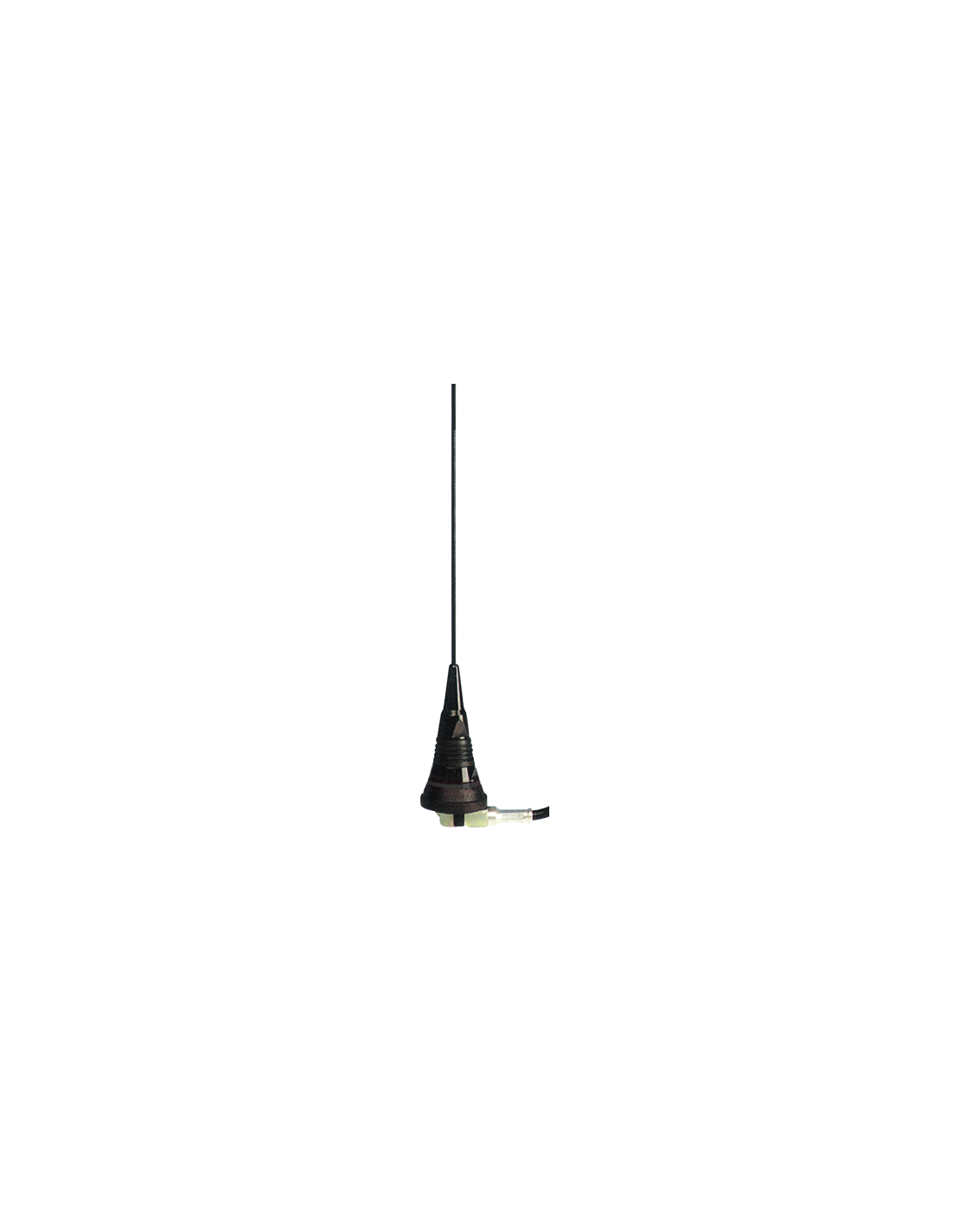

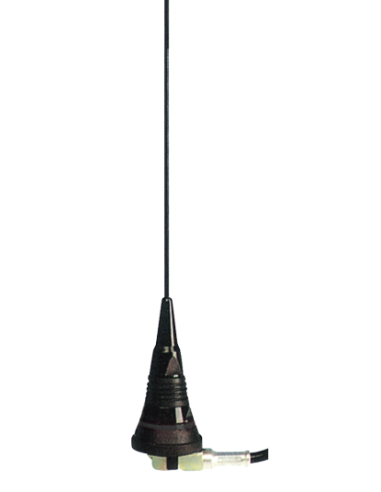

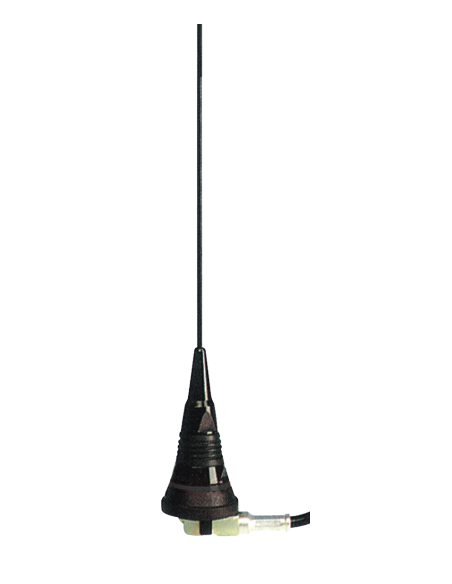

MOBILE ANTENNA 108…960 MHz Tunable /

Mounting ML + FME /
1/4λ /
700 mm

More details

35,00 € tax incl.

More info

Features:

- Up-grade: frequency extended @ 108...960 MHz
- Mobile antenna, Mono-band
- Unity-gain, Omnidirectional
- Tunable by whip cutting
- 17/7 PH stainless steel cylindrical whip
- Rigid whip, detachable for car-washes access
- Magnetic mount version available





Electrical Data
-
Type: 1/4 λ Mobile Antenna
-
Frequency range: tunable 108...960 MHz
-
Impedance: 50Ω
-
Radiation (H-plane): 360° omnidirectional
-
Polarization: linear vertical
-
Gain: 0 dB ref. to a λ /4 whip
-
Bandwidth @ SWR ≤ 2: see diagram
-
SWR @ res. freq.: see diagram
-
Max. Power (CW) @ 30°C: 100 Watts
-
Standard Mount: "ML"
-
Cable lenght / Type : 5 m / RG 58 + FME

Mechanical Data
-
Materials: Stainless Steel 17/7 PH, Chromed Brass, Nylon
-
Height (approx.): 700 mm
-
Weight (approx.): 280 gr
-

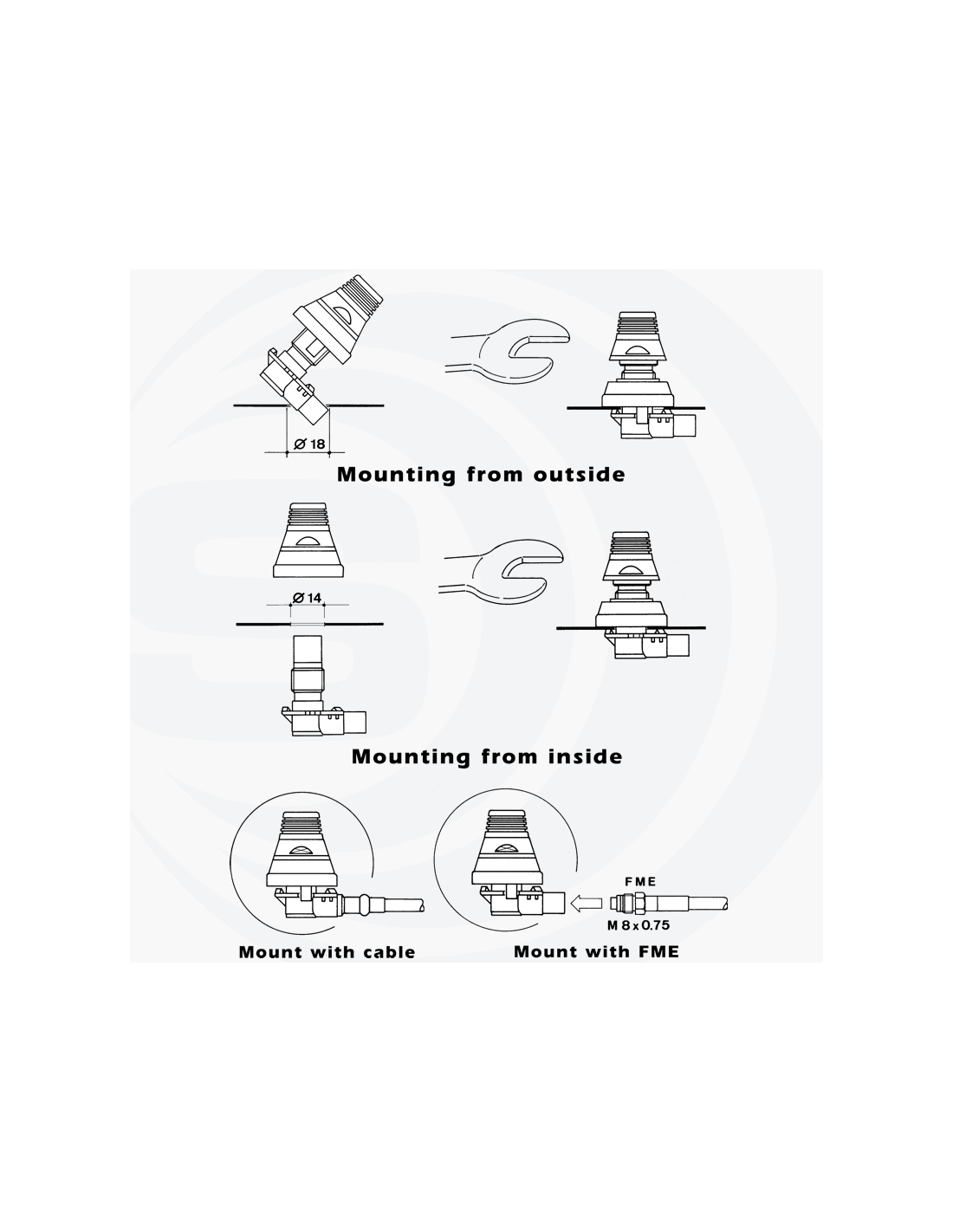

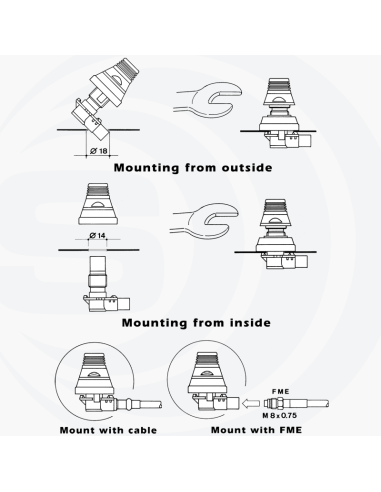

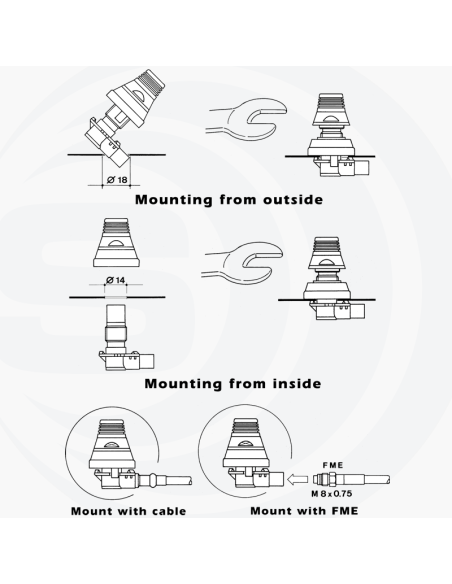

Mounting Hole: Ø 14 or 18 mm
