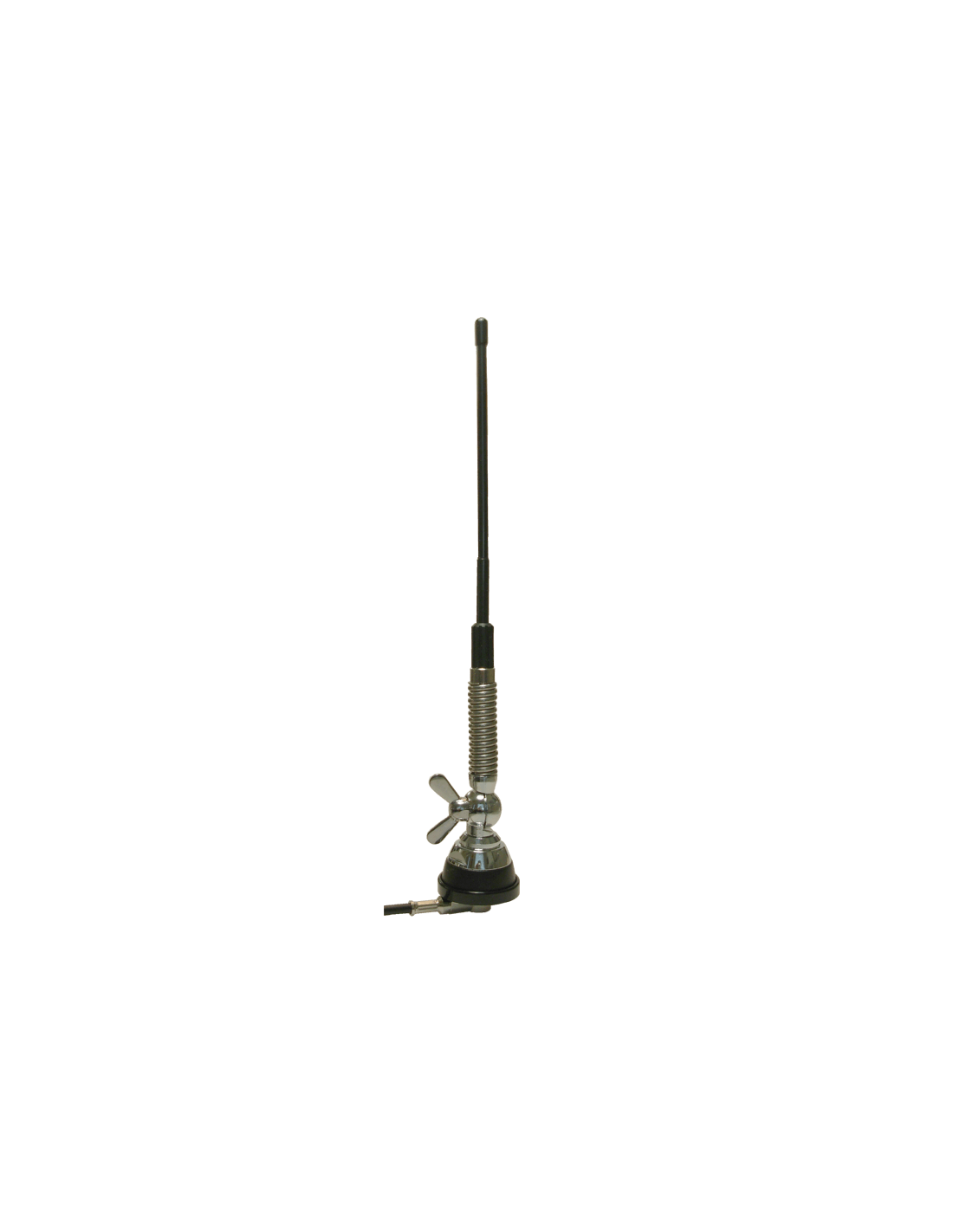

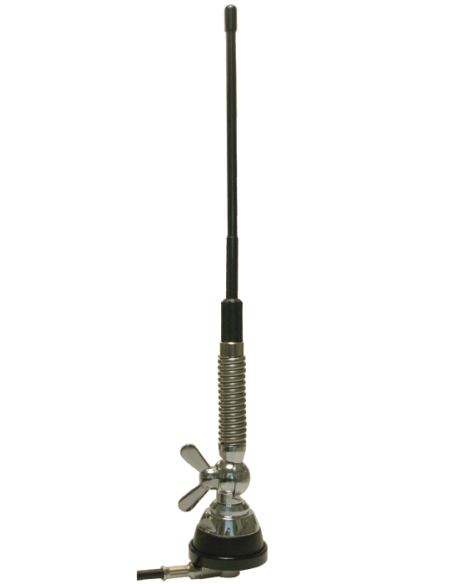

T-VHF 163-173 SIRIO
MOBILE ANTENNA
163…173 MHz /
Mounting S /
1/4λ /
330 mm
- no tuning required -
Electrical Data: |
|
|---|---|
| Type: | 1/4 λ |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 163–173 MHz No tuning required |
| Systems: | ISM-169MHz |
| Gain: | 0 dB ref. to a λ/4 whip |
| Max Power: | 25 W (CW) |
| Cable lenght / type: | 5 m (16.4 ft) / RG58 |
| Connector: | Not supplied |
Mechanical Data: |
|
|---|---|
| Materials: | Copper, Chromed brass, Stainless steel, Fiberglass |
| Height (approx): | 330 mm / 1.08 ft |
| Weight (approx): | 400 gr / 0.88 lb |

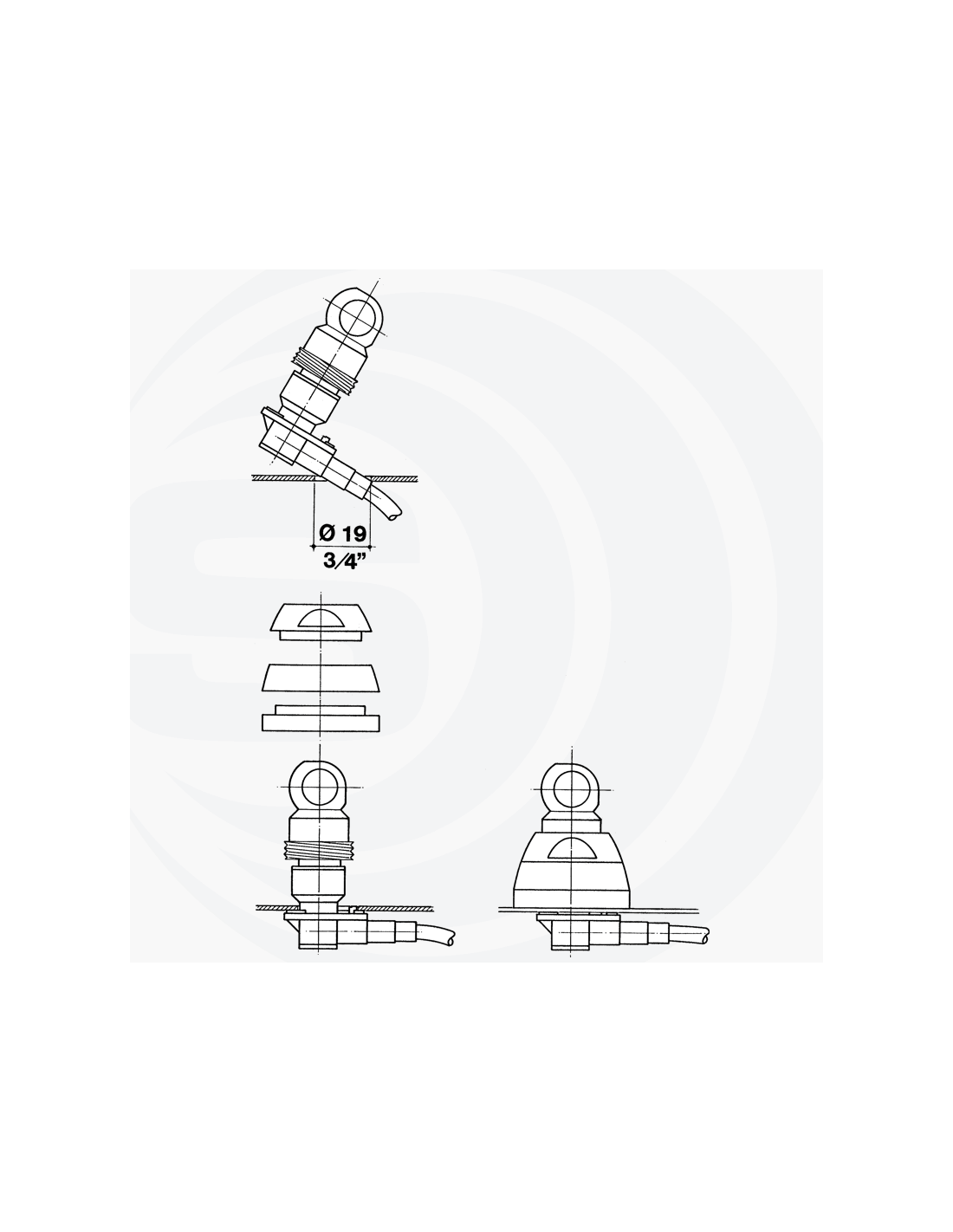

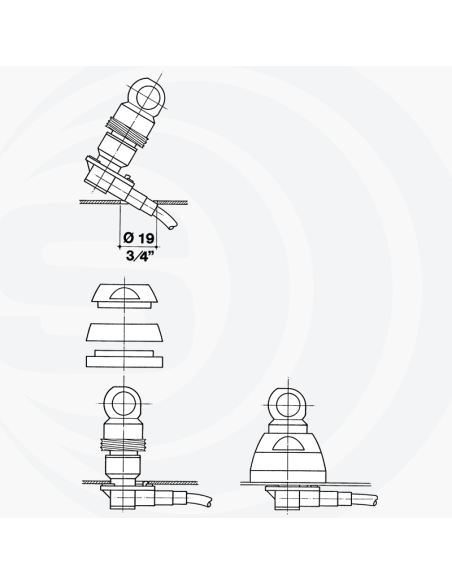

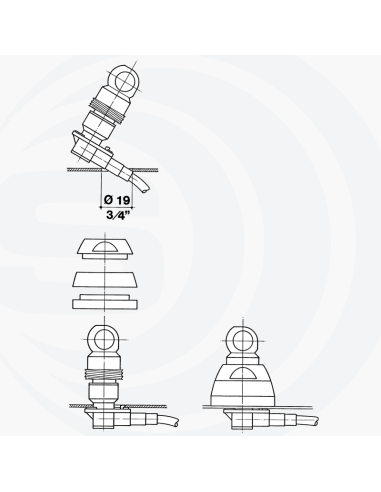

| Mounting type: | Thru-Hole |
