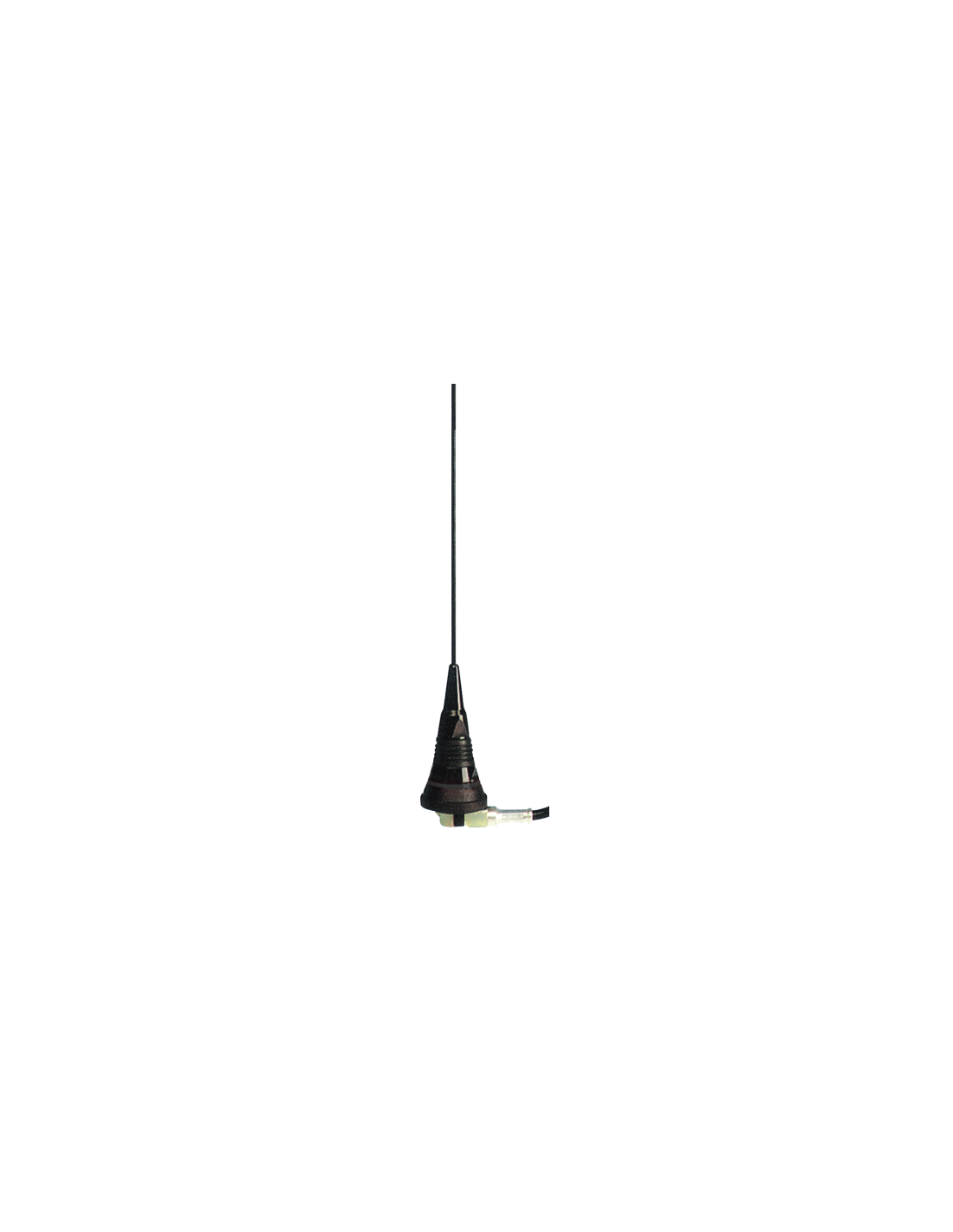

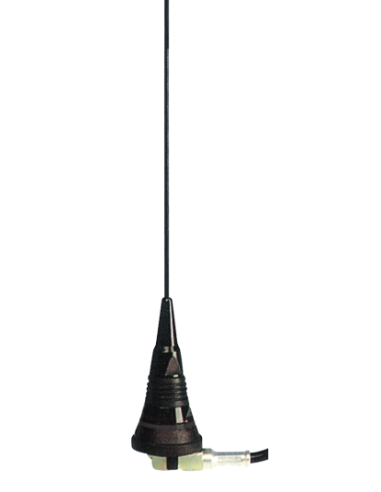

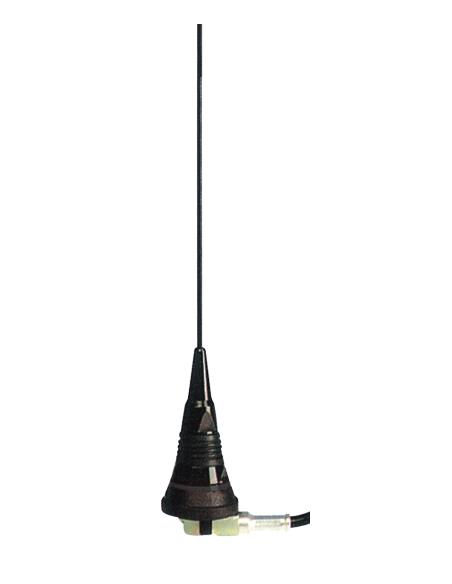

SKB 108-960 SIRIO

Reference: VS 000820

Condition: New product

MOBILE ANTENNA

108…960 MHz Tunable /

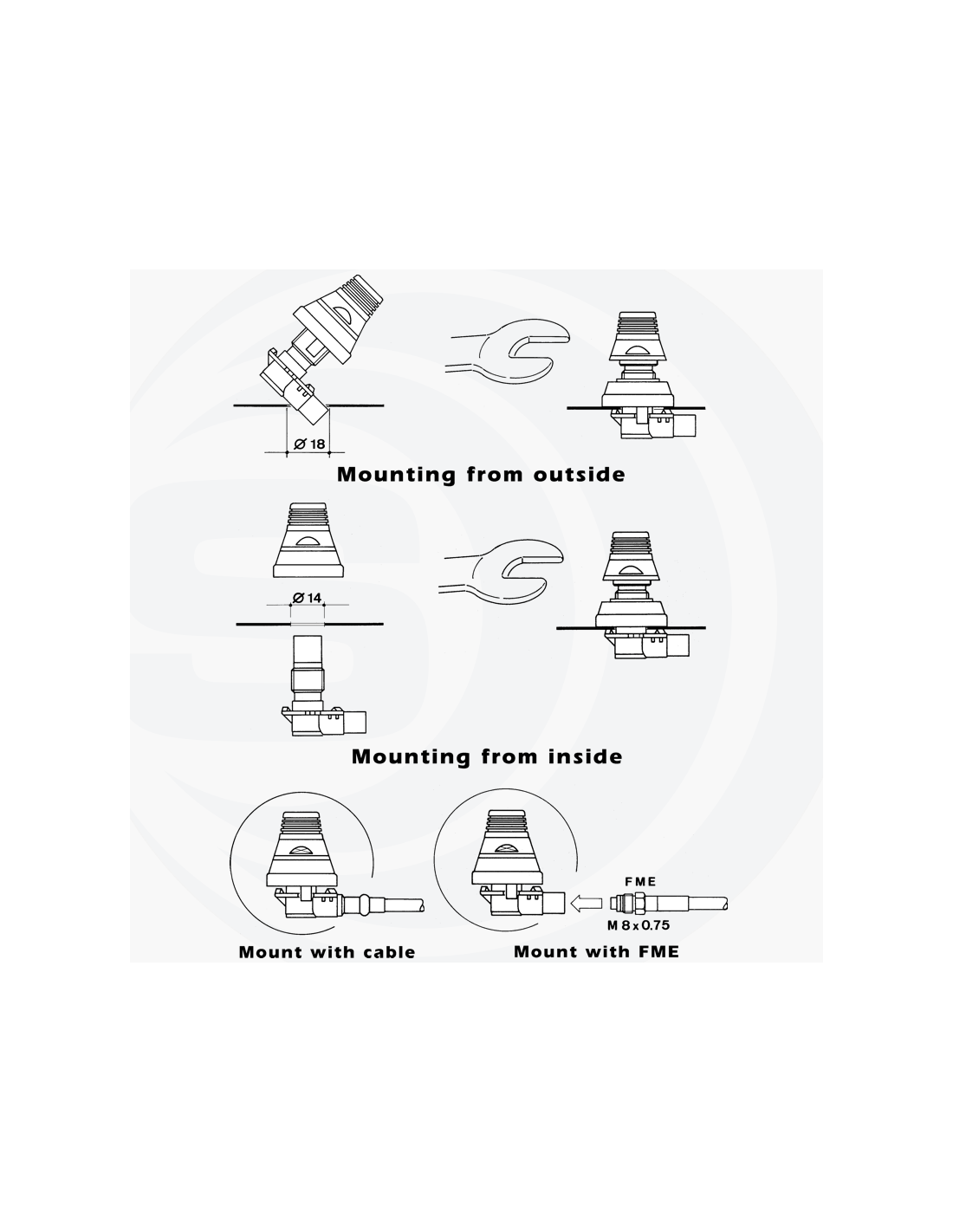

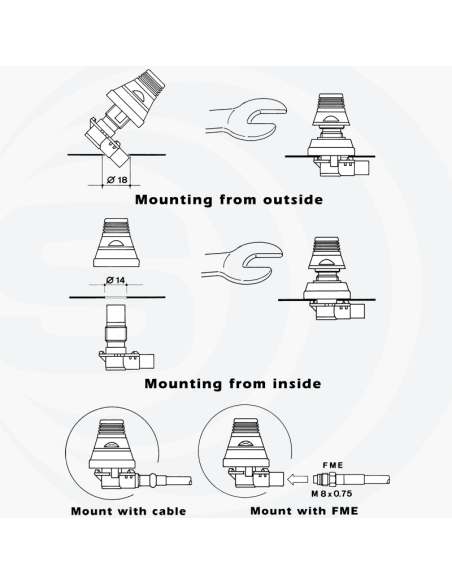

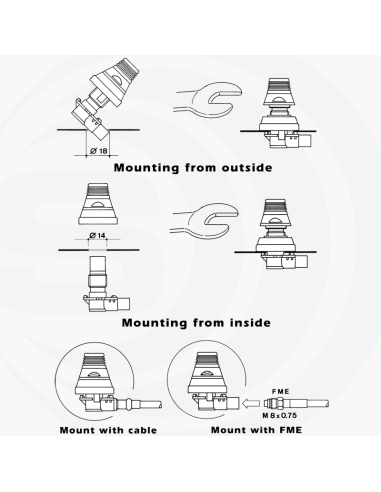

Mounting ML /

1/4λ /

700 mm

More details

Type:	1/4 λ
Radiation:	Omnidirectional
Frequency range:	108 … 960 MHz Tunable
Systems:	2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, CDMA-450, LTE-450, GSM-R, GSM-900, ISM-169MHz, ISM-868MHz, ISM-915MHz
Gain:	0 dB ref. to a λ/4 whip
Max Power:	108 - 550 MHz: 100W (CW) 550 - 960 MHz: 30W (CW)
Cable lenght / type:	5 m (16.4 ft) / RG58

Mechanical Data:

Materials:	Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	700 mm / 2.3 ft
Weight (approx):	280 gr / 0.62 lb
