TRIFLEX 27 / AM-FM / GSM 900 + CABLES SIRIO

Reference: VS 001065

Condition: New product

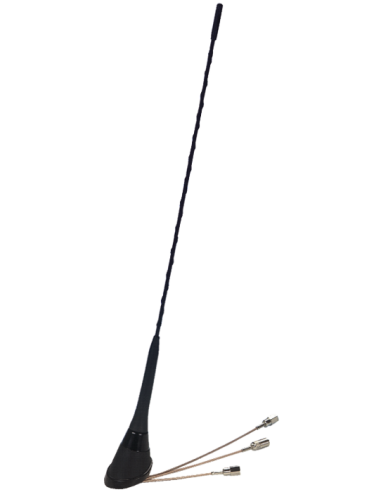

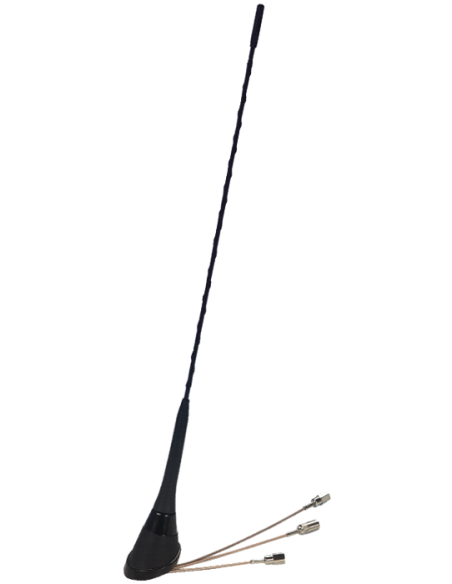

MOBILE ANTENNA

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Features:

-	CB Mobile antenna, Multi-band

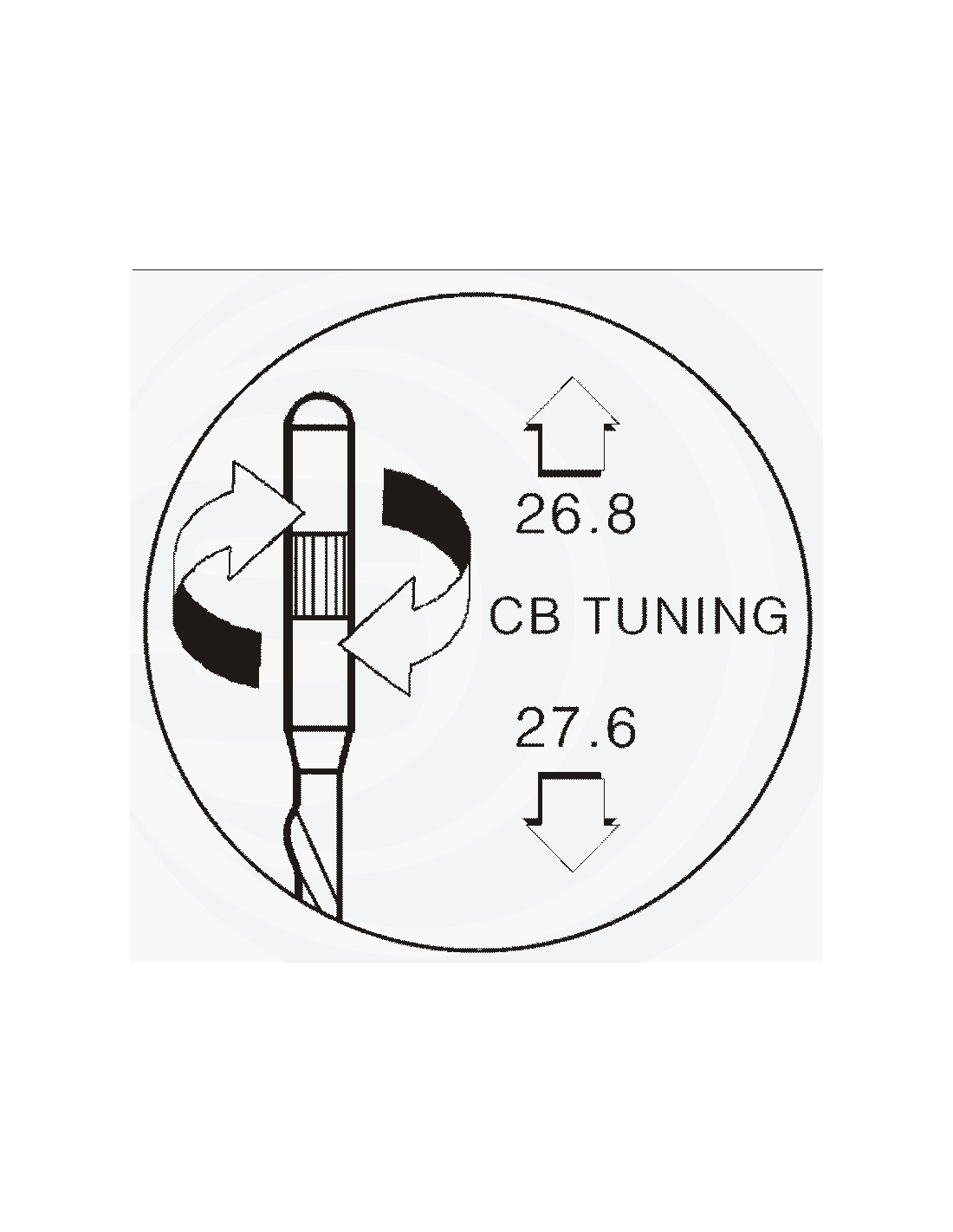

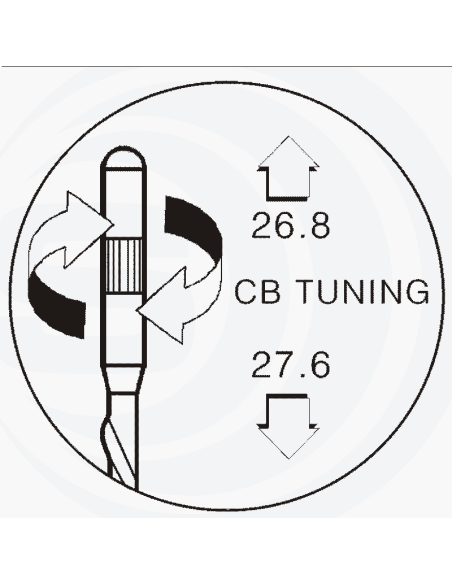

-	CB frequency tunable by rotation of tuning cap

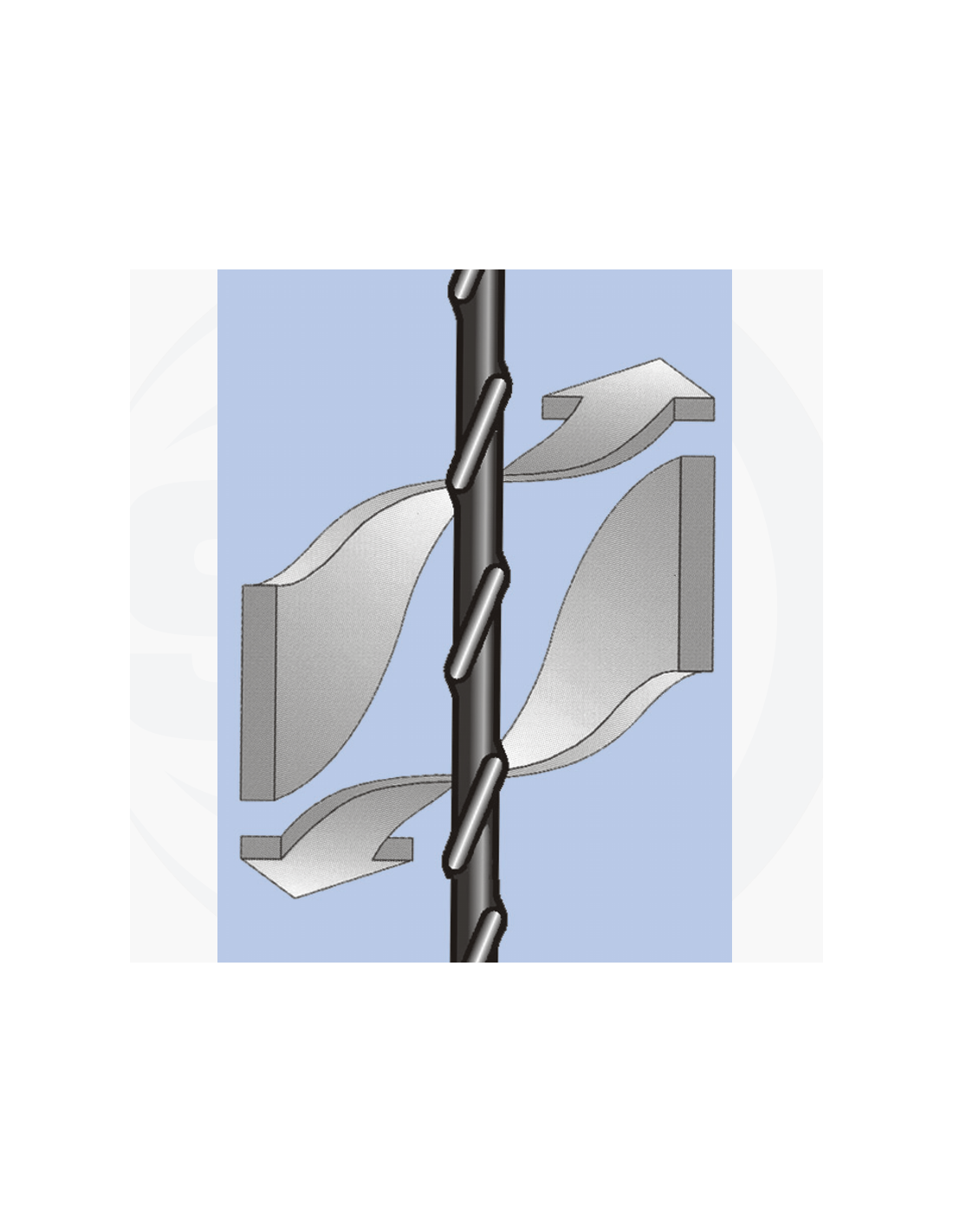

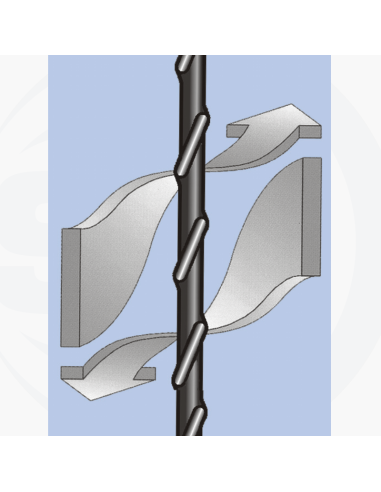

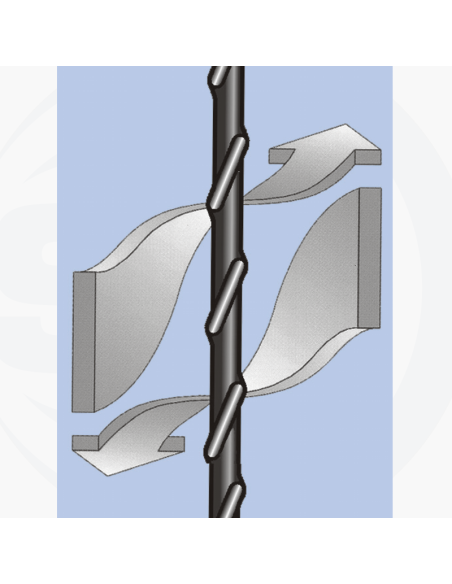

-	Flexible whip, detachable for car-washes access
-	For CB 27 MHz, AM-FM radio and GSM 900 MHz systems

Electrical Data
-	Type: CB 27 MHz band: 1/4 λ central loaded FM band: 1/4 λ helical loaded GSM 900 MHz band: 1/4 λ
-	Frequency range: CB 27 MHz band: tunable 26.8 .. 27.6 MHz by rotation of tuning cap AM-FM band: AM 0.15-1.6 MHz, FM 87.5-108 MHz GSM 900 MHz band: TX-band 880-915 MHz, RX-band 935-960 MHz
-	Impedance: AM-FM band: 150 Ω CB and GSM bands: 50 Ω
-	Polarization: linear vertical
-	Bandwidth @ SWR ≤ 2: CB 27 MHz band: ≥ 440 KHz (40 channel) GSM 900 MHz band: ≥ 100 MHz
-	SWR @ res. freq.: ≤ 1.2
-	Max. power: CB 27 MHz band: 10 Watts GSM 900 MHz band: 20 Watts
-	Cable lenght / Type / Connector: CB 27 MHz band: 215 mm / RG316 / FME-male FM band: 165 mm / RG316 / M10x0.75-male GSM 900 MHz band: 120 mm / RG316 / FME-male

Mechanical Data
-	Materials: Nylon, Chromed Brass, Copper, Aluminum
-	Height (approx.): 500 mm
-	Weight (approx.): 120 gr
-	Mounting hole: Ø 18 mm or square 15mm
-	Mounting depth: 12 mm
