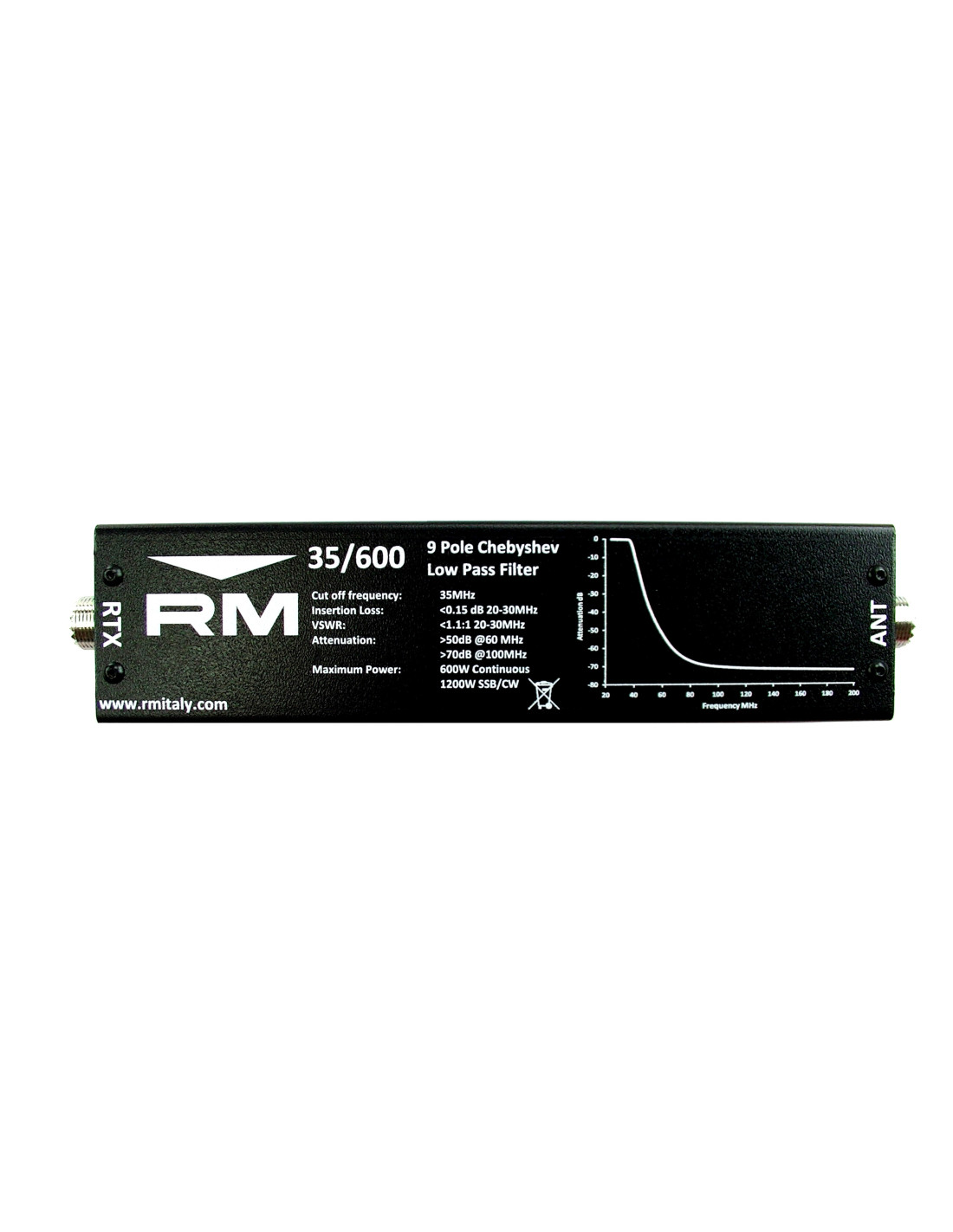

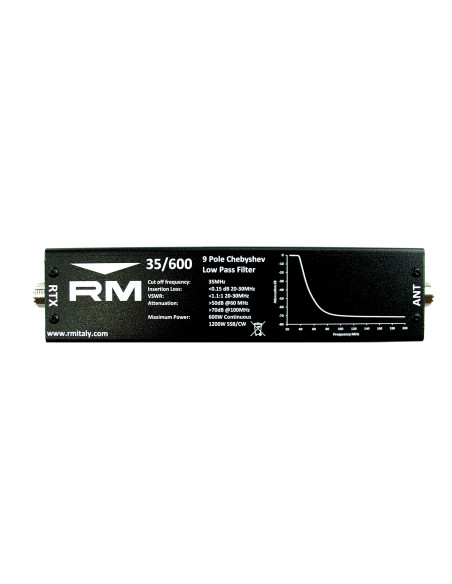

RM 35MHz High Power-Low Pass Filter.

Features / Specifications:

  • 50 Ohm input / Output Impedance

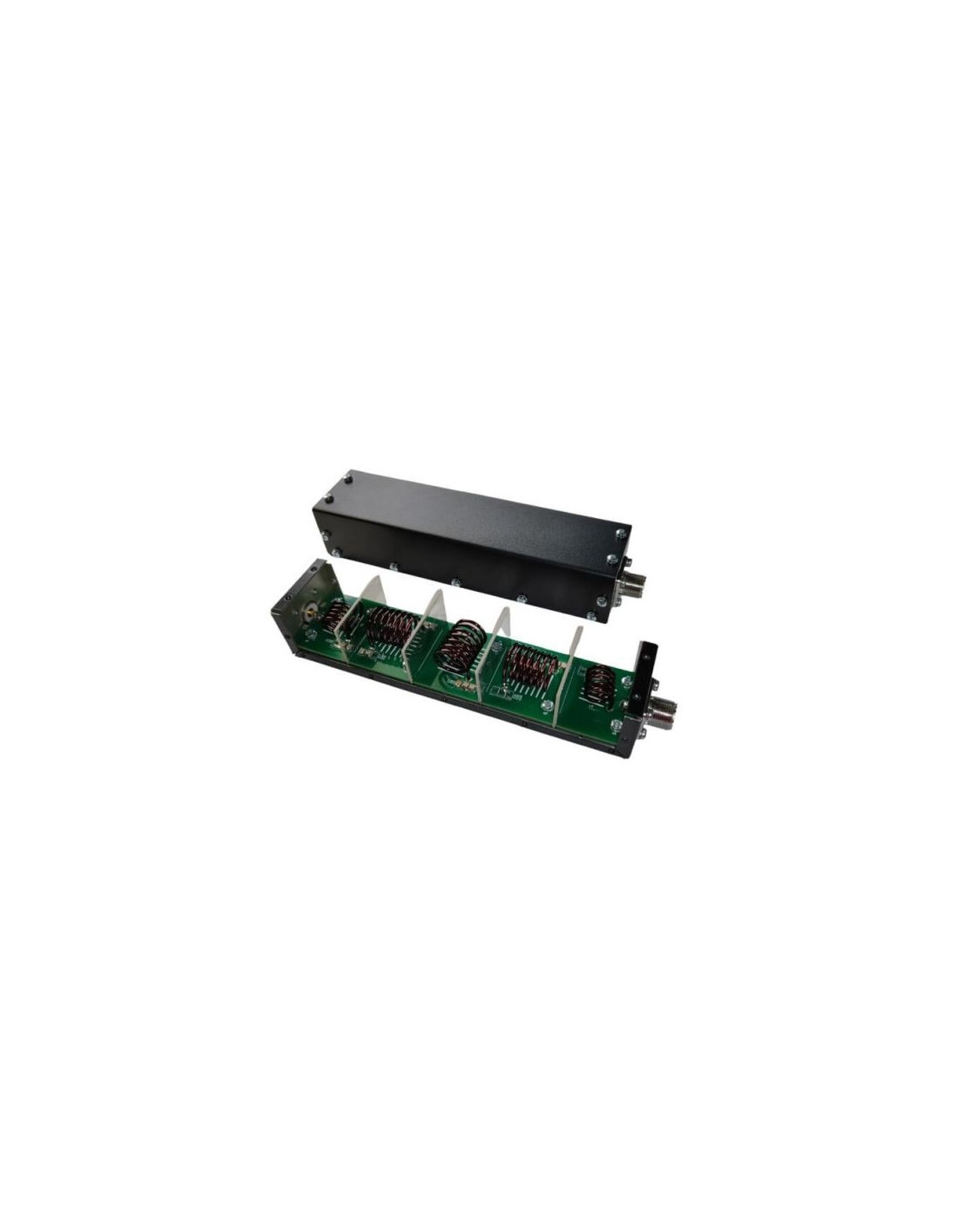

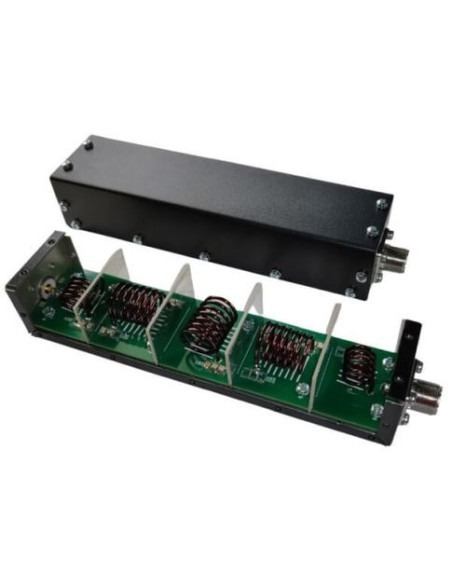

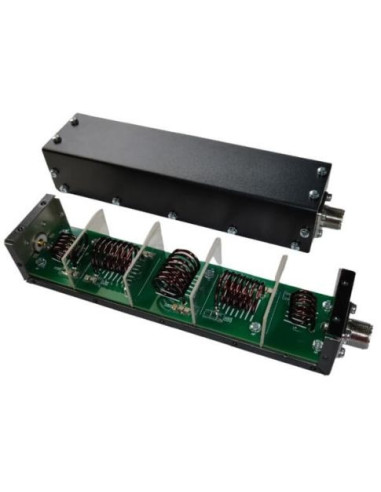

  • 9 pole Chebyshev design
  • Low insertion loss < 0.1dB
  • Low input VSWR <1.15:1
  • Suitable for 12m 11m and 10m bands, Cut off frequency 36MHz
  • Maximum power 600W constant carrier / 1200W SSB
  • Stopband attenuation >50dB@55 MHz >70dB@100MHz

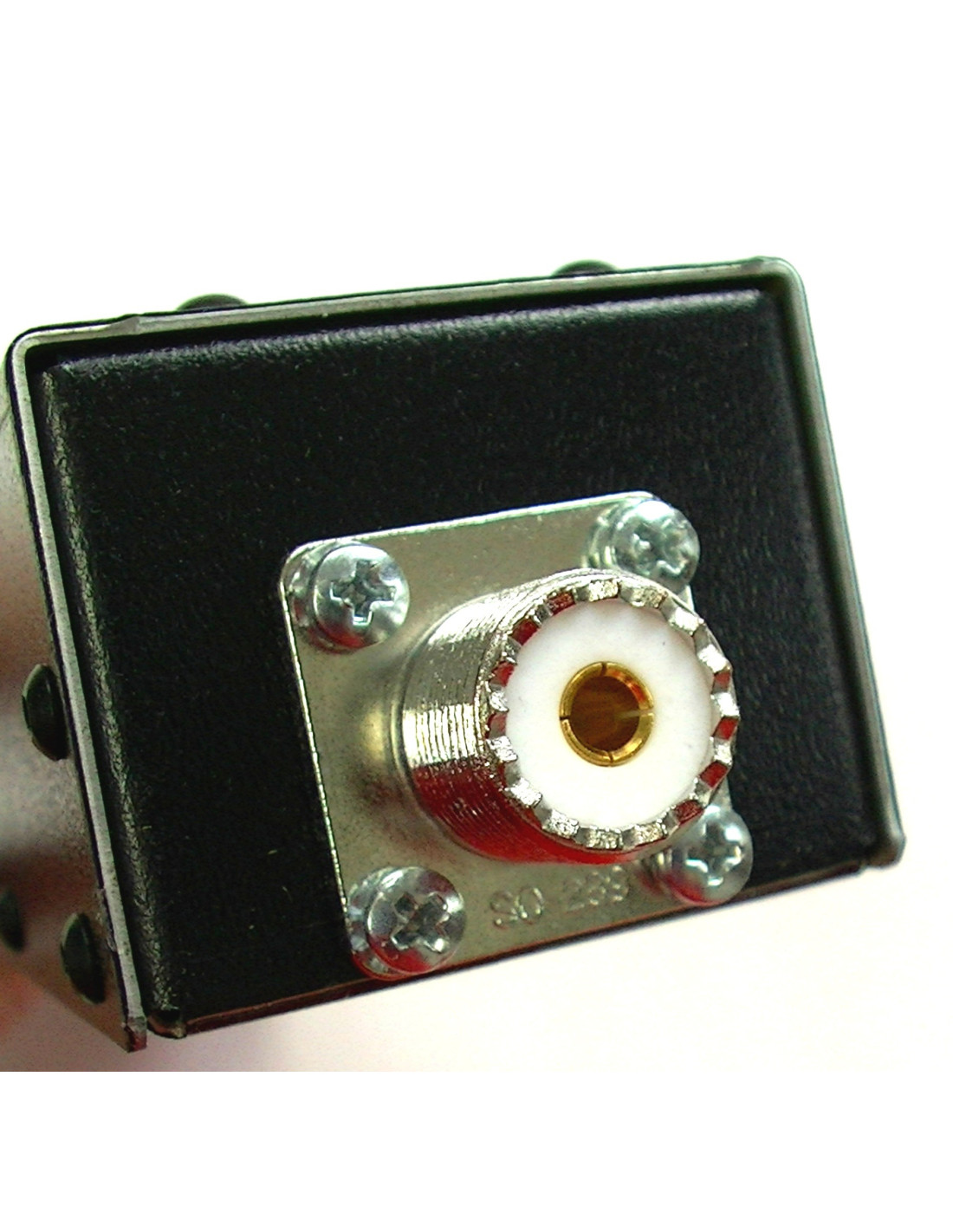

  • SO239 Input and Output connectors with Teflon insulator and gold-plated terminal
  • Dimensions: L 230mm, W 50mm, H 40mm
  • Weight: 480g
