SY 68-3 SIRIO

VS 002070

New product

BASE ANTENNA VHF

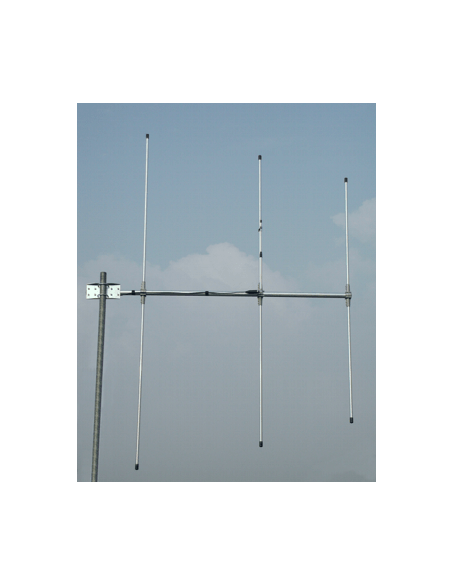

3 elements Yagi

68...78 MHz no tuning required /

4.85 dBd - 7 dBi /

2235 x 1600 mm

More details

118,00 € tax incl.

More info

Electrical Data:
Type: 3 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
68-78 MHz No tuning required
Systems: VHF Low-band (66-88MHz)
Gain: 4.85 dBd – 7 dBi
Max Power: 350 W (CW)
Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Chromed brass, Galvanized steel, Zamak
Dimensions (approx):
2235 x 1600 mm / 7.33 x 5.25 ft
Weight (approx):
3360 gr / 7.41 lb

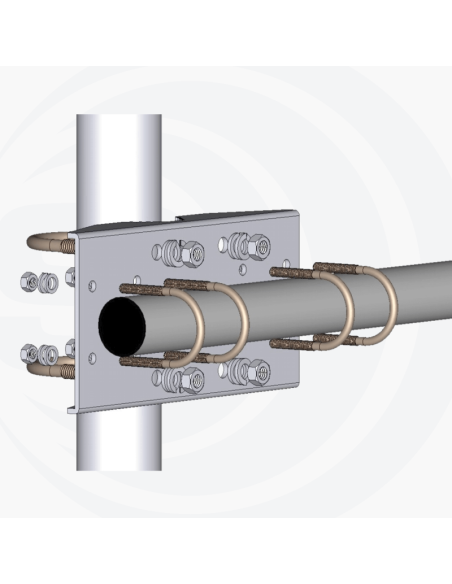

Mounting type: On-Mast
