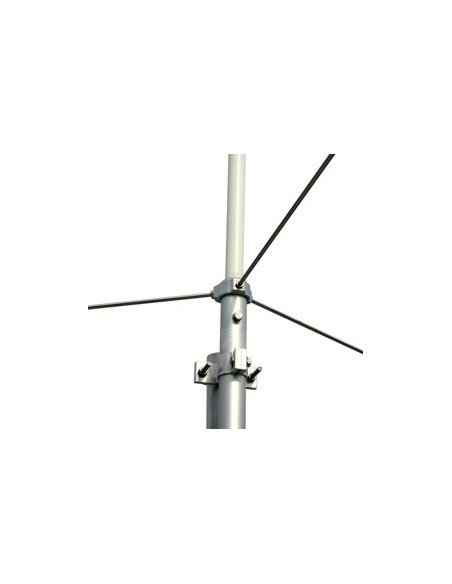

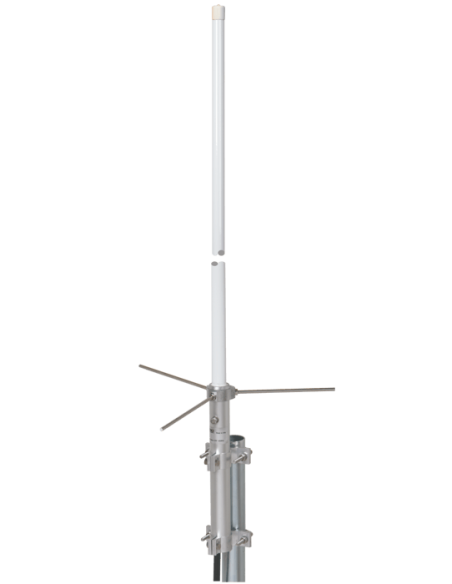

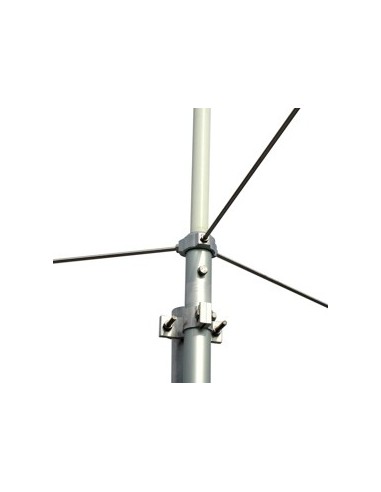

SA 270 MN USA SIRIO
BASE ANTENNA
VHF: 6/8 λ
UHF: 3 x 5/8 λ colinear /
146 & 445 MHz USA ham band/
1720 mm
| Type: | VHF: 6/8 λ UHF: 3 x 5/8 λ colinear |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 146 & 445 MHz USA ham band |
| Systems: | USA ham band |
| Gain: | VHF: 2 dBd – 4.15 dBi UHF: 4.2 dBd – 6.35 dBi |
| Max Power: | 200W |
| Grounding protection: | All metal parts are DC-grounded, the inner conductor is coupled capacitively |

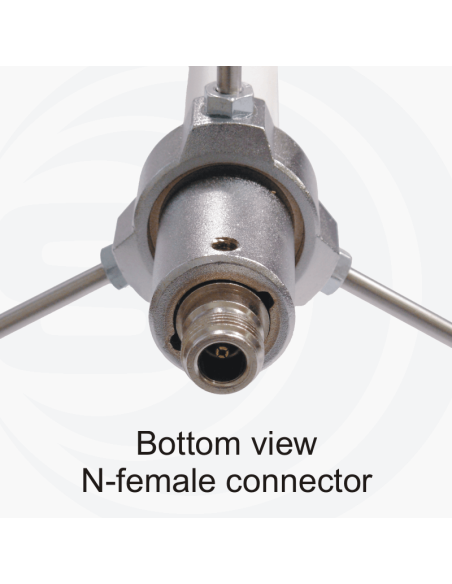

| Connector: | N-female |
Mechanical Data:
| Materials: | Aluminium, Chromed brass, Stainless steel, Fiberglass |
| Height (approx): | 1720 mm / 5.64 ft |
| Weight (approx): | 1030 gr / 2.27 lb |
| Mounting type: | On-Mast |
