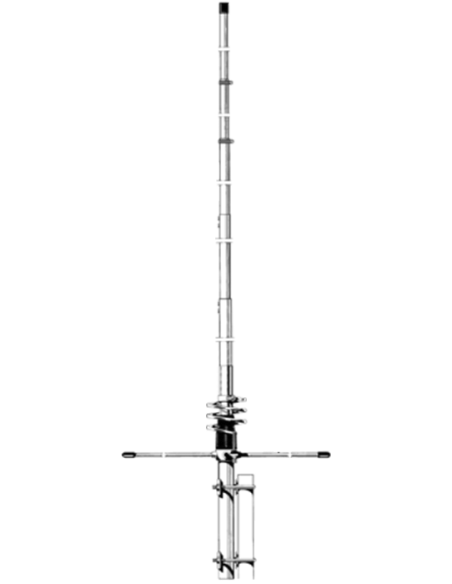

TORNADO 50-60

View larger

TORNADO 42-50 SIRIO

Reference: VS 002245

Condition: New product

BASE ANTENNA VHF

42…50 MHz /

5/8 λ /

4100 mm

- No tuning required -

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Type:	5/8 λ Ground plane
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	42 … 500 MHz No tuning required
Systems:	6m-HAM, AM
Gain:	1.2 dBd – 3.35 dBi
Bandwidth:	≥ 2.7MHz @ SWR ≤ 2
Max Power:	1000 W (CW)
Connector:	UHF-female (SO-239)

Mechanical Data:

Materials:	Aluminium, Brass, Nylon
Height (approx):	5010 mm / 13.45 ft
Weight (approx):	2100 gr / 4.63 lb
Mounting type:	On-Mast
