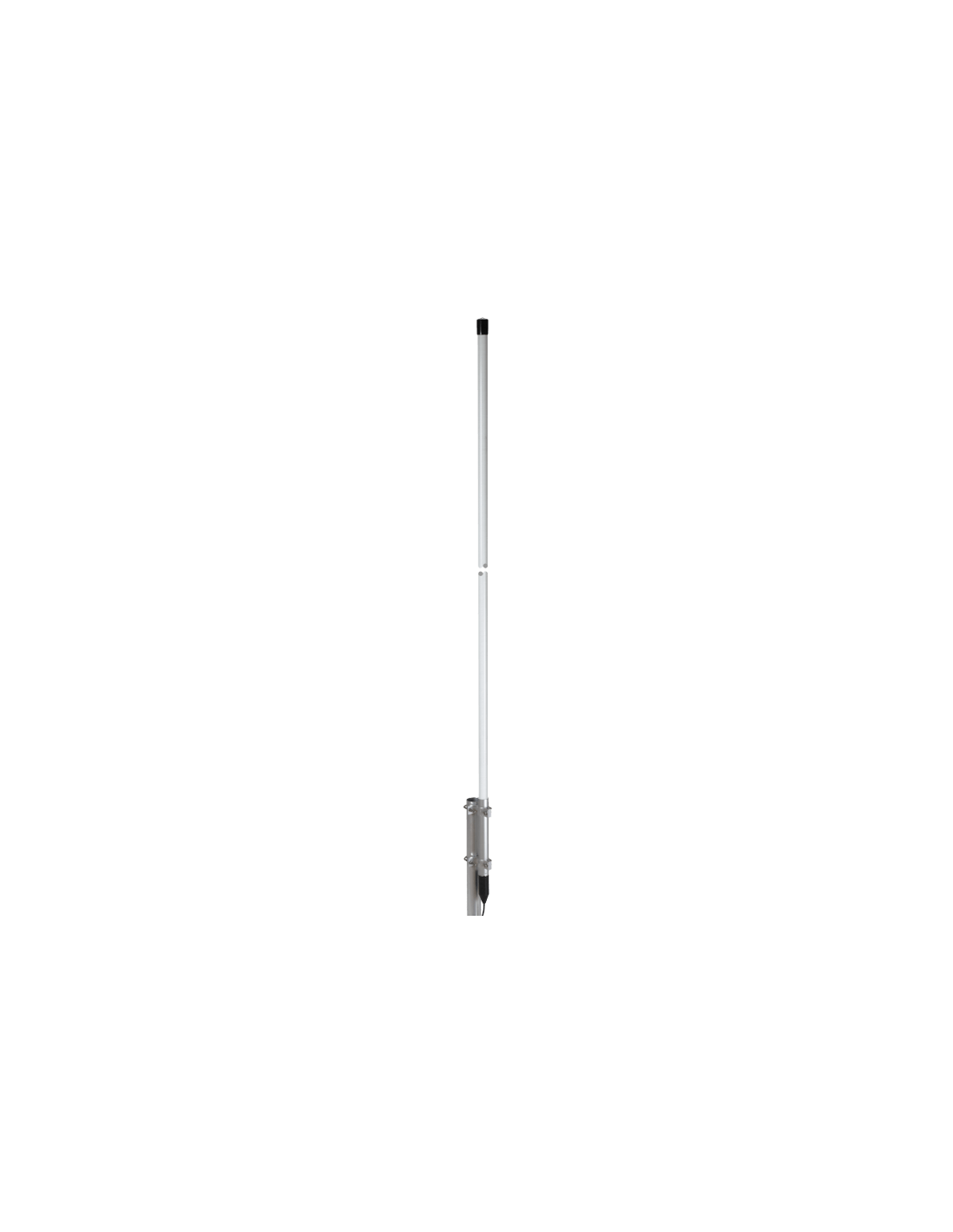

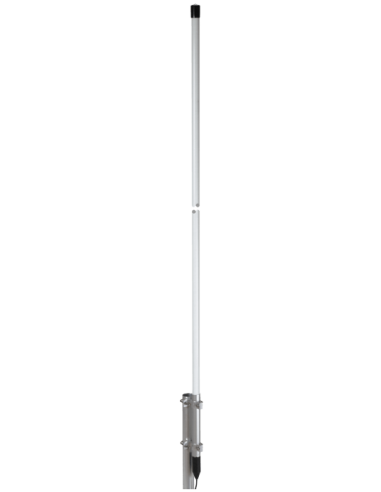

SPO 135-5 SIRIO

VS 002705

New product

BASE ANTENNA VHF -

PROFESSIONAL WIDE BAND

Colinear

135...147 MHz /

3 dBd – 5.15 dBi /

2940 mm

More details

190,00 € tax incl.

More info

Type: Colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
135-147 MHz @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 3 dBd – 5.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber
Height (approx):
2940 mm / 9.65 ft
Weight (approx):
2160 gr / 4.76 lb

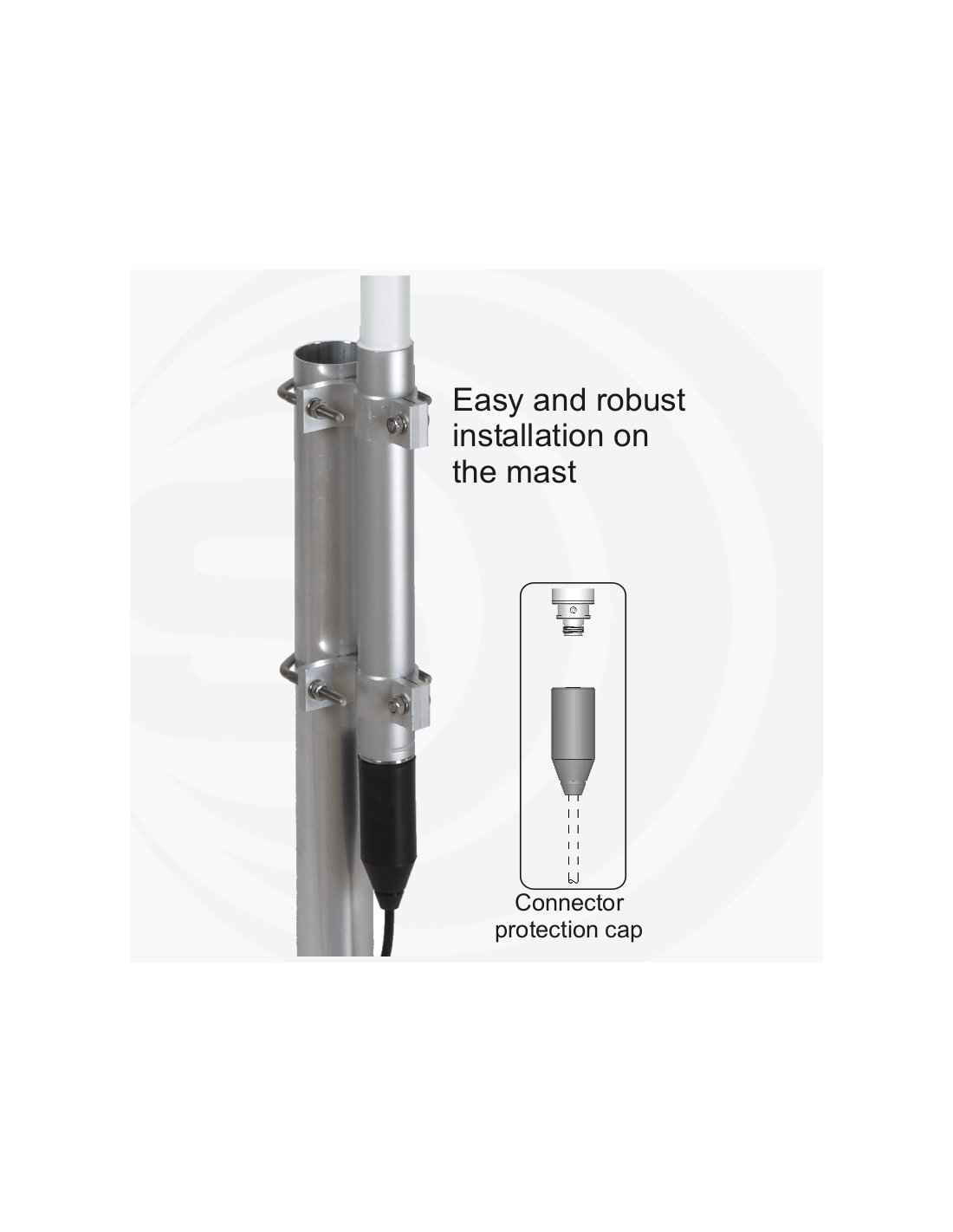

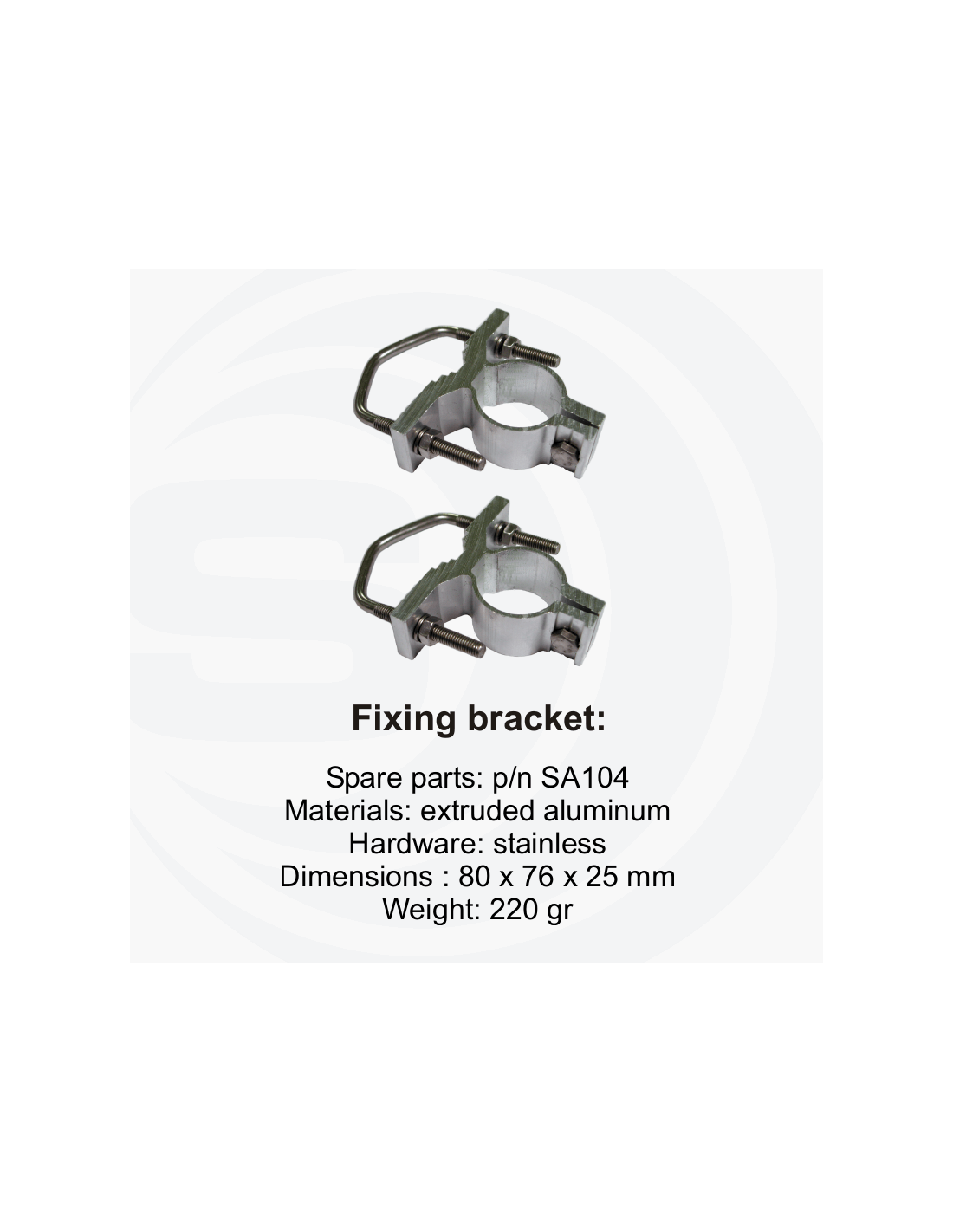

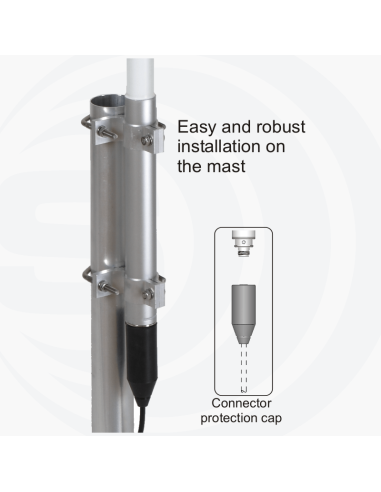

Mounting type: On-Mast
