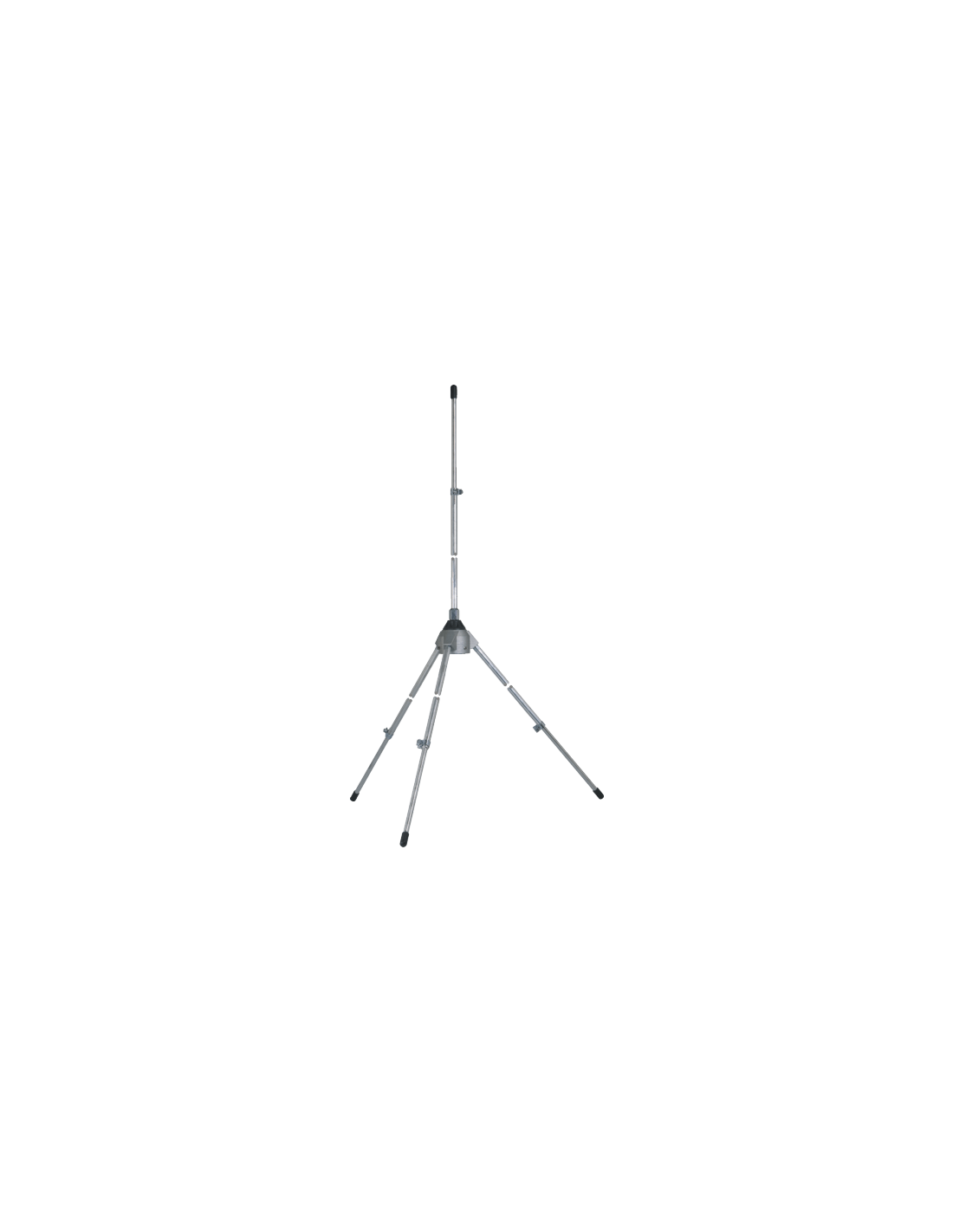

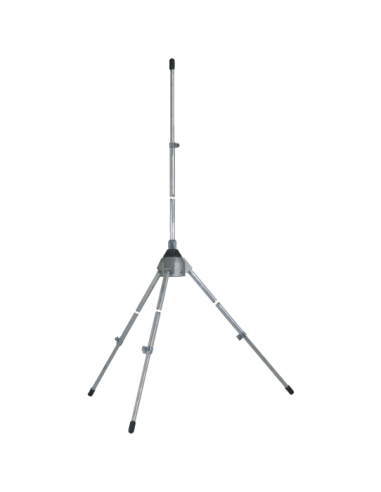

GPA 40-70 SIRIO

VS 000014

New product

BASE ANTENNA VHF

27...30 MHz Tunable /

1/4 λ /

3200 mm

More details

29,00 € tax incl.

More info

Type: 1/4 λ ground plane
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
40 … 70 MHz Tunable
Systems: 10m-HAM, 6m-HAM, 2m-HAM, 1.25m-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, FM, ISM-169MHz
Gain: 0 dBd – 2.15 dBi
Bandwidth:
≥ 3.7MHz @ SWR ≤ 2
Max Power:
1000 W (CW)
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Chromed brass, Zamak
Height (approx):
3200 mm / 10.5 ft
Weight (approx):
935 gr / 2.06 lb
Mounting type: On-Mast
